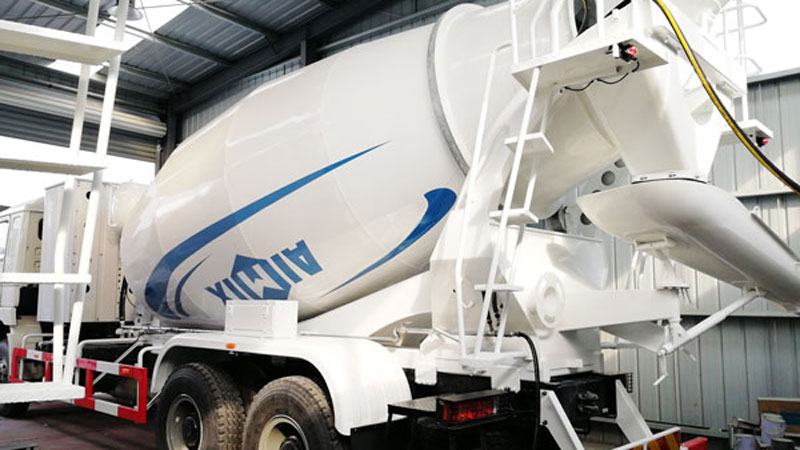

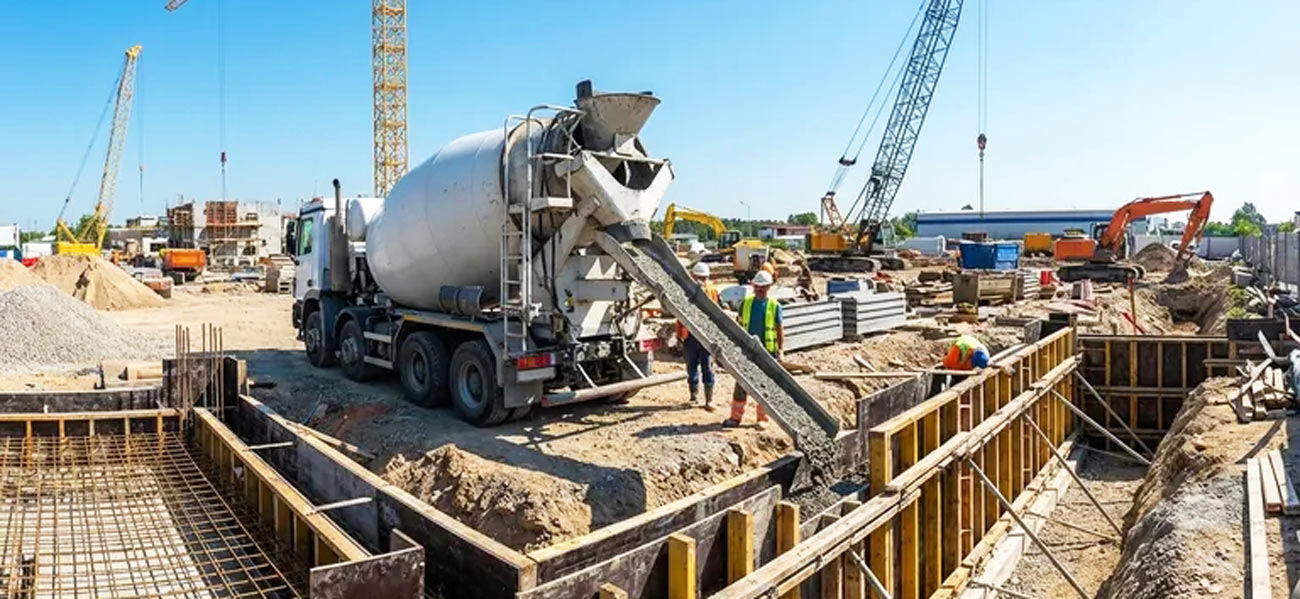

When you think of a “concrete transit mixer”, you likely picture a standard truck that receives pre-mixed concrete from a batching plant. For decades, transit mixers have been synonymous with large rotating drums on truck chassis that transport pre-mixed concrete from a central batching plant to the construction site. This model is used for many construction projects, but has inherent limitations: expensive waiting times, transport challenges on remote projects, and inefficient waste on smaller projects…
Could there be a smarter, more efficient, truly self-contained concrete transporter that would be free from these limitations? The Aimix Group has been at the forefront of innovation in designing a multi-functional concrete transit mixer that not only transports concrete, but also loads, mixes, and pours concrete completely independently – self loading transit mixer.
The Modern Challenge: Not Just Simple Transportation
The traditional concrete transit mixer truck plays a crucial role but operates within a constrained system. Its primary function is transportation and agitation, meaning it is entirely dependent on a fixed batching plant for loading. This dependency can lead to:
Scheduling Delays
Coordinating between the batching plant, multiple mixer trucks, and the construction site is complex. Delays at the plant or site can cause costly downtime for the entire fleet.
Geographical Limitations
Projects in remote or underdeveloped areas often lack easy access to batching plants, making concrete supply logistically challenging and expensive.
Higher Operational Costs
The need for a central plant, along with wheel loaders and additional personnel at the site, drives up the overall project cost.
Material Waste
For smaller projects or those with intermittent concrete needs, ordering a full truckload can lead to waste if the concrete is not used within its setting time.
These limitations highlighted the need for a more independent, efficient, and economical concrete transporting solution.
Aimix Redefined the Concrete Transit Mixer: One Machine, Four Functions

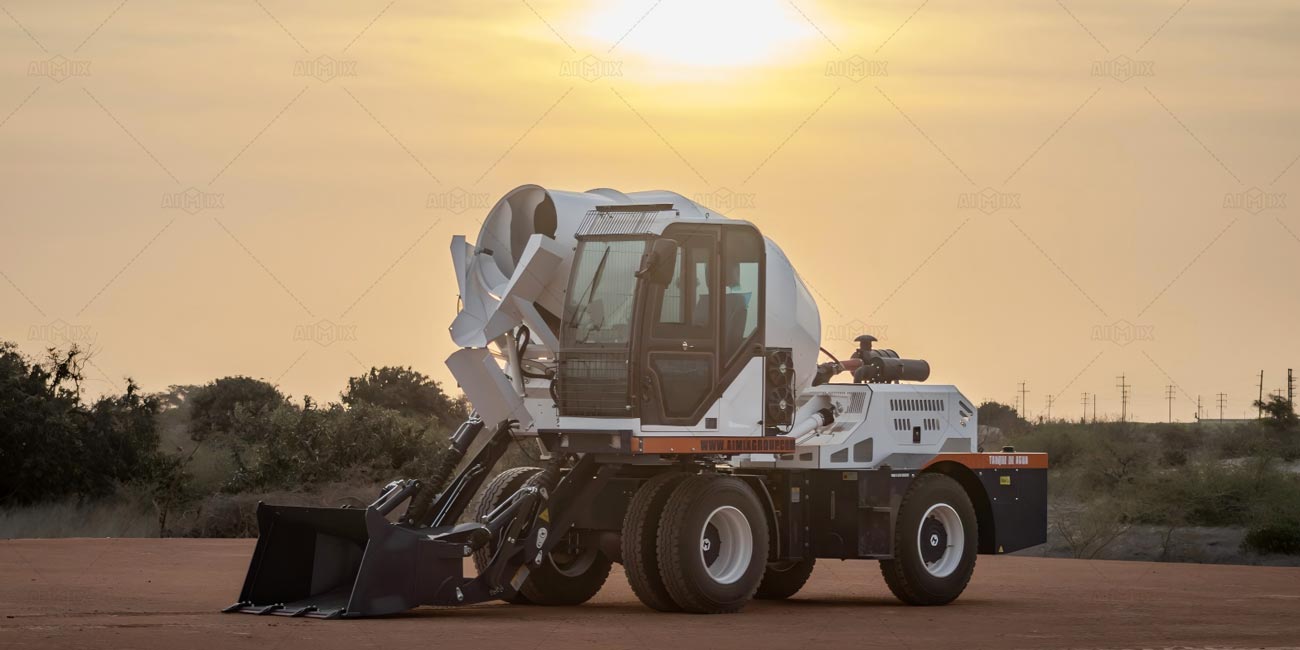

The Aimix self-loading transfer mixer is an all-in-one solution to these challenges. It combines the functions of a loader, weigh batcher, mixer, and transporter into one compactly designed, easy-to-operate unit. It not only delivers concrete, but also produces and pours concrete on demand, anytime, anywhere.
This all-in-one design eliminates the need for stationary batching plants and ancillary loading equipment such as wheel loaders, providing unrivalled independence and flexibility for projects ranging from rural road construction to urban infrastructure repairs. Then how transit mixer works? Next, I will introduce to you the entire process of Aimix updated transit mixer working.
01Automatic Loading
At the front of the transit mixture machine is a powerful hydraulic loading bucket. The operator simply drives to the stockpiles of sand, gravel, and cement, and uses the bucket to gather the raw materials. This self loading feature is also the reason why it is called a self loading concrete mixer.
02Precise Batching
Inside this concrete transfer machine, a computerized weighing system takes over. It accurately measures each raw material and water according to pre-set mix designs, ensuring every batch of concrete meets the required strength and consistency specifications.
03Mixing and Agitation
The heart remains the rotating mixing drum. As the truck travels to the discharge point, the drum rotates, continuously mixing the components into a homogenous concrete mixture, preventing segregation and setting.
04Transit and Discharge
Once reach the pouring point，the Aimix transit mixer concrete drum can rotate a full 270 degrees, allowing for multi-directional and precise discharge of concrete, even in challenging and confined site conditions.
5 Unique Advantages of Aimix Concrete Transit Mixer
Choosing Aimix self loading transit concrete mixer not only solves traditional transport constraints, but also helps you take your profitability and production capacity to the next level.
Ultimate Efficiency and Time Savings
Become the master of your own schedule. Produce concrete the moment it’s needed, eliminating waiting time for delivery trucks. The seamless process from loading to pouring drastically accelerates project timelines, allowing you to complete more jobs per year.
Unmatched Flexibility and Reach
Break free from the geographical tyranny of the batching plant. Take on profitable projects in remote locations, rural settings, or areas with limited infrastructure. This opens up entirely new markets and revenue streams for your business.
Significant Cost Reduction
The savings are multifaceted. Eliminate per-cubic-meter delivery charges. Drastically reduce material waste by mixing exactly what you need, precisely when you need it. One machine replaces multiple pieces of equipment (loader, mixer, truck), reducing fuel, maintenance costs across a fleet.
One-Person Operation, Reduced Labor Costs
A single skilled operator can manage the entire concrete production and placement process. This small transit mixer optimizes your workforce, reduces overhead, and minimizes the complexity of on-site coordination.
Superior Quality Control
You have direct control over the mix design and water content. Produce the exact grade of concrete required for the specific task, ensuring superior strength and finish, batch after batch.

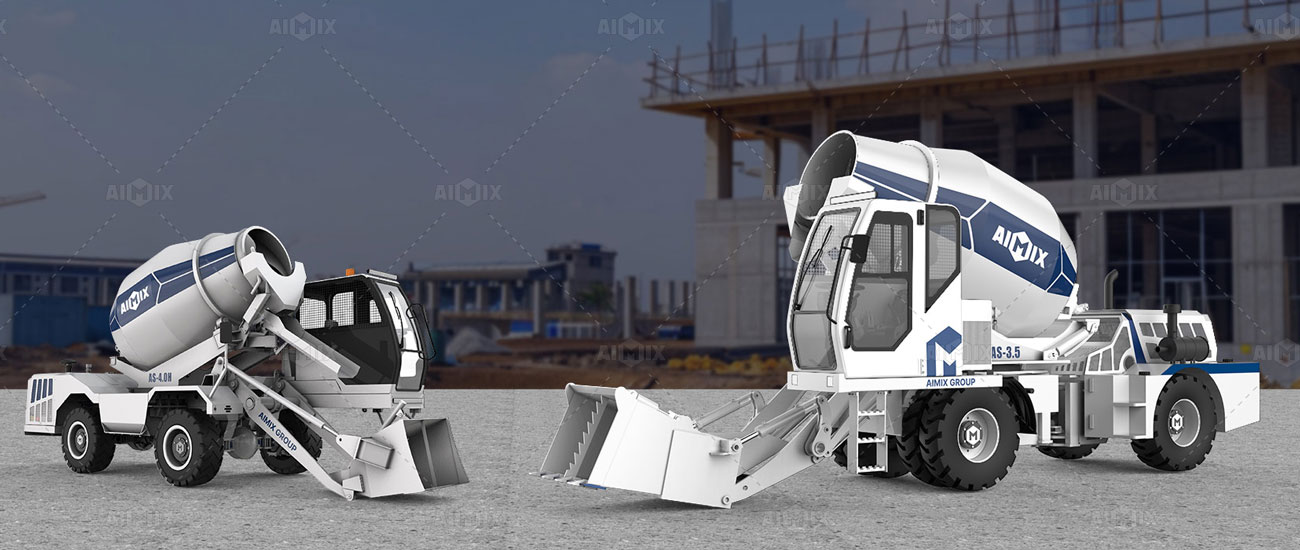

What’s the Transit Mixer Cost: A Cost-Effective Investment
The concrete transit mixer price is a primary consideration for any buyer. In this respect, Aimix self loading transit mixers are even more advantageous. Not only is the initial investment cost lower(10000-50000$) than that of a conventional transit mixer, but in the later stages of use you will be even more certain: choosing our concrete transit mixer machine is a very wise financial decision!
Significant Cost Savings
Eliminates Equipment Costs: Removes the need to rent or purchase a separate wheel loader.
Reduces Labor Costs
Saves Transportation and Logistics Costs
Reduces or eliminates costs associated with concrete transportation from distant batching plants.
Minimizes Material Waste
Key Specifications: Concrete Transit Mixer Capacity and Configuration Details
When considering investing, understanding the transit mixer details regarding capacity and configuration is vital for matching the right machine to your project needs. Aimix offers a range of models to cater to different project scales. Here is the list of concrete transit mixer specifications:
| Model | AS-1.2 | AS-1.8 | AS-2.6 | AS-3.5 | AS-4.5 | AS-5.5 | AS-6.5 |
|---|---|---|---|---|---|---|---|
| Mixing tank capacity(m³) | 1.2 | 1.8 | 2.6 | 3.5 | 4.5 | 5.5 | 6.5 |
| Concrete output(m³/h) | 4.8 | 7.2 | 10.4 | 14 | 18 | 22 | 26 |
| Engine power (kw) | 55 | 78 | 78 | 91 | 91 | 110 | 132 |
| Mixer drum capacity (L) | 1700 | 2680 | 3580 | 4740 | 6800 | 7800 | 9000 |
| Water tank (L) | 400 | 500 | 500 | 620 | 920 | 860 | 1465 |
| Weighing method | Automatic hydraulic weighing system | Automatic hydraulic weighing system | Automatic hydraulic weighing system | Automatic hydraulic weighing system | Automatic hydraulic weighing system | Automatic hydraulic weighing system | Automatic hydraulic weighing system |
| Total weight (Kg) | 5000 | 6100 | 7100 | 7900 | 9200 | 11500 | 12520 |
| Overall size (LxWxH) | 6400x2550x3300 | 7700×2750×3350 | 7860×2750×4100 | 7830×2680×4170 | 7640×2870×4750 | 8450×3100×3640 | 8450×3050×3860 |
| Max. Speed (km/h) | 30 | 35 | 30 | 30 | 35 | 42 | 40 |
| Min. turning radius (mm) | 4700 | 3250 | 5300 | 5300 | 4800 | 6200 | 4800 |
| Drum speed (r/min) | 13 | 13 | 13 | 13-20 | 17 | 20 | 20 |
| Fuel tank (L) | 63 | 75 | 75 | 120 | 120 | 180 | 342 |
| Wheel base(mm) | 2300 | 2750 | 2800 | 2900 | 2480 | 3350 | 2850 |
| Hydraulic tank (L) | 63 | 75 | 75 | 120 | 120 | 180 | 274 |
Global Applications of Aimix Concrete Transit Mixers

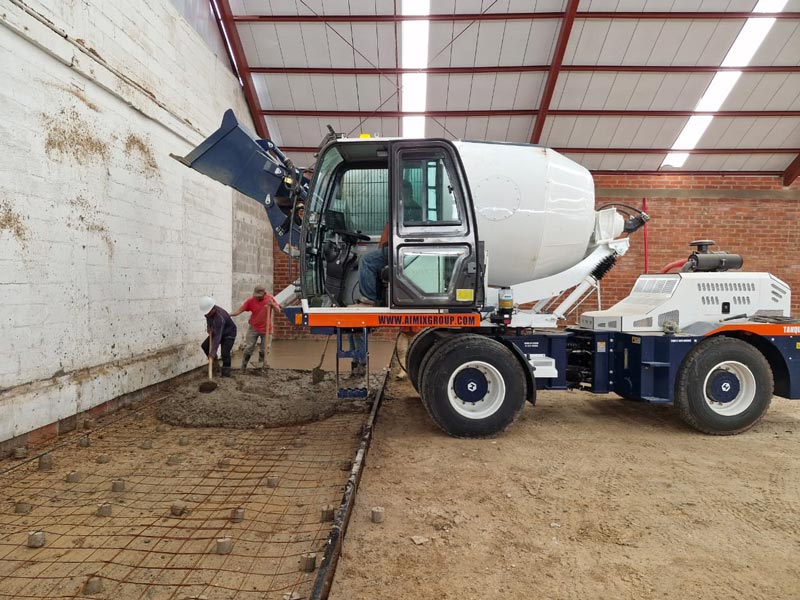

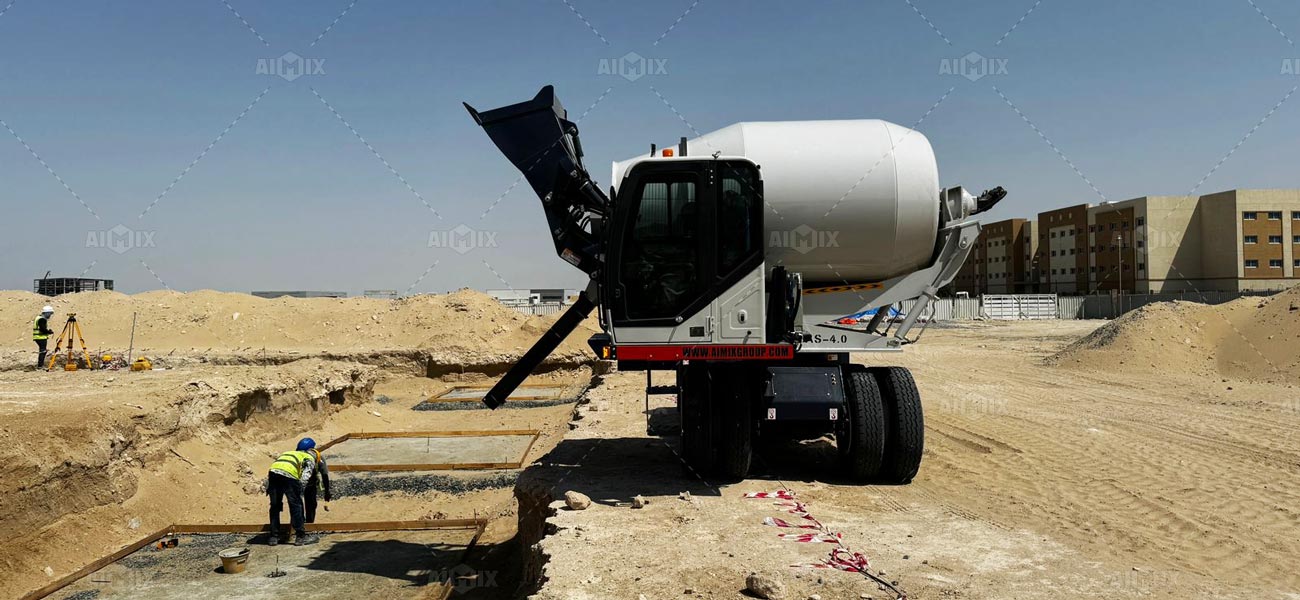

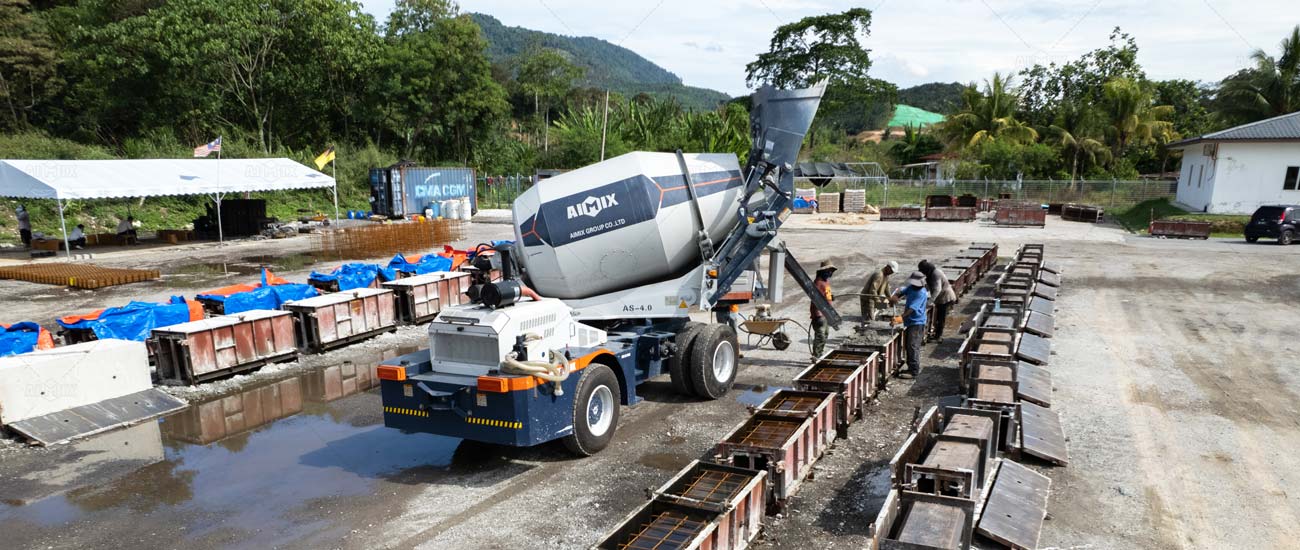

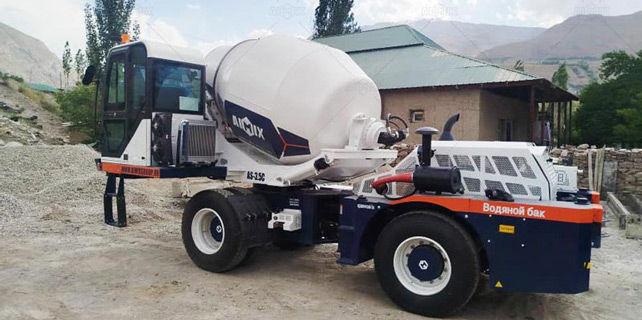

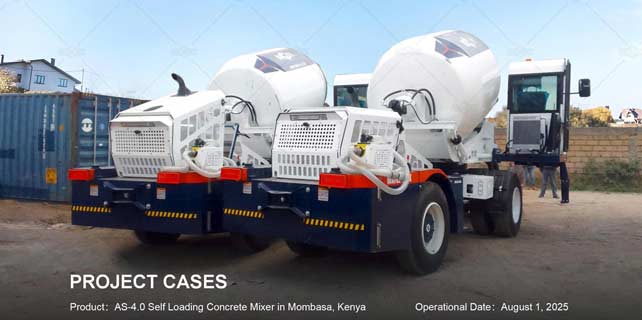

With excellent performance, innovative design and unrivalled cost performance, Aimix concrete transit mixer has won wide recognition in the international market and gradually become the project standard for small and medium-sized projects. We has successfully exported more than 3,000 concrete transit mixers to the world. Whether it’s the tropical rainforests of Southeast Asia or the vast plains of Africa, from infrastructure to commercial buildings, Aimix self loading transit mixers are playing a vital role in projects all over the world, redefining efficiency and possibilities on the construction site.

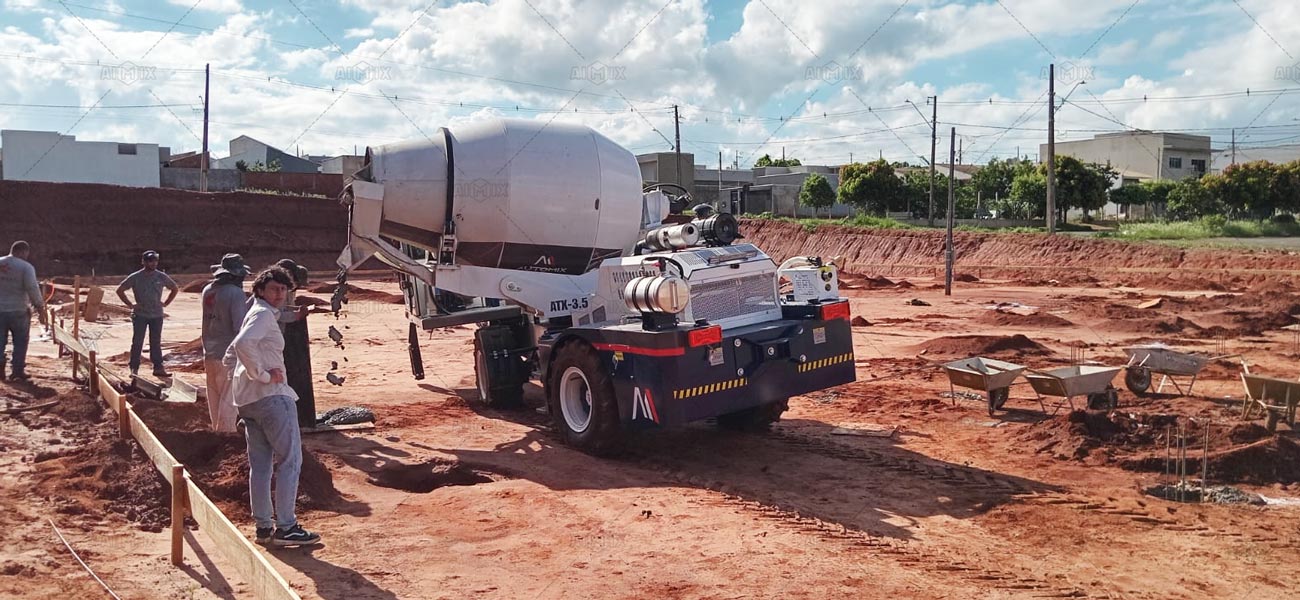

- Rural and Remote Construction: Building roads, bridges, and small infrastructure in areas without access to ready-mix plants. The concrete transit machine’s independence is its greatest advantage here.
- Small to Medium Residential Projects: Constructing housing complexes, villas, and townhouses where daily concrete demand is variable and setting up a batch plant is impractical.

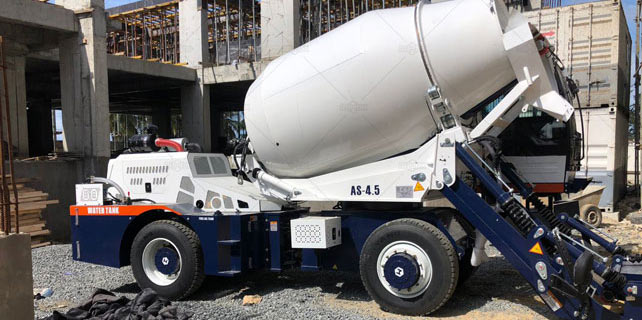

- Industrial Projects: Building factories, warehouses, and logistics centers, especially for floor slabs and foundations requiring continuous pours.

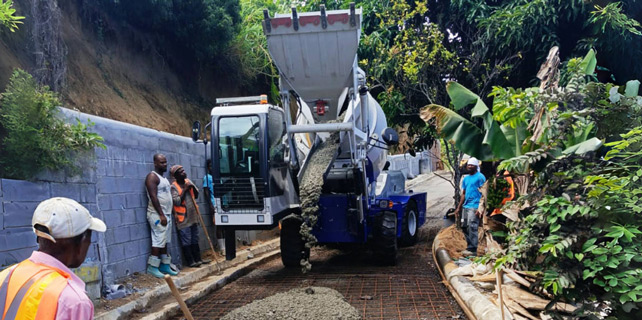

- Infrastructure Repair and Maintenance: Perfect for repairing roads, dams, airports, and bridges, as it can produce small batches exactly where and when needed, minimizing disruption.
The reason of being the choice of 1000+ customers:
Robust Build QualityWear-resistant steel is forged at high temperatures to resist rust and corrosion. So it can withstand harsh conditions such as the Philippine coast, African construction sites and harsh European winters.

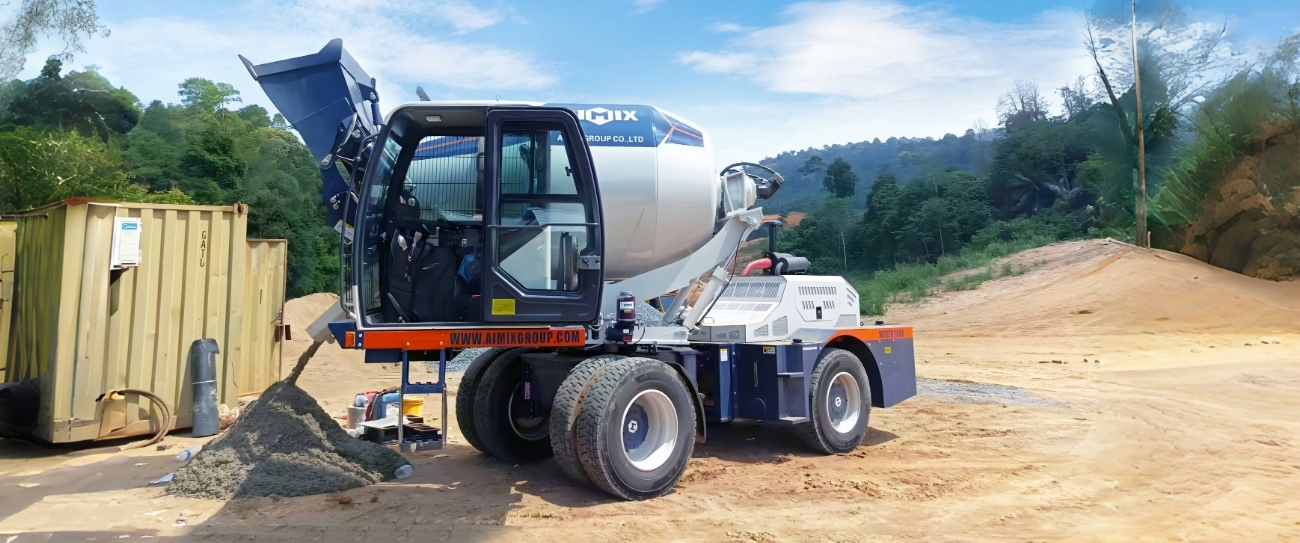

All-Terrain CapabilityFour-wheel drive and powerful engines of our concrete transit mixer for sale ensures access to the most challenging sites.
Technical Support and Parts NetworkA growing global network ensures prompt service and parts availability, minimizing downtime anywhere in the world.
If you are looking to enhance the efficiency and profitability of your construction projects, explore the full range of Aimix concrete transit mixers. Contact us today to discuss your specific requirements, receive detailed specifications, and get a personalized quote tailored to your needs!
