Truck mounted concrete pump for sale can produce and pump concrete. It is on a truck chassis, which is very movable, so it is convenient for different projects. There are three types of truck mounted concrete pumps AIMIX can supply: truck mounted concrete boom pump, truck mounted concrete line pump and truck mounted concrete mixer pump. On this page, we will give you a detailed explanation of these three items.
At first, you can learn about truck mounted mixer pump.

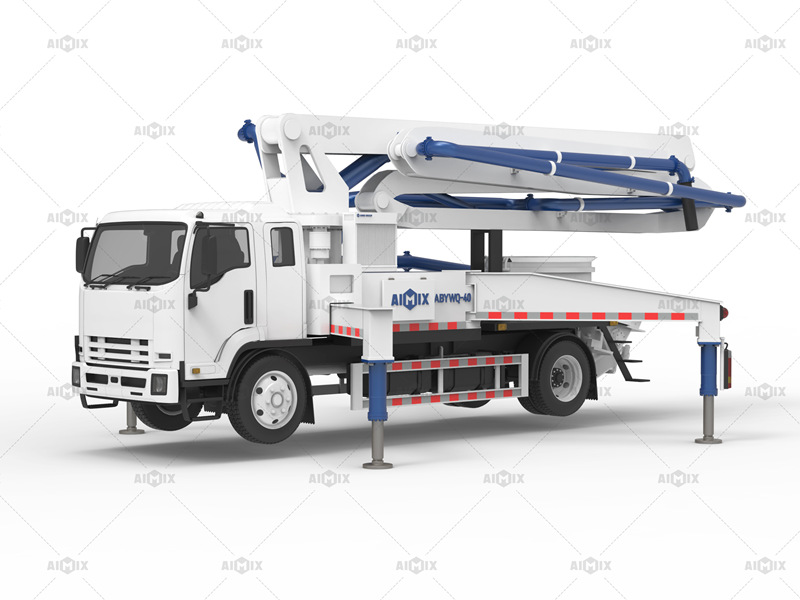

Truck mounted mixer pump

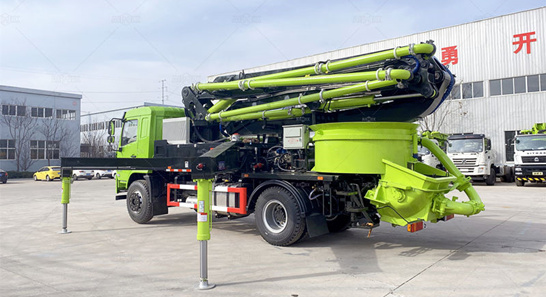

Mixer type truck mounted concrete pump for sale, as its name implies, it not only can pump concrete but also produce and mix concrete. On the truck chassis, there is a concrete mixer working for projects. We adopt the original imported main pump, which has features of low failure rate, longer service life, and higher stability; reinforced compulsory concrete mixer, can mix faster and more uniformly. In addition, we use a high manganese steel plate, so it is more wear-resistant.
Characteristics of mixer type truck mounted pump
1. High configuration and excellent performance. Use imported Kawasaki oil pump, brand generator set, brand compulsory horizontal shaft concrete mixer, fast speed, even mixing, which greatly improve the working efficiency.
2. Patent hydraulic system. Full hydraulic reversing double-circuit system with little reversing impact. The hydraulic oil tank is a double filter device, which increases the stability of the hydraulic system and prolongs the service life of the hydraulic system.
Now, Show you specifications.
Specifications
Parameters | |||
No. | Item | Unit | Specification |
1 | Max. theo. concrete output | m³/h | 40 |
2 | Generator power | KW | 120 |
3 | Main motor power | KW | 45 |
4 | Maximum aggregate | mm | 40 |
5 | Concrete pumping pressure | MPa | 8 |
6 | Concrete cylinder diameter | mm | 200 |
7 | Concrete cylinder stroke | mm | 1000 |
8 | Hopper capacity×Loading height | m³×mm | 0.7×1400 |
9 | Inside diameter of delivering pipe | mm | φ125 |
10 | Pipe length | m | 100 |
11 | Concrete slump | mm | 140~220 |
12 | Dimensions | mm | 7220×2450×3550 |
13 | Chassis | Chinese V(wheelbase is 3.6 meters) | |
14 | Chassis steering | Left hand steering | |
14 | Max. theo. concrete production capacity | m³/h | 30 |
15 | Total mass | KG | 13580 |
Note: S-valve concrete mixer truck pump |
Specification | |||||
No. | Main parts | Specification | Set | Remark | |
1 | Chassis | motor-vehicle chassis | Chinese V(wheelbase is 3.6 meters) | Wangpai | |
2 | Auxiliary frame assembly | Auxiliary frame | 1 | Tuowo | |
Support oil cylinder | φ125×φ90×380 | 1 | Xieli | ||
3 | Mixing system | JS500 twin shaft concrete mixer | Mixing volume
0.5m³ |
1 | Wear – resistant liner with alloy |
Drive motor | 18.5KW | 1 | |||
lifting mechanism | 7.5KW | 1 | Tuowo | ||
Telescopic cylinder | 1 | ||||
Submerged pump | 0.75KW | 1 | |||
vibration motor | 0.55KW | 1 | |||
4 | Pumping system | Hopper | Hopper volume>0.5m³ | 1 | Tuowo |
Delivery cylinder | φ200×1000 | 2 | Sanboshi | ||
Oil cylinder | φ100×φ70×1000 | 2 | Sanboshi | ||
Distribution of oil cylinder | 2 | Xieli | |||
S tube | 1 | ||||
5 | Hydraulic system | Main oil pump | 140ml/r | 1 | Korean Kawasaki |
Hydraulic valve | 1 | Huade | |||
Rubber hose | 1 | Italy Manuli | |||
Overflow valve | Taiwan youli | ||||
Filter | 1 | Liming/Zhonglong | |||
6 | Electric System | Control box | 1 | ||
PLC | 1 | Simems/Sanling/
Omron |
|||
air switch | 1 | Zhengtai/Schneider/
Delixi |
|||
Breaker | 1 | Zhengtai/Schneider/
Delixi |
|||
Button | 1 | ABB/Delixi | |||
7 | Power system | Power system | 120KW | 1 | All copper permanent magnet |
Electric motor | 45kw | 1 | |||
Motor flange | 1 | ||||
Half shaft I, half shaft II | 1 | ||||
8 | Hood assembly | Hood cover | 1 | Tuowo | |
Side rib cover | 1 | Tuowo | |||
9 | Lubrication system | Hydraulic grease pump assembly | 1 | Weidong | |
Copper pipe | 1 | ||||
10 | Boom assembly | Bracket | 1 | Tuowo | |
Cantilever | 1 | Tuowo | |||
Electric hoist PA400 | 700W/220V | 1 | |||
Total power:72.3KW(=18.5+0.75+0.55+7.5+45) |
Secondly, learn about truck mounted concrete boom pump.

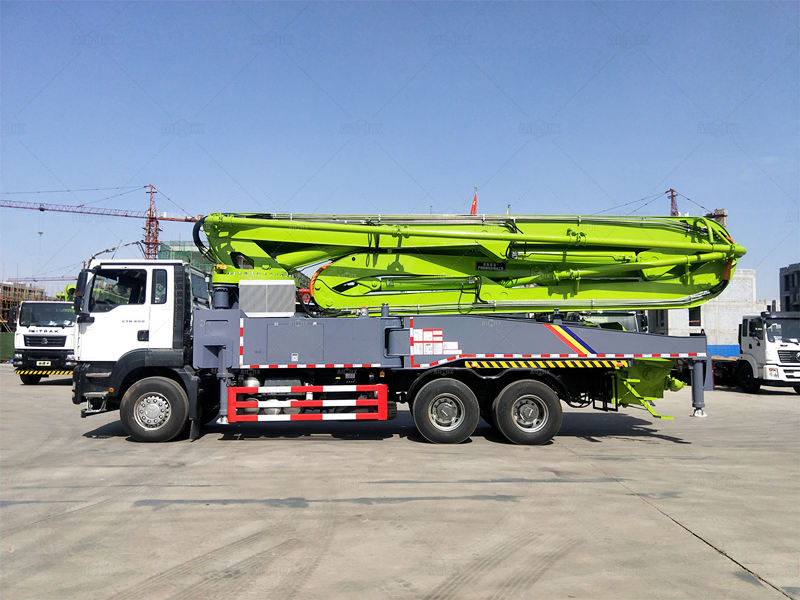

Brief introduction about truck-mounted boom pump

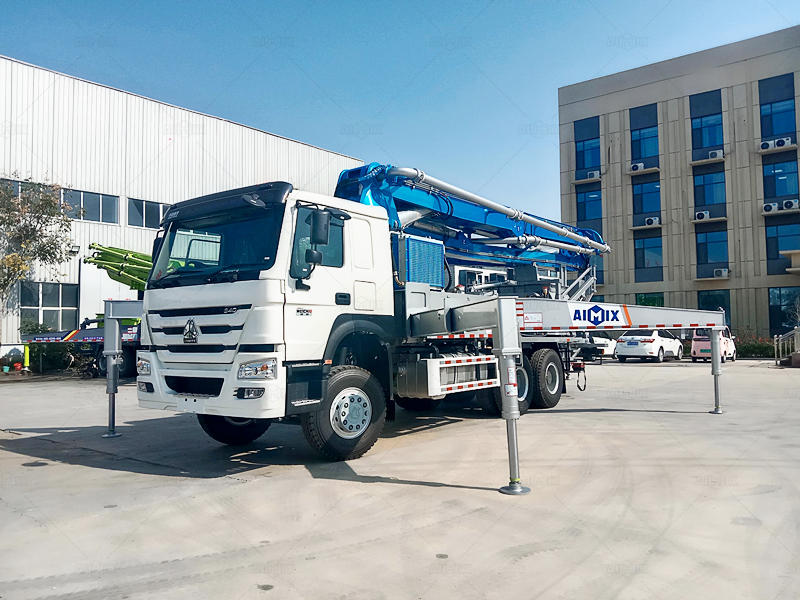

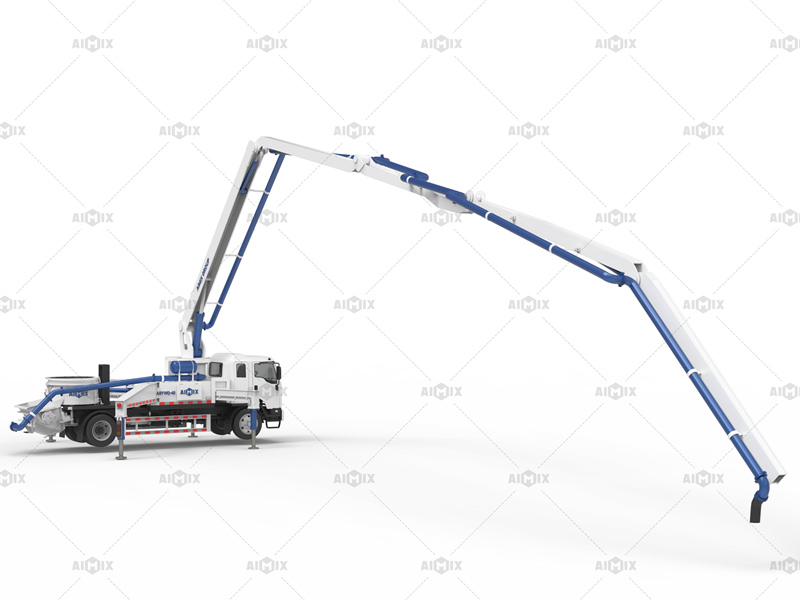

Truck mounted concrete boom pump truck is modified on the chassis of a truck, equipped with a retractable or flexural placing boom. The boom pump is composed of motion and power transmission device, pumping and mixing device, placing device, and some other auxiliary devices.
The power of the concrete boom pump truck transmits the power of the engine to the hydraulic pump unit or the rear axle through the power transfer box, and the hydraulic pump pushes the piston to drive the concrete pump to work. Then use the placing boom and delivery pipe on the pump truck to transport the concrete to a certain height and distance. You can see the pictures and specifications below.
Specifications
Name | unit | AJBP-21 | |
Pump | Output In Theory | m3/h | 50 |
Maximum Theoretical Outlet Pressure | Mpa. | 8 | |
Theoretic Pumping Pressure | Mpa | 31 | |
Bucket Volume | L | 400L | |
Height Of Top Surface Of Bucket | mm | 1500 | |
Model Of Distribution Valve | S valve | ||
Concrete Cylinder Diameter×Stroke | mm | 200*1000 | |
Slump | mm | 120-230 | |
Max Aggregate Size | mm | 40 | |
Hydraulic Tank Capacity | L | 600 | |
Clean Model | Water | ||
Boom Model | RZ | ||
Max. Operation Height | m | 21 | |
First Boom Length/Angle | mm/。 | 6510/90° | |
Second Boom Length/Angle | mm/。 | 5733/180° | |
Third Boom Length/Angle | mm/。 | 4613/180° | |
Turntable Rotation Angle | 。 | ±360 | |
Landing Let Model | X | ||
The maximum pumping height | m | 20.1 | |
The maximum pumping radius | m | 16.8 | |
X leg distance | mm | 5010 | |
Back leg | mm | 4350 | |
Cooling System | Air cooling (24v) | ||
Control System | Control box +screen | ||
Main Pump | kw | 112 | |
Diesel engine | kw | 92 | |
Negative Sensitive Multi-Way Valve | KEMAI | ||
Main Valve Control Form | Hydraulic control reversal | ||
Mixer | JS500 | ||
Chassis | Brand /Model | CDW5160THBA1R5 | |
Axle(Mm) | 4200 | ||
Weight | kg | 15580 | |
Engine Model | 118 | ||
Power | kw | YC4S160-50 | |
Emission Standards | Uro-V | ||
Dimensions | 9 | 9450*3800*2400 |
Specifications
name | unit | AJBP-34 | ||
Pump | output in theory | m3/h | 60 | |
Maximum theoretical outlet pressure | Mpa. | 11 | ||
theoretic pumping pressure | Mpa | 31.5 | ||
bucket volume | L | 650L | ||
height of top surface of bucket | mm | 1500 | ||
model of distribution valve | S valve | |||
Concrete cylinder diameter×stroke | mm | 230*1400 | ||
Slump | mm | 120-230 | ||
Max aggregate size | mm | 40 | ||
max. operation radius | m | 29.72 | ||
Main oil cylinder diameter×stroke | mm | 140*90/1400 | ||
Hydraulic tank capacity | L | 800 | ||
clean model | Water | |||
Boom model | RZ | |||
max. operation height | m | 34 | ||
First boom length/angle | mm/。 | 7120/90 | ||
Second boom length/angle | mm/。 | 5960/180 | ||
Third boom length/angle | mm/。 | 5795/180 | ||
Forth boom length/angle | mm/。 | 5751/235 | ||
Fifth boom length/angle | ||||
Turntable rotation angle | 。 | 360 | ||
Landing let model | X | |||
distance between front & rear landing legs | mm | 5340 | ||
diameter of delivery pipe | mm | 125 | ||
length of hose pipe | m | 4 | ||
quantity of boom | 5 | |||
rotary angle of each boom | ° | 90/180/180/235/215 | ||
remote control distance | m | 100m | ||
Electronic component | Schneider | |||
Cooling system | Air cooling (24v) | |||
Control system | Control box +screen | |||
Main pump | 190 | |||
Transfer case | ZHuzhou Grea | |||
Negative Sensitive Multi-way Valve | KEMAI | |||
Main valve control form | Hydraulic control reversal | |||
Main Value | Rexroth | |||
Mixer | JS500 | |||
Chassis | Brand /model | CDW5230THBA1N5 | YZZ5230THBSZ5D | EHY5340THBSZ |
Axle(mm) | 5300 | 5200 | 4750+1300 | |
Weight (kg) | 22600 | 25000 | 33000 | |
Engine Model | YC6JA220-50 | YC6JA240-50 | YC6JA270-50 | |
Power (kw) | 162 | 177 | 199 | |
Emission Standards | Euro-V |

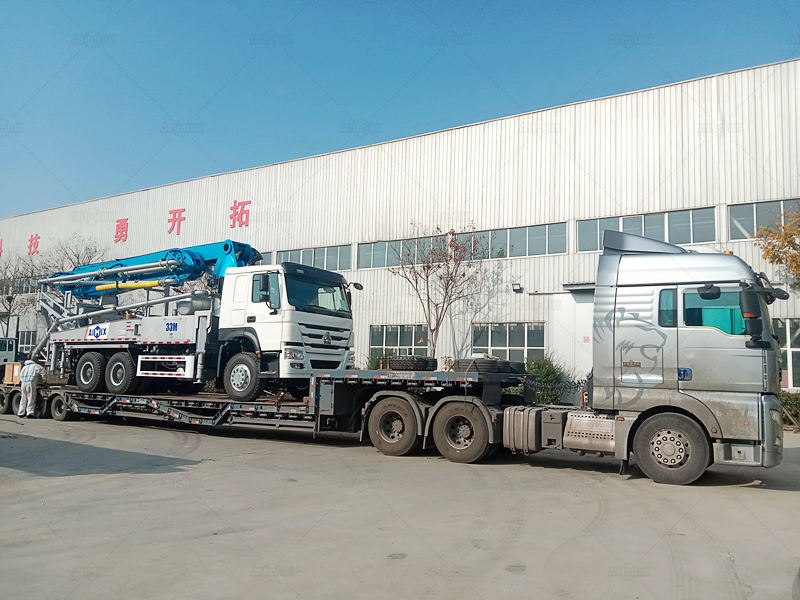

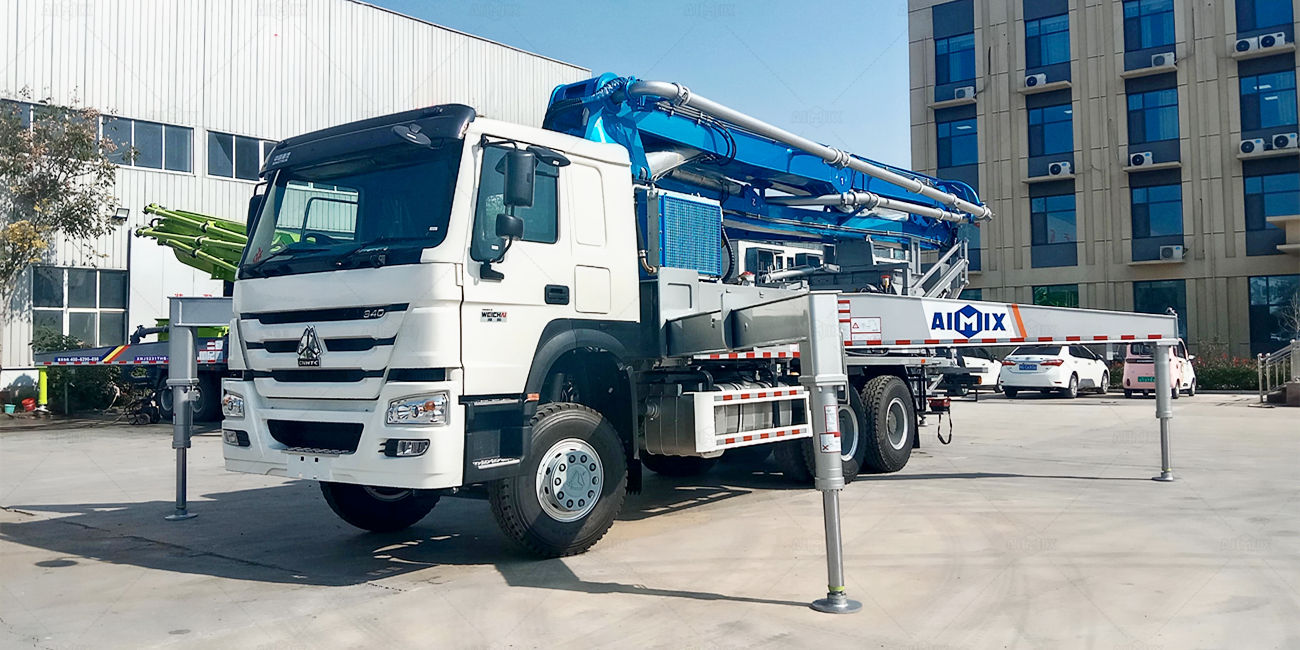

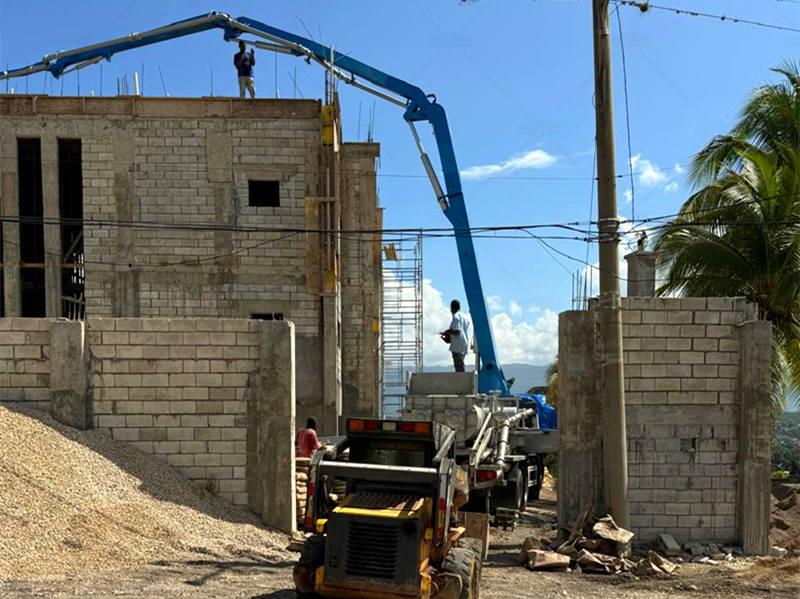

21m truck mounted concrete boom pump in site
Thirdly, show you truck mounted concrete line pump for sale.

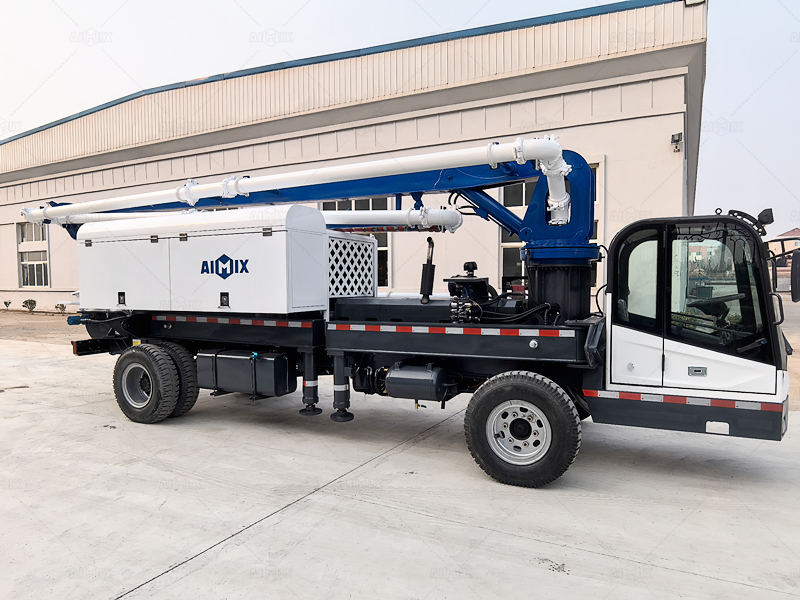

Truck mounted line concrete pump

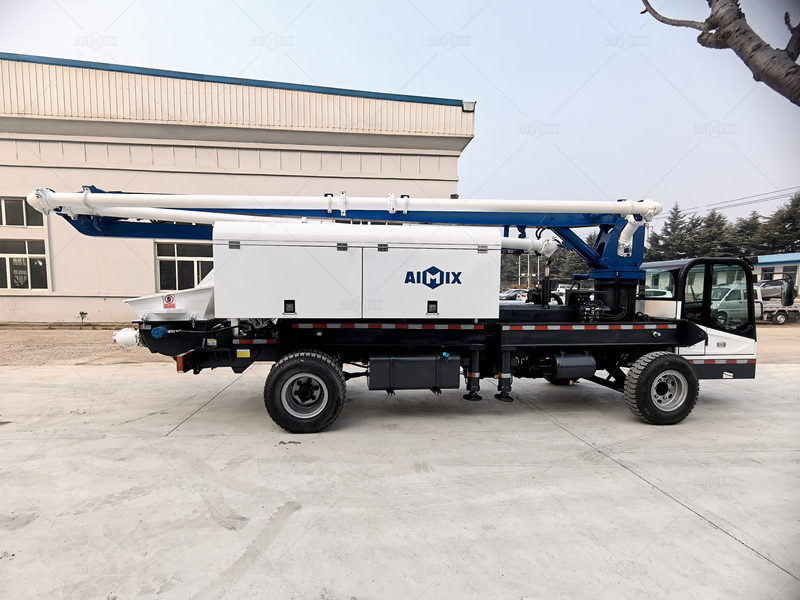

This type of truck mounted line pump cannot mix concrete, that’s to say, it is only used to pump concrete. But because of its convenience, it also won high praise from our new and old customers. Look at the pictures below.
In AIMIX GROUP, truck mounted boom pump and mixer pump are very popular, if you are interested, contact us: market@aimixgroup.com.
Finally, AIMIX, as one of the most reputable truck mounted concrete pump manufacturers, would like to show you our service.
Service provided by AIMIX GROUP
1. One-year warranty.
2. Spare parts supply.
3. On-line guidance.
4. Regular visits for customers, about four times a year.
AIMIX truck mounted concrete pumps for sale are easy to move, which can be driven to different places for various projects. And the biggest advantage is that it is unnecessary to install it, when it arrives at the site, adjust the pipe according to the requirements, you can put it into use. Do you have any other questions? If no, leave your message on this page, we will give you the best truck mounted concrete pump price!
