Choosing the right asphalt mixing plant is crucial for road construction, bridge building, or other projects. But among the many choices, how to choose the types of asphalt mixing plants that meet your needs? In this article, we will provide you with a detailed analysis of how to choose the right asphalt plant from different aspects to help you clarify the path of choice.

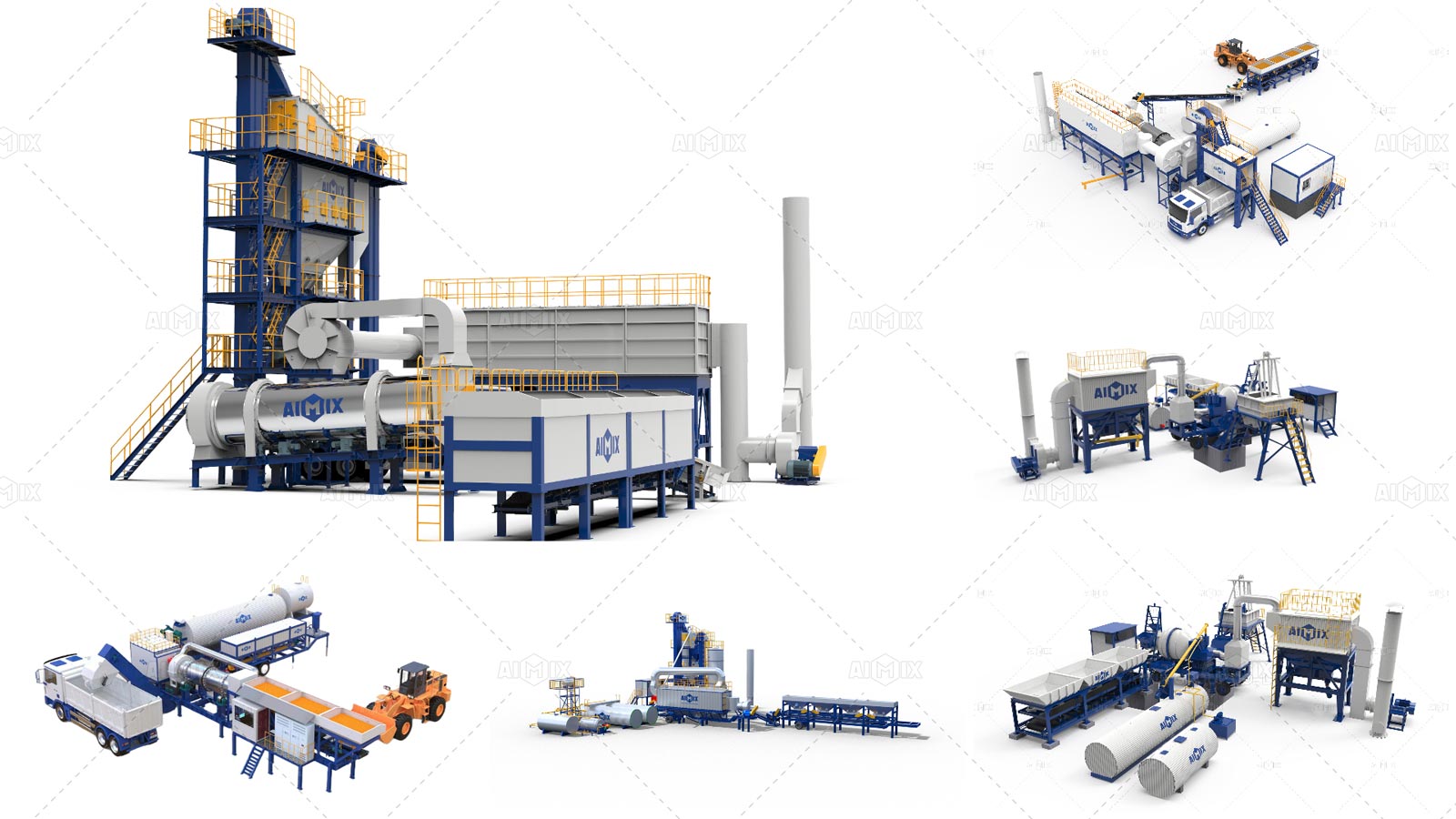

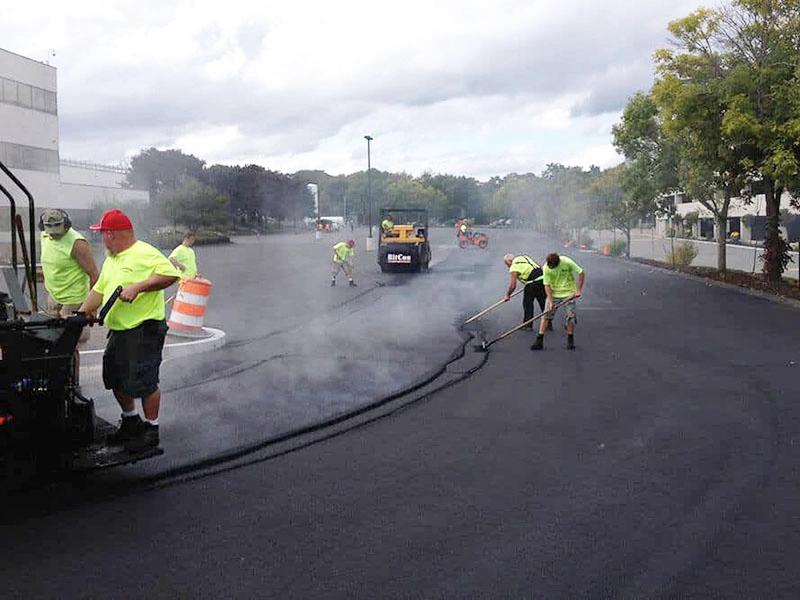

Selecting The Right Asphalt Mixing Plant According To Different Projects
Before choosing the right asphalt mixing plant, you first need to clarify the nature and needs of your project. There are various types of asphalt mixing plants. Each type of asphalt mixing plant has its own characteristics and applicable scenarios. Then you need to determine the most suitable type of asphalt mixing plant according to the actual situation.

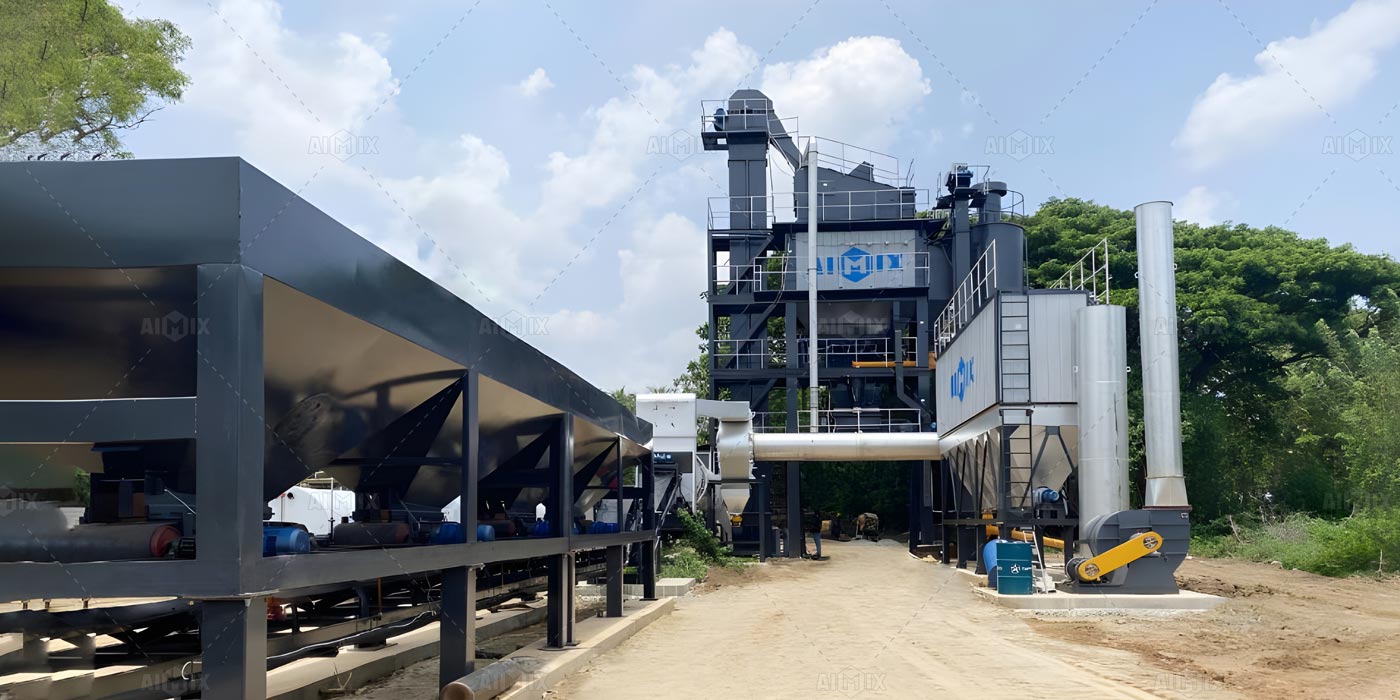

Large/Long-Term Fixed-Site Projects
Highway Construction
Highways construction needs ample asphalt mixture. Besides, the ALQ series asphalt mixing plant’s high efficiency and stability make it ideal for highway construction projects. It can stably provide a high-quality asphalt mixture to ensure the durability and safety of the road.

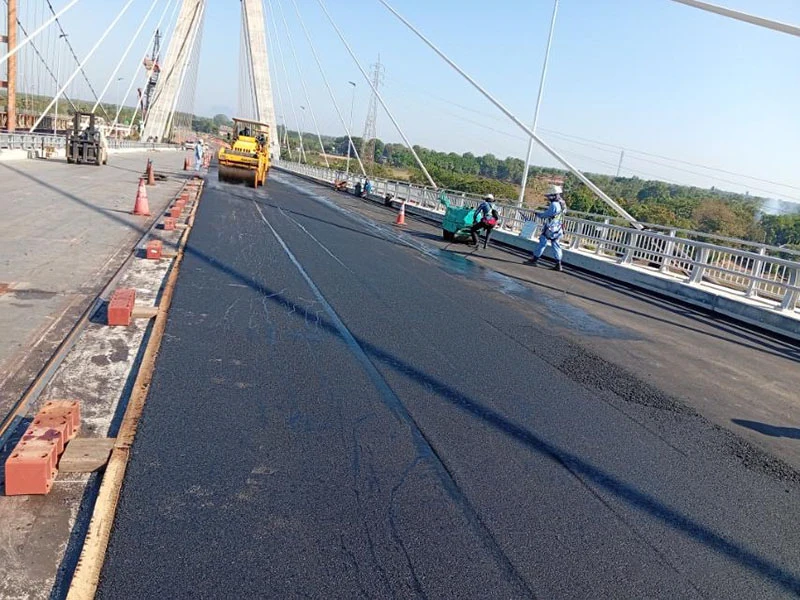

Large Infrastructure Construction
large infrastructure projects, such as bridges, tunnels, dams, etc., also require large quantities of asphalt mixture, and the stability and efficiency of the ALQ series asphalt mixing plant can meet the high output demand for asphalt mixture in these large projects, to ensure the progress and quality of the project.
City Road Reconstruction and Expansion
In city road reconstruction and expansion projects, a large amount of asphalt mixture is needed for road construction and paving. The stationary asphalt mixing plant can operate stably on a fixed site, providing a continuous supply of asphalt mixture for city road reconstruction and expansion projects.
Industrial Park Construction
The construction of roads, car parks and factories in industrial parks also requires a large amount of asphalt mixture, and the stability and efficiency of ALQ series asphalt mixing plant can meet the demand for asphalt material supply for these industrial park projects.
To sum up, ALQ series stationary strong mix asphalt mixing plant is suitable for all kinds of projects with long-term fixed sites, and its stability and high efficiency make it become the first choice of equipment for large-scale projects, which can ensure the smooth progress of the project and its final successful completion.

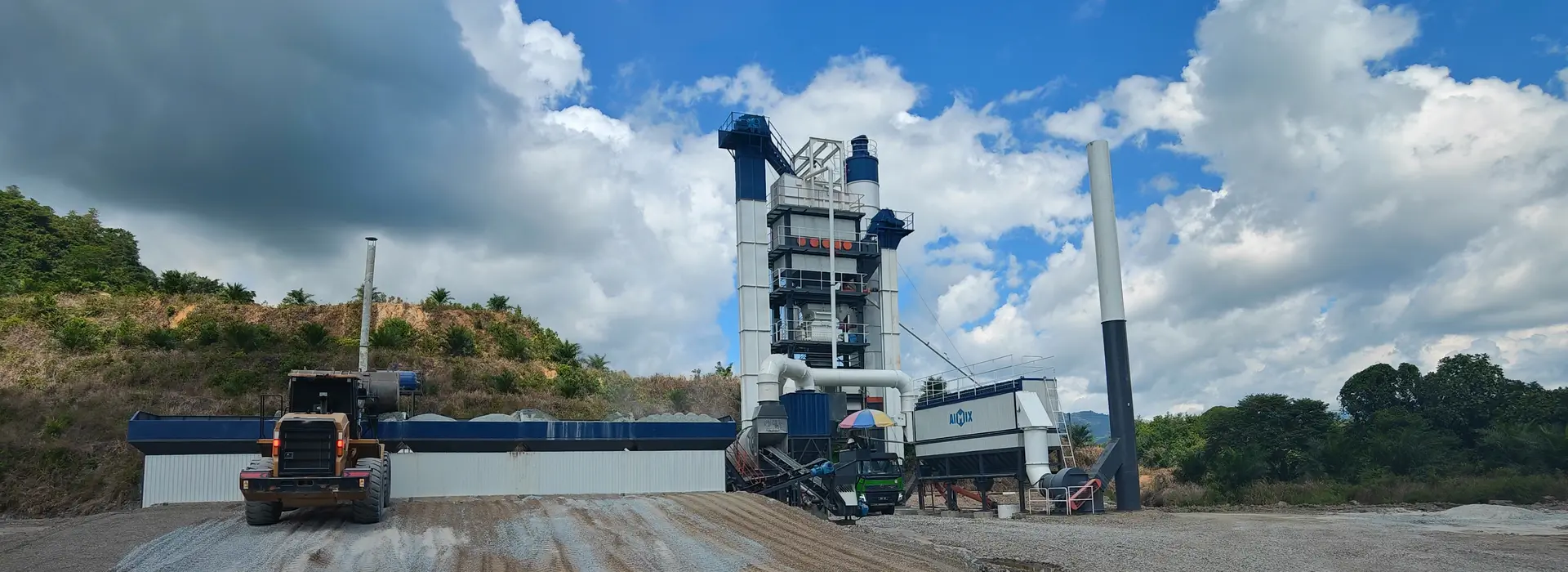

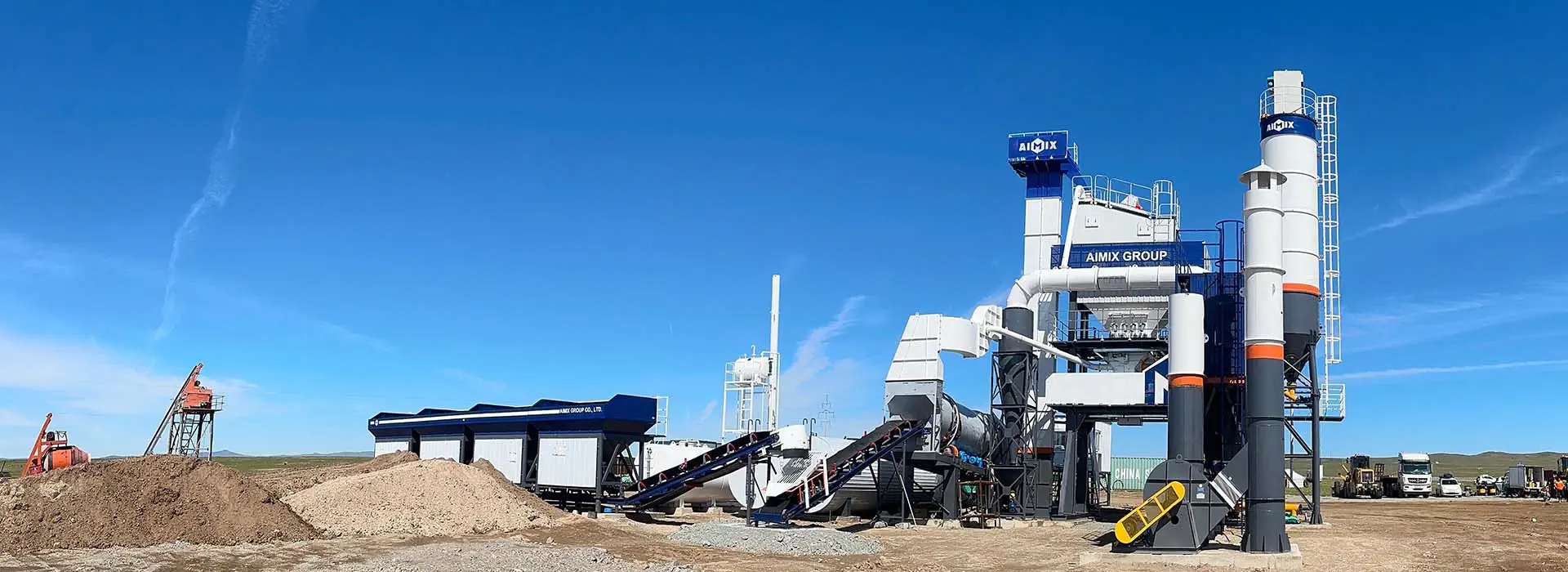

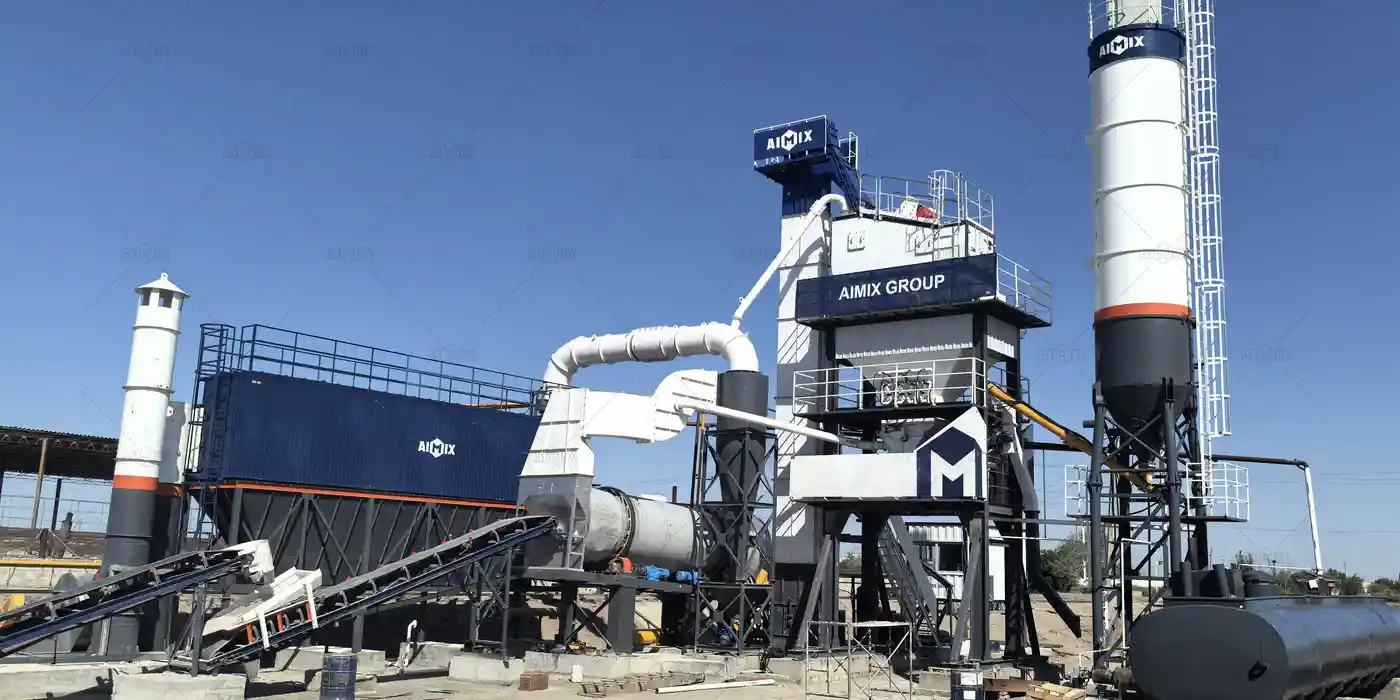

ALQ Series Stationary Asphalt Batch Plant Specification
Below are some of the most popular stationary asphalt plant models, along with their technical specifications. It can provide you with a comprehensive overview and help you make an informed decision when selecting the right asphalt plant for your project.
Model | ALQ40 | ALQ60 | ALQ80 | ALQ100 | ALQ120 | ALQ160 | ALQ200 | ALQ240 | ALQ320 |
---|---|---|---|---|---|---|---|---|---|
Capacity | 40 t/h | 60 t/h | 80 t/h | 100 t/h | 120 t/h | 160 t/h | 200 t/h | 240 t/h | 320 t/h |
Cold Aggregate Hoppers | 4×4.5m³ | 4×6.5m³ | 4×7.5m³ | 4×7.5m³ | 4×7.5m³ | 5×12m³ | 5×12m³ | 5×12m³ | 6×15m³ |
Dryer Size | φ1.2m×5.2m | φ1.5m×6m | φ1.5m×6.7m | φ1.65m×7m | φ1.8m×8m | φ2.2m×9m | φ2.6m×9m | φ2.6m×9.5m | φ2.8m×10.2m |
Fuel consumption | 70-300kg / h | 100-400kg / h | 120-600kg / h | 150-1000kg / h | 150-1000kg / h | 150-1400kg / h | 180-1800kg / h | 180-1800kg / h | 260-2500kg / h |
Vibrating Screen (Layer) | 4 layers | 4 layers | 4 layers | 4 layers | 4 layers | 5 layers | 5 layers | 5 layers | 6 layers |
Mixer Capacity | 500kg | 800kg | 1000kg | 1250kg | 1500kg | 2000kg | 2500kg | 3000kg | 4000kg |
Cycle Time | 45s | 45s | 45s | 45s | 45s | 45s | 45s | 45s | 45s |
Filter Area | 230m² | 300m² | 420m² | 480m² | 550m² | 650m² | 700m² | 1050m² | 1350m² |
Asphalt Temperature | 140-180 ℃ | 140-180 ℃ | 140-180 ℃ | 140-180 ℃ | 140-180 ℃ | 140-180 ℃ | 140-180 ℃ | 140-180 ℃ | 140-180 ℃ |
Total Power | 170kw | 200kw | 300kw | 350kw | 380kw | 490kw | 550kw | 670kw | 865kw |
Frequently Moving Projects
Municipal Road Maintenance
Municipal roads are often in need of maintenance and repair. Besides, the flexibility and portability of the ALYQ series asphalt mobile plant makes it ideal for municipal road maintenance projects. It swiftly moves near the road being repaired, creating asphalt mix on-the-spot to ensure quality material for road rehabilitation.
Rural Road Rehabilitation
The ALYQ series mobile asphalt mixing plant’s portability simplifies moving it to rural road rehabilitation sites in remote areas for improving and rehabilitating rural roads. Furthermore, it can be quickly installed and commissioned, and can produce according to actual needs to meet the demands of rural road rehabilitation projects.
Temporary Construction Scenarios
In addition to municipal road maintenance and rural road rehabilitation, ALYQ series mobile asphalt mixing plant is also suitable for various temporary construction scenarios, such as temporary car park construction and temporary site construction. Its flexibility and portability enable it to adapt to different construction environments and needs.
In short, ALYQ series strong mix mobile asphalt mixing plant is an ideal choice for projects that require frequent movement. Its flexibility and portability enable it to move quickly to the required construction site, and it can produce according to the actual needs, providing a reliable supply of asphalt mixture for various temporary construction scenarios.

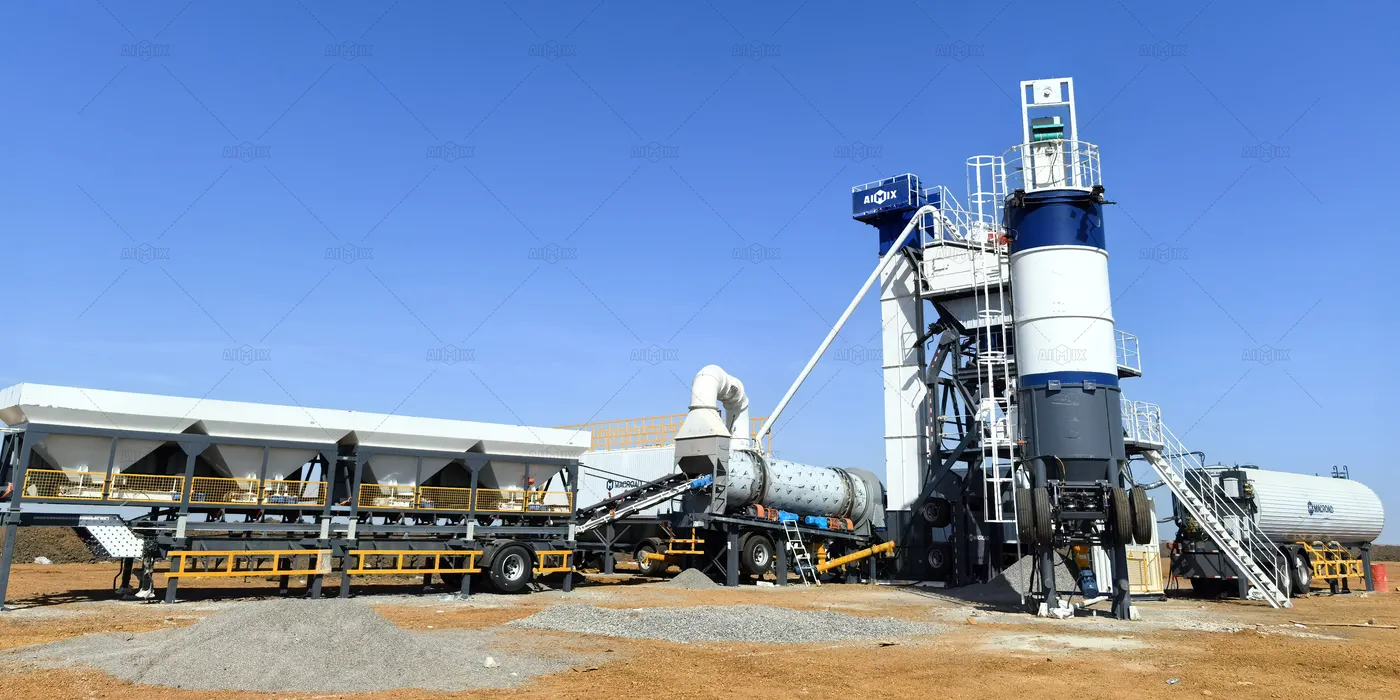

ALYQ Series Asphalt Mobile Plant Specification
Absolutely, when purchasing a mobile asphalt batch plant, both the price and the technical specifications are crucial factors to consider. To help you in your decision-making process, here’s a detailed overview of common models with their respective specifications.
Model | ALYQ60 | ALYQ80 | ALYQ100 | ALYQ120 | ALYQ160 | |
---|---|---|---|---|---|---|
Capacity | t / h | 60 | 80 | 100 | 120 | 160 |
Mixer capacity | kg | 800 | 1200 | 1300 | 1700 | 2200 |
Mixing cycle | s | 45 | 45 | 45 | 45 | 45 |
Total power | Gasoline(kW) | 54 | 63.5 | 104.5 | 125 | 157.5 |
Coal(kW) | 75 | 86.5 | 127.5 | 169 | 205 | |
filter area | m2 | 370 | 420 | 480 | 510 | 620 |

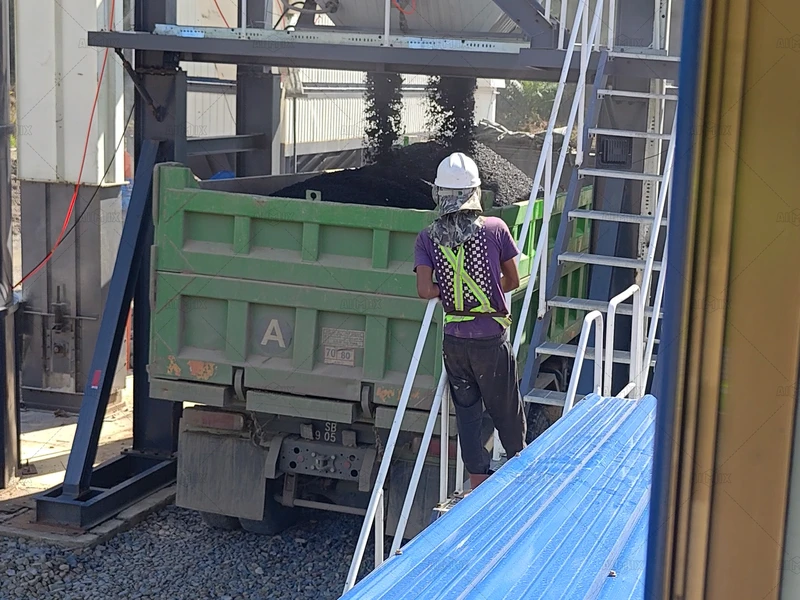

Projects With High Requirements For Mix Quality
Advanced Pavement Construction
Projects that require high-quality pavement, such as motorways, city trunk roads, etc., demand a high-quality mixture. For such projects, the ALT series drum mix plants are an excellent choice. These plants have an exceptional mixing effect and stability. They can ensure the production of asphalt mixture that meets the requirements of advanced pavement construction. As a result, the durability and smoothness of the road surface can be improved significantly.
Airport Runway Construction
The airport runway is an important part of aircraft landing and taking off. It requires a high quality and smoothness of the road surface. What’s more, the ALT series asphalt drum mix plant can provide high quality asphalt mixture. This helps to ensure the quality and safety of the airport runway construction. Additionally, it meets the requirements of the International Civil Aviation Organisation (ICAO) and the International Air Transport Association (IATA) standards.
Other Projects With High Requirements On Road Quality
ALT series asphalt drum mix plants are capable of constructing high-grade pavements and airport runways. They are suitable for projects requiring high road quality, like high-speed railway base and large bridge projects. The ALT series drum plants ensure runway quality and safety with stable mixing and high efficiency. Moreover, their stable mixing and high production capacity can satisfy the strict quality requirements of these projects.
In a word, the asphalt drum mixing plant is ideal for projects needing high-quality mixtures, like high-grade pavements and airport runways. Its mixing effect and stability make it a good choice for the construction of high speed railway. Their mixing effect and stability are ideal for high-quality road projects, producing durable asphalt mixtures that enhance project quality.

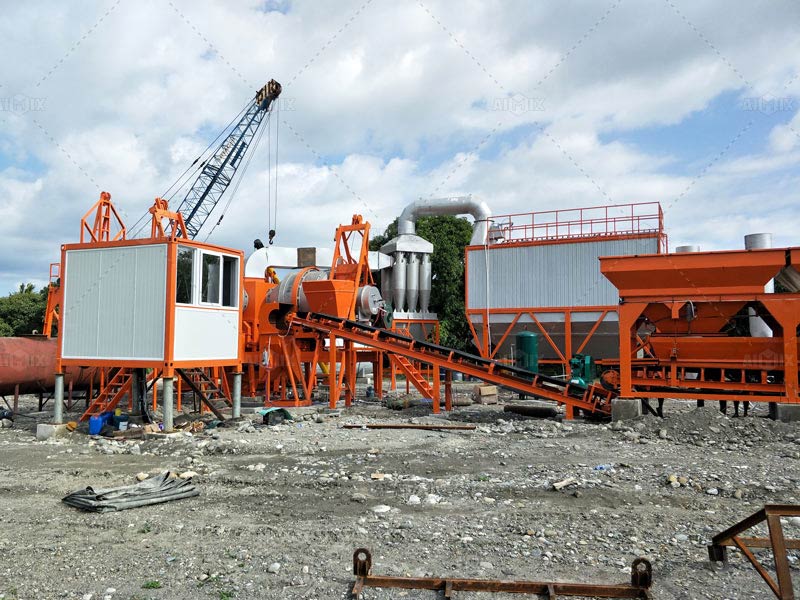

ALT Series Drum Mix Plant Specification
Asphalt drum mix plants are a popular choice for their simplicity, efficiency, and versatility. Here’s a breakdown of specifications typically associated with these plants.
Courts Models | ALT20 | ALT40 | ALT60 | ALT80 | ALT100 |
---|---|---|---|---|---|
Capacity | 20 t/h | 45 t/h | 60 t/h | 80 t/h | 100 t/h |
The ability to | 40kw | 75kw | 120kw | 165kw | 200kw |
Cold Aggregate Hoppers | 3.5m³×1 | 4m³×4 | 4m³×4 | 6.5m³×4 | 6.5m³×4 |
Finished Product Hopper | 3t | 3t | 7t | 7t | 9t |
Asphalt Temperature | 120-180 ℃ | ||||
Fuel consumption | 13-15kg/t | ||||
Asphalt Tank | 10 t | 20 t | 30 t | 30 t | 35 t |
Control room | 2.2m | 2.2m | 3m | 3m | 3.5m |
Option | Bag dust filter |

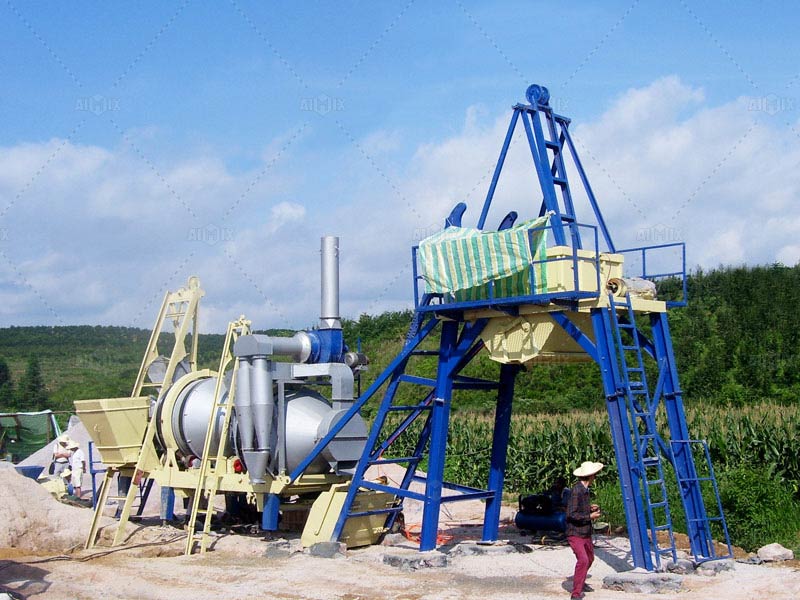

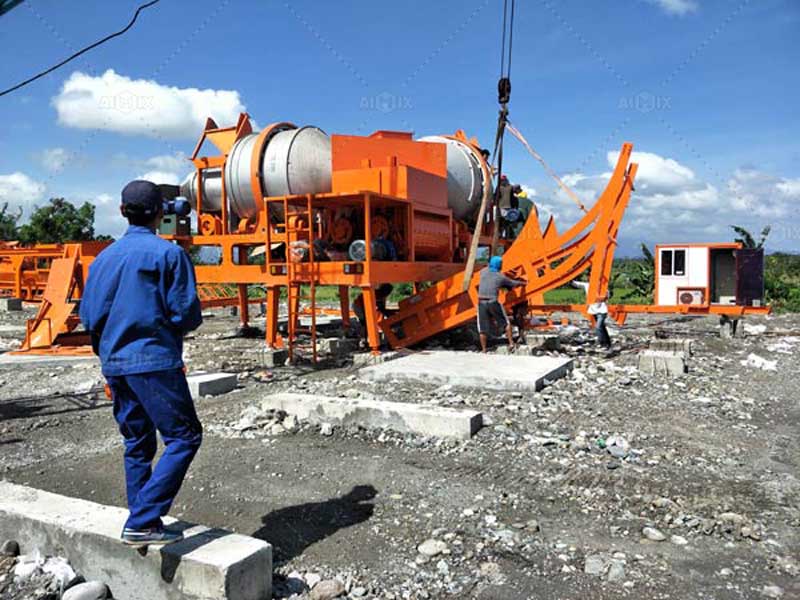

For Small Projects Or Short-Term Trials
Selecting the appropriate asphalt mixing plant for small projects is vital, requiring flexibility, user-friendliness, and cost-efficiency. In this case, the ALYJ series simple batch asphalt mixing plant is recommended. The simple mobile asphalt mixing plant is suitable for small projects or short-term trials. Below are some important features and applicable scenarios of ALYJ series simple portable asphalt plant.
- Small-scale projects: For small projects like road repairs and car park construction, ALYJ series simple intermittent mobile asphalt mixing plant with a small production capacity is suitable.
- Short-term test occasions: For short projects or tests, ALYJ series asphalt mixing plant can produce small amounts of asphalt as needed, making it ideal for short-term tasks that require flexibility in production capacity.
- School Road Repair: For school road repairs and small campus construction projects, the ALYJ series asphalt mixing plant fits well for limited asphalt requirements, making it suitable and sufficient for school road repair needs.
- Portability and Flexibility: ALYJ series simple mobile asphalt mixing plant is portable and flexible. Besides, it can be easily mobile on the required construction site, quickly installed and commissioned, and is suitable for a variety of different engineering scenarios.
To sum up, ALYJ series simple mobile asphalt mixing plant is suitable for small engineering projects or occasions where short-term tests are needed, such as small car park construction, school road repair, etc. The miniaturization, flexibility, and portability of this device make it perfect for small-scale engineering projects, meeting asphalt production needs.
ALYJ Series Simple Mobile Asphalt Mixing Plant Specification
Model | ALYJ10 | ALYJ15 | ALYJ20 | ALYJ30 | ALYJ40 | ALYJ60 | ALYJ80 | |
---|---|---|---|---|---|---|---|---|
Capacity | 10 t/h | 15 t/h | 20 t/h | 30 t/h | 40 t/h | 60 t/h | 80 t/h | |
The ability to | Petrol | 48kw | 59kw | 68kw | 106kw | 132kw | 146kw | 186kw |
Burning coal | 67kw | 78kw | 91kw | 129kw | 170kw | 192kw | 262kw | |
Cold Aggregate Hoppers | 3m³×3 | 3m³×3 | 3m³×3 | 5m³×3 | 5m³×3 | 5m³×3 | 5m³×4 | |
Finished Product Hopper | 2t | 5t | 5t | 9t | 9t | 9t | 20 t | |
Asphalt Temperature | 120-180 ℃ | |||||||
Fuel consumption | Petrol | 5-7.5kg/t | ||||||
Burning coal | 13-15kg/t | |||||||
Option | Water dust filter, Bag dust filter, Control room, Asphalt heat tank, Mineral flour tank |
Projects For Continuous Production Of Asphalt Mixtures

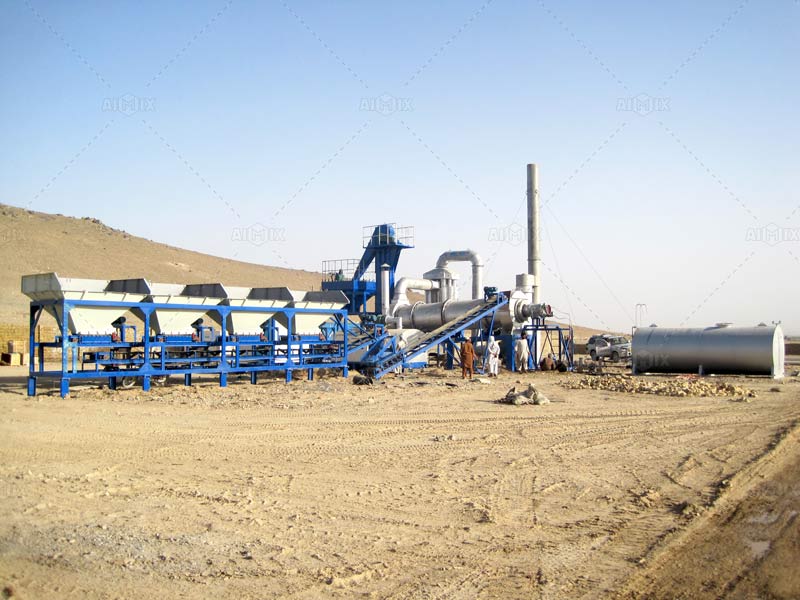

AYLZ series mobile asphalt mixing machine is specially designed for asphalt mixture production equipment for projects that require continuous production of asphalt mixture. Below are some important features and scenarios of AYLZ series new asphalt plant.
- Continuous production: The mobile asphalt plant adopts continuous production mode, which can produce asphalt mixture continuously and stably, and meet the demand of continuous material supply in engineering projects.
- Suitable for remote mountain road construction: In remote mountainous areas, the mobile asphalt batch plant allows flexible on-site production of required asphalt mixture during road construction.
- Temporary field construction: Mobile asphalt plants can operate continuously in temporary field construction sites, ensuring stable material supply for projects.
- Mobility and portability: The portable asphalt mixing plant is highly mobile with a trailer chassis for easy transport. It can swiftly reach construction sites, minimizing preparation time due to quick installation and setup.
To sum up, AYLZ series mobile asphalt mixing plant is ideal for projects needing continuous asphalt production, like remote mountain road or field construction. The continuous production, mobility, and portability make it ideal for projects, ensuring stable material supply, construction progress, and quality.
AYLZ Series Continuous Strong-Mix Integrated Mobile Asphalt Mixing Plant Specifications
Model | AYLZ100 | AYLZ120 |
---|---|---|
Yield(under standard working conditions) | 80-100t/h | 100-120t/h |
composition structure | Ingredient drying, dust removal and mixing mobile unit | Ingredient drying, dust removal and mixing mobile unit |
Asphalt and fuel supply mobile units | Asphalt and fuel supply mobile units | |
Powder supply system mobile unit(optional) | Powder supply system mobile unit(optional) | |
Measuring accuracy | Aggregate±2% | Aggregate±2% |
Powder ±1% | Powder ±1% | |
Asphalt ±1.5% | Asphalt ±1.5% | |
Dust emission concentration | ≤50mg/Nm3 | ≤50mg/Nm3 |
Hot aggregate discharge temperature stability | ±5℃ | ±5℃ |
Discharge temperature stability of finished product | ±3℃ | ±3℃ |
Equipment operation reliability | ≥95% | ≥95% |
Operation method | Fully automatic control (manual control) | Fully automatic control (manual control) |
Dimensions | Maximum reference: length 26.7mx width 3.43mx height 4.5m | Maximum reference: length 26.7mx width 3.43mx height 4.5m |
Total installed power | Maximum 180kw | Maximum 230kw |
Overall machine quality | About 70t | About 75t |
Ingredients bin volume | 3x8m³ | 3x8m³ |
Drying drum | φ1.7m (diameter) ×7m (length) | φ1.8m (diameter) ×7m (length) |
Bag filter | 320㎡ | 400㎡ |
Continuous mixing host | Motor 2x22Kw | Motor 2x30Kw |
Asphalt tank | Direct heating 30m³+5m³ diesel tank | Direct heating 30m³+5m³ diesel tank |
New powder supply system | Horizontal (or vertical) powder tank 30m³/50m³ (optional) | Horizontal (or vertical) powder tank 30m³/50m³ (optional) |
Consider Asphalt Plant Price And Project Budget
Define The Budget Range
Set a budget range that aligns with your financial situation, investment plan, and maximum affordable limit.
Comprehensive Consideration Of Cost-Effective
Opt for cost-effective and reliable equipment for better long-term returns, focusing on fair prices.
Compare The Price Of Different Models
Compare asphalt plant prices to choose equipment that fits your project needs and budget. The asphalt plant price varies between stationary and mobile plants.
Consider Long-Term Return On Investment
Besides, selecting a high-quality machine can cut costs, boost productivity, and improve long-term return on investment.
Flexible Purchasing Methods
Consider purchasing methods like installment payments and leasing to ease capital pressure and better meet project needs.
In summary, considering price and budget is one of the key factors in choosing the right asphalt mixing plant. Selecting cost-effective equipment based on project requirements and long-term investment considerations enhances project efficiency and economic benefits.
Choosing The Right Fuel of the Asphalt Plant
- Cost Considerations: Consider how the cost of the fuel will affect the project budget. Select the most economically suitable fuel type based on project budget as prices vary.
- Stability of supply: Make sure the chosen fuel is locally available to prevent production disruptions caused by inadequate supply.
- Environmental Requirements: Select a fuel type that complies with local environmental regulations to ensure project smoothness and regulatory compliance.
- Adaptability: Select the appropriate fuel type according to the actual situation of the project and equipment requirements. In some cases, projects require alternative fuel sources due to unstable electricity supply.
Considering the above factors, select a cost-effective and eco-friendly fuel for the asphalt mixing plant to maintain project operations smoothly.
Understand Local Regulations
Understanding local regulations is a crucial step when choosing an asphalt mixing plant. Different regions may have different construction standards, environmental requirements and safety regulations. Therefore, you need to make sure that the equipment you choose complies with local laws and regulations.
- Construction Standards: Ensure that the equipment meets local construction standards, including design, production and installation.
- Environmental requirements: Validate equipment meets local emission standards and pollution control, minimizing environmental impact.
- Safety requirements: Ensure that the equipment complies with production safety requirements to ensure the safety of construction personnel.
- Approval procedures: Understand the local approval procedures and reporting requirements to ensure the legal use of equipment.
- Replacement requirements: Stay updated on local equipment replacement requirements to ensure compliance with technical standards and regulations.
To sum up, understanding the local regulations is an important consideration when choosing an asphalt mixing plant. It can ensure that the equipment meets the regulatory requirements, to ensure the smooth progress of the project.
After-Sales Service Provided By The Asphalt Plant Supplier
When choosing an asphalt mixing plant, one of the important considerations is the after-sales service provided by the supplier. A reliable after-sales service is crucial for equipment efficiency, productivity, and timely issue resolution to keep projects on track.

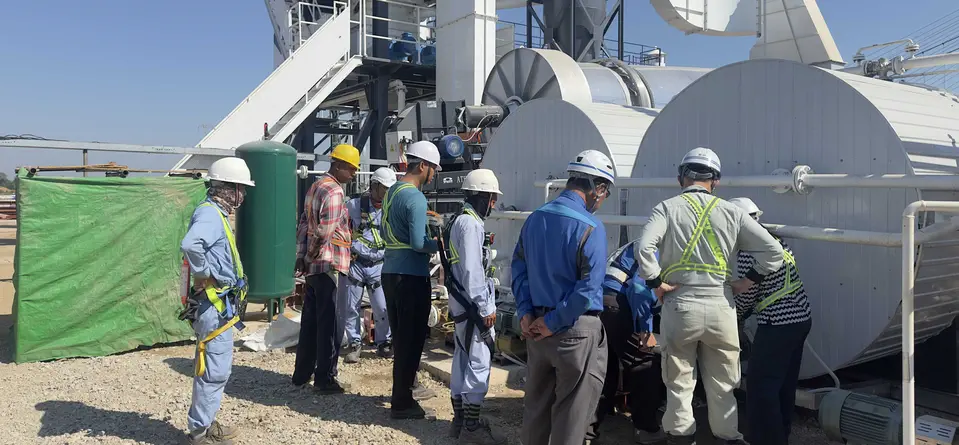

- Technical support: The manufacturer should offer equipment installation, training, and technical support for customers to use the equipment effectively.
- Spare parts supply: The supplier must promptly provide necessary spare parts for timely equipment repairs to maintain supply quality.
- Maintenance service: Besides, it must quickly address equipment failures and offer efficient maintenance services for prompt equipment restoration.
- Remote monitoring: Offer remote monitoring for customers to track equipment status anytime, anywhere, promptly identifying and resolving potential issues.
- Training services: Suppliers should offer training services to help customers master equipment skills, enhance utilization, and boost productivity.
- Regular inspection: Make sure the asphalt plant supplier performs regular maintenance to extend equipment lifespan and promptly address any issues.
To sum up, good after-sales service is an important factor that cannot be ignored when choosing asphalt mixing plant. Selecting an asphalt batch mix plant supplier with strong after-sales service enhances the asphalt mix plant operation and project advancement.
AIMIX, the Professional Asphalt Mixing Plant Manufacturer
All in all, choosing and finding a good asphalt mixing plant is crucial for the smooth running of the project. By considering the mentioned aspects, you can select the suitable asphalt mixing plant for your project needs. Therefore, please feel free to contact us with any questions or for consultation; Then we will show you the right type of an asphalt plant according to your demands.
