Tailored Solutions for UAE Climate: Equipment designed for extreme heat and dust conditions.
Local After-Sales Support: Quick installation, maintenance, and spare parts supply.
High Efficiency & Cost Savings: Fast production, low energy consumption, and easy upkeep.
Quick Setup & Portability: Easy transportation and fast deployment on-site.
Continuous Production Efficiency: Smooth, uninterrupted asphalt production.
Asphalt plant in UAE is essential for producing various types of asphalt mixtures efficiently. It brings multiple benefits to construction projects, ensuring smooth and durable roads, highways, ports, dams, and more. In the UAE, where infrastructure projects are booming, having access to high-quality asphalt production equipment is essential. As a leading asphalt plant manufacturer, AIMIX provides high-quality asphalt plants to clients worldwide, including those in the UAE. Let’s learn more about AIMIX asphalt plants in road and bridge construction projects in UAE.
Stationary/Mobile/Batch/Drum Type
Capacity: 10TPH – 400TPH
Application: Road and Bridge Construction
Types of Asphalt Plants in UAE
In the UAE, selecting the right asphalt plant is key to ensuring efficient and high-quality road construction. With different types available, each designed for specific project needs, it’s important to understand the options. In this part, we will introduce the main types of asphalt plant used in the UAE, highlighting their features and benefits to help you choose the best equipment for your project.

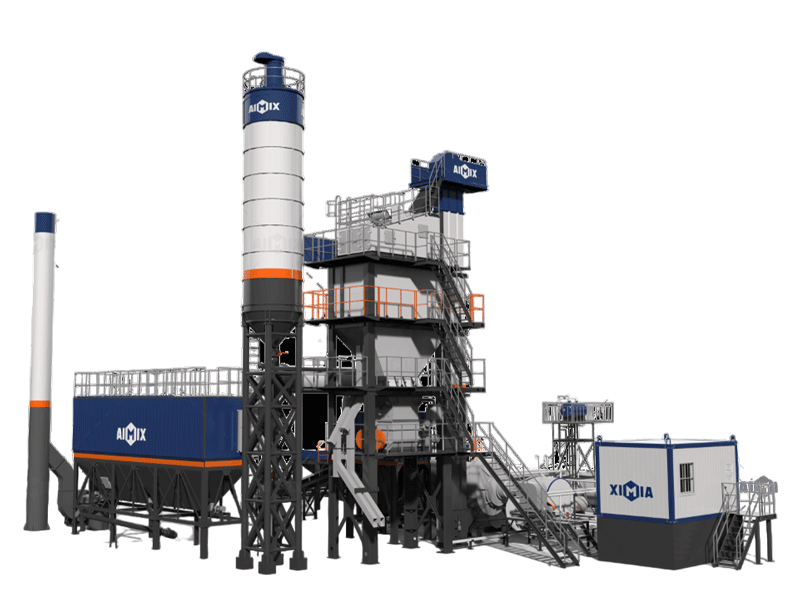

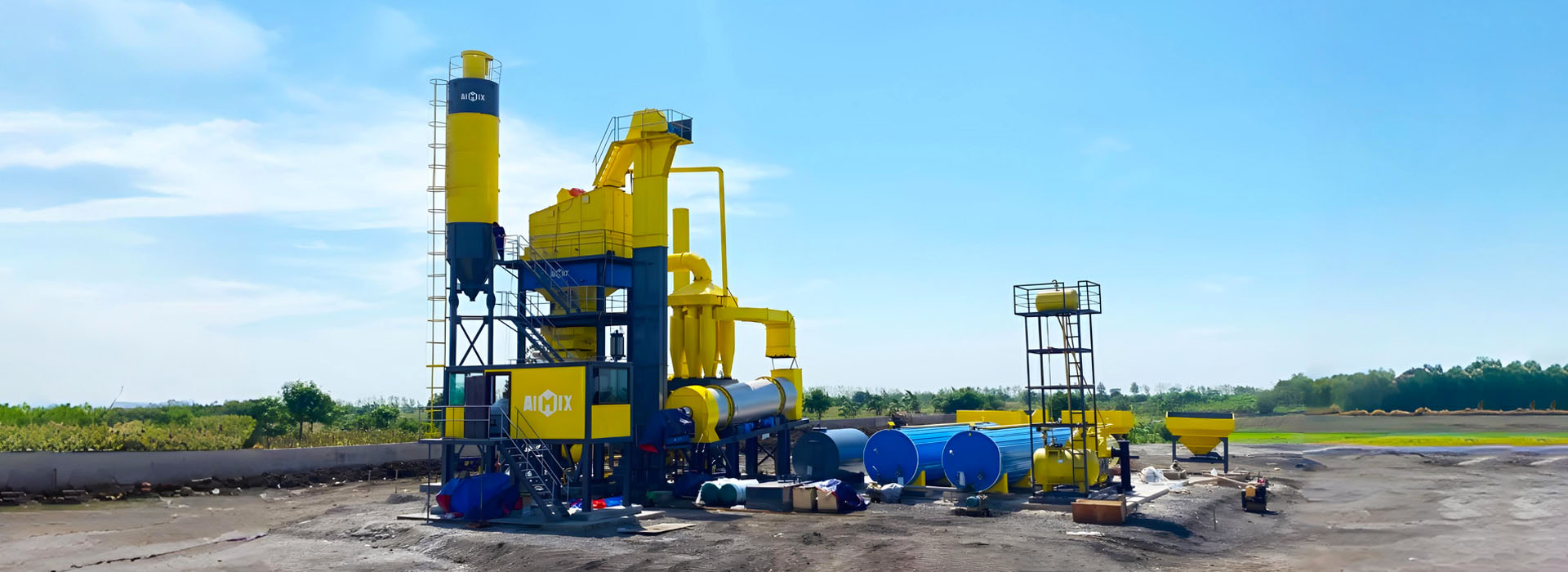

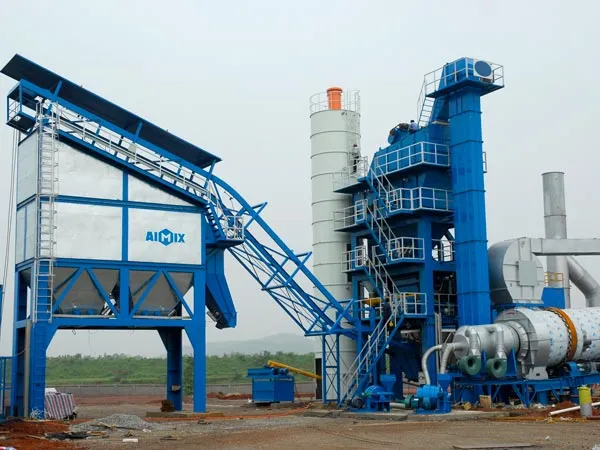

ALQ Series Stationary Asphalt Batching Plant in UAE
Hot Model: ALQ60ALQ80ALQ120
Production Capacity: 40-400T/H
Mixing Cycle: 45s
Dust filter: Gravity / Cyclone / Bag / Water Dust Filter
Features
- Precise Mixing: Ensures consistent, high-quality asphalt.
- Large Projects: Perfect for highways and infrastructure.
- Efficient: Low fuel consumption, reduce operating costs.
- Durable: Built to withstand UAE’s extreme heat and dust.
- Easy Maintenance: Simple servicing for minimal downtime.

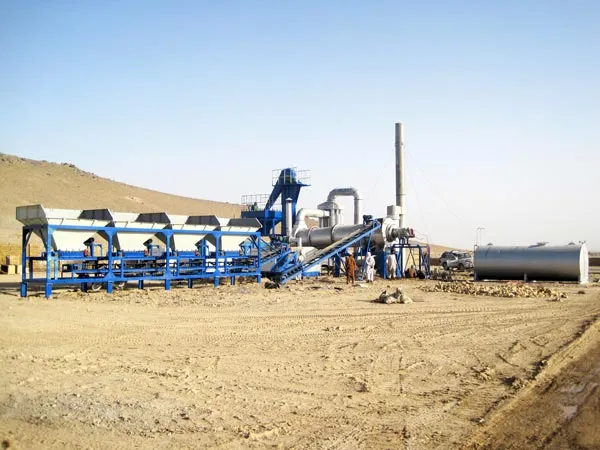

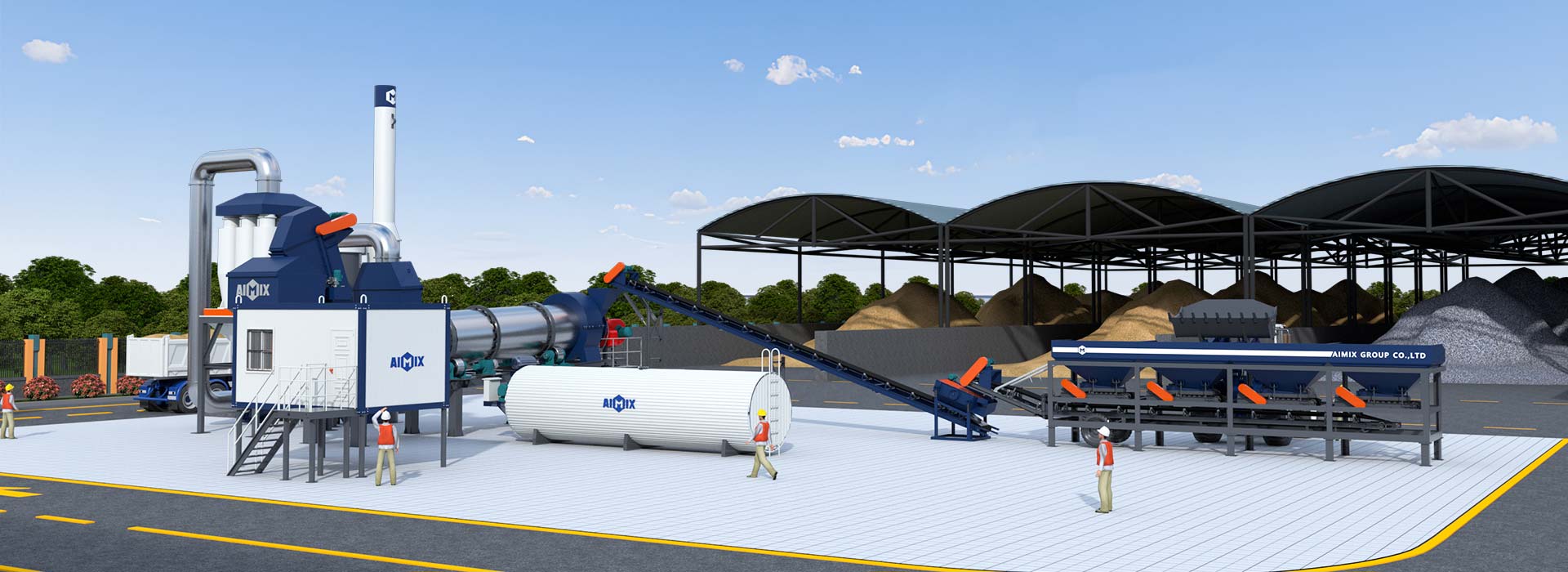

ALT Series Stationary Asphalt Drum Mix Plant
Model: ALT20ALT60ALT80ALT100
Production Capacity: 20-100T/H
Asphalt Storage Bin: 3-9 tons
Dust filter: Bag dust filter/ Water dust filter
Features
- Continuous Production: Efficient & continuous asphalt mixing.
- Fuel Efficient: High efficiency Saves on fuel costs.
- Reliable Performance: Works well in hot UAE conditions.
- Low Emissions: Meets UAE environmental standards.
- Easy Operation: Simple control system for smooth operations.

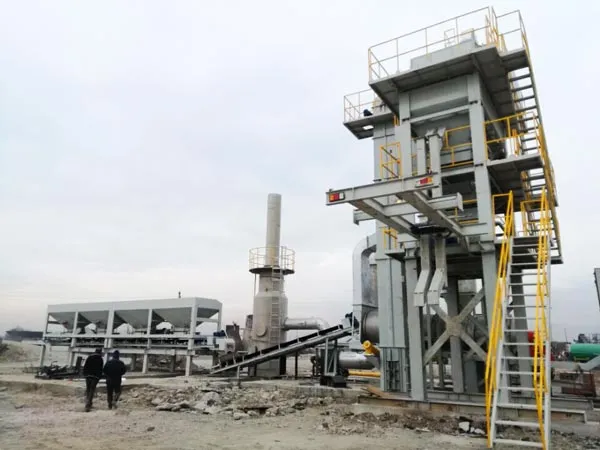

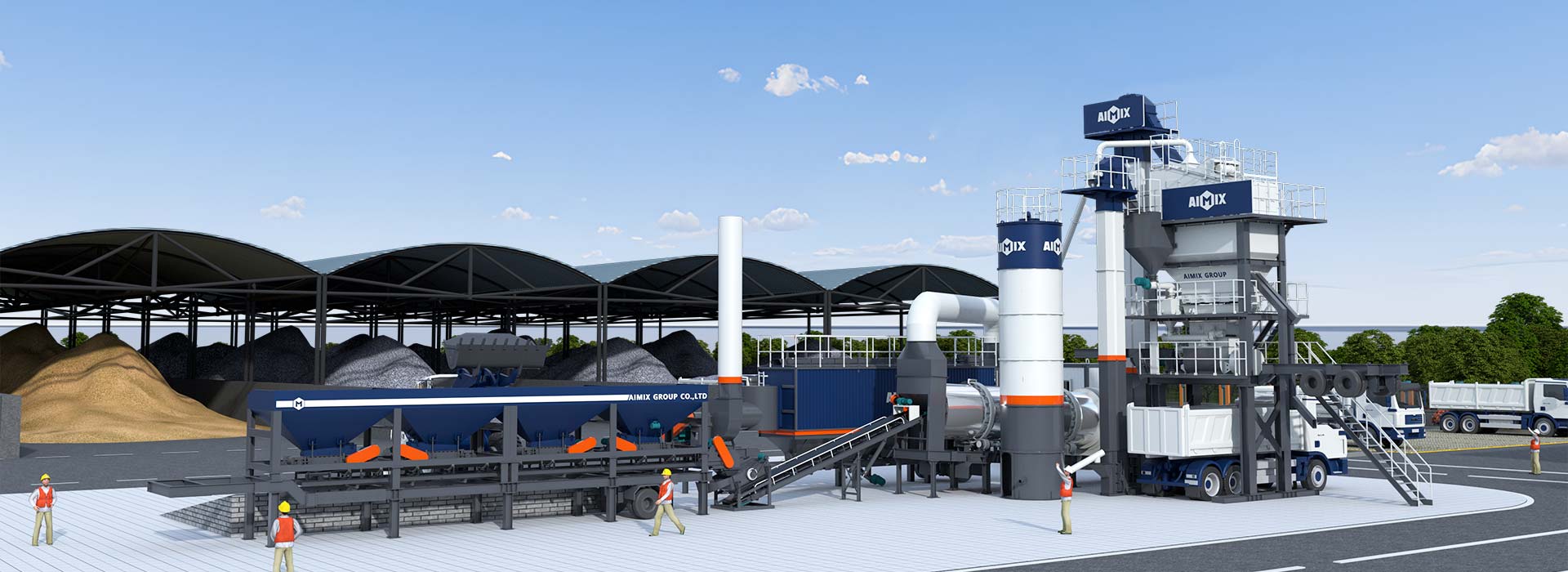

ALYQ Series Batch Type Mobile Asphalt Plant for UAE
Model: ALYQ60ALYQ80ALYQ120ALYQ160
Production Capacity: 40-160T/H
Mixing Cycle: 45s
Asphalt Temperature: 120-180°C
Features
- Portable: Easy to move between project sites.
- High Output: Suitable for medium to large projects.
- Space-Saving: Compact design with full performance.
- Eco-Friendly: Complies with UAE environmental regulations.
- Quick Setup: Fast installation for rapid project start.

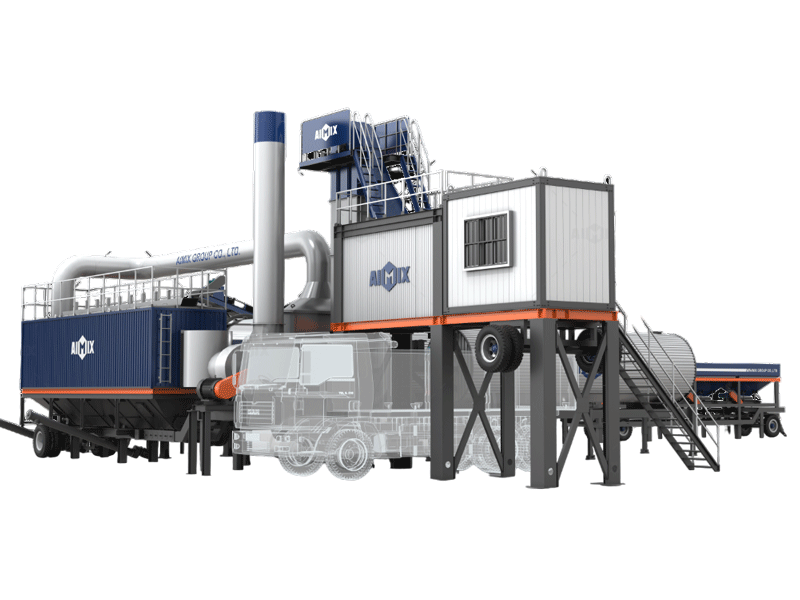

ALYT Series Mobile Asphalt Drum Mix Plant
Hot Model: ALYT20ALYT60ALYT80ALYT120
Production Capacity: 20-120T/H
Asphalt Temperature: 120-180°C
Dust filter: Bag / Water Dust Filter
Features
- Efficient: Continuous mixing for steady output.
- Quick Deployment: Can be quickly set up and moved.
- Low Emissions: Eco-friendly with minimal noise and dust.
- Fuel Saving: Reduces fuel consumption during operations.
- Weather Resistant: Built for extreme temperatures and dust.

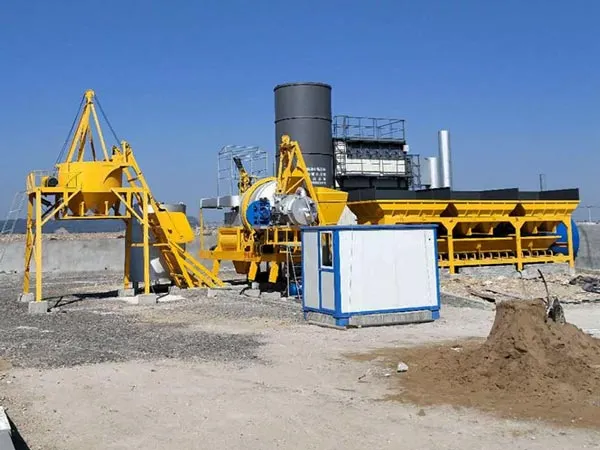

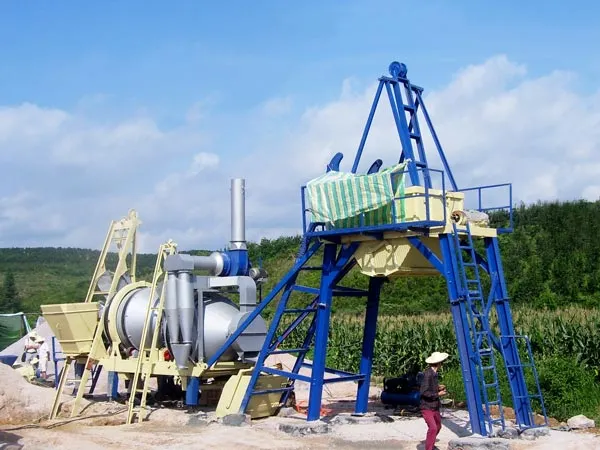

ALYJ Series Simple Portable Asphalt Mixing Plants UAE
Hot Model: ALYJ10ALYJ40ALYJ60ALYJ80
Production Capacity: 10-80T/H
Asphalt Temperature: 120-180°C
Dust filter: Bag / Water Dust Filter
Features
- Affordable: Ideal for small to medium projects.
- Portable: Easy to transport and set up.
- Simple Operation: Easy to use with minimal complexity.
- Energy Efficient: Low fuel consumption.
- Low Maintenance: Easy to maintain for cost savings.
AYLT Series Integrated Continuous Mobile Asphalt Batch Plant
Hot Model: AYLZ100AYLZ120
Production Capacity: 80-120T/H
Asphalt Tank: 30m³+5m³ diesel tank
Dust filter: Bag dust filter
Features
Asphalt Plant Technical Specifications
To choose the right asphalt plants in UAE, it’s important to look at its technical specifications. These details, like production capacity and fuel efficiency, help determine how well the asphalt plant in UAE for sale will work for your project. Below, we’ll provide an overview of the key technical specifications for different asphalt plants in UAE to help you make the best choice.
| Model | ALQ40 | ALQ60 | ALQ80 | ALQ100 | ALQ120 | ALQ160 | ALQ200 | ALQ240 | ALQ320 |
|---|---|---|---|---|---|---|---|---|---|
| Capacity | 40 t/h | 60 t/h | 80 t/h | 100 t/h | 120 t/h | 160 t/h | 200 t/h | 240 t/h | 320 t/h |
| Cold Aggregate Hoppers | 4×4.5m³ | 4×6.5m³ | 4×7.5m³ | 4×7.5m³ | 5×7.5m³ | 5×12m³ | 5×12m³ | 5×12m³ | 6×15m³ |
| Dryer Size | φ1.2m×5.2m | φ1.5m×6m | φ1.5m×6.7m | φ1.65m×7m | φ1.8m×8m | φ2.2m×9m | φ2.6m×9m | φ2.6m×9.5m | φ2.8m×10.2m |
| Fuel consumption | 70-300kg / h | 100-400kg / h | 120-600kg / h | 150-1000kg / h | 150-1000kg / h | 150-1400kg / h | 180-1800kg / h | 180-1800kg / h | 260-2500kg / h |
| Vibrating Screen (Layer) | 4 layers | 4 layers | 4 layers | 4 layers | 5 layers | 5 layers | 5 layers | 5 layers | 6 layers |
| Mixer Capacity | 500kg | 800kg | 1000kg | 1250kg | 1500kg | 2000kg | 2500kg | 3000kg | 4000kg |
| Cycle Time | 45s | 45s | 45s | 45s | 45s | 45s | 45s | 45s | 45s |
| Filter Area | 230m² | 300m² | 420m² | 480m² | 550m² | 650m² | 700m² | 1050m² | 1350m² |
| Asphalt Temperature | 140-180 ℃ | 140-180 ℃ | 140-180 ℃ | 140-180 ℃ | 140-180 ℃ | 140-180 ℃ | 140-180 ℃ | 140-180 ℃ | 140-180 ℃ |
| Total Power | 170kw | 200kw | 300kw | 350kw | 380kw | 490kw | 550kw | 670kw | 865kw |
| Model | ALYQ60 | ALYQ80 | ALYQ100 | ALYQ120 | ALYQ160 | |
|---|---|---|---|---|---|---|
| Capacity | t / h | 60 | 80 | 100 | 120 | 160 |
| Mixer capacity | kg | 800 | 1200 | 1300 | 1700 | 2200 |
| Mixing cycle | s | 45 | 45 | 45 | 45 | 45 |
| Total power | Gasoline(kW) | 54 | 63.5 | 104.5 | 125 | 157.5 |
| Coal(kW) | 75 | 86.5 | 127.5 | 169 | 205 | |
| filter area | m2 | 370 | 420 | 480 | 510 | 620 |
| Courts Models | ALT20 | ALT40 | ALT60 | ALT80 | ALT100 |
|---|---|---|---|---|---|
| Capacity | 20 t/h | 45 t/h | 60 t/h | 80 t/h | 100 t/h |
| The ability to | 40kw | 75kw | 120kw | 165kw | 200kw |
| Cold Aggregate Hoppers | 3.5m³×1 | 4m³×4 | 4m³×4 | 6.5m³×4 | 6.5m³×4 |
| Finished Product Hopper | 3t | 3t | 7t | 7t | 9t |
| Asphalt Temperature | 120-180 ℃ | ||||
| Fuel consumption | 13-15kg/t | ||||
| Asphalt Tank | 10 t | 20 t | 30 t | 30 t | 35 t |
| Control room | 2.2m | 2.2m | 3m | 3m | 3.5m |
| Option | Bag dust filter | ||||
| Model | ALYJ10 | ALYJ15 | ALYJ20 | ALYJ30 | ALYJ40 | ALYJ60 | ALYJ80 | |
|---|---|---|---|---|---|---|---|---|
| Capacity | 10 t/h | 15 t/h | 20 t/h | 30 t/h | 40 t/h | 60 t/h | 80 t/h | |
| The ability to | Petrol | 48kw | 59kw | 68kw | 106kw | 132kw | 146kw | 186kw |
| Burning coal | 67kw | 78kw | 91kw | 129kw | 170kw | 192kw | 262kw | |
| Cold Aggregate Hoppers | 3m³×3 | 3m³×3 | 3m³×3 | 5m³×3 | 5m³×3 | 5m³×3 | 5m³×4 | |
| Finished Product Hopper | 2t | 5t | 5t | 9t | 9t | 9t | 20 t | |
| Asphalt Temperature | 120-180 ℃ | |||||||
| Fuel consumption | Petrol | 5-7.5kg/t | ||||||
| Burning coal | 13-15kg/t | |||||||
| Option | Water dust filter, Bag dust filter, Control room, Asphalt heat tank, Mineral flour tank | |||||||
| Model | AYLZ100 | AYLZ120 |
|---|---|---|
| Yield(under standard working conditions) | 80-100t/h | 100-120t/h |
| composition structure | Ingredient drying, dust removal and mixing mobile unit | Ingredient drying, dust removal and mixing mobile unit |
| Asphalt and fuel supply mobile units | Asphalt and fuel supply mobile units | |
| Powder supply system mobile unit(optional) | Powder supply system mobile unit(optional) | |
| Measuring accuracy | Aggregate±2% | Aggregate±2% |
| Powder ±1% | Powder ±1% | |
| Asphalt ±1.5% | Asphalt ±1.5% | |
| Dust emission concentration | ≤50mg/Nm3 | ≤50mg/Nm3 |
| Hot aggregate discharge temperature stability | ±5℃ | ±5℃ |
| Discharge temperature stability of finished product | ±3℃ | ±3℃ |
| Equipment operation reliability | ≥95% | ≥95% |
| Operation method | Fully automatic control (manual control) | Fully automatic control (manual control) |
| Dimensions | Maximum reference: length 26.7mx width 3.43mx height 4.5m | Maximum reference: length 26.7mx width 3.43mx height 4.5m |
| Total installed power | Maximum 180kw | Maximum 230kw |
| Overall machine quality | About 70t | About 75t |
| Ingredients bin volume | 3x8m³ | 3x8m³ |
| Drying drum | φ1.7m (diameter) ×7m (length) | φ1.8m (diameter) ×7m (length) |
| Bag filter | 320㎡ | 400㎡ |
| Continuous mixing host | Motor 2x22Kw | Motor 2x30Kw |
| Asphalt tank | Direct heating 30m³+5m³ diesel tank | Direct heating 30m³+5m³ diesel tank |
| New powder supply system | Horizontal (or vertical) powder tank 30m³/50m³ (optional) | Horizontal (or vertical) powder tank 30m³/50m³ (optional) |
| Model | ALYT20 | ALYT40 | ALYT60 | ALYT80 | ALYT100 | ALYT120 |
|---|---|---|---|---|---|---|
| Output | 20t/h | 45t/h | 60t/h | 80t/h | 100t/h | 120t/h |
| Power | 34kw | 65kw | 105kw | 135kw | 170kw | 200KW |
| Cold Aggregate Feeding System | 3.5m³×1 | 4m³×4 | 4m³×4 | 6.5m³×4 | 6.5m³×4 | 6.5m³×4 |
| Finihsed Asphalt Storage Bin | 2m³ | 2.5m³ | 4.5m³ | 5m³ | 7m³ | 7m³ |
| Asphalt Temperature | 120-180℃ | 120-180℃ | 120-180℃ | 120-180℃ | 120-180℃ | 120-180℃ |
| Fuel Consumption(Fuel Oil) | 5-7.5kg/t | 5-7.5kg/t | 5-7.5kg/t | 5-7.5kg/t | 5-7.5kg/t | 5-7.5kg/t |
| Fuel Consumption(Burning Coal) | 13-15kg/t | 13-15kg/t | 13-15kg/t | 13-15kg/t | 13-15kg/t | 13-15kg/t |
| Asphalt Tank | 10t | 20t | 30t | 30t | 35t | 35t |
| Option | bag dust collector / water dust collector | bag dust collector / water dust collector | bag dust collector / water dust collector | bag dust collector / water dust collector | bag dust collector / water dust collector | bag dust collector / water dust collector |
| Whole Plant Option | whole mobile / semi-mobile / fixed | whole mobile / semi-mobile / fixed | whole mobile / semi-mobile / fixed | whole mobile / semi-mobile / fixed | whole mobile / semi-mobile / fixed | whole mobile / semi-mobile / fixed |
Latest Asphalt Plant Projects

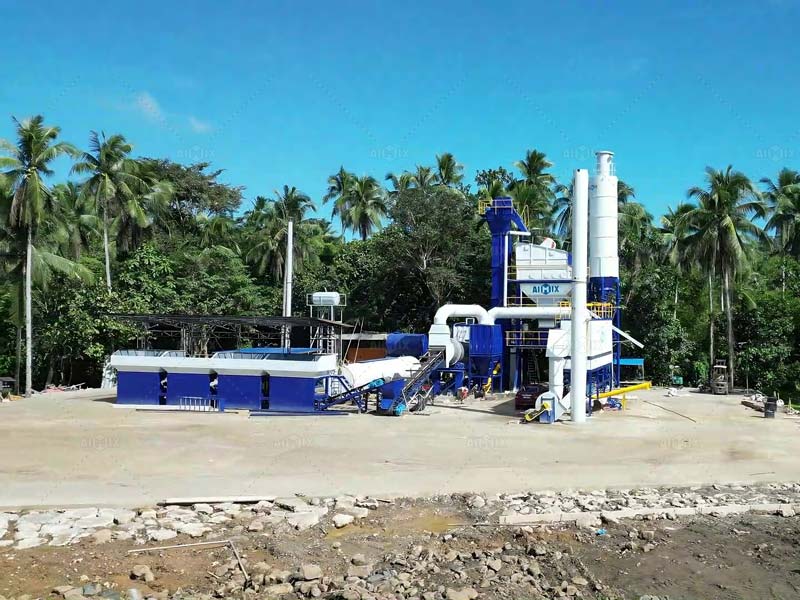

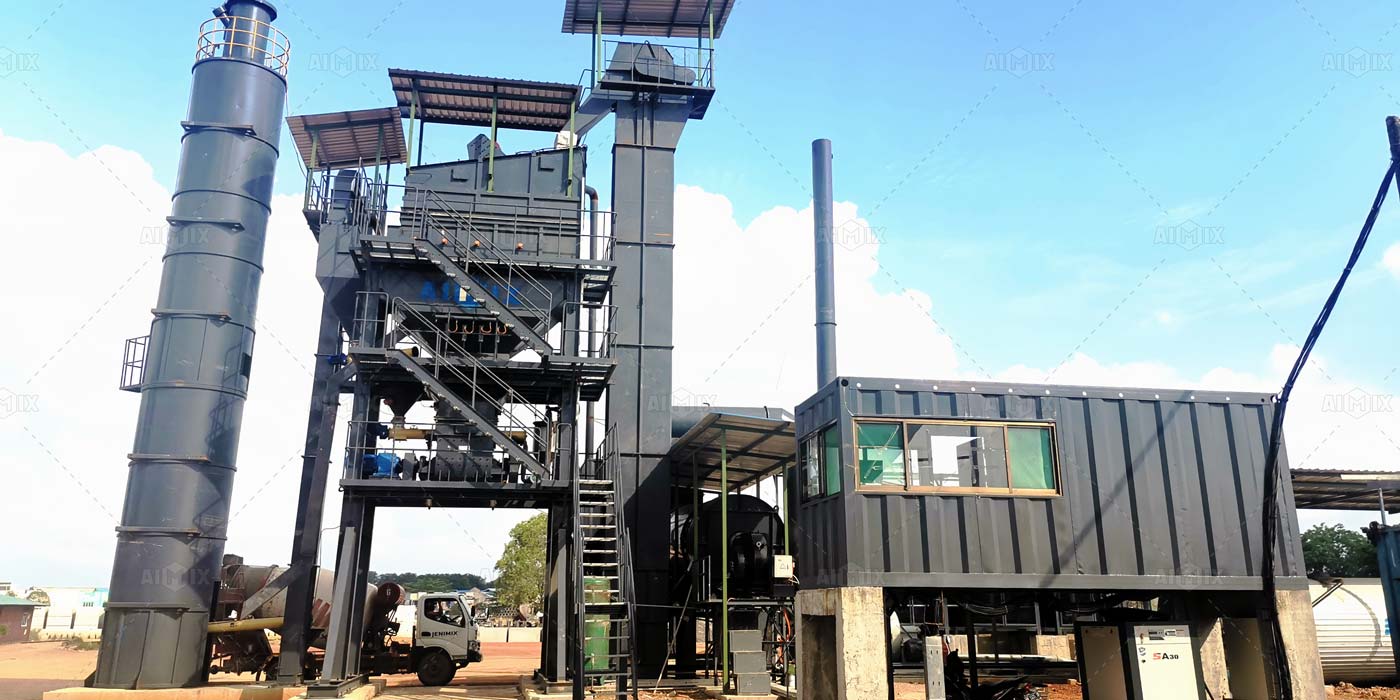

80TPH Stationary Asphalt Mixing Plant Indonesia for Road Projects
- Time: 2024.6
- Location: Indonesia
- Capacity: 80TPH
- Model: ALQ80 Batch Type Asphalt Plant/li>
- Application: Local Road Construction
80TPH Stationary Asphalt Plant for Urban Roads
- Time: 2024.3
- Location: Russia
- Capacity: 80TPH
- Model: ALQ80 Asphalt Batch Plant
- Application: Urban Road Construction and Repair

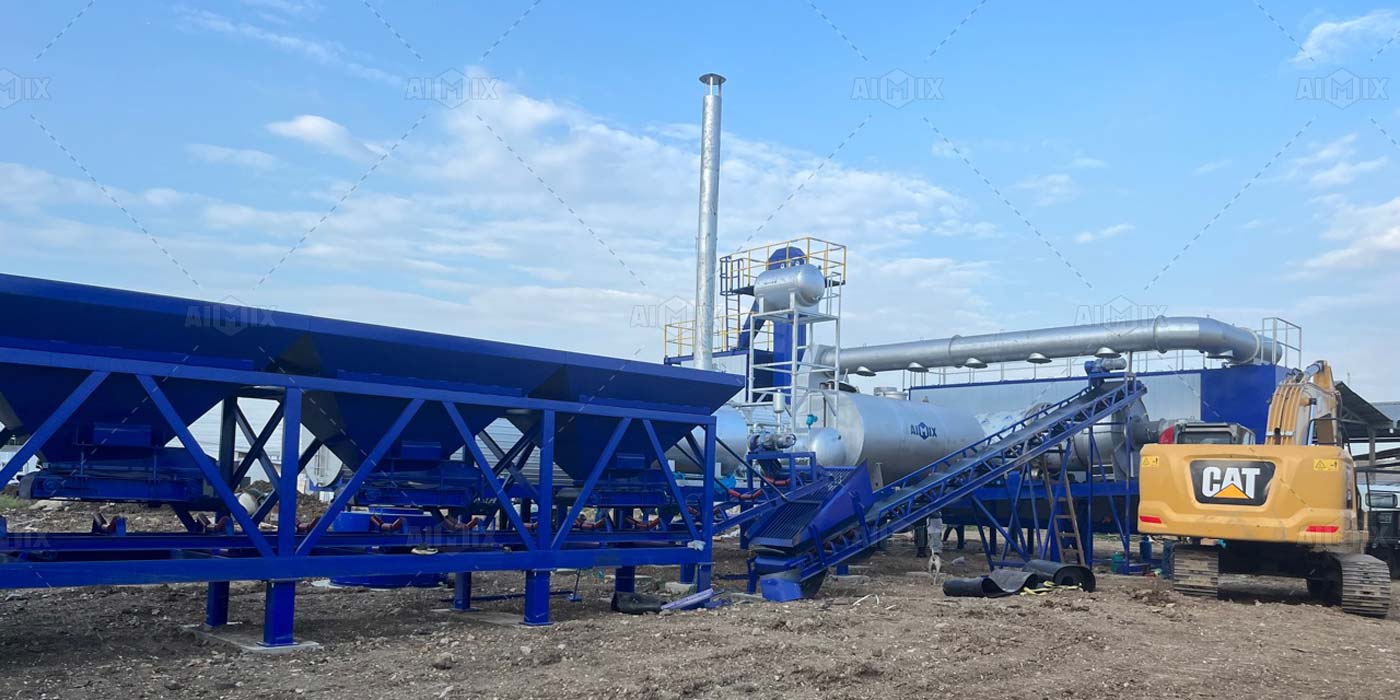

100TPH Mobile Asphalt Plant for Bridge Construction
- Time: 2024.9
- Location: Ecuador
- Capacity: 100TPH
- Model: ALYT100 Drum Mix Asphalt Plant
- Application: Bridge construction
120TPH Stationary Asphalt Plant for Port Expressway Construction
- Time: 2024.7
- Location: Guatemala
- Capacity: 120TPH
- Model: ALT120 Drum Mix Plant
- Application: Port Expressway Construction
Asphalt Plant in UAE Price
- The price of an asphalt plant in UAE varies depending on the type, capacity, and features.
- AIMIX asphalt plant price ranges from $50,000 to $1,220,000, offering options for small to large-scale projects.
- Factors such as production capacity, technology, and customization options affect the final cost.
- Whether you need a mobile, stationary, or drum mix plant, AIMIX provides flexible pricing to suit your specific project needs.
- To get an accurate asphalt plant in UAE cost, it’s best to consult directly with AIMIX, taking into account the asphalt plant in UAE location’s specifications and your project requirements.
AIMIX Asphalt Plant Exported to Countries Globally
At AIMIX, we have successfully exported asphalt plants to many countries, including Kazakhstan, Philippines, Russia, Malaysia, Uzbekistan, Ecuador, Thailand, Australia, UAE, and Indonesia. We provide reliable, high-quality asphalt plants for projects of all sizes, from small roads to large infrastructure. Below, you can see images of our hot mix plants in action at various project sites around the world.

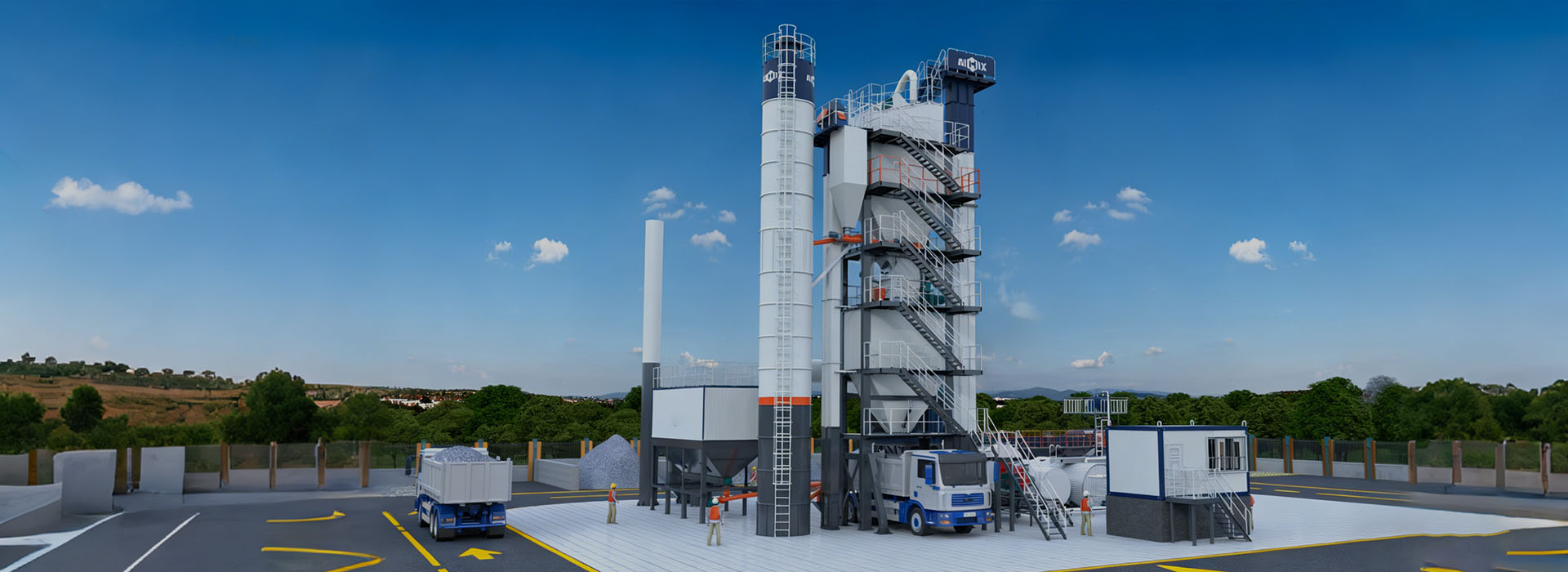

Benefits of Investing in an Asphalt Plant in UAE
Investing in an asphalt plant in UAE offers several key advantages, especially given the region’s growing infrastructure and construction demands. Here are the main benefits of investing an asphalt plant:
High Demand for Infrastructure
The UAE is known for its rapid infrastructure development, including roads, highways, and urban projects. Having an asphalt plant in Abu Dhabi locally ensures a steady supply of high-quality asphalt for these large-scale projects.
Cost Efficiency
Investing in an asphalt mixing plant can reduce the need to purchase asphalt from external suppliers, lowering transportation costs and minimizing supply chain delays. This results in overall cost savings for construction projects.
Customization for Local Needs
Asphalt plants in UAE can be tailored to meet local requirements, ensuring they are optimized for the region’s climate and specific construction demands. This enhances the quality and durability of the asphalt produced.
Faster Project Turnaround
With a best asphalt plant in UAE on-site, contractors can produce asphalt as needed, significantly reducing project delays. This increases efficiency and enables timely completion of projects, which is critical in the fast-paced construction environment of the UAE.
Long-Term Investment
Asphalt plant from United Arab Emirates is a long-term investment that can support multiple projects over many years. As the demand for infrastructure grows, the value of having a reliable, local asphalt production facility increases.
Sustainability and Control
Owning an asphalt plant for UAE road construction allows for better control over the production process, ensuring consistent quality and reduced waste. Additionally, modern asphalt plant for sale in UAE is designed to be more eco-friendly, supporting the UAE’s sustainability goals.
Investing in an asphalt plant in UAE not only supports current construction needs but also positions your business for long-term growth in a dynamic and rapidly developing market.
What Is the Working Process of Asphalt Plant?
To produce high-quality asphalt efficiently, it’s important to understand the hot mix plant’s operation. This guide will walk you through the key steps of the process, from material preparation to mixing, helping you ensure smooth and effective asphalt production. Let’s take a quick look at how an asphalt plant works!
Raw materials, including aggregates, bitumen, and mineral powder, are carefully weighed according to the mix design. Once weighed, they are transported into the material lifting bucket for further processing.
The material is lifted and unloaded into the drying drum, where it is heated to remove moisture. The heating process is crucial as wet aggregates can cause issues in the mixing stage. The drying drum uses the heat from the combustion furnace to dry the aggregates.
Inside the drying drum, the material continuously moves, forming a “material curtain.” This allows for efficient heat exchange with the furnace’s flame, ensuring that the aggregates are heated evenly. The constant movement helps to reduce the risk of overheating or underheating any part of the batch.
As the drying process continues, fresh aggregates are continuously added to the drum. This ensures a constant supply of properly heated material for the next stage – the mixing process. The incoming materials blend seamlessly with the already-dried aggregates.
Once the aggregates are dried and heated, they are transferred to the mixing drum. In this stage, bitumen (asphalt) is added, along with any required mineral powder or filler. The drum mixes these materials thoroughly to produce a uniform asphalt mixture ready for use in construction.
The process of drying, adding fresh aggregates, and mixing the asphalt continues in a constant cycle. This ensures continuous production of high-quality asphalt. The asphalt production plant’s efficiency depends on its ability to maintain a steady flow of materials through each stage.

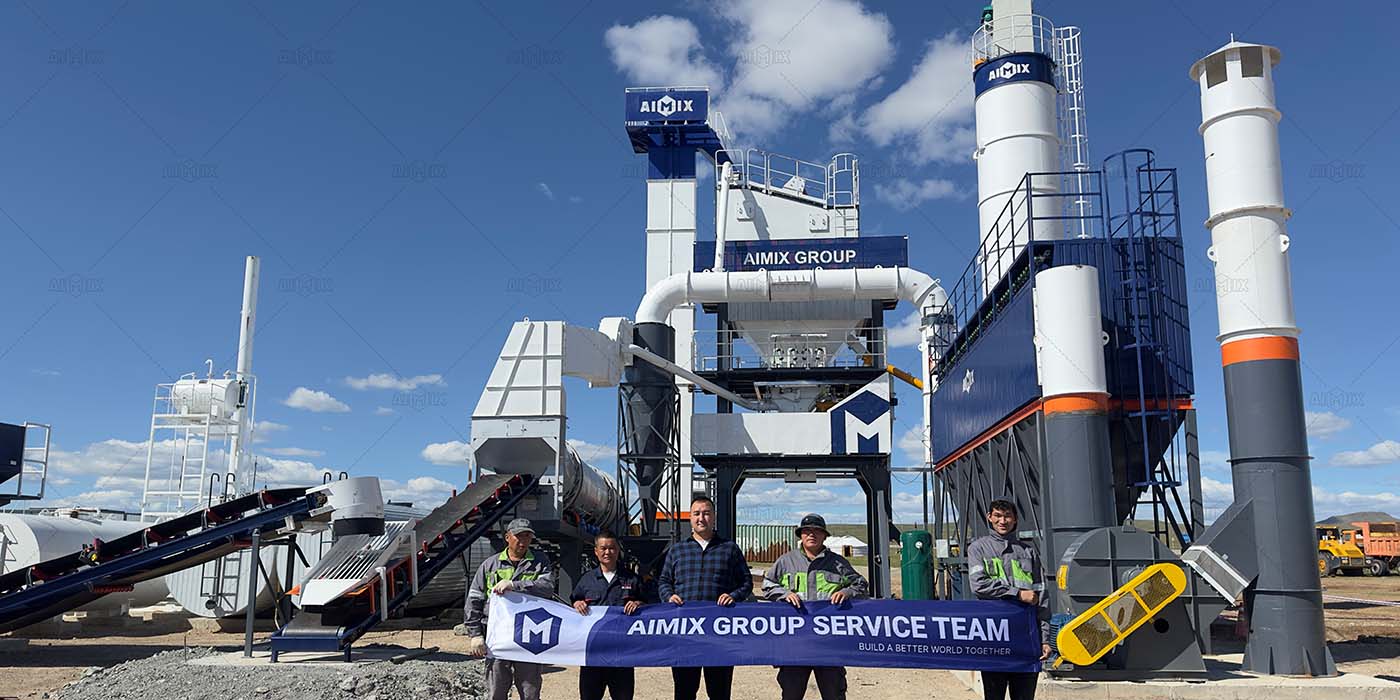

AIMIX Service in UAE
AIMIX, as an outstanding stationary & portable asphalt plant manufacturer in United Arab Emirates, offers comprehensive services here, ensuring that clients receive reliable support for their asphalt plant needs. Here are the key services we provide:
Custom Plant Solutions
We offer a variety of asphalt plants, including stationary, mobile, and drum mix types, customized to meet your specific project needs.
Installation and Commissioning
Our experienced team ensures the complete installation and commissioning of your asphalt plant making sure it operates efficiently from day one.
Maintenance and Support
We provide regular maintenance and timely repairs to keep your asphalt plant running smoothly, minimizing downtime and maximizing productivity.
Training and Technical Support
AIMIX offers training programs for your operators and technical support to help you get the most out of your asphalt plant in UAE.
Spare Parts Supply
We ensure quick and reliable delivery of high-quality spare parts, helping you avoid delays and keep your plant in optimal condition.
Consultation and Project Assistance
Our experts assist in selecting the right asphalt plant for your project and help optimize plant performance for maximum efficiency.
In Conclusion
Ready to invest in an asphalt plant in UAE? AIMIX offers reliable solutions and expert support to ensure your project’s success. Contact us today for a customized quote and learn how we can help your business grow with high-quality asphalt plant in UAE. Get the price list of asphalt mixing plant in United Arab Emirates from AIMIX!
