Congratulations AJY60 portable concrete mixer batching plant was going to Indonesia! Our customer wanted to repair the dam. Because of this type concrete plant is convenient to move and price is reasonable, so he decided to choose AJY60.

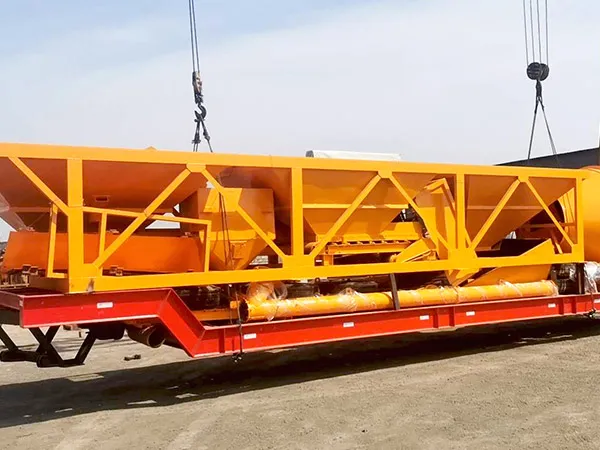

As you can see from the picture, this portable concrete batch plant has small layout and reasonable structure, it can be loaded in one container. Shipping cost is also low. When the portable concrete mixer batching plant arrived the construction site, our engineer will help debug and etst run. Meanwhile, our engineer also can train the local operator until he can run the equipment smoothly.
Let’s learn about the components of portable batch plant.
Components of portable concrete mixer plant
Portable concret mixer batching plant consists of discharge outlet, JZM series concrete drum mixer, powder weighing system, aggregate batching machine, aggregate conveying system and tyres.
Specifications
| Unit | AJY-60 | AJY-60 | ||
| Theoretical Productivity | m3/h | 50-60 | 50-60 | |
| Mixer | Drum Mixer | JZM1500 | JZM1500 | |
| Motor Power | KW | 11×2 | 11×2 | |
| Mixing Time | S | 40 | 40 | |
| Discharging Height | m | 1.3 | 1.3 | |
| Batching Machine | Batching Machine | PLD1600 | PLD1600 | |
| Storage Hopper | M3 | 5×2 | 5×3 | |
| Motor Power | KW | 4×2 | 4×3 | |
| Sensor | kg | 2000×3 | 2000×3 | |
| Cylinder | 100*250 | 100*250 | ||
| Belt Size | mm | 3600*600 x 1 9000*600 x1 | 10400*500 x2 4200*500 x1 9000*600 x1 | |
| Feeding Height | mm | 3200 | 3200 | |
| Cement Weighing System | Weighing Accuracy | ±1% | ±1% | |
| Water Weighing System | Weighing Accuracy | ±1% | ±1% | |
| Water Pump | KW | 3 | 3 | |
| Additive Weighing System | Weighing Accuracy | ±1% | ±1% | |
| Additive Pump | 1.1 | 1.1 | ||
| Chassis | Size | mm | 8410*2000*780 | 11100*2000*780 |
| Tyres | mm | 1000 | 1000 | |
| Control System | Electrinoic Components | ZHENG TAI | ZHENG TAI | |
| Control System | PLY1000 semi auto | PLY1000 semi auto | ||
If you also need such a portable concrete batch plant, contact us now, we will give you best plan and quotation.
