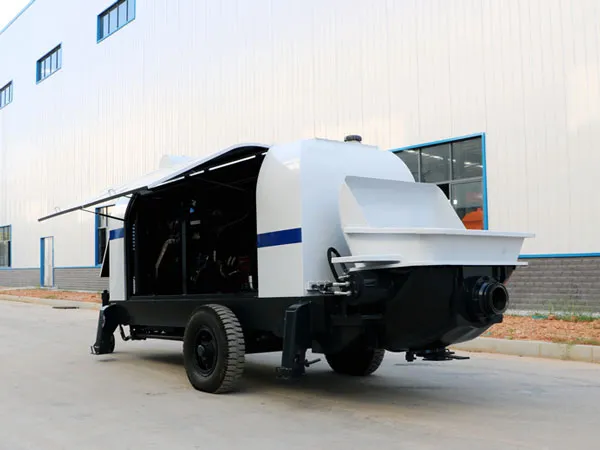

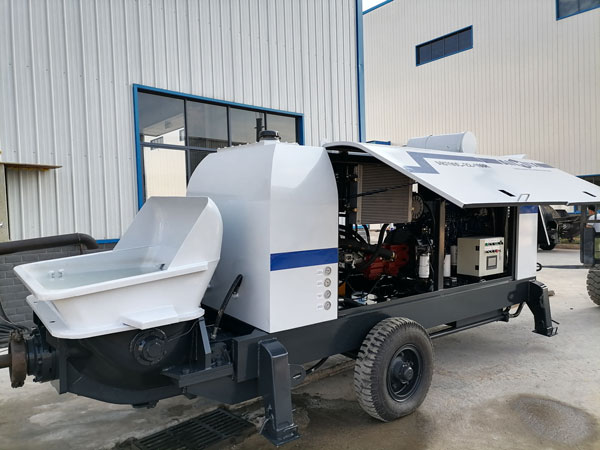

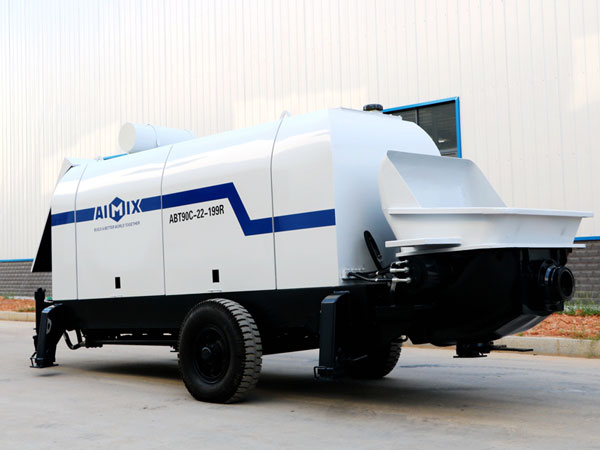

Great news! We exported ABT90C diesel engine concrete pump to Uzbekistan. And our salesman took some loading pictures on-site. You can check below.
Why people choose diesel concrete pump
1. It can work without the limitation of electricity and electric voltage.
2. Fuel efficient. Compared with electric type concrete pump, It will save energy cost.
Specifications of ABT90C
| Item | ABT90C |
| Max. Theoretioal Throughput (m3/h) | 90 |
| Max. Pumping Pressure(MPa) | 16/18 |
| Max. Theoretical Vertical Conveying Distance(m) | 200 |
| Max. Theoretioal Horizontal Conveying Distance | 1200 |
| Max. Aggregate Diameter(mm) | 50 |
| Conveying Pipe Radius(mm) | 150 |
| Conveying Cylinder Bore X Piston Stroke(mm) | Φ200×1800 |
| Hydraulic Oil Tank Capacity(L) | 580 |
| Feeding Height(mm) | 1420 |
| Diesel Brand | DEUTZ |
| Power of Diesel Motor(kw) | 176 |
Diesel concrete pump machines are always hot products among our users, and they usually purchased ABT40C and ABT60C. Of course, if your project is large-scale, you can choose a large capacity, such as, ABT90C.
Our diesel concrete pump has wide applications in air port project, water engineering project, wharf project, flood control, new building construction, etc. In addition trailer type concrete pump, we also sell mixer type concrete pump, ABJZ30C and ABJZ40C are the most popular types. You can learn more here: https://aimixgroup.com/diesel-concrete-pump/. Because diesel concrete mixer pump can produce and pump concrete, which is very functional.
We are here to reply your request, contact us now！
