What is a portable batch plant? Portable batch plant for sale is portable to move from site to site. AIMIX new type portable batch plant can perfectly meet the demand of all kinds of mobile constructions, such as, roads, railways, bridge, port, etc. In this page, you will learn about some basic knowledge: components and main advantages.

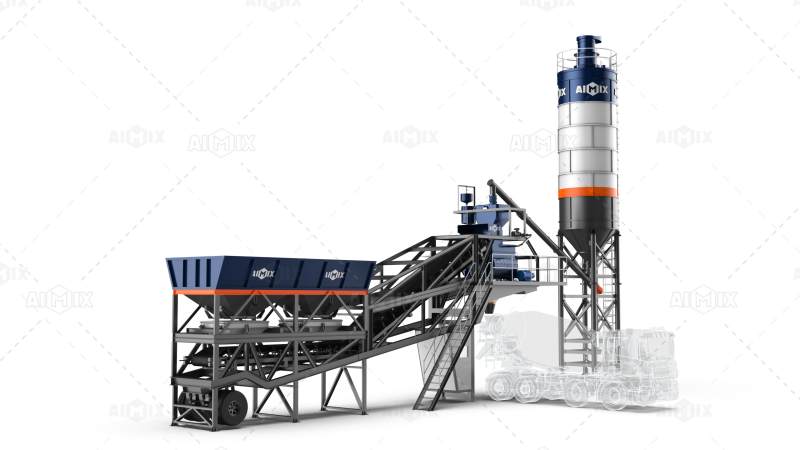

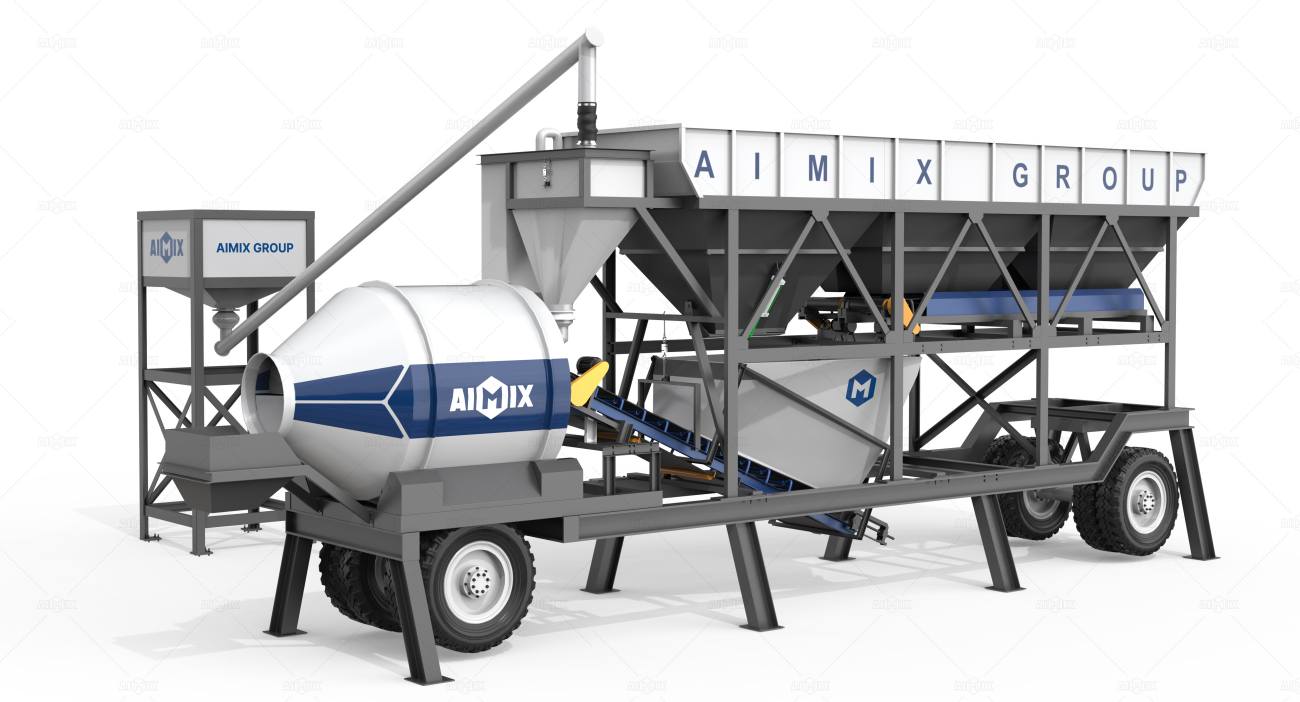

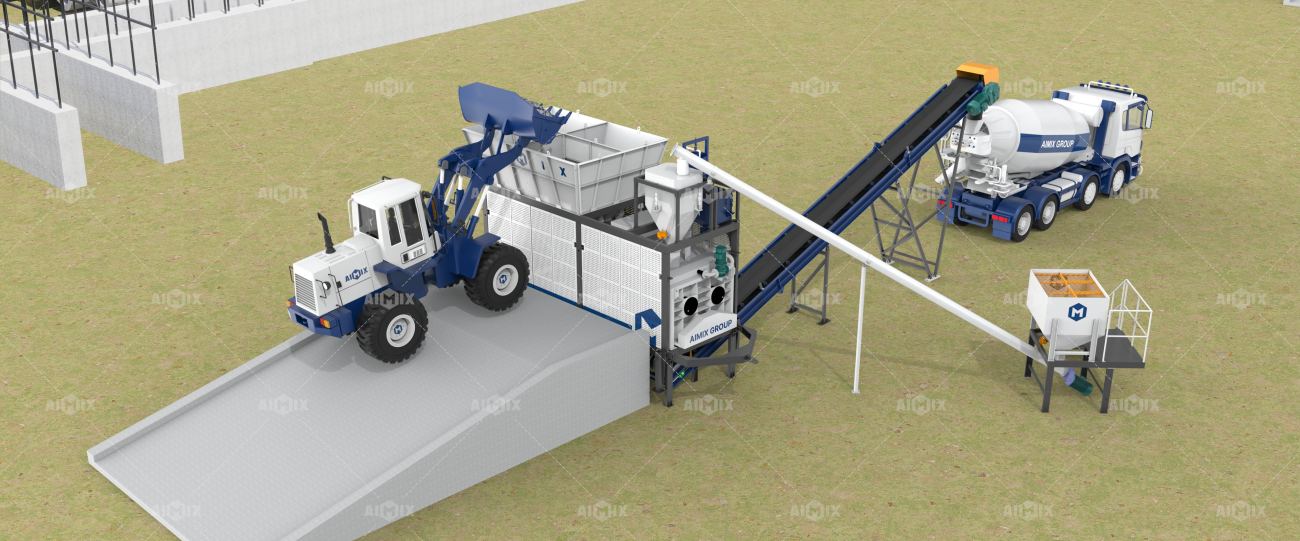

At firstly, let’s see its structure. The below is a whole picture about portable concrete mixer batching plants. We mainly sell AJT-60 portable cement plant, the production output can reach 60 cubic meter per hour.
Latest news

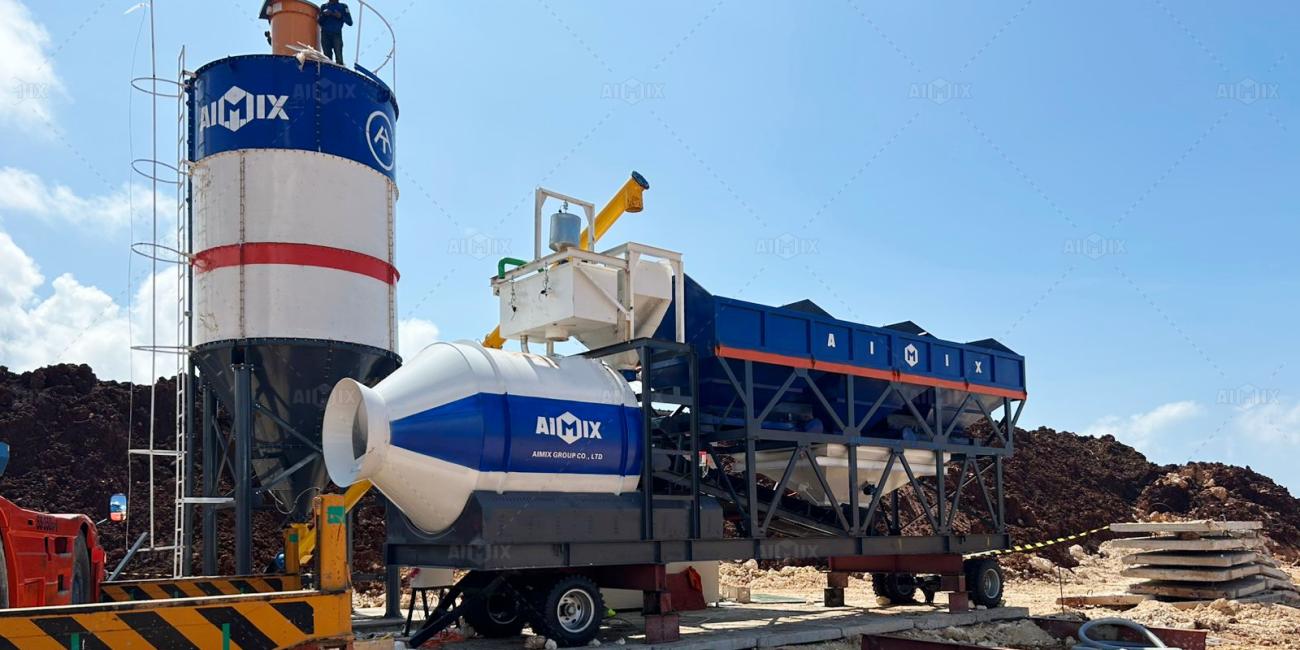

AJT-35 portable concrete mixer plant was installed in Ambon, Indonesia
AJT-60 was exported to Indonesia
Portable concrete mixer batching plants
Specifications
| Unit | AJT-60 | AJT-60 | ||
| Theoretical Productivity | m3/h | 50-60 | 50-60 | |
| Mixer | Drum Mixer | JZM1500 | JZM1500 | |
| Motor Power | KW | 11×2 | 11×2 | |
| Mixing Time | S | 40 | 40 | |
| Discharging Height | m | 1.3 | 1.3 | |
| Batching Machine | Batching Machine | PLD1600 | PLD1600 | |
| Storage Hopper | M3 | 5×2 | 5×3 | |
| Motor Power | KW | 4×2 | 4×3 | |
| Sensor | kg | 2000×3 | 2000×3 | |
| Cylinder | 100*250 | 100*250 | ||
| Belt Size | mm | 3600*600 x 1 9000*600 x1 | 10400*500 x2 4200*500 x1 9000*600 x1 | |
| Feeding Height | mm | 3200 | 3200 | |
| Cement Weighing System | Weighing Accuracy | ±1% | ±1% | |
| Water Weighing System | Weighing Accuracy | ±1% | ±1% | |
| Water Pump | KW | 3 | 3 | |
| Additive Weighing System | Weighing Accuracy | ±1% | ±1% | |
| Additive Pump | 1.1 | 1.1 | ||
| Chassis | Size | mm | 8410*2000*780 | 11100*2000*780 |
| Tyres | mm | 1000 | 1000 | |
| Control System | Electrinoic Components | ZHENG TAI | ZHENG TAI | |
| Control System | PLY1000 semi auto | PLY1000 semi auto | ||
Components of portable concrete batch plant for sale
1. Discharge outlet. It connects with concrete mixer, after the mixing, concrete will be discharged from this outlet.
2. JZM concrete drum mixer. It is driven by friction. And this type concrete mixer has high efficiency.
3. Powder weighing. As you can see from this picture, powder system is very simple, compared with old type portable concrete batch plant, which greatly saves land occupation. If you have special requirements, we can equip you with simple hopper and screw conveyor, meanwhile, we also can equip it with vertical or horizontal cement silo.
4. Aggregate batching machine. It is used to batch aggregate, such as, cement, sand, pebbles, etc. It is with professional load cell, so can produce quality concrete. In addition, we usually equip it with three-bin aggregate batching machine, also we can customize according to your real needs.
5. Aggregate conveying system. After batching, aggregate will enter the concrete mixer through this part.
Next, we need to know about advantages and characteristics, so that you will know why you need to invest such a small portable concrete batch plant.
Advantages of portable concrete plant
1. Fast assemble and disassemble, convenient movement. Only need one 30t crane, can disassemble within one day. When install it, if ground is flat and solid, users don’t need to lay foundation, which is very suitable for users with tight deadlines.
2. High configuration, high reliability, precise weighing and convenient operation. All parts are imported from abroad, which greatly decrease the fault rate but also improve the weighing accuracy of batching plant portable.
3. Semi automatic control system, you can adopt automatic control or manual control. The dynamic panel display can clearly understand the operation of each component, and can store and print the report data, which provides great convenience for production scheduling management.
4. Environmental protection. Closed production reduces the generation of dust, what’s more, we equip it with professional dust collector, no air pollution.
Why buy portable cement plants for sale
1. Can change sites at any time.
2. Small investment, low investment cost. And you will get quick returns in short time.
3. Water supply is adjustable. You can choose right capacity of water pool according to the water content of materials.
4. You can use a wheel loader, don’ need to rent a trailer.
5. Basic concrete uses concrete transit mixer to receive concrete, for this portable concrete batching plant sale, you can use wheel loader, excavator, tricycles and concrete mixer truck to receive the ready mixed concrete.
After-sales service for portable batch plant for sale

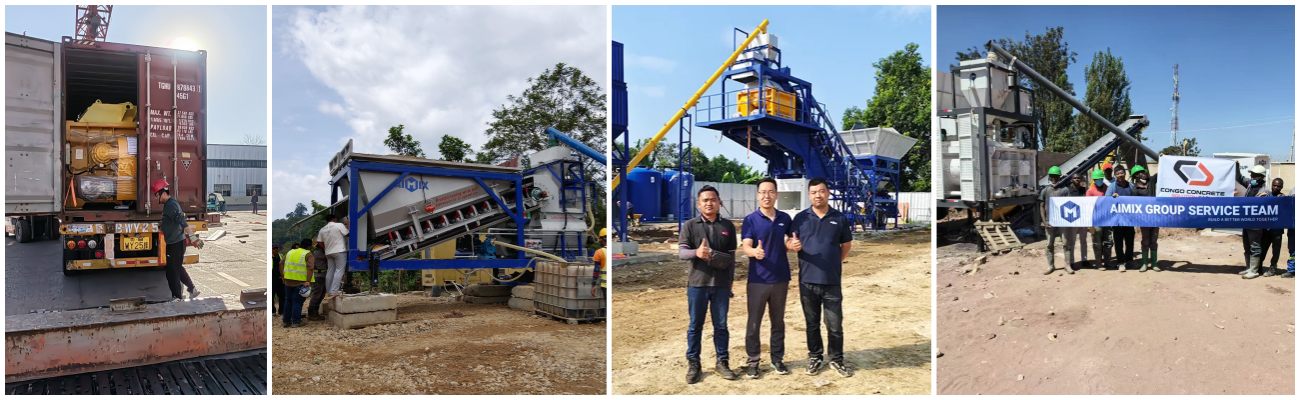

As for after-sales service of portable batching plant, we have local based center in Pakistan, Philippines, Indonesia, Bangladesh, Uzbekistan and Russia of portable batch plant forsale, if your project has some problems, call us: +86 18569987230 or mailto us: market@aimixgroup.com, we will help you out immediately.
In a word, if you want to invest portable batch plants for sale, contact us, we will help you draw a best plan and help you get quick returns as soon as possible.
