Diesel concrete pump is the preferred choice for over 90% of customers in global construction and infrastructure projects, especially under complex operating conditions. The key reason lies in its ability to solve three critical pain points for construction teams: reliance on grid power, harsh environments, and the need for efficient, uninterrupted work. Whether in off-grid remote mountainous areas, disaster zones with unstable power, or remote mining sites, it stands out as a reliable “project power core” with the advantages of grid independence, strong power and all-weather adaptability. To fully understand its value and select the right model for your needs, let’s first delve into the main classifications of diesel concrete pumps.
Types of Diesel Concrete Pumps: Tailored Solutions for Every Construction Scenario
Aimix offers three core types of diesel concrete pumps: mixer type, trailer type, and boom type. Each is engineered with unique structures and functions to match diverse project needs—from small residential builds to large-scale infrastructure. Below is a detailed breakdown of each type, including key specifications, hot models, and application scenarios. This will help you make an informed choice for your project.
Mixer Type Diesel Concrete Pumps
The diesel concrete mixer pump integrates concrete mixing and pumping in one unit. This design eliminates the need for separate mixing equipment, making it ideal for projects with limited space or tight budgets. Aimix provides two mixer structures to cater to different efficiency and quality demands.
With Vertical Mixing Shaft
- Features: It features a double hydraulic drive system with two mixing shafts. This boosts mixing speed by 2.3 times compared to single-shaft designs.
- Hot models: ABJW40C, ABJW60C
- Concrete output: 40-60m³/h
- Application: Perfect for building construction, road paving, and bridge reinforcement—where high-quality concrete and efficiency are priorities.

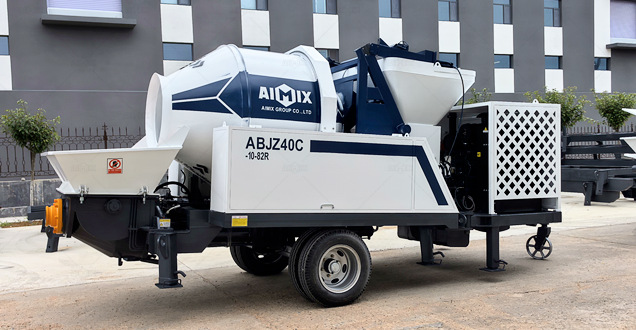

With Drum Mixer
- Features: This is a cost-effective option for budget-conscious projects.
- Hot models: ABJZ30C, ABJZ40C
- Concrete output: 30-40m³/h
- Application: Well-suited for residential projects, small commercial buildings, and repair work that don’t require ultra-high concrete quality. It comes at a more affordable price point.

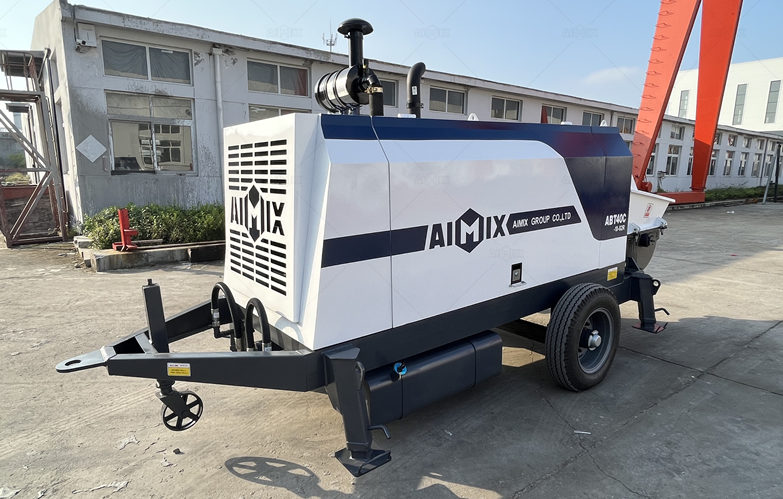

Trailer Type Diesel Concrete Pumps
The diesel concrete pump trailer is designed for long-distance concrete transportation via pipelines. It’s a workhorse for large-scale projects.
- Hot models: ABT30C to ABT90C
- Production range: 30-90m³/h
- Application: Suitable for high-rise construction, large foundations, and infrastructure projects where site access is challenging.
- Key Advantage: It is highly portable. The pump can be easily lifted and transferred on-site using a portable gantry crane or forklift. This ensures flexible deployment even in confined or remote work areas. With stable performance and high output, it’s reliable for projects needing continuous concrete supply over extended periods.
Boom Type Diesel Concrete Pumps
The boom type diesel engine concrete pump is equipped with an extendable boom. This eliminates the need for manual pipe installation and disassembly, offering unmatched flexibility for high-rise or long-distance concrete pouring. Aimix offers three chassis options of boom concrete pump to adapt to different terrain and project needs.

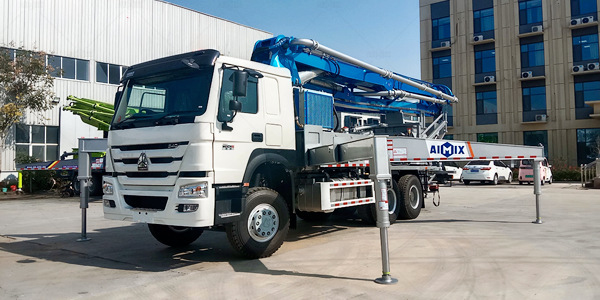

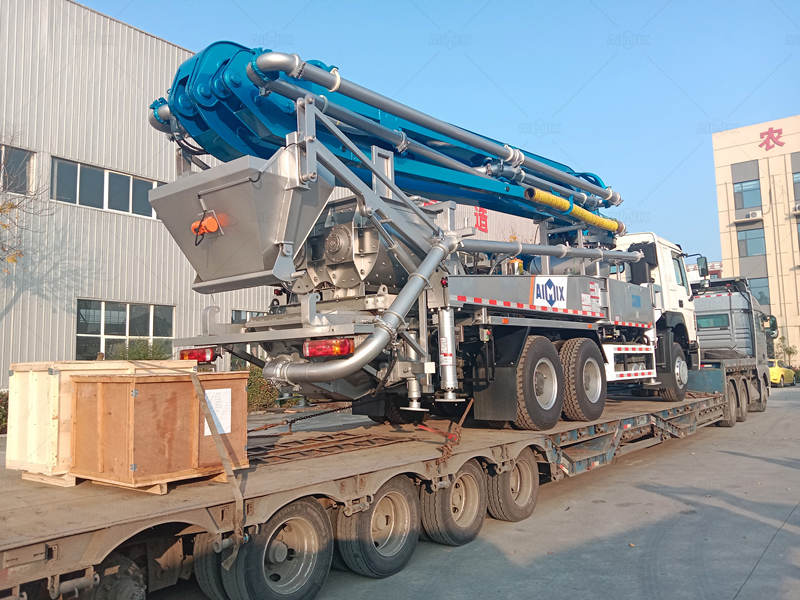

With Truck Chassis
- Boom lengths available: 26m, 30m, 33m, 38m
- Max concrete output: 120m³/h
- Hot model: AMY33. Application: Excels in farmland drainage and rural civil construction.
- Advantages: Lightweight design, short wheelbase, compact body. It can navigate narrow construction sites and be driven on public roads for seamless site transitions—boasting the highest output among all boom-type models.
With Crawler Chassis
- Boom lengths: 8m-25m
- Max output: 50m³/h
- Hot model: AMY18
- Application: Primarily used in mountainous regions, farmland drainage, and locations inaccessible to concrete transport trucks.
- Advantages: Robust crawler chassis and remote control functionality. Enables safe and efficient operation in rough or uneven terrain.

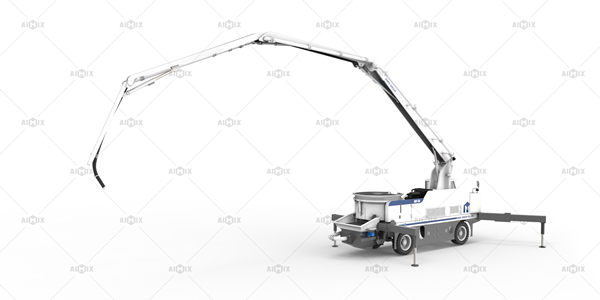

With Wheel Chassis
- Boom lengths: 20m-33m
- Max output: 89m³/h
- Hot models: AMY20, AMY26
- Application: Ideal for rural residential buildings and drainage projects—its boom can reach up to the 10th floor.
- Advantage: Requires less road width than truck chassis models, making it more agile in tight construction environments.
Understanding the unique strengths of each diesel concrete pump type is the first step to selection. Next, we’ll dive into the key parameters that directly impact performance and project compatibility.
Below are the specifications, you can check them if you want to learn more details.
| Items | Units | ABJZ30C | ABJZ40C |
|---|---|---|---|
| Max. theo. concrete output(L./H) | M3/h | 30 | 40 |
| Mixer rated feed capacity | m3 | 0.56 | 0.56 |
| Mixer rated discharge capacity | m3 | 0.35 | 0.45 |
| Max.concrete pumping pressure(H./L.) | MPa | 10 | 10 |
| Distribution valve type | S Valve | S Valve | |
| Concrete cylinder diameter×stroke | mm | Φ140×1000 | Φ180×1000 |
| Hopper capacity | L | 400 | 400 |
| Outlet diameter | mm | Φ150 | Φ150 |
| Diesel engine model | Weichai | Weichai | |
| Electrical engineering power | KW | 37 | 82 |
| Rotate speed | r/min | 1480 | 2200 |
| Circuit type | Open circuit | Open circuit | |
| Pumping system pressure | MPa | 26 | 32 |
| Mixing system pressure | MPa | 6-8 | 6 |
| Capacity of oil tank | L | 260 | 350 |
| Max. Theoretical Vertical/Horizontal Conveying Distance | m | 120/300 | 120/500 |
| Max. aggregate diameter | mm | Slick/scree:10/20 | Slick/scree:40/50 |
| Inside diameter of delivering pipe | mm | Φ100 | Φ125 |
| Dimensions:length×width×height | mm | 4500x1750x1600 | 600x2300x3150 |
| Total weight | kg | 3000 | 4500 |
| Items | Units | Parameters | |||
|---|---|---|---|---|---|
| ABT40C | ABT60C | ABT80C | |||
| whole performance of machine | Max. theo. concrete output(L./H) | M3/h | 40/26 | 67/45 | 84/45 |
| Distribution valve type | S Valve | S Valve | S Valve | ||
| Concrete cylinder diameter脳stroke | mm | Φ180×1200 | Φ200x1650 | Φ200x1800 | |
| Hopper capacity x feeding height | L/mm | 400/1100 | 800/1400 | 800/1400 | |
| Outlet diameter | mm | Φ150 | Φ180 | Φ180 | |
| Power system | Diesel engine model | Weichai | Wechai | Wechai | |
| Diesel engineering power | KW | 82.00 | 129.00 | 176.00 | |
| Rotate speed | r/min | 2200.00 | 2200.00 | 2200.00 | |
| Hydraulic system | Circuit type | Open circuit | Open circuit | Open circuit | |
| Pumping system pressure | MPa | 32.00 | 32.00 | 32.00 | |
| Mixing system pressure | MPa | 10.00 | 10.00 | 10.00 | |
| Capacity of oil tank | L | 370.00 | 560.00 | 560.00 | |
| Other parameters | Max. Theoretical Vertical/Horizontal Conveying Distance | m | 120/500 | 180/1000 | 260/1200 |
| Max. aggregate diameter | mm | Slick/scree:40 | Slick/scree:40 | Slick/scree:40 | |
| Inside diameter of delivering pipe | mm | Φ125 | Φ125 | Φ125 | |
| Dimensions: lengthxwidthxheight | mm | 5000x1850x1700 | 5800x2000x1750 | 6300x2100x2350 | |
| Total weight | kg | 4500.00 | 6500.00 | 6900.00 | |
Customer Cases
Aimix’s diesel concrete pump for sale support projects in different regions all over the world. Here are some of our recent cases.

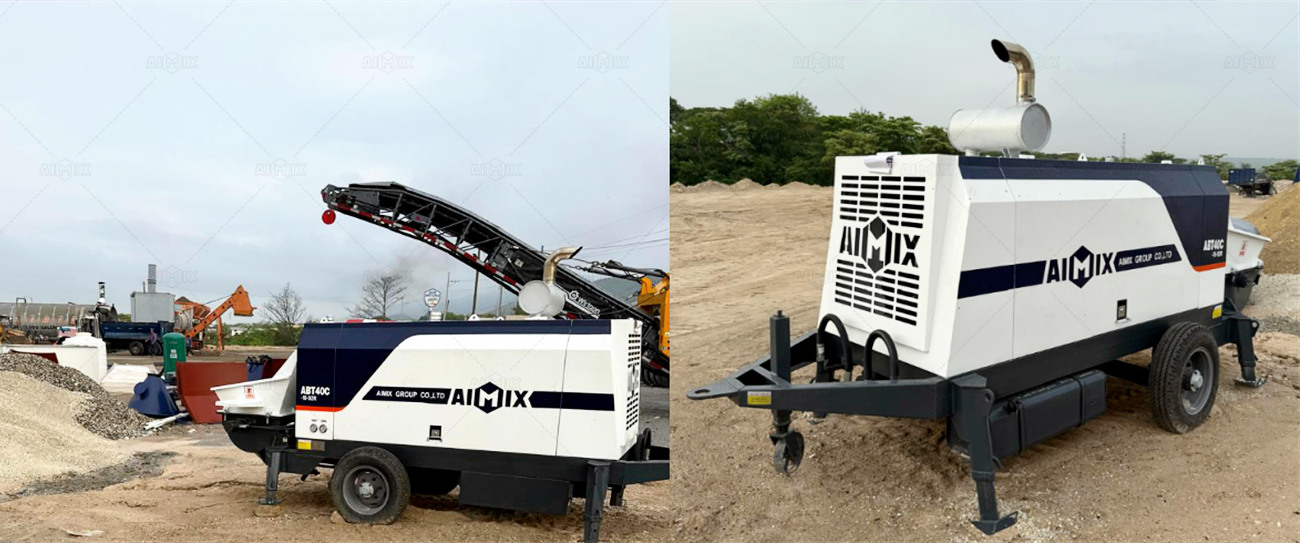

Guatemala Diesel Concrete Trailer Pump
- Location: Guatemala
- Model/Type: ABT40C trailer concrete pump
- Project: Several buildings construction in different region
- Client Feedback: This trailer concrete pump with diesel engine helps us achieve a 35% reduction in concrete placement time across multiple housing projects, enabling faster project completion and increased contract capacity.
Jamaica Diesel Concrete Boom Pump
- Location: Jamaica
- Model/Type: 33m boom concrete pump truck
- Project: High-rise building construction
- Client Feedback: The boom is 33m, very long and don’t need to be installed. The truck can be driven through narrow working site.
Philippines Diesel Concrete Mixer Pump
- Location: The Philippines
- Model/Type: ABJZ40C portable diesel concrete mixer with pump
- Project: Spraying operation for building
- Client Feedback: A small truck towed it to the construction site. This pump is powerful onsite. The diesel concrete mixer pump price is affordable.
From the real-world cases of diesel concrete pumps you will elaborate on, we can clearly see their outstanding performance in specific harsh working conditions. To make an informed decision on diesel concrete pumps, it’s critical to align the equipment with your on-site conditions. Below, we detail specific scenarios where diesel concrete pumps are the optimal choice, helping you directly compare with your project location and needs.
When Is a Diesel Concrete Pump the Better Choice?
Remote Areas (Mountainous/Rural Regions)
Diesel concrete pumps excel in remote mountainous areas such as mountainous road construction sections in southern Southeast Asian regions and rural areas like small-town infrastructure renovation projects in Eastern European countryside. These areas often lack convenient transportation and basic supporting facilities. Diesel concrete pumps require no external power supply and can be freely transferred, avoiding delays caused by difficult power access. For example, in rural water conservancy construction in central African rural areas, diesel concrete pumps can start working within 5 minutes of arriving at the site, ensuring the progress of irrigation channel pouring projects.
Construction Sites Without Power Grid Coverage
Sites completely without power grid coverage rely heavily on diesel concrete pumps, such as remote mining area construction in northern Australian outback and new residential area development in remote coastal regions of South America. In these locations, laying temporary power lines is not only impractical but also poses safety risks. Diesel concrete pumps with self-contained diesel engines can provide continuous and stable power output, supporting tasks like foundation pouring and wall construction. A typical case is the road expansion project in remote plateau areas of Central Asia, where diesel concrete pumps ensured uninterrupted construction despite the absence of grid access.
Unstable Power Supply
Areas with frequent power outages or voltage fluctuations are ideal for diesel concrete pumps, such as suburban construction sites in some South Asian regions and rural infrastructure projects in parts of Southern Europe. Unstable power can cause electric concrete pumps to shut down unexpectedly, leading to concrete solidification in the pipeline and costly maintenance. Diesel concrete pumps are not affected by such power issues. For instance, in the renovation of old urban roads in certain coastal areas of Southeast Asia where power cuts occur regularly during peak construction periods, diesel concrete pumps maintained consistent work efficiency and guaranteed project schedules.
Regions with High Power Access Costs
In regions where accessing the power grid requires extremely high costs, diesel concrete pumps are more cost-effective, such as remote island construction projects in the Pacific Ocean and mountainous tunnel construction sections in Western Asian regions. Laying long-distance power cables or building temporary power stations for electric concrete pumps would significantly increase project investment. For example, in the construction of a small harbor in a remote island area of the Indian Ocean, using diesel concrete pumps avoided the high cost of laying undersea power cables, reducing the overall project cost by nearly 30% compared to the planned electric pump solution.
As mentioned earlier, regions suitable for diesel concrete pumps often have unstable power supply or remote construction sites. In such conditions, besides reliability, diesel concrete pump energy consumption and cost control directly affect project profitability. Understanding concrete pump diesel consumption and formulating scientific cost-control plans are key for project managers. Below is a concise overview of energy consumption references and practical cost-saving methods.
Energy Consumption Reference & Cost Control
Diesel Consumption Reference of Diesel Concrete Pumps
Concrete pump diesel consumption is influenced by pump type, working pressure, conveying distance, and operation intensity. Based on practical project data, here are the core concrete pump diesel consumption per hour references for different models:
- Diesel trailer concrete pump: Stable energy consumption; concrete pump diesel consumption per hour is 6-10L under standard conditions (conveying height ≤50m, distance ≤200m), reaching 10-13L for high-pressure scenarios (e.g., high-rise construction).
- Diesel boom concrete pump: Energy consumption relates to boom length; for 30-45m boom models, concrete pump diesel consumption per hour is 10-14L normally, rising to 14-18L when the boom is fully extended or working at large angles.
- Diesel mixing concrete pump: Integrates mixing and conveying; concrete pump diesel consumption per hour is 8-12L under normal conditions (conveying height ≤30m, distance ≤100m), increasing to 12-15L for long-distance or high-slump concrete.
The above are reference values. Actual concrete pump diesel consumption varies by working conditions, equipment maintenance, and operation level. On-site test runs are recommended for accurate data.
Practical Cost Control Strategies
Controlling diesel concrete pump energy consumption and operating costs requires integrated management of equipment selection, maintenance, and operation.
Key strategies are as follows:
- Rational Selection of Equipment Models: Select models matching project needs (conveying height, distance, output) to avoid idle energy consumption or overloaded operation, which increases fuel use.
- Strengthen Daily Maintenance of Equipment: Regularly maintain engines, hydraulic systems, and pipelines (e.g., replace filters, check for oil leaks). Well-maintained pumps reduce concrete pump diesel consumption by 5-10%.
- Standardize Operational Procedures: Standardize operations: avoid long-term idling (2-3L/h consumption), control conveying speed stably, and arrange construction sequences to reduce equipment starts/stops.
- Optimize Fuel Management: Use qualified diesel, purchase in bulk to cut costs, and install fuel meters to monitor concrete pump diesel consumption per hour in real time and detect abnormalities.
- Reasonable Arrangement of Construction Schedules: Adjust construction time for extreme temperatures: avoid midday high temperatures in summer and preheat engines in winter to keep them operating at optimal temperature and reduce energy consumption.
In addition to controlling daily energy consumption and operating costs, the resale value of diesel concrete pumps is also a key factor affecting the overall investment return. For most purchasers, the diesel concrete pump price at the time of purchase is an important investment cost, and a higher resale value can effectively reduce the actual depreciation loss. Next, we will focus on the resale value of diesel concrete pumps, helping you understand how to maximize the residual value while clarifying the relationship between resale value and concrete diesel pump price.
Maximize Your Investment Return: Diesel Concrete Pump Resale Value Insights
Resale Value & Diesel Concrete Pump Price: Key Connection
Diesel concrete pump resale value is closely tied to the initial diesel concrete pump price. Reasonable pricing plus reliable quality ensures stable residual value. When evaluating concrete diesel pump price, factoring in resale value optimizes total cost of ownership for better long-term returns.
Core Factors Impacting Resale Value
- Brand & Quality: Reputable brands with reliable quality have 10-20% higher resale value, a key point when comparing concrete diesel pump price.
- Usage & Maintenance: Complete maintenance records and intact core components boost buyer trust and offset depreciation.
- Market Demand: Popular models have stronger liquidity and more stable resale value.
- Accessories & Documents: Complete original documents and accessories increase resale trust and price.
Quick Tips to Boost Resale Value
Maximize residual value with long-term management from purchase:
- Choose reputable brands with transparent diesel concrete pump price.
- Keep detailed maintenance records and related certificates.
- Standardize operation and regular professional maintenance.
- Timely replace worn parts and upgrade available systems.
Second-Hand Resale Price Reference
Resale price (relative to initial diesel concrete pump price) based on market data:
- 1-2 years old (≤2000h, no major faults): ~70-80%
- 3-5 years old (2000-5000h, complete records): ~40-60%
- Over 5 years old (>5000h, usable): ~20-30%
Note: Actual resale price varies by market supply-demand and equipment condition. Consult professional dealers for accurate pricing.
When investing in concrete pumps, choosing between diesel and electric models is a core decision. Below is a concise comparative table highlighting their key differences, along with scenario-based selection guidelines to help you decide quickly.
Diesel vs Electric Concrete Pumps: Core Comparative Table
| Comparison Dimensions | Diesel Concrete Pump | Electric Concrete Pump |
|---|---|---|
| Power Source | Diesel engine (self-generating) | External power grid (requires stable power supply) |
| Applicable Scenarios | Areas with no/weak power supply, remote construction sites, disaster relief sites | Urban areas with complete power grid coverage, factories |
| Mobility | Freely transferable (no cable restrictions) | Dependent on fixed power supply; re-wiring required for movement |
| Start-up Efficiency | Ready to use upon arrival (starts within 5 minutes) | Requires advance power connection (may take several hours) |
| Cost Structure | Diesel consumption cost (controllable) + low maintenance fee | Electricity fee (depends on local electricity price) + cable rental fee |
| Extreme Environment Adaptability | High temperature/low temperature/dust resistant (stable at -20℃~50℃) | Battery attenuation in low temperature; circuit overload risk in high temperature |
| Typical Users | Contractors/developers (complex working conditions) | Municipal engineering/fixed construction sites (stable power supply) |
Tip: For mixed-scenario projects, match diesel and electric concrete pumps by section to balance environmental requirements and efficiency.
Choosing a reliable diesel concrete pump is only the first step; professional one-stop service guarantee is crucial to ensure smooth project operation. As a professional construction equipment manufacturer, AIMIX provides comprehensive and customized services tailored to diesel concrete pump users, covering the entire process from pre-sales consultation to after-sales support.
One-Stop Service Guarantee for Diesel Concrete Pumps
Pre-Sales Service: Professional Demand Customization
One-on-one consultation by senior project consultants, who will contact you within 2 hours to understand your diesel concrete pump project requirements (e.g., working conditions, conveying needs).
Customized solutions: Professional technical managers provide 2-3 sets of diesel concrete pump solutions, including parameters, configurations, 3D drawings, and related materials, with flexible configuration adjustments based on your needs.
In-Sales Service: Transparent Production Supervision
Real-time communication: Continuously optimize the diesel concrete pump solution according to your dynamic needs during the process.
Full-process production supervision to ensure all parts of the diesel concrete pump comply with standards and guarantee product quality.
After-Sales Service: Comprehensive Worry-Free Support
Global service network: Dedicated service personnel in Indonesia, Malaysia, Pakistan, Saudi Arabia, etc., providing convenient local support for diesel concrete pump users.
- Full-process supporting services: Covering transportation (economical solutions, safe reinforcement), customs clearance (cooperative local companies), installation (professional Chinese and local certified engineers), and operator training.
- Local warehouses: Stock of diesel concrete pumps and related parts in key markets (e.g., Surabaya) for easy viewing and quick delivery.
- Turnkey service: One-stop full-process service, allowing you to wait for the diesel concrete pump to arrive and start using it directly without additional operations.
AIMIX has exported diesel concrete pumps and other equipment to over 100 countries. Contact us now for sincere and professional service tailored to your needs!
You can not only purchase products from Aimix, but also be our dealers in all over the world. Here shows you the steps.
How to Be Our Diesel Concrete Pump Distributor
We warmly invite you to join our distributor network and explore the diesel concrete pump market together. Here are the simple steps to become our distributor:
Contact Us
You can submit the application form through our official website or contact our marketing department directly by phone.
Qualification Review
We will assess the applicant’s qualifications to ensure a solid foundation for mutual cooperation.
Sign the Contract
Once we reach a cooperation agreement, we will sign a formal distribution contract.
Training and Launch
After completing sales and product training, you can officially start your journey as our distributor.
Evaluation and Support
AIMIX will provide ongoing support in operations management, product updates, and marketing activities.
Join us and grow together! We look forward to partnering with you!
