Trailer Type Portable Concrete Pump: High mobility, ideal for hard-to-reach sites. Max concrete output is 90m³/h. Weichai engine (Mercedes-Benz, Volvo)
Drum Mixer Type Portable Concrete Mixer Pump:Combine the functions of mixing and pumping concrete. Max concrete output is 40m³/h. Weichai engine (Mercedes-Benz, Volvo).
Vertical Shaft Mixer Type Portable Concrete Mixer Pump: Double hydraulic drive, double mixing shaft mixing, more uniform, mixing speed increased by 2.3 times. Max concrete output is 40m³/h.
Crawler Type and Wheel Type Boom Portable Concrete Pump: More flexible site-transfer, pumping with long boom. Max concrete output is 89m³/h.
Truck Type Boom Portable Concrete Pump: Pumping with maximum 38m boom. Max concrete output is 120m³/h.
Portable concrete pump is specially designed for easy transportation and quick relocation. It is ideal for construction sites with frequent mobility requirements. Aimix can provide you different types and models of portable concrete pumps for different application and worksite setting.
Types of Portable Concrete Pumps
These portable concrete pumps for sale can be classified based on their structure and function. We provide three categories: boom type, trailer type and portable concrete mixer pump.
Boom Type Portable Concrete Pumps
The boom type portable concrete pump for sale has its own traveling mechanism and can be moved without any other tools. They are equipped with a robotic arm (boom) that allows for precise concrete placement without the need for manual intervention. There are three kinds: wheel chassis, crawler chassis and truck chassis boom concrete pump portable.
Wheel Chassis Boom Type Concrete Pump Portable
Boom Length: 20m26m30m33m
- Max Concrete Output: 89m³/h
- Hot Model: AMY20, AMY26
- Application: Rural residential building, drainage projects, remote sites, and infrastructure projects, etc. Suitable for paved roads and city environments.
- Advantages: Fast relocation between job sites. Features a new rotary mixer with double pumping action.
Crawler Chassis Boom Type Concrete Pump Portable
- Boom Length: 8m15m18m20m25m
- Max Concrete Output: 50m³/h
- Hot Model: AMY18
- Application: Mountainous regions, farmland drainage, and locations inaccessible to concrete transport trucks.
- Advantages: Equipped with a crawler chassis and features remote control capability. Excellent off-road capability for uneven ground.

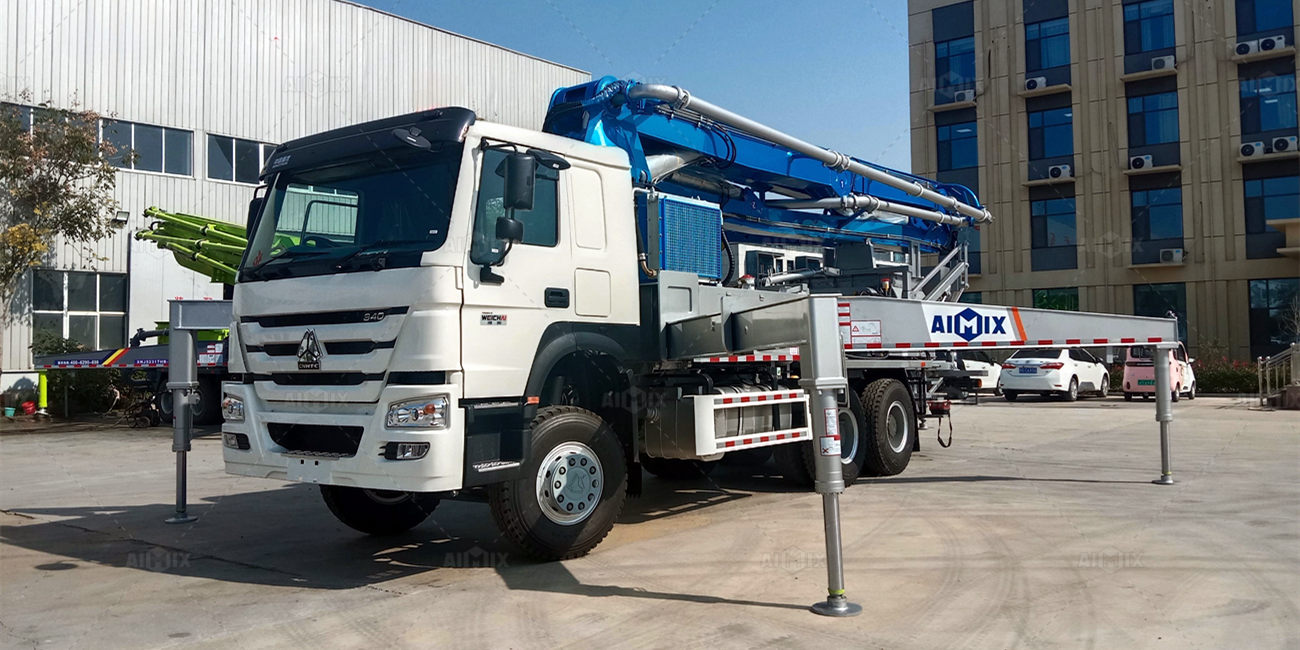

Truck Chassis Boom Type Concrete Pump Portable
- Boom Length: 26m30m33m38m
- Max Concrete Output: 120m³/h
- Hot Model: AMY33
- Application: Farmland drainage, rural civil construction. Particularly suitable for accessing narrow working spaces.
- Advantages: Mounted on a highway-legal truck for easy transportation. Lightweight design, short wheelbase, compact body, regulatory compliance.
Mixer Type Portable Concrete Pumps
The portable concrete mixer and pump can mix concrete by itself and has a lightweight structure, so it can be quickly transferred using trailers and other tools.
Vertical Shaft Mixer Type Concrete Portable Pump
- Max Concrete Output: 60m³/h
- Hot Model: ABJW40C ABJW60C
- Application: Building , road and bridge construction
- Advantages: Compact size allows easy transport and setup. The dual vertical shaft mixer small portable concrete pump has dual hydraulic drive. It increases the mixing speed by 2.3 times.
Drum Mixer Type Concrete Portable Pump
- Max Concrete Output: 30-40 m³/h
- Hot Model: ABJZ30C, ABJZ40C
- Engine Type: Electric/diesel
- Application: Residential projects, small commercial buildings, and repair work. The portable concrete mixer with pump is suitable for low-volume concrete production.
- Advantages: Simple operation with a cost-effective design. Portable and easy to tow between locations.
Trailer Type Portable Concrete Pumps
- Max Concrete Output: 30-90 m³/h
- Hot Model: ABT40C, ABT60C
- Engine Type: Electric/diesel
- Application: Residential projects, small commercial buildings, and repair work. Suitable for low-volume concrete production.
- Advantages: Easy towing and relocation between sites. Multiple power options (diesel/electric trailer concrete pump) for different working environments. High-pressure models can pump long distances and heights.
Successful Portable Concrete Pump Case Studies
Philippines Building Project: Drum Mixer Pump Boosts Efficiency
- Project Time: 2024.10
- Location: The Philippines
- Type of Pump: Portable diesel concrete mixer with pump
- Model: ABJZ40C
- Application: Concrete mix spraying operation for building construction
- Customer Feedback: Good quality and ease to transfer
- Ways of Transfering: This small portable concrete pumping machine is towed by a small truck to the site
Dominica Mortar Spraying: Trailer Pump Delivers Satisfaction
- Project Time: 2025.1
- Location: Dominica
- Type of Pump: Trailer type portable concrete pumper
- Model: ABT30C
- Application: Mortar spraying
- Customer Feedback: We are happy about this investment and cooperation with you.
Colombia Construction: Electric Trailer Pump Enhances Mobility
- Project Time: 2024.9
- Location: Colombia
- Type of Pump: Electric trailer type portable pumpcrete
- Model: ABT40D
- Application: Building construction
- Customer Feedback: This pump can be easily transfer onsite by forklift and portable gantry crane.
Indonesia Bridge Project: Compact Pump Drives Productivity
- Project Time: 2024.2
- Location: Dumai Indonesia
- Type of Pump: Trailer diesel portable concrete pump
- Model: ABT30C
- Application: Bridge construction
- Customer Feedback: This small concrete pump helps to boost the working efficiency of our project.
Supercharge Your Site with Complete Concrete Solutions
Aimix not only provides portable concrete pumper products, but also other construction machines that can be combined with them. Discover how our bundles work together!
Loading
- Combination: Loader & Portable Concrete Mixing Pump
- Pump Model: ABJZ30D, ABJZ30C, ABJZ40D, ABJZ40C
- Advantages: A loader efficiently supplies materials to a concrete mixer pump with high-speed loading, consistent material flow.
- Applications: Building, bridge, road construction
Mixing
- Combination: Self Loading Mixer & Portable Concrete Pump Trailer
- Pump Model: ABT30, ABT40, ABT60, ABT80, ABT90
- Advantages: Our new self loading mixer features an AI-powered weighing system for easy operation and higher efficiency. Its advanced error detection minimizes downtime, while the innovative cylinder-controlled weighing ensures accuracy, guaranteeing consistent concrete quality.
- Applications: Building, bridge, road construction
Loading & Batching
- Combination: Loader & Concrete Batcher & Concrete Mixer Pump
- Pump Model: ABJZ30D、ABJZ30C、ABJZ40D、ABJZ40C
- Advantages: Automating the loading by loader, precise batching by concrete batcher, mixing and pumping of concrete by mixer type pump. Reduces manpower, improves the quality of the concrete mix
- Applications: Building, bridge, road construction

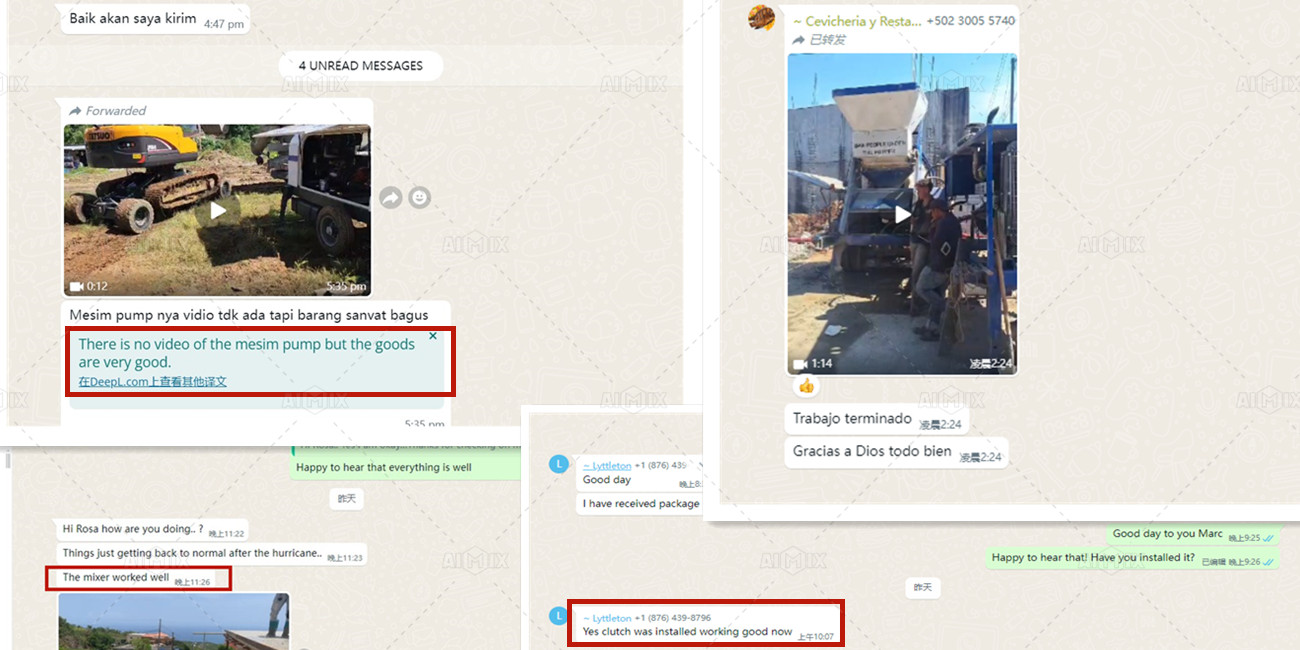

Straight from the Source: Customer Reviews That Speak Volumes
How to Move a Portable Concrete Pump
Moving a portable pump concrete from one site to another might seem complicated, but it’s actually quite straightforward! Here’s a step-by-step guide to help you understand how easy it is to transport this versatile machine:
Prepare the Pump for Transportation
Clean the Pump: Make sure the pump is free of leftover concrete, dirt, or debris. This prevents mess and makes it easier to inspect for any issues.
Secure Loose Parts: Tighten all bolts, fittings, and hoses. Remove or secure any detachable components, like pipelines or accessories.
Check for Damage: Inspect the pump for any visible damage, such as cracks or leaks, and address them before moving.
Choose the Right Transport Vehicle
They are designed to be moved easily, but you’ll still need the right vehicle:
Trailer: Most portable pumps can be towed using a standard trailer. Make sure the trailer is rated for the pump’s weight.
Truck: For larger pumps, a flatbed truck might be necessary. Ensure the truck has enough space and weight capacity.
Crane or Forklift: Use these to load and unload the pump safely if it’s too heavy to move manually.
Secure the Pump for Safe Transport
Use Heavy Duty Straps: Secure the pump to the trailer or truck using heavy-duty straps or chains. Make sure the straps are tight and the pump is stable.
Cushion the Pump: Place rubber pads or wooden blocks between the pump and the straps to prevent scratches and reduce vibrations during transit.
Balance the Load: Ensure the pump is centered on the trailer or truck to maintain stability while driving.
Drive Carefully to the New Site
Avoid Rough Roads: Choose smooth, well-maintained roads to minimize vibrations and potential damage.
Drive Slowly: Sudden stops, sharp turns, or high speeds can loosen the straps or damage the pump. Take it slow and steady!
Check Regularly: If it’s a long trip, stop occasionally to inspect the straps and ensure the pump is still secure.
Unload and Set Up at the New Site
Use Proper Equipment: Use a crane or forklift to unload the pump safely. Make sure the equipment is rated for the pump’s weight.
Inspect the Pump: Check for any damage that might have occurred during transit.
Set Up Quickly: They are designed for easy setup. Connect the pipelines, power source, and other components, and you’re ready to go!
Where to Buy a Portable Concrete Pump?
There are several reliable sources to purchase one, depending on your budget, location, and specific needs:
Manufacturer Websites
Buying directly from portable concrete pump manufacturers ensures authenticity, quality assurance, and better after-sales support. Well-known brands often provide customization options and expert consultation before purchase.
Authorized Dealers & Distributors
Online Construction Equipment Marketplaces
Local Equipment Rental & Sales Companies
Industry Trade Shows & Expos
Become Our Portable Concrete Pump Distributor
In the rapidly growing construction industry, choosing a reliable and experienced partner is essential for success. AIMIX has built a strong reputation worldwide for high-quality products and excellent service. Now, we invite you to join our distributor network and expand your business with us. Here shows the steps to become a concrete pump distributor of Aimix:
Get in Touch
Submit your application through our official website or contact our marketing team directly.
Qualification Review
We will assess your qualifications to ensure a solid foundation for cooperation.
Sign the Agreement
Once we reach an agreement, we will sign an official distribution contract.
Training & Business Launch
After completing product and sales training, you can start selling AIMIX portable concrete pumps.
Ongoing Support & Growth
We provide continuous assistance in sales, product updates, and marketing strategies to help you succeed.
FAQ
How to start a portable concrete pump company?
Starting portable concrete pump companies requires careful planning and investment. Here are the key steps:
Market Research – Analyze the demand for portable concrete pumps in your target region and identify potential customers.
Business Registration & Licensing – Ensure compliance with local regulations by registering your company and obtaining necessary permits.
Choose Reliable Suppliers – Partner with a trusted manufacturer like AIMIX to ensure high-quality equipment and after-sales support.
Secure Funding – Arrange capital for purchasing equipment, transportation, and initial marketing efforts.
Set Up Operations – Establish a storage or maintenance facility and hire skilled operators and technicians.
Develop a Sales & Marketing Strategy – Use digital marketing, networking, and direct sales to attract customers.
Offer Maintenance & Support Services – Providing after-sales support can enhance customer satisfaction and build long-term relationships.
How does a portable concrete pump work?
It uses a hydraulic system and pumping mechanism to transport concrete efficiently. The working process includes:
Concrete Loading – The concrete is fed into the hopper.
Mixing & Agitation – Some models, like concrete mixer pumps, mix the concrete before pumping.
Pumping System Activation – The hydraulic system powers the piston or S-valve mechanism to push the concrete through the pipeline.
Concrete Delivery – The concrete flows through the pipeline to the desired location, ensuring precise and efficient placement.
They are ideal for small- to medium-scale construction projects, offering mobility, flexibility, and high efficiency.
What maintenance is required for a portable concrete pump?
Regular maintenance is essential to ensure optimal performance and longevity of your equipment. Key maintenance tasks include:
Daily Cleaning – Flush the pump system after each use to prevent concrete buildup.
Lubrication – Regularly grease moving parts to reduce wear and friction.
Hydraulic System Check – Inspect oil levels and replace hydraulic fluid as needed.
Wear Parts Inspection – Monitor and replace worn-out components like pistons, wear plates, and delivery cylinders.
Pipeline Maintenance – Check pipes and hoses for leaks or blockages to ensure smooth concrete flow.
Engine & Electrical System Inspection – If the pump is diesel-powered, monitor engine oil and fuel system; for electric models, check wiring and control panels.
Where can I buy spare parts for a portable concrete pump?
AIMIX provides high-quality spare parts to ensure the smooth operation of your machine. You can order replacement parts such as:
Wear plates and cutting rings
Pistons and concrete cylinders
Hydraulic components
Pipelines, hoses, and clamps
Electrical components and control systems
To purchase spare parts, contact AIMIX directly through our official website or authorized distributors. We offer fast delivery, expert support, and competitive pricing for all your maintenance needs.
