AIMIX aims to supply users with quality concrete pumps Singapore for promoting local industrial development. And now, AIMIX has been a reliable construction machine company in China with rich export experience. What’s more, we have branches in Malaysia, Pakistan, the Philippines, Indonesia, Uzbekistan, and Russia. Are you interested in cooperating with us? Let me tell you more details about the pump machines below.
Concrete pump Singapore can pump concrete efficiently. And it can be widely used for high building, new rural construction, tunnel construction, wharf, water conservancy engineering, airport, etc. We are a reliable concrete pump supplier and we sell concrete pump in Singapore. We can supply concrete pump truck Singapore, concrete mixer pump Singapore and trailer type Singapore concrete pumping. Various types of pump machines have various applications, contact us, we will help you choose the right type for your project!
Latest news from AIMIX GROUP

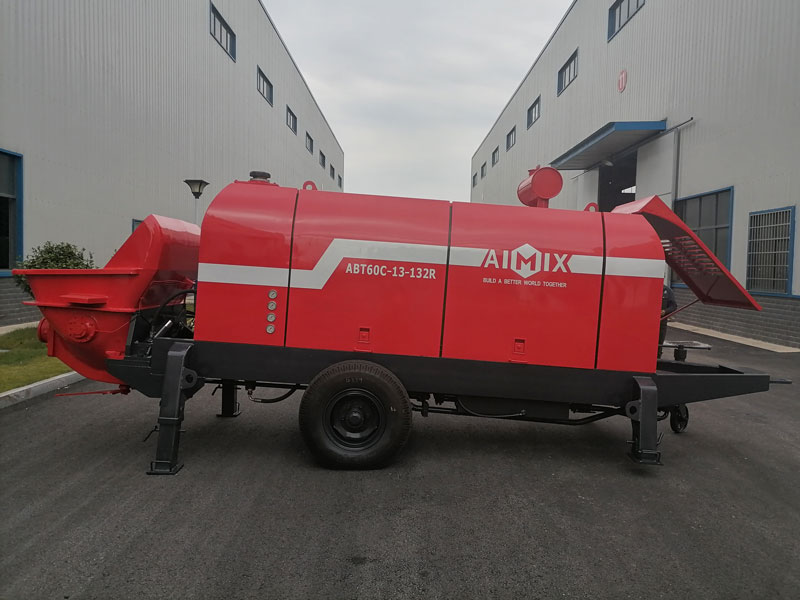

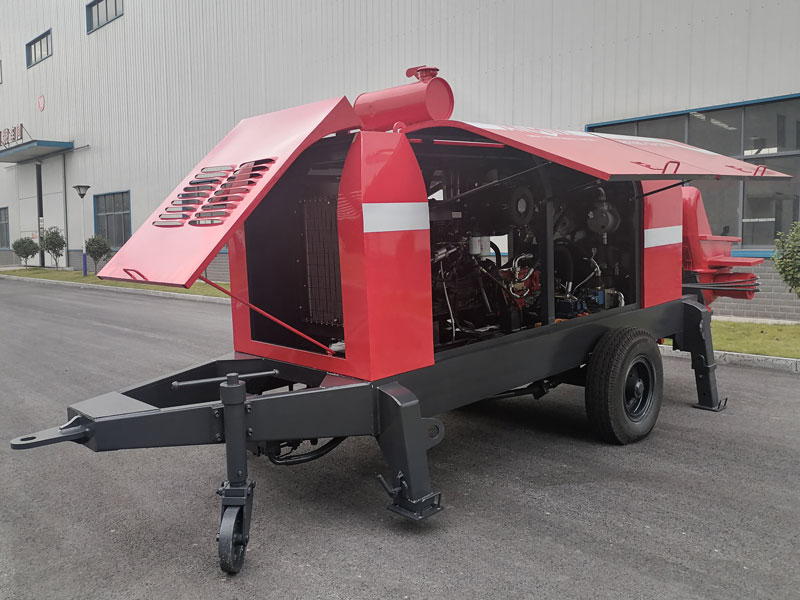

Country: Uganda
Shipping time: 2021/11
Install time: 2022/01
Project Information: Houses
Shipment
On the way
Country: Philippines
Shipping time: 2021/10
Install time: 2021/12
Project Information: Building
Shipment
On the way
Country: Indonesia
Shipping time: 2021/08
Install time: 2021/10
Project Information: Building houses
Shipment
On the way
Latest feedback from our concrete pump users
Yoseph
Concrete trailer pumpRussiaThanks AIMIX help us
Thanks AIMIX help us choose 40m3/h diesel engine pump, it is very suitable for our project.
AIMIX salesman is very professional and patient. She gave me many advice. And help me save a lot of cash. Thanks very much!
Oct 9, 2021
Joseph
Concrete trailer pumpMoroccoWelcome AIMIX to Morocco
C'est un grand plaisir de traiter avec vous. Vous avez fait preuve de professionnalisme, de rigueur et de sympathique. Merci beaucoup encore une fois.
Les pompes à béton diesel ABT40C sont très efficaces et faciles à utiliser.
Sep 11, 2021
Khan
Concrete mixer pumpPakistanAIMIX is our brother
We heard that many people chose ABJZ40C diesel concrete mixer pump from Lahore, Pakistan.
So we went to the factory and learned about more details, ABJZ40C is efficient, suits our project! AIMIX salesman is also effective and professional.
July 13, 2021
Types of concrete pumps in Singapore
Concrete pump trucks Singapore
Specifications of AJBP-21
| Name | unit | AJBP-21 | |
| Pump | Output In Theory | m3/h | 50 |
| Maximum Theoretical Outlet Pressure | Mpa. | 8 | |
| Theoretic Pumping Pressure | Mpa | 31 | |
| Bucket Volume | L | 400L | |
| Height Of Top Surface Of Bucket | mm | 1500 | |
| Model Of Distribution Valve | S valve | ||
| Concrete Cylinder Diameter×Stroke | mm | 200*1000 | |
| Slump | mm | 120-230 | |
| Max Aggregate Size | mm | 40 | |
| Hydraulic Tank Capacity | L | 600 | |
| Clean Model | Water | ||
| Boom Model | RZ | ||
| Max. Operation Height | m | 21 | |
| First Boom Length/Angle | mm/。 | 6510/90° | |
| Second Boom Length/Angle | mm/。 | 5733/180° | |
| Third Boom Length/Angle | mm/。 | 4613/180° | |
| Turntable Rotation Angle | 。 | ±360 | |
| Landing Let Model | X | ||
| The maximum pumping height | m | 20.1 | |
| The maximum pumping radius | m | 16.8 | |
| X leg distance | mm | 5010 | |
| Back leg | mm | 4350 | |
| Cooling System | Air cooling (24v) | ||
| Control System | Control box +screen | ||
| Main Pump | kw | 112 | |
| Diesel engine | kw | 92 | |
| Negative Sensitive Multi-Way Valve | KEMAI | ||
| Main Valve Control Form | Hydraulic control reversal | ||
| Mixer | JS500 | ||
| Chassis | Brand /Model | CDW5160THBA1R5 | |
| Axle(Mm) | 4200 | ||
| Weight | kg | 15580 | |
| Engine Model | 118 | ||
| Power | kw | YC4S160-50 | |
| Emission Standards | Uro-V | ||
| Dimensions | 9 | 9450*3800*2400 | |
Specifications of AJBP-34
| name | unit | AJBP-34 | ||
| Pump | output in theory | m3/h | 60 | |
| Maximum theoretical outlet pressure | Mpa. | 11 | ||
| theoretic pumping pressure | Mpa | 31.5 | ||
| bucket volume | L | 650L | ||
| height of top surface of bucket | mm | 1500 | ||
| model of distribution valve | S valve | |||
| Concrete cylinder diameter×stroke | mm | 230*1400 | ||
| Slump | mm | 120-230 | ||
| Max aggregate size | mm | 40 | ||
| max. operation radius | m | 29.72 | ||
| Main oil cylinder diameter×stroke | mm | 140*90/1400 | ||
| Hydraulic tank capacity | L | 800 | ||
| clean model | Water | |||
| Boom model | RZ | |||
| max. operation height | m | 34 | ||
| First boom length/angle | mm/。 | 7120/90 | ||
| Second boom length/angle | mm/。 | 5960/180 | ||
| Third boom length/angle | mm/。 | 5795/180 | ||
| Forth boom length/angle | mm/。 | 5751/235 | ||
| Fifth boom length/angle | ||||
| Turntable rotation angle | 。 | 360 | ||
| Landing let model | X | |||
| distance between front & rear landing legs | mm | 5340 | ||
| diameter of delivery pipe | mm | 125 | ||
| length of hose pipe | m | 4 | ||
| quantity of boom | 5 | |||
| rotary angle of each boom | ° | 90/180/180/235/215 | ||
| remote control distance | m | 100m | ||
| Electronic component | Schneider | |||
| Cooling system | Air cooling (24v) | |||
| Control system | Control box +screen | |||
| Main pump | 190 | |||
| Transfer case | ZHuzhou Grea | |||
| Negative Sensitive Multi-way Valve | KEMAI | |||
| Main valve control form | Hydraulic control reversal | |||
| Main Value | Rexroth | |||
| Mixer | JS500 | |||
| Chassis | Brand /model | CDW5230THBA1N5 | YZZ5230THBSZ5D | EHY5340THBSZ |
| Axle(mm) | 5300 | 5200 | 4750+1300 | |
| Weight (kg) | 22600 | 25000 | 33000 | |
| Engine Model | YC6JA220-50 | YC6JA240-50 | YC6JA270-50 | |
| Power (kw) | 162 | 177 | 199 | |
| Emission Standards | Euro-V | |||
Characteristics of concrete pump trucks in Singapore
- 1. Good after-sales service. We have professional maintenance team, if you can’t solve the problems, you can contact us: market@aimixgroup.com. We will send our technician to your site and help you out.
- 2. It has the function of mixing, so on the construction site, you can realize the concrete pouring, don’t need to deliver concrete from a concrete mixing plant, which saves a lot of shipping costs.
- 3. Mixing concrete on-site, realize continuous pumping, which is four times more efficient than a traditional concrete pump.
- 4. Total power is lower than traditional concrete pumping equipment Singapore.
- 5. Low energy consumption, which is very suitable for rural construction.
- 6. Strong motor function, suitable for multi-site alternate operation.
- 7. Small concrete pump trucks in Singapore cost little, an ideal choice for building construction.
Features of mixer type concrete pumping Singapore
We mainly have two types mixer pump machine in Singapore. One is driven by an electric motor, another is driven by a diesel engine. Both can pump concrete efficiently. Because they are equipped with a concrete mixer, can blend concrete in advance, which can save a lot of construction time.
As for how to choose from these two types, the only element is the electricity condition in your area. If a site has enough electricity, an electric voltage is stable, you can choose an efficient electric pump for sale. However, if your site lack electricity, your ideal choice will be a diesel-type concrete pump Singapore. Of course, if you prefer the electrical type, you need to equip it with an electric generator.
Diesel Type Concrete Mixer Pumps
ABJZ40CCapacity: 40(m3/h)
- Max. theo. concrete output: 40m3/h
- Max. Theoretical Vertical Conveying Distance: 150m
- Max. Theoretical Horizontal Conveying Distance: 600m
- Max. aggregate diameter:Slick/scree: 40mm
ABJZ30CCapacity: 30(m3/h)
- Max. theo. concrete output: 30m3/h
- Max. Theoretical Vertical Conveying Distance: 120m
- Max. Theoretical Horizontal Conveying Distance: 400m
- Max. aggregate diameter:Slick/scree: 20mm

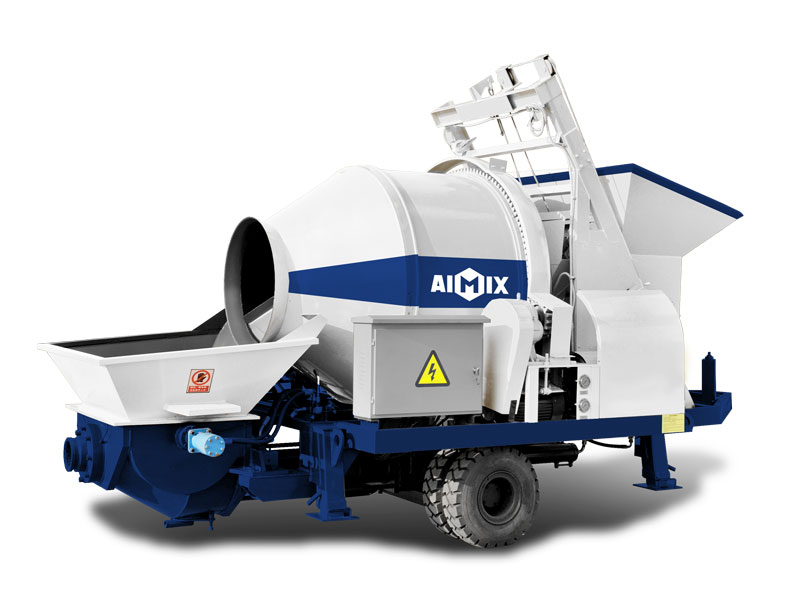

Electric Type Concrete Pump Machine For Sale
ABJZ40DCapacity: 40(m3/h)
- Max. theo. concrete output: 40m3/h
- Max. Theoretical Vertical Conveying Distance: 150m
- Max. Theoretical Horizontal Conveying Distance: 600m
- Max. aggregate diameter:Slick/scree: 40mm
- Total weight: 6000 kg
Trailer type concrete pumping machine
We also have the electric type and diesel type. The principle is the same as mixer types. the only difference is this type can’t produce concrete, you need to get concrete from concrete production plant.
Diesel Type
- Items: ABT40C
- Max. theo. concrete output(L./H): 40m3/h
- Distribution valve type: S Valve
- Max. Theoretical Horizontal Conveying Distance: 500m
- Max. Theoretical Vertical Conveying Distance: 120m

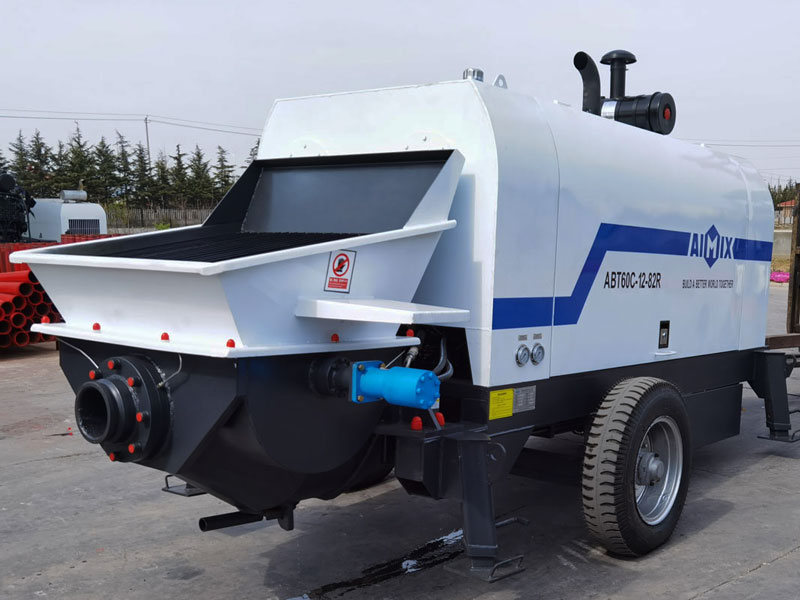

Diesel Type
- Items: ABT60C
- Max. theo. concrete output(L./H): 60m3/h
- Distribution valve type: S Valve
- Max. Theoretical Horizontal Conveying Distance: 800m
- Max. Theoretical Vertical Conveying Distance: 180m
Electric Type
- Items: ABT60D
- Max. theo. concrete output(L./H): 60m3/h
- Distribution valve type: S Valve
- Max. Theoretical Horizontal Conveying Distance: 800m
- Max. Theoretical Vertical Conveying Distance: 160m
Specifications of diesel concrete trailer pumps
| Items | Units | ABT40C | ABT60C | ABT80C |
| Max. theo. concrete output(L./H) | M3/h | 40/26 | 67/45 | 84/45 |
| Max.concrete pumping pressure(H./L.) | MPa | 10/7.6 | 43659 | 43785 |
| Distribution valve type | S Valve | S Valve | S Valve | |
| Concrete cylinder diameter×stroke | mm | Φ180×1200 | Φ200×1650 | Φ200×1800 |
| Hopper capacity x feeding height | L/mm | 400/1100 | 800/1400 | 800/1400 |
| Outlet diameter | mm | Φ150 | Φ180 | Φ180 |
| Diesel engine model | Weifang Delier 6105ZB | Wechai | Wechai | |
| Electrical engineering power | KW | 82 | 129 | 176 |
| Rotate speed | r/min | 2100 | 2200 | 2200 |
| Circuit type | open circuit | |||
| Pumping system pressure | MPa | 32 | 32 | 32 |
| Mixing system pressure | MPa | 43624 | 43624 | 43624 |
| Capacity of oil tank | L | 370 | 370 | 580 |
| Max. Theoretical Vertical/Horizontal Conveying Distance | m | 120/500 | 180/800 | 200/800 |
| Max. aggregate diameter | mm | Slick/scree:40/50 | Slick/scree:40/50 | Slick/scree:40/50 |
| Inside diameter of delivering pipe | mm | Φ125 | Φ125 | Φ125 |
| Dimensions：length×width×height | mm | 5000x1850x1700 | 5800x2000x1750 | 6300x2100x2350 |
| Total weight | kg | 4500 | 6500 | 6900 |
Specifications of electric concrete trailer pumps
| Items | Units | ABT40D | ABT60D | ABT80D |
| Max. theo. concrete output(L./H) | M3/h | 40 | 60/36 | 86/45 |
| Max.concrete pumping pressure(H./L.) | MPa | 10 | 13/7 | 16/11 |
| Distribution valve type | S Valve | S Valve | S Valve | |
| Concrete cylinder diameter×stroke | mm | Φ180×1200 | Φ200×1650 | Φ200×1800 |
| Hopper capacity x feeding height | L/mm | 400/1100 | 800/1100 | 800/1100 |
| Outlet diameter | mm | Φ100 | Φ180 | Φ180 |
| Electrical engineering power | KW | 45 | 90 | 90 |
| Rotate speed | r/min | 1480 | 1480 | 1480 |
| Circuit type | Open circuit | |||
| Pumping system pressure | MPa | 28 | 28 | 32 |
| Mixing system pressure | MPa | 8 | 6-8 | 14 |
| Capacity of oil tank | L | 370 | 560 | 580 |
| Max. Theoretical Vertical/Horizontal Conveying Distance | m | 120/500 | 160/800 | 200/800 |
| Max. aggregate diameter | mm | Slick/scree:40/50 | Slick/scree:40/50 | Slick/scree:40/50 |
| Inside diameter of delivering pipe | mm | Φ125 | Φ125 | Φ125 |
| Dimensions：length×width×height | mm | 4500x1750x1600 | 4500x1750x1600 | 6300x2100x2250 |
| Total weight | kg | 3200 | 6000 | 6300 |
Things you need to know when you select concrete pump supplier in Singapore
Where you can get concrete pump supplier Singapore. You have two ways to get suppliers: online and offline.
Online: you can input ‘concrete pump supplier Singapore’ on the search engines, such as Google, Yahoo, and bing. Then you will get some results, you can look through them one by one.
Offline: Get concrete pumps companies in Singapore offline. Ask around for local suppliers. If you choose from your local area, you will save some shipping costs.

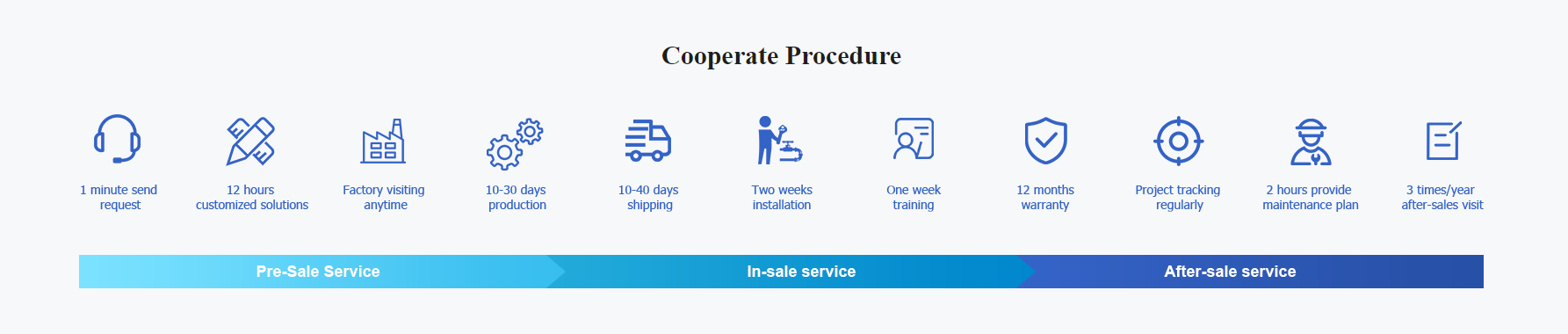

Our service process
How you can get reliable supplier
- 1. Check their successful cases. A reliable and famous company must have many orders. It indicates they have many old customers. As for whether they have a lot of new customers, you can ask them in detail.
- 2. See their scale of factory and team. The large, the better. It means they have a lot of inquiries to reply to.
- 3. Ask them after-sales service. After-sales service is very important. If you want to keep your concrete pump in Singapore working normally all the time, it is necessary to get their help and guidance.
All in all, if you want to start a pump business, contact us! We can give you professional advice!
