A gravel crusher is a high-performance crushing machine designed to process natural gravel into high-quality construction aggregate. It plays a key role in producing materials for roads, concrete foundations, and infrastructure projects by converting raw river or mountain gravel into usable, specification-ready stone.
What Makes Gravel Different in Crushing Applications
Natural gravel used in construction is typically sourced from riverbeds or alluvial deposits. It possesses distinct physical properties that directly impact crushing performance and final aggregate quality:
Rounded Particle Shape & Smooth Texture
Reduces natural interlocking ability, requiring mechanical reshaping to improve concrete bonding strength.
High Silica Content
Increases abrasiveness, leading to severe equipment wear if the wrong stone crusher is used.
Natural Size Variability
Requires precision screening and controlled grading during the crushing process.
Because of these characteristics, a specialized gravel crusher does more than reduce material size, it shatters the rounded exterior of natural gravel. This process delivers the premium, angular, and cubical aggregates required for superior interlocking strength in asphalt and concrete, all while protecting components from extreme abrasive wear.
Right Gravel Crusher: High-Efficiency Mobile & Stationary Crushing Solutions
Natural gravel deposits demand flexibility, but they also demand raw processing power. Depending on your site’s lifespan, logistics, and production scale, the ideal crushing solution might be bringing the crushing plant to the material, or establishing a stationary one. AIMIX offers both highly adaptable mobile gravel crushers (wheeled mounted type and crawler type) and heavy-duty stationary gravel crushing Plants to match your exact operational needs.

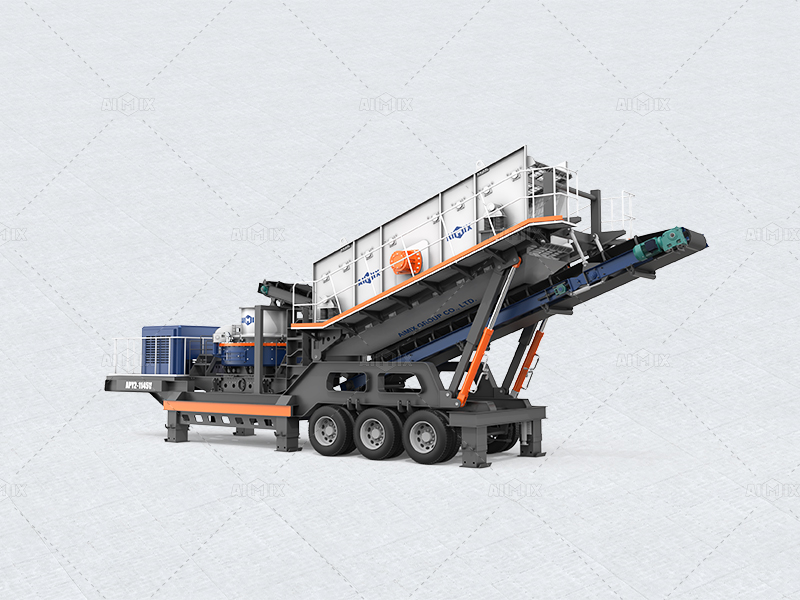

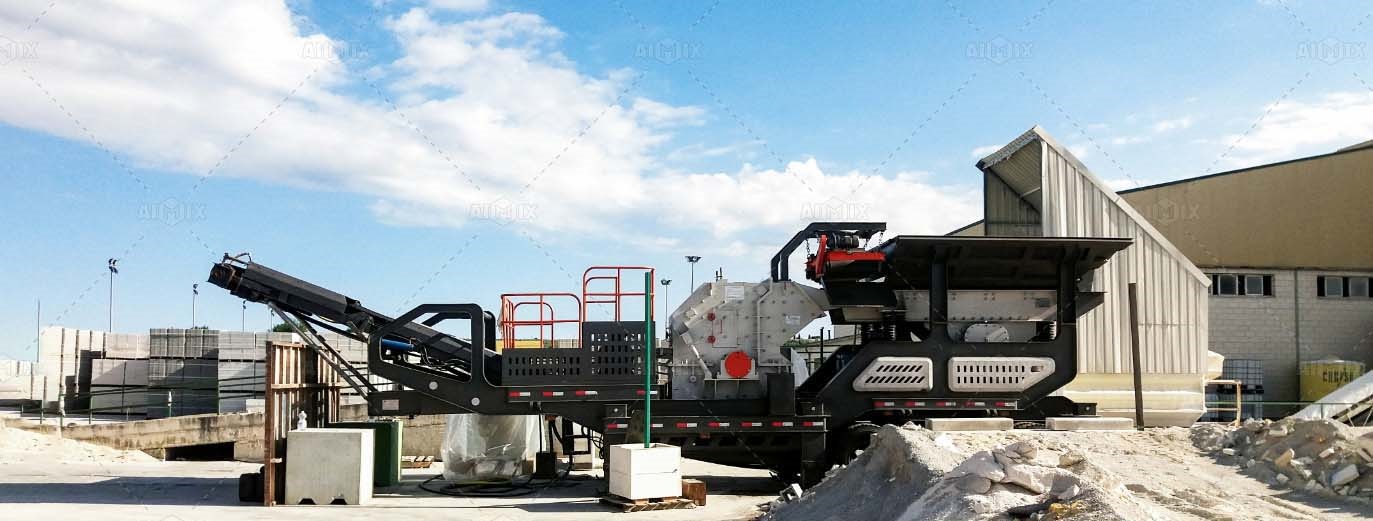

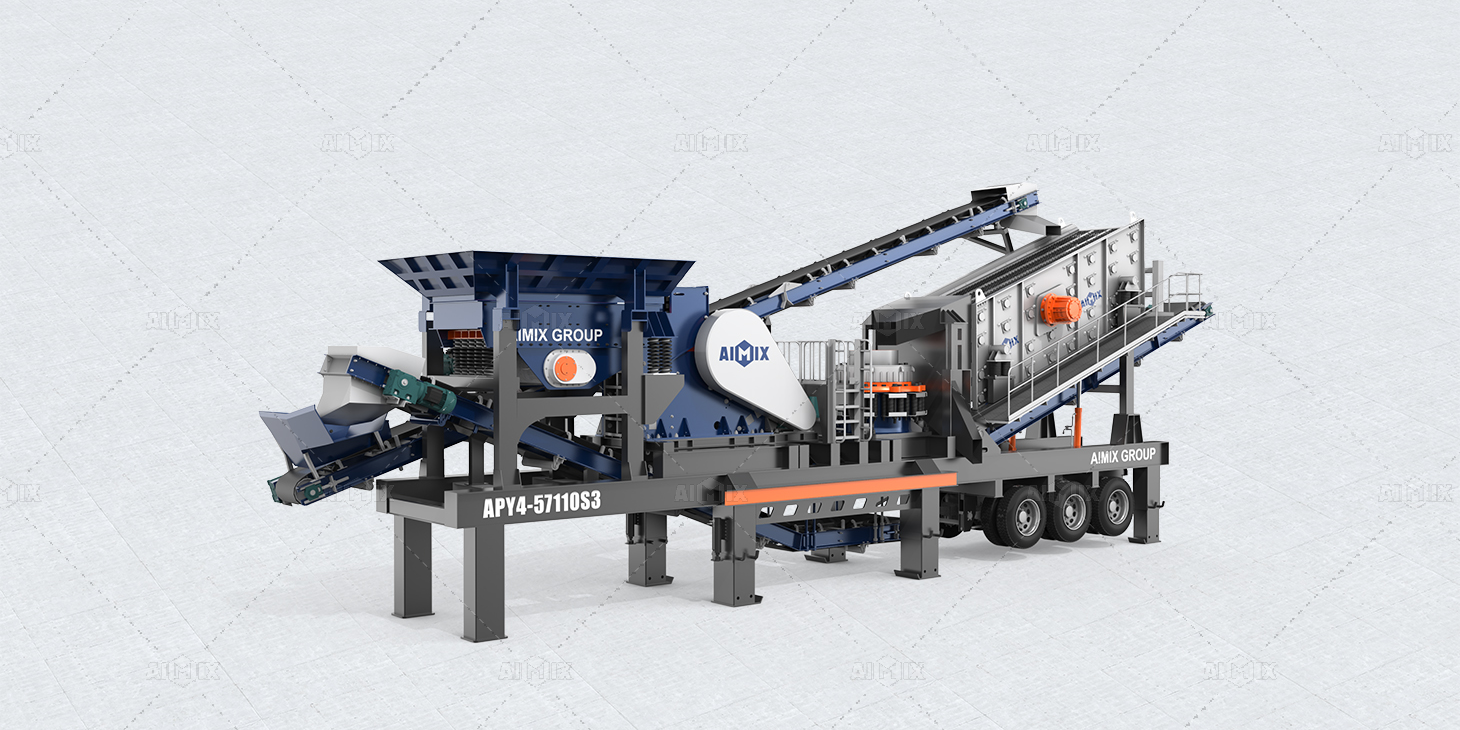

4-in-1 Combined Tire-Mounted Mobile Crushers
Specifications:
- Configuration: Feeder + Primary Jaw Crusher + Secondary Cone Crusher + Circular Vibrating Screen
- Capacity: 50 – 350 tph
- Final Output Sizes: 0-5mm (Gravel Sand), 5-10mm, 10-20mm, 20-40mm cubical aggregates.
Crushed Gravel Suitable For:
- High-Grade Ready-Mix Concrete: The jaw-to-cone crushing process breaks rounded river pebbles into angular particles, improving concrete bonding strength.
- Asphalt Surface Courses: Produces consistent 5–10mm and 10–20mm aggregates with good cubical shape, meeting highway standards.
- Commercial Sand Pits: The integrated screening system allows natural sand to be separated and bypassed efficiently, improving overall production efficiency.
Why Go Wheeled Type?
Minimize Crusher Wear & Cut Operating Costs
It streamlines your process by combining feeding, crushing, and screening on a single chassis. It allows you to pre-screen and bypass smaller, ready-to-use natural river gravel instantly, preventing unnecessary wear on your crusher and slashing operating costs.
Move Quickly Across Scattered Sites with Zero Downtime
The heavy-duty tri-axle chassis enables rapid highway towing and easy site transfers. This is perfect for shifting production as extraction rights or gravel deposits move along riverbanks.
Stay Stable on Soft Riverbanks – No Sinking or Tilting
Engineered with hydraulic skid-plate supports that offer a much larger ground contact area. This prevents the heavy crusher plant from sinking or tilting on unstable, soft sandy riverbeds during high-vibration operations.
Get the Right Output for Hard, Abrasive Materials
The modular secondary crushing platform allows you to swap between a Cone Crusher (critical for high-silica, abrasive river pebbles) and a VSI Sand Maker when high-specification concrete sand is in demand.

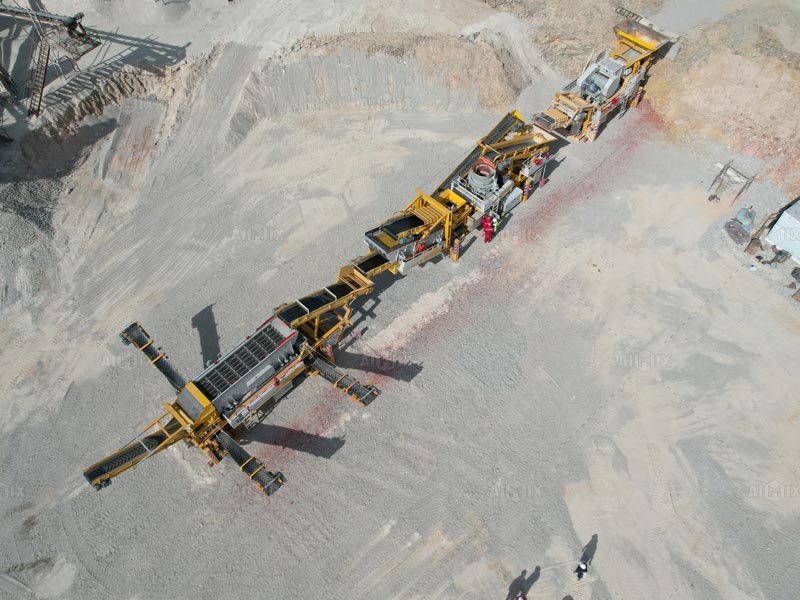

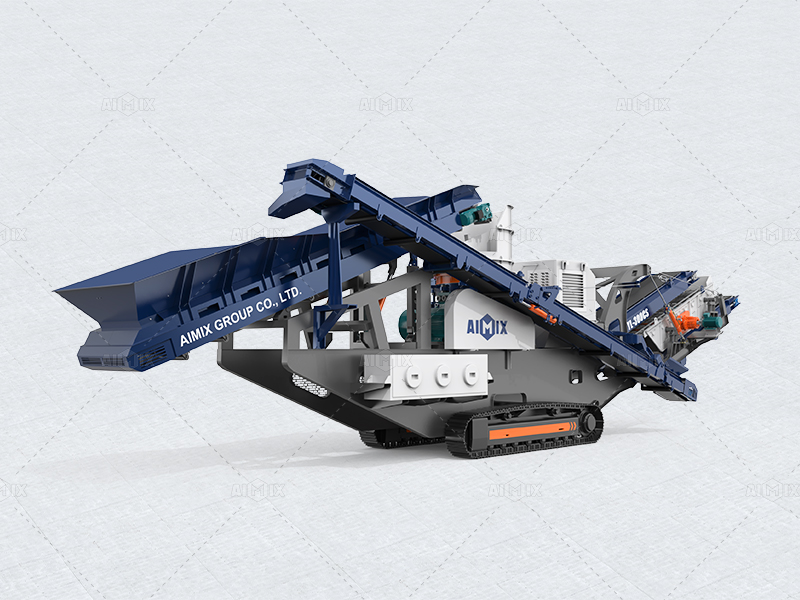

Tracked Gravel Crushers
Specifications:
- Core Crusher Options: Single-unit tracked Jaw crusher, tracked cone crusher, crawler VSI crusher
- Capacity: 100 – 500 TPH
- Mobility: Fully hydraulic remote-controlled crawler tracks with low ground-bearing pressure.
Crushed Gravel Suitable For:
- Railway Ballast Production: Easily processes tough mountain gravel into highly durable, impact-resistant 20-40mm or 40-60mm ballast stone.
- Large-Scale Infrastructure & Dam Projects: Ideal for remote, moving job sites where massive volumes of concrete aggregate must be processed directly on-site.
- Wet & Muddy Sand-Gravel Washing Lines: Feeds directly into downstream log washers or sand grading systems in muddy alluvial plains.
Why Go Crawler Type?
No More Expensive Site Prep
The hydraulic tracked chassis handles deep mud, slippery river sediment, and raw gravel slopes with ease. With low ground pressure and strong climbing ability, it eliminates the need for expensive site preparation or building temporary roads in rugged gravel basins.
Slash Haulage Costs & Prevent Material Segregation
Navigates directly next to the excavator at the extraction face. By crushing and screening right at the source, you eliminate secondary material handling, prevent large boulders from damaging standard trucks, and drastically lower fuel and transport costs.
Run a Fully Automated Line in Remote Locations
Interlocks with mobile screens, feeders, and stackers via wired/wireless links. This allows you to deploy a fully automated, continuous gravel processing line deep inside remote mountain valleys or wide alluvial plains without complex infrastructure.
Stay Compliant When Working Near Clean Waterways
Since gravel processing often takes place near environmentally sensitive rivers or urban water sources, our tracked units feature advanced spray dust suppression, enclosed belt covers, and diesel-electric hybrids to meet strict local environmental and noise standards.

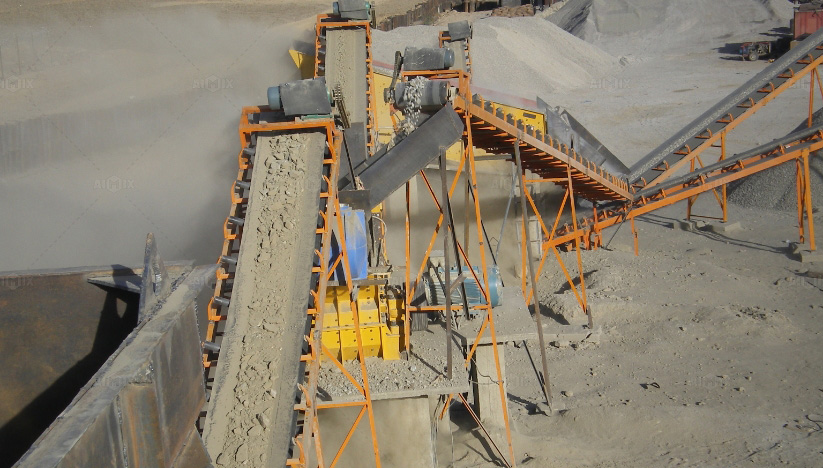

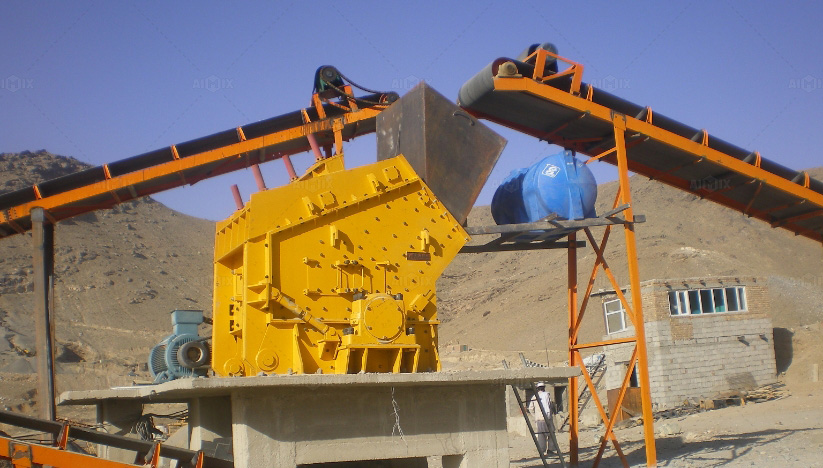

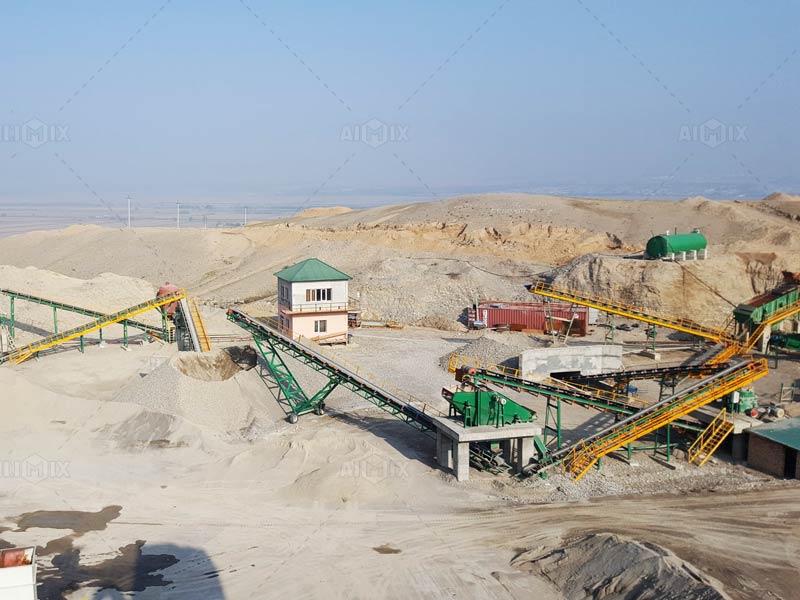

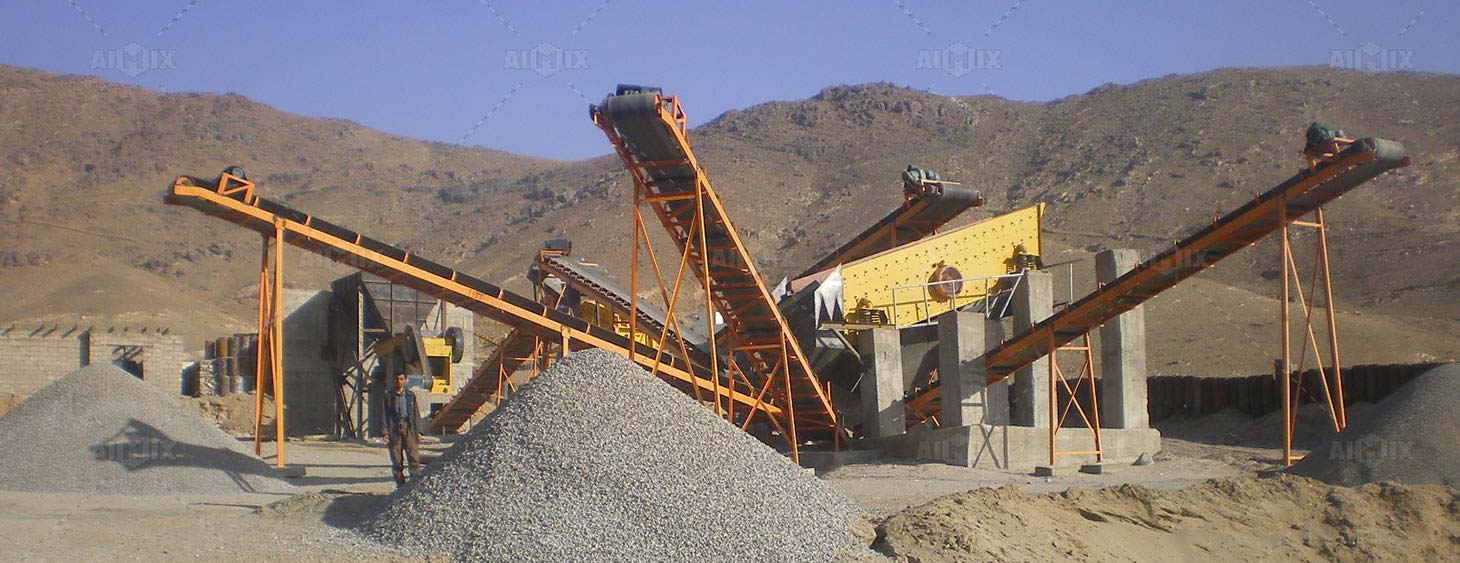

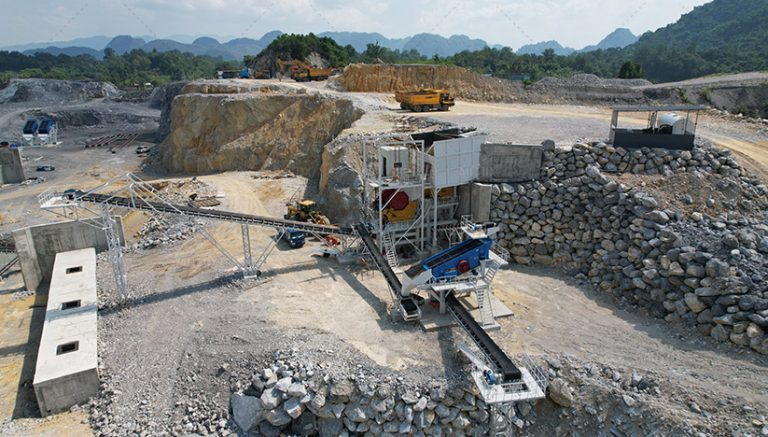

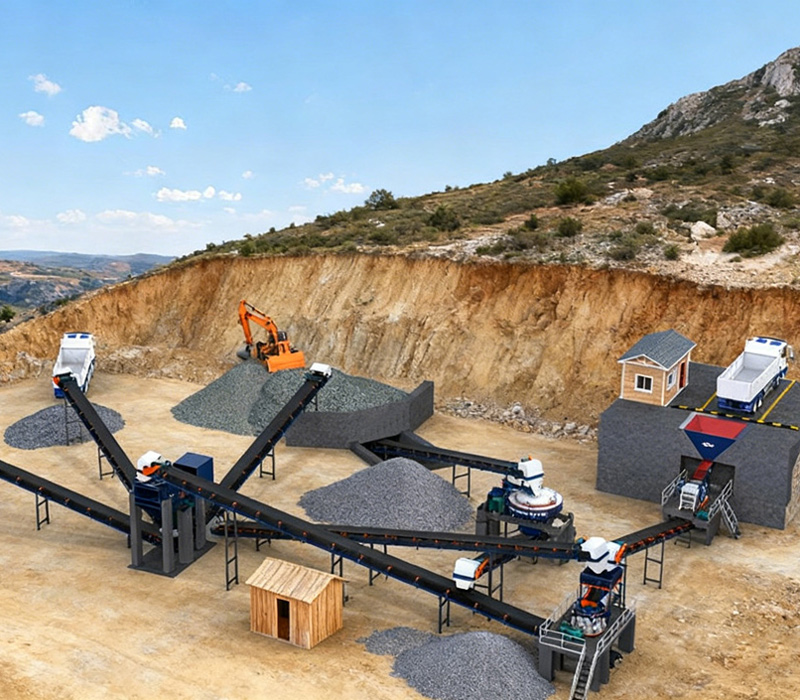

Heavy-duty Stationary Gravel Crushing Plant
Specifications:
- Configuration: Vibrating Feeder + Jaw Crusher + Cone Crusher + VSI Sand Maker (Optional) + Vibrating Screen + Sand Washer
- Capacity: 50 – 1000 tph
- Final Output Sizes: 0-5mm, 5-10mm, 10-20mm, 20-40mm
Crushed Gravel Suitable For:
- Large-Scale Infrastructure: Built for 24/7 continuous operations. It easily processes high-tonnage river pebbles and mountain gravel into massive volumes of premium aggregates for dams, airports, and highways.
- High-Specification Railway Ballast: The cone crusher and VSI shaping machine combo ensures maximum flakiness control, delivering highly angular, durable gravel aggregates that strictly meet railway ballast standards.
- Premium Manufactured Sand (M-Sand): Features an integrated VSI sand maker and washing system. It efficiently converts fine gravel into high-quality, silt-free sand—a highly profitable alternative to scarce natural river sand.
Ultimately, choosing between a mobile or stationary mobile gravel crusher hinges on your specific pit terrain, relocation frequency, and budget.
- When to Choose Mobile Solutions: Because many gravel deposits are spread across riverbeds or scattered extraction sites, hauling raw stones to a distant plant can inflate costs. AIMIX mobile gravel crushers (tracked or wheeled) allow you to move production directly to the source, slashing haulage distances and adapting instantly to changing sites.
- When to Choose Stationary Crushing Solutions: For long-term projects with massive gravel reserves or high-capacity demands (exceeding 300 TPH), a stationary crushing line is the ultimate choice. It provides unmatched structural stability, allows for larger equipment integration (like cone crushers), and offers a lower initial investment with easier long-term maintenance.
High-Yield, Low-Wear: Why Global Aggregate Producers & Contractors Choose AIMIX Gravel Crushers
Investing in a gravel crusher shouldn’t mean constantly bleeding money on high wear parts, dealing with rejected aggregate shapes, or facing sudden environmental shutdowns. AIMIX gravel crushers are specifically engineered to conquer the challenges of processing highly abrasive river stones and pebbles.
Get Over 90% Perfect-Shaped Aggregates – No More Rejected Batches
Traditional crushers often turn river gravel into flat or elongated pieces that fail concrete quality standards. AIMIX uses laminated crushing technology and an optional VSI crusher. Instead of hammering stone against steel, we let rock crush against rock. This shatters the smooth outer shell and gives you over 90% angular, high-bonding aggregates that meet strict concrete specs.
Cut Energy Costs by 15–30% per Ton
Hard, high-silica gravel usually eats up a lot of power, shrinking your profit. Our crushing plants are built with optimized crushing cavities and a direct-drive synchronous system. By improving the crushing stroke and angle, we need less force per crush. That means higher output and lower energy bills — 15% to 30% less, to be exact.
Slash Wear Parts & Maintenance Costs by 40%
High-silica river pebbles wear down cheap crusher parts like sandpaper — sometimes in just weeks. We use high-manganese and chromium alloys (Mn18Cr2 / Mn22Cr2) for all critical components. We also add an intelligent pre-screening bypass that removes natural sand (under 20mm) before it ever touches the crushing chamber. The result? Up to 40% lower wear part costs and way less downtime.
Stay Compliant & Keep Running Near Urban or Sensitive Areas
Dust and noise complaints can shut down a gravel site overnight — especially near cities or riverbeds. AIMIX gravel crushing plants come with multi-point dust suppression sprays at transfer points and enclosed heavy-duty chutes to trap dust. We also use precision-balanced flywheels and rubber vibration mounts. That means quieter, cleaner operation that stays well within local environmental limits.
From River Pebbles to High-Value Aggregates: Core Applications of Our Gravel Crushers
To achieve commercial success, crushed gravel must meet precise geometric and physical specifications demanded by modern engineering. Below is how our specialized gravel crushing plants deliver project-ready, certified materials across three critical real-world applications.
150-200 TPH River Gravel & Sand Processing
- Project: Processing abrasive river pebbles mixed with wet silt into certified concrete aggregates.
- Equipment: Wheeled 4-in-1 Mobile crushers
- Specs Met: Separates natural sand automatically; crushes oversized pebbles into premium 0-5mm, 5-10mm, 10-20mm sharp concrete aggregates.
- Customer Review: “The integrated pre-screening bypasses natural sand instantly, protecting our cone crusher from needless wear and slashing wear-part costs by 30%.”
Flexible Mobile Gravel Crushing for Road Construction
- Project: Crushing alluvial gravel for a highway construction
- Equipment Config: 4-in-1 Wheeled mobile crushing plant
- Specs: Delivers 100% crushed-face, cubical 0-40mm Aggregate Base Course with a flawless flakiness index for high-density sub-bases.
- Customer Review: “We tow the wheeled crushing plants directly to our shifting extraction pits. Eliminating long-distance raw material hauling saved us over $1.50 per ton in logistics.”

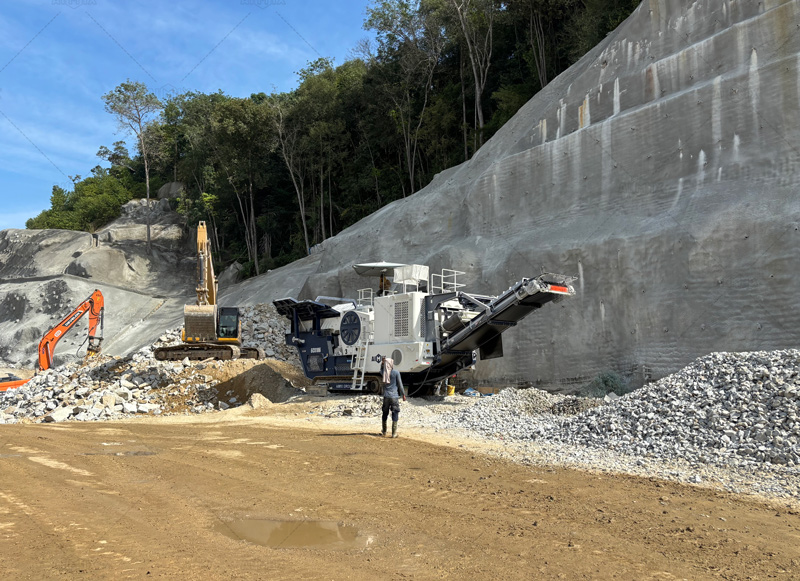

600 TPH Track-Mounted Crushing Plants for Railway Ballast
- Project: High-capacity production of ultra-hard railway ballast stone in a rugged mountain valley.
- Equipment Config: Heavy-Duty crawler crushing line, including, track mobile jaw crusher, tracked cone crusher and track screen machine
- Specs: Processes massive gravel into highly durable 20-40mm ballast stone with zero rounded faces, meeting strict railway impact-resistance standards.
- Customer Review: “The crawler chassis moves seamlessly with our excavator on rugged terrain. The final ballast stones easily passed strict international railway engineering tests.”
What Are the Typical Uses of Crushed Gravel?
Unlike crushed quarry stone blasted from mountain faces, crushed gravel is produced exclusively from natural, pre-existing deposits such as river pebbles, cobbles, and alluvial gravel banks. After being processed through our specialized jaw and cone crushing plants, these smooth stones are transformed into sharp, angular fragments and precision-screened into different size ranges.
Each fraction serves a specific purpose in modern construction, concrete engineering, and landscaping. Here are the typical size ranges of crushed gravel and their real-world applications:
| Nominal Size (Inch) | Metric Size Range | Key Material Characteristics (Gravel-Specific) | Primary Applications & Project Examples |
|---|---|---|---|

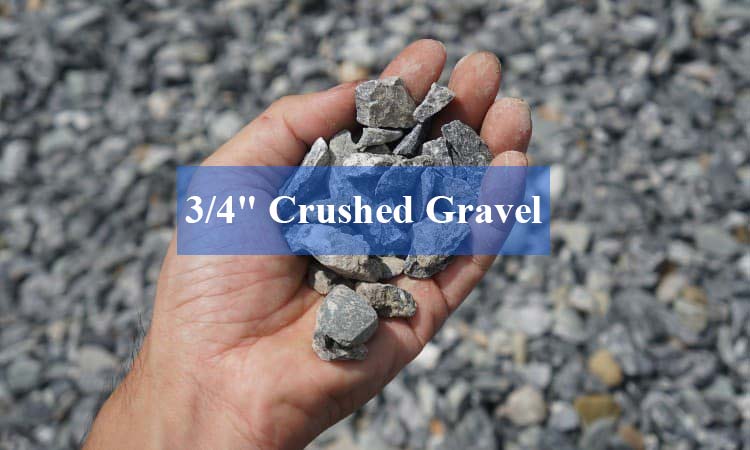

| 3/4″ | 5 – 19 mm | Coarse, high-strength angular gravel chips. 100% fractured faces provide excellent mechanical interlocking. | Ready-Mix Concrete: Standard coarse aggregate for high-strength foundation mixes. Driveway Bases: Ideal for high-friction sub-layers. |

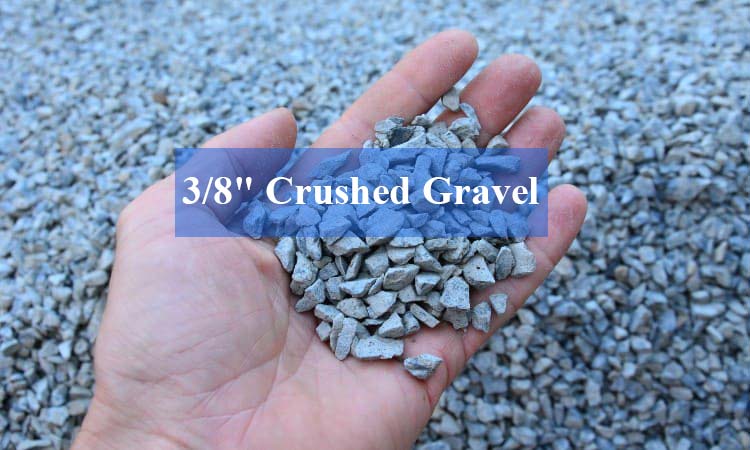

| 3/8″ | 5 – 9.5 mm | Clean, consistent small gravel chips. Combines superior durability with a clean, unweathered appearance. | Asphalt Surface Overlays: Top-layer aggregate for smooth, wear-resistant highway paving. Premium Landscaping: Fine gravel for upscale garden trails and walkways. |

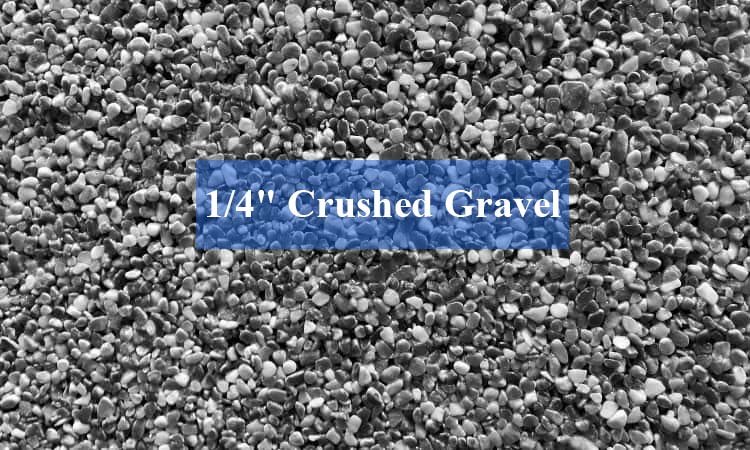

| 1/4″ | 2.5 – 6.5 mm | Very fine, compactable gravel particles (often called “Pea Gravel” or crushed grit). Binds tightly under compaction. | Pedestrian Pathways: Creates stable, comfortable, and well-draining park trails. Pipe Bedding: Provides smooth, non-shifting support for underground utility lines. |
| 1/2″ | 5 – 13 mm | Free-draining, highly angular gravel particles. Naturally creates optimal void spaces for water movement. | Permeable Drainage: Perfect for French drains, septic drain fields, and retaining wall backfill. Slab Sub-base: Prevents moisture capillary action under concrete slabs. |
| 1″ | 13 – 25 mm | Medium-to-large structural gravel aggregate. Offers high load-bearing capacity and structural stability. | Road Sub-base Preparation: The industry standard for highway foundations, parking lot bases, and building pads. Structural Fill. |
| 2″ and Larger | 50 mm + | Oversized crushed gravel and heavy boulders. Retains maximum mass and extreme resistance to displacement. | Heavy Industrial Bases: Foundations for heavy-machinery yards and heavy truck lanes. Erosion Control & Riprap: Prevents soil erosion on riverbanks, shorelines, and steep drainage ditches. |

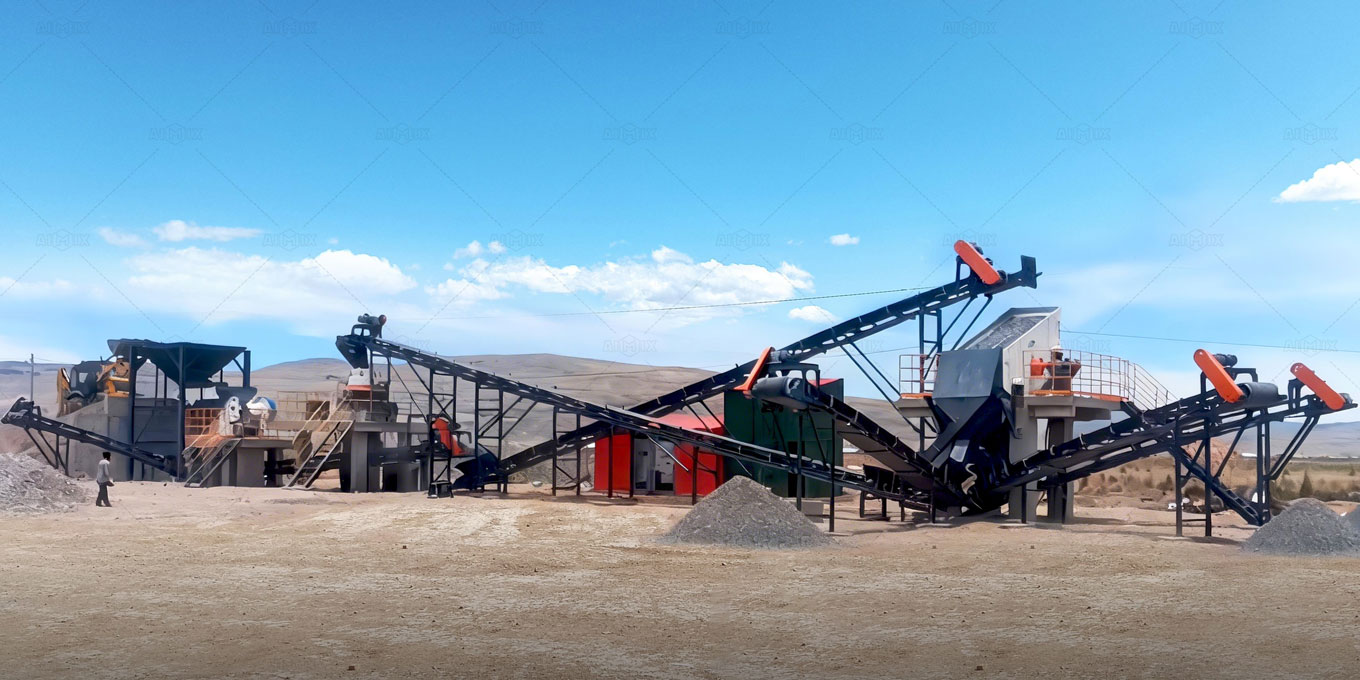

Complete Gravel Crushing Process: From Raw Material to Final Product
Building a high-efficiency gravel crushing plant requires understanding how rounded natural materials are transformed step by step into well-graded, market-ready aggregates. Because natural gravel features unique challenges like high mud content and extreme silica abrasiveness, the production flow must be specifically tailored across these core stages:
Feeding
The process begins by delivering raw gravel into the aggregate crusher via a vibrating feeder. We equip our feeders with heavy-duty grizzly bars (pre-screening slots). Since river gravel is often heavily contaminated with dirt, silt, and ready-to-use natural fine sand, this setup screens them out before entering the crusher. This avoids clogging and drastically reduces unnecessary machine wear.
Primary Crushing
Primary jaw crushing reduces large rocks (300–800 mm) into manageable sizes (100–200 mm). If your natural gravel deposit has a maximum raw particle size under 200–300 mm (which is highly common in riverbed dredging), you can completely skip the primary jaw crusher stage. Feeding the material directly into the secondary stage saves up to 30% on initial equipment investment.
Secondary Crushing
This stage further reduces the stone sizes down to 20–60 mm, while breaking the rounded faces to create angular fragments. Highly recommended cone crusher is used in this stage. The absolute ideal choice for secondary gravel crushing. Since gravel features extreme hardness and high silica content, our cone crushers utilize advanced laminated crushing principles. This maximizes output while cutting wear-part replacement costs by up to 40%.
Screening

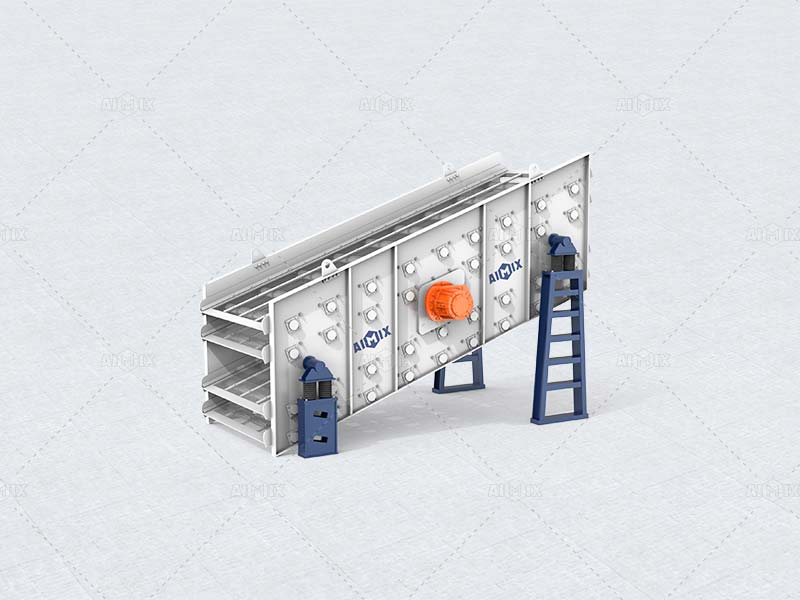

After secondary crushing, materials pass through multi-deck circular vibrating screens to sort the fractured aggregates into precise size categories based on market demands.
Sand Making (Optional)
For production lines requiring high-specification 0-5mm manufactured sand, the screened fine gravel enters a VSI crusher – sand making machine. Our VSI crusher utilizes “rock-on-rock” crushing technology. By making the gravel particles collide with each other rather than metal liners, it creates perfect cubical sand while keeping wear costs to an absolute minimum.
Washing (Optional)
Because alluvial gravel and river pebbles carry high percentages of sticky clay and silt, a wheel-type or spiral sand washing machine is deployed here. Washing removes surface impurities, dramatically upgrading aggregate adherence and strength when mixed into concrete or asphalt.
Final Output
After crushing, screening, sand making, and washing, the final products may include: 0–5 mm manufactured sand; 5–10 mm fine gravel; 10–20 mm standard aggregate; 20–40 mm coarse gravel; 40+ mm ballast or base material.
Tips to Reduce Wear Costs in Gravel Processing
Processing high-silica river gravel and hard pebbles can cause fast wear on crusher parts, leading to frequent replacement of liners and consumables. In some cases, wear parts can represent up to 60% of a gravel crusher plant’s daily operating cost. Based on decades of engineering experience, we focus on three practical strategies to help you significantly reduce maintenance costs and extend equipment service life:
1. Maximize “Pre-Screening” to Bypass Fines Early
-
❌ Common Industry Mistake: Many operators dump the entire raw gravel deposit straight into the primary or secondary crusher, assuming the machine will handle it all.
➡ Recommended Solution: Up to 30% to 40% of natural river gravel deposits already consist of small stones and sand that are already under 20mm or 40mm. By using a vibrating feeder with grizzly bars or installing a pre-screening vibratory deck, you route these fine materials around the crusher directly to the final screen.
💴 Efficiency Gains: Crushing only what actually needs to be crushed extends your liner and mantle lifespan by 25% to 35%.
2. Always Choose “Laminated Compression” Over “Impact” Crushing
-

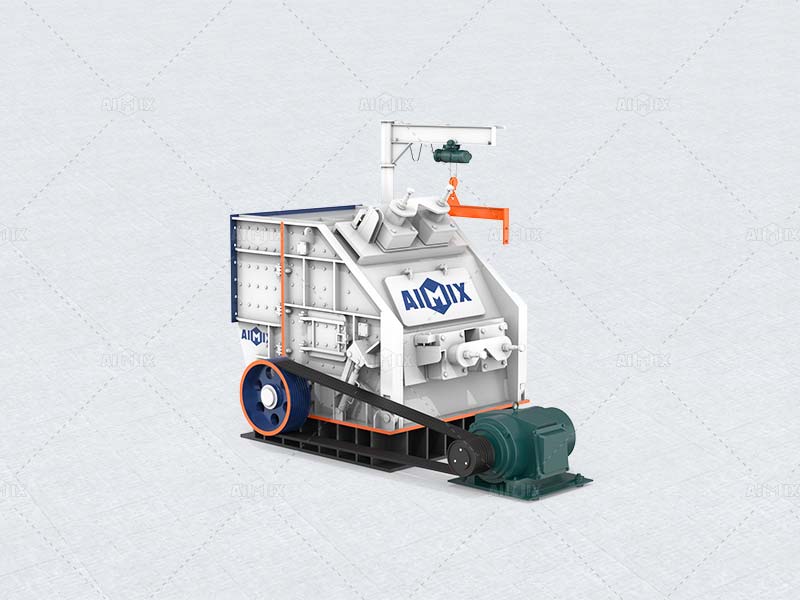

❌ Common Industry Mistake: Using an Impact Crusher to crush high-silica river pebbles because of its lower initial price tag.
➡ Recommended Solution: Impact crushers rely on high-speed blow bars hitting the rock. Against abrasive gravel, those blow bars can wear out in just a few days. Instead, always deploy a Cone Crusher for secondary gravel processing. Cone crushers utilize laminated compression, where stones crush against other stones under immense hydraulic pressure.
💴 Total Lifecycle Cost Reduction: Swapping an impact crusher for an optimized multi-cylinder cone crusher cuts wear-part replacement expenses by up to 40%–50% over the project lifecycle.
3. Optimize with “Rock-on-Rock” VSI Technology for Sand Making
-
❌ Common Industry Mistake: Running a traditional hammer mill or a “Rock-on-Anvil” VSI config for high-volume sand production.
➡ Recommended Solution: When making 0-5 mm manufactured sand from abrasive gravel, our VSI sand makers are strictly configured to “Rock-on-Rock” mode. In this setup, a high-velocity material curtain forms inside the crushing chamber. The incoming gravel collides with a dense lining of existing gravel rather than striking the steel anvil walls.
💴 Operational Impact:: Metal contact is minimized, reducing the wear on internal casting parts and lowering your cost-per-ton for premium concrete sand significantly.
FAQs
Why do rounded river gravels wear out crusher parts much faster than quarried mountain stone?
My raw river gravel max size is around 150mm. Do I really need a primary Jaw Crusher?
What is “100% fractured face count” in crushed gravel, and why does it matter to my concrete clients?
How does wet mud and river silt affect my gravel crushing line, and how do you solve it?
For gravel sand-making 0-5mm, should I use “Rock-on-Rock” or “Rock-on-Anvil” VSI technology?
How can I prevent the “flakiness” (needle-like shapes) when crushing hard gravel?
What are the most critical wear parts I need to stock up on for a gravel crushing plant?
Choose AIMIX – for the Safe Operation!
Crusher with High Production Efficiency
-
AIMIX gravel crushers are equipped with advanced production technologies and machinery, ensuring high efficiency in the stone crushing process. This increases overall productivity and makes operations more efficient.
Reliable Quality
-
We are a reputable gravel crusher manufacturer. We are committed to providing reliable quality products. The durability of our rock crushers ensures longevity and consistent performance, resulting in high-quality crushed stone.
Cost Effectiveness
-
While improving production efficiency, our crusher plant can also reduce production costs and improve return on investment.
Customer Service
-
We are customer-centric and provide one-to-one service to meet customer needs. We also support customized production plans and production lines, provide 3D renderings, CAD drawings, etc.
Technical Support
-
Choose AIMIX, you will get professional after-sales technical support and service. This means that customers have access to the expertise they need to maintain and resolve equipment issues, helping them run for long, trouble-free hours.
In conclusion, AIMIX crusher adopts advanced technology, reliable design and provides high-quality crusher fine gravel. We also provide professional after-sales to reduces your costs, personalized service and customized solutions. Choose us to help you achieve greater success!
