Stop letting distant quarries and hauling costs crush your project’s bottom line. Imagine processing mountains of rock, concrete, or demolition waste right where they lie, turning them into valuable, profit-driving aggregates on the spot. This is the power of the modern mobile jaw crusher. It is your key to unlocking unprecedented efficiency and flexibility. Dive into this complete guide to discover how AIMIX’s innovative mobile crushing solutions can transform your operations and drive your business forward.

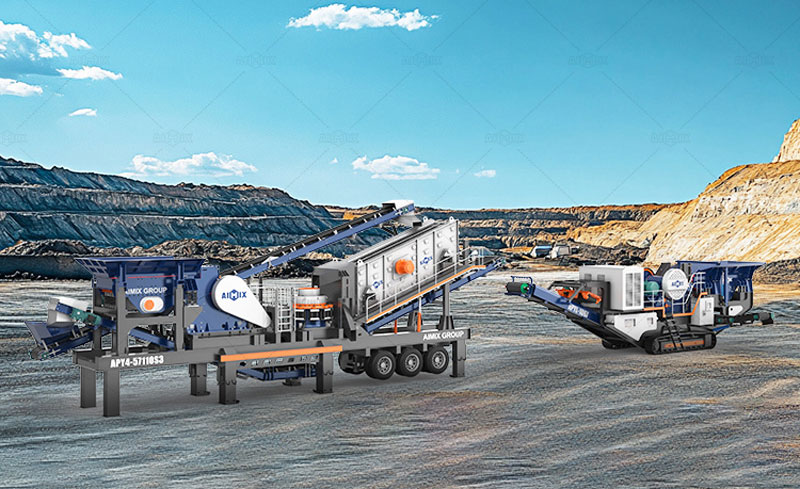

Meet the Workhorse: What is Mobile Jaw Crusher and How Does It Work?
What?
- The jaw crusher mobile is a type of mobile crushing equipment used in the construction and mining industries. It is a self-contained unit that combines a jaw crusher and a mobile carrier, typically mounted on wheels or tracks, allowing it to be easily moved to different locations and set up on job sites.
- They are are essential equipment in the construction, mining, and recycling industries, providing a versatile and efficient crushing solution for on-site size reduction and material processing.
How?

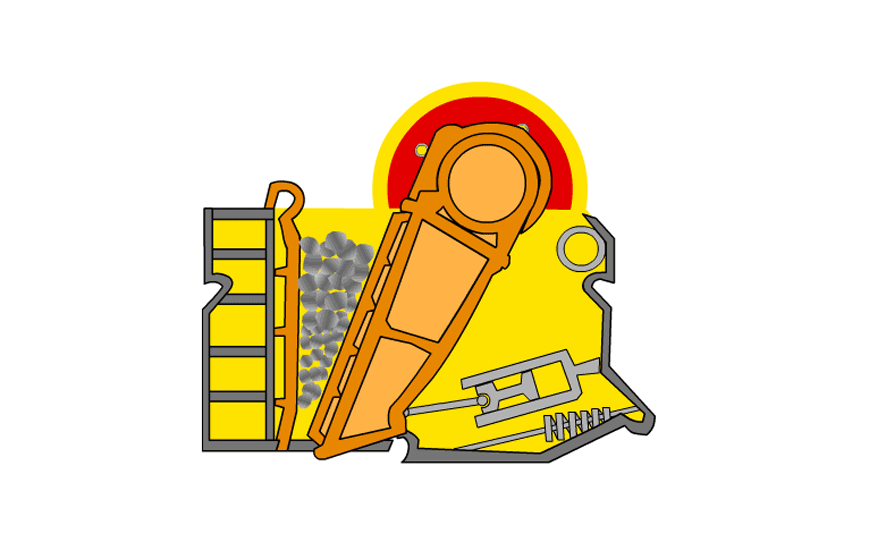

How does a mobile jaw crusher work? A jaw crusher operates on a simple principle: compression. Two vertical jaws, one fixed, one moving, form a V-shaped chamber. The moving jaw pushes against the fixed jaw with tremendous force, crushing the material trapped between them.
- Feed size: Large rocks enter from the top (up to 800mm in some AIMIX models).
- Crushing action: The moving jaw oscillates, compressing the rock until it breaks.
- Discharge: Smaller pieces fall through the bottom, with size controlled by adjusting the outlet gap.
Two Giants, One Mission: AIMIX Wheeled & Tracked Jaw Crushers
AIMIX offers two kinds of mobile jaw crushers for sale. One is Wheeled type, including the APY3 and APY4 models, each designed to meet varying demands in terms of capacity, mobility, and efficiency. The other one is crawler jaw crushers, providing enhanced maneuverability and stability on challenging terrains. You can check some details below.

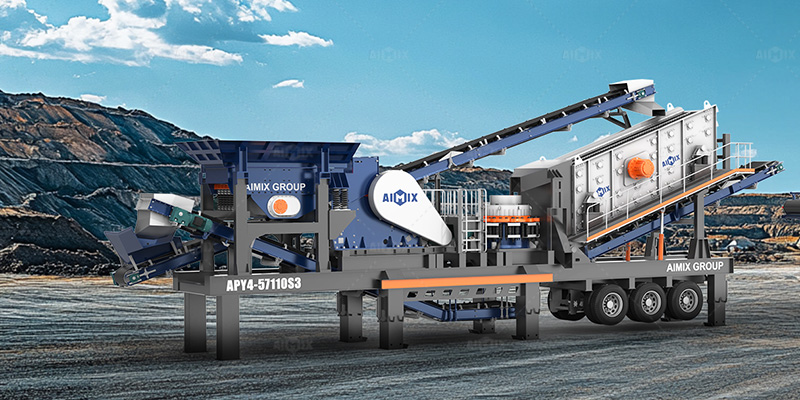

APY4 4 in 1 Wheeled Mobile Jaw and Cone Crusher
Function: 4 in 1 – Feed & Primary Crushing & Secondary Crushing & Screening
Crushers: jaw crusher and cone crusher, and screener
Capacity: Under 100 t/h
Output Size: 0 – 40mm
Usages: sand and aggregate production for construction industry, like roads and buildings
APY3 3 in 1 Wheeled Mobile Jaw Crusher
Function: 3 in 1 Type – Feed & Primary Crushing & Screening
Capacity: Under 400 t/h
Finished Product: 10-40mm
Main components: feeder, jaw crusher and screening machine
Application: processing hard and medium-hard materials, like granite, basalt, quartz, in the quarry

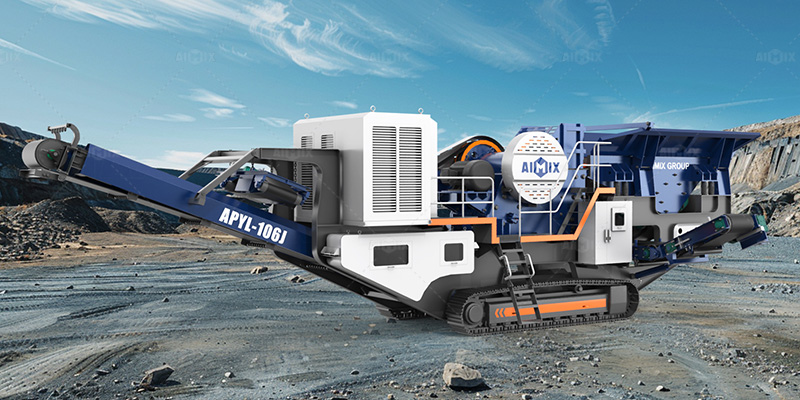

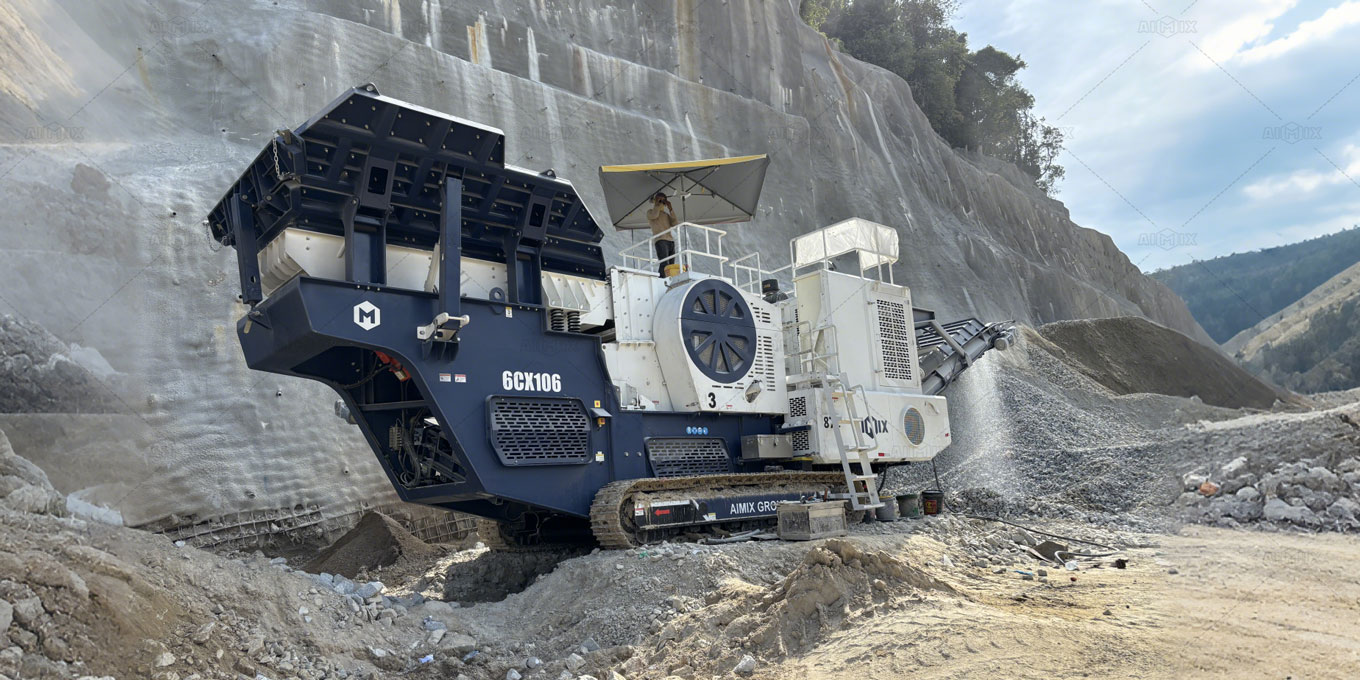

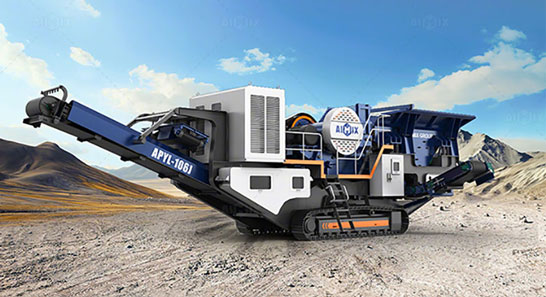

APYL Series Crawler Chassis Jaw Crushing Machine
Function: Feed & Primary Crush
Capacity: Under 400 t/h
Engine: Diesel Engine
Application: Excellent performance in quarries or rugged sites, also used for crushing construction waste.
In addition to the above models like the APY3, APY4, and APYL, AIMIX understands that not every project requires heavy-duty equipment. If you’re working on a smaller-scale construction project, you might find small capacity mobile jaw crushers to be the perfect fit for your needs. To meet these demands, AIMIX also has launched efficient and cost-effective mobile crushing plant solution, continue to read and find what you are looking.
Lower Capacity Mobile Jaw Crusher for Your Small-scale Construction Work
Newly designed 10-60 tph small mobile wheeled and tracked jaw crushers in AIMIX Group might be just what you need! Imagine having a reliable machine that can easily adapt to your specific site requirements. Whether you prefer the flexibility of a wheeled type or the stability of a tracked type, we have options that will fit your needs perfectly. Why not explore how these compact small mobile jaw crushers can streamline your operations and boost your productivity?
10-60 tph Small Mobile Jaw Crusher – Diesel Engine
Capacity: 30 – 60 t/h
Max. Input size: 210-340mm
Output size: 20-100mm
Processing materials: small scale processing concrete construction waste, limestone, granite etc

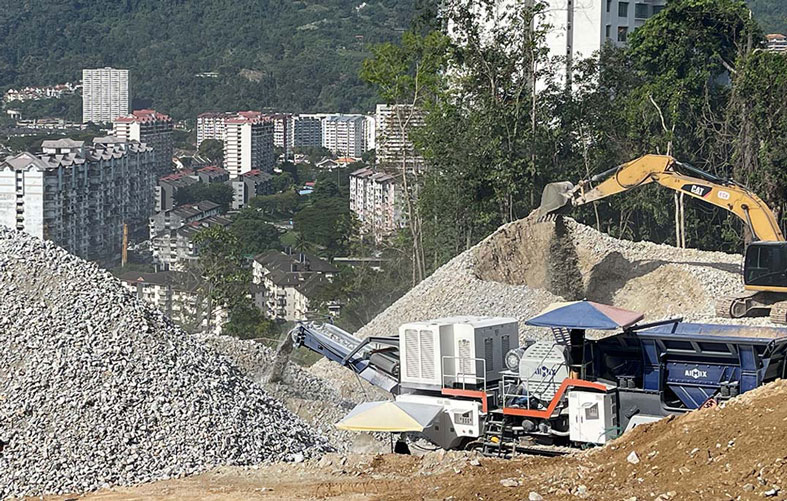

20-50 tph Tracked Type Jaw Crushing Machine – Exceptional Maneuverability
Capacity: 20 – 50 t/h
Max. Feeding size: 380mm
Discharge size: : 20-50mm
Main Application: production of aggregate gravel that is used for road construction project and building project

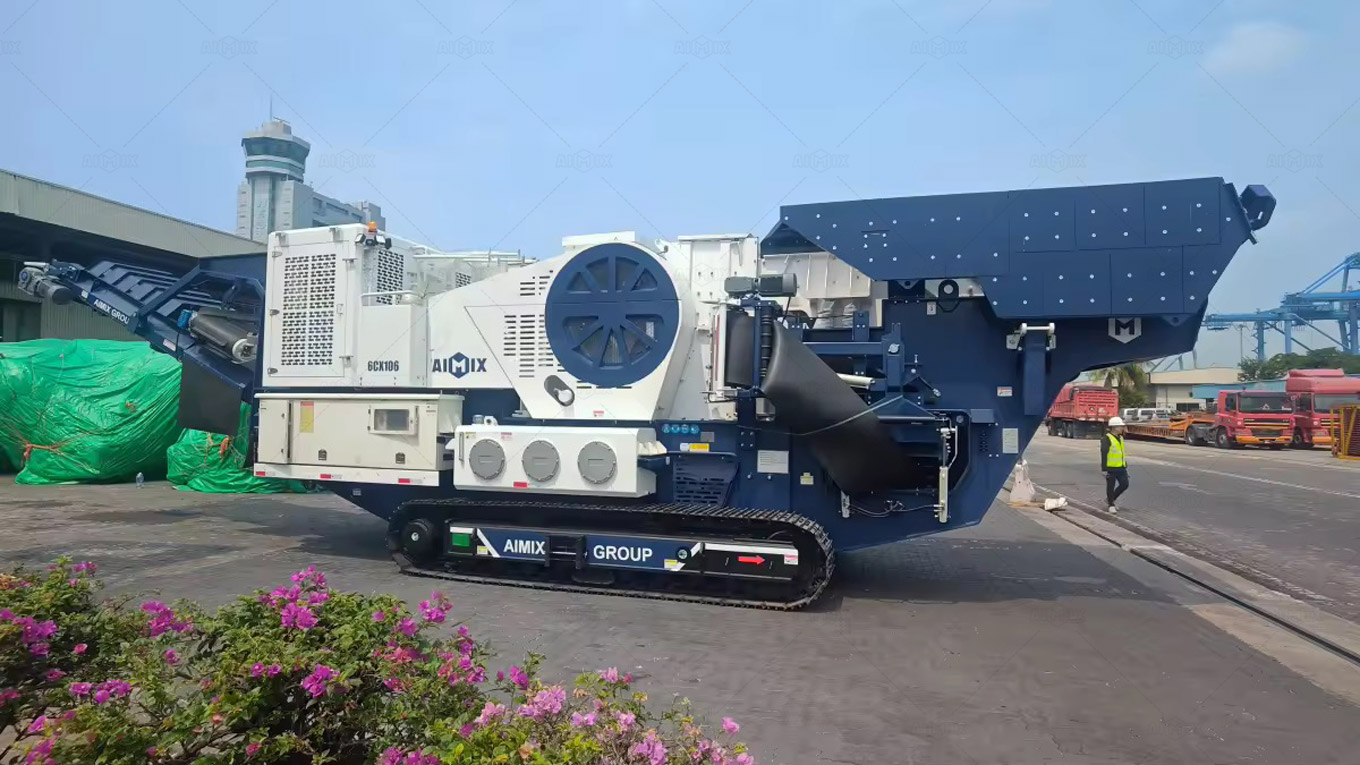

What Makes AIMIX Different? The Core Features That Drive Performance
A portable jaw crusher for sale is only as good as the parts that make it. AIMIX builds every mobile jaw crusher machine around proven components designed for longevity, efficiency, and operator convenience. Here is what sets our crushers apart.
The Crusher Heart — High-Performance Jaw Box
- Durable jaw design engineered for aggressive crushing and high throughput.
- Optimized cavity geometry for better feed acceptance and consistent product size.
- Heavy-duty bearings and reinforced frame to minimize wear and downtime.
Robust Chassis — Built to Move, Designed to Last
- Transport-friendly footprint with stable, low-vibration operation..
- Rigid, welded steel construction to withstand demanding environments.
- Simple service access points to reduce on-site downtime.
Power & Efficiency — Choose Your Drive
- Flexible drive options (electric or diesel) to suit site needs.
- High-efficiency hydraulics and optimized powertrain for lower operating costs.
Intelligent Control System — Simplicity Meets Sophistication
- PLC touchscreen interface with one-button startup
- Real-time monitoring of engine hours, pressure, and temperatures
- Remote control capability on all tracked models
IoT Remote Monitoring — Your Machine Talks to You
- Real-time equipment tracking from any device
- Automatic maintenance reminders, never miss a service interval
- Remote diagnostics, our team troubleshoots without a site visit
Intelligent Feeding System — Keep Material Flowing
- Adjust belt speed from the operator’s station or remote.
- Automatic load sensing maintains optimal crusher load continuously
- No more “stop-and-wait” cycles caused by uneven material flow.
From Granite to Cobblestones: Diverse Kinds of Materials AIMIX Mobile Jaw Crushers Have Conquered
Jaw crusher mobile excels in handling various types of materials, including hard, abrasive, and even sticky materials, making them ideal for demanding mining environments. Whether it’s granite, basalt, limestone, cobblestone, river stones, or other hard rock ores, mobile jaw crushers can efficiently reduce them to the desired size. They have the advantages of high crushing efficiency, large capacity, and low energy consumption, making them very suitable for large-scale raw material crushing operations. Thus, they are essential for extracting valuable materials and preparing them for further processing. Please check the following cases, and learn how AIMIX portable jaw crushers for sale turn diverse materials into profitable end products, and discover which configuration matches your material.

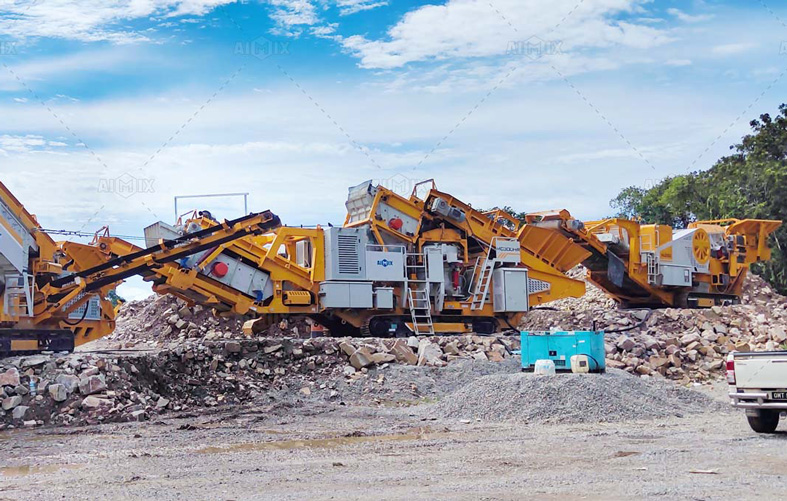

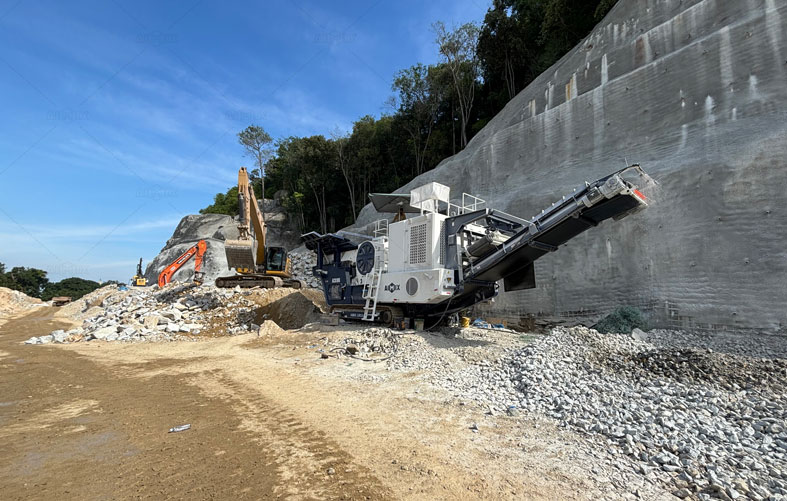

150tph Crawler Jaw Crusher Operation in Malaysia
- Finished Product: 70-200 mm
- Applications: crushing limestone rocks for roadbad materials
- Configurations: APJ-100V jaw crusher machine
- Customer feedback : “It’s been reliable from day one. It handles the limestone rock well, with easy setup and minimal downtime. Throughput stays steady and maintenance is simple, so it keeps our project moving. ”

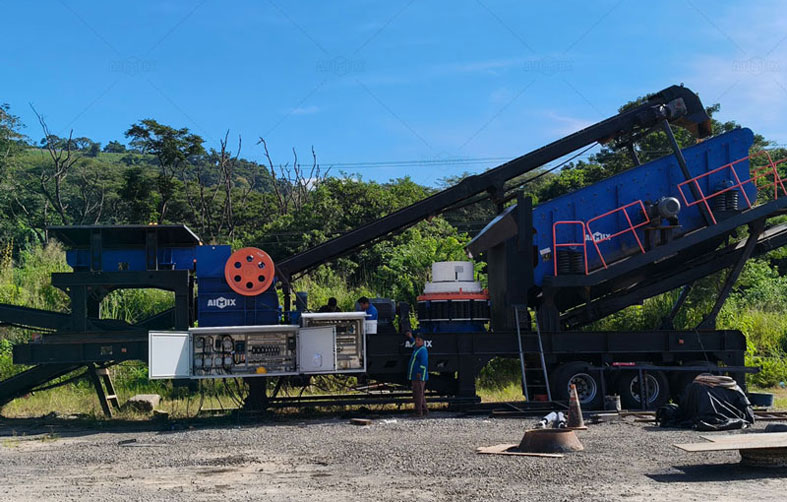

150tph Crawler Jaw Crusher Operation in El Salvador
- Model: APY4 4 in 1 wheeled mounted mobile crusher
- Final aggregate size: 10 to 30 mm
- Applications: Crushing granite at the project site to grow our aggregate-sale business.
- Configurations: feeder + jaw crusher + cone crusher + vibrating screen
- Customer feedback : “On-site crushing saves us a ton on transportation. With the equipment, we cut our haul miles and boost our output fast.”
150tph Portable Jaw Crusher Working Efficiently in Malaysian Cobblesstones Quarries
- Finished Product: 80-100mm
- Applications: Aggregates sales business
- Configurationscrawler jaw crusher
- Customer feedback: “Using this mobile crusher to produce road aggregates results in stable output, and the apparent particle size distribution meets the requirements. The throughput of 150 tph is sufficient to keep pace with road construction, saving time and labor.”
100tph Mobile Machine Jaw Crusher Plant Providing Aggregate For Airport Construction in Russia
- Raw Materialvolcanic rock
- Max. feeding size500mm
- Discharge size0-5mm, 5-10mm, 10-20mm, 20-40mm
- Applicationsroad paving and construction at airport
- Customer feedback: The APY2-69J mobile jaw crusher AIMIX for volcanic rock has surpassed our expectations, delivering high-quality results and excellent efficiency. Its mobility and easy operation boosted our productivity, and AIMIX’s support has been outstanding.
The versatility of AIMIX mobile jaw crushers shines across diverse materials. By enabling on-site crushing, they save time, cut transportation costs, and support sustainable practices through material recycling and waste reduction. Through the above applications, you can easily found that there are wheeled mobile jaw crusher and crawler jaw crusher for sale. Although both of them have excellent mobility, they are applicable in various condition. Therefore, you’d better know their differences before investing in one.
Wheeled or Tracked Mobile Jaw Crushers: Which One Drives Your Project Success?
In order to guide you choosing a right type of mobile jaw crusher for sale for successful crushing project, here is the simple comparison between wheeled mobile jaw crushers and crawler jaw crushers for reference:
 |
 |
 |
|---|---|---|
| High on-site maneuverability.: self-propelled via hydraulic drive, allowing it to move freely and independently within the worksite without auxiliary equipment. | Mobility & Portability | High inter-site portability. The chassis is equipped with a wheeled axle, making it easy to be towed by a truck trailer between different projects, ideal for contractors who frequently change locations. |
| Instant setup. Can be driven directly from the transport trailer to the working face and start crushing immediately, eliminating the need for towing gear or separate prime movers. | Ease of Setup/Relocation | Requires towing gear. Relocation on-site requires a truck or loader to push/pull it. While setup is quick once positioned, it is less agile for frequent short-distance moves within a site. |
| Excellent off-road performance. providing superior stability and traction on soft ground, muddy surfaces, steep slopes, and rough demolition sites. | Terrain Capabilities | Limited to stable ground. Best suited for hard surfaces like asphalt, gravel roads, or compacted earth. It struggles in soft soil, sand, or muddy conditions where wheels may sink or lose traction. |
| Heavier with higher ground pressure. The robust track undercarriage adds significant weight. However, the weight is distributed over a large area, reducing ground pressure and preventing sinking on soft ground. | Footprint & Weight | Lighter and more compact. Generally has a lower overall weight and a smaller footprint, which is advantageous for sites with strict weight limits or confined spaces. |
| Higher Investment. The complex hydraulic drive system, track undercarriage, and superior engineering result in a higher initial purchase price. | Cost | Lower initial investment. The simpler axle and tire system makes it more budget-friendly to acquire, offering an economical entry point into mobile crushing. |
No matter which type of mobile crusher jaw crusher you choose, it is very cost-effective. According to customer feedback, customers’ investment in the stone crushing plant will pay back after one year of operation.
Once you have made that decision, the next step is to ensure the effective and efficient use of the mobile crusher jaw crusher. How should you deal with placing the mobile jaw crushing plant during construction? The following is to introduce you to the guide for using a mobile jaw crusher.

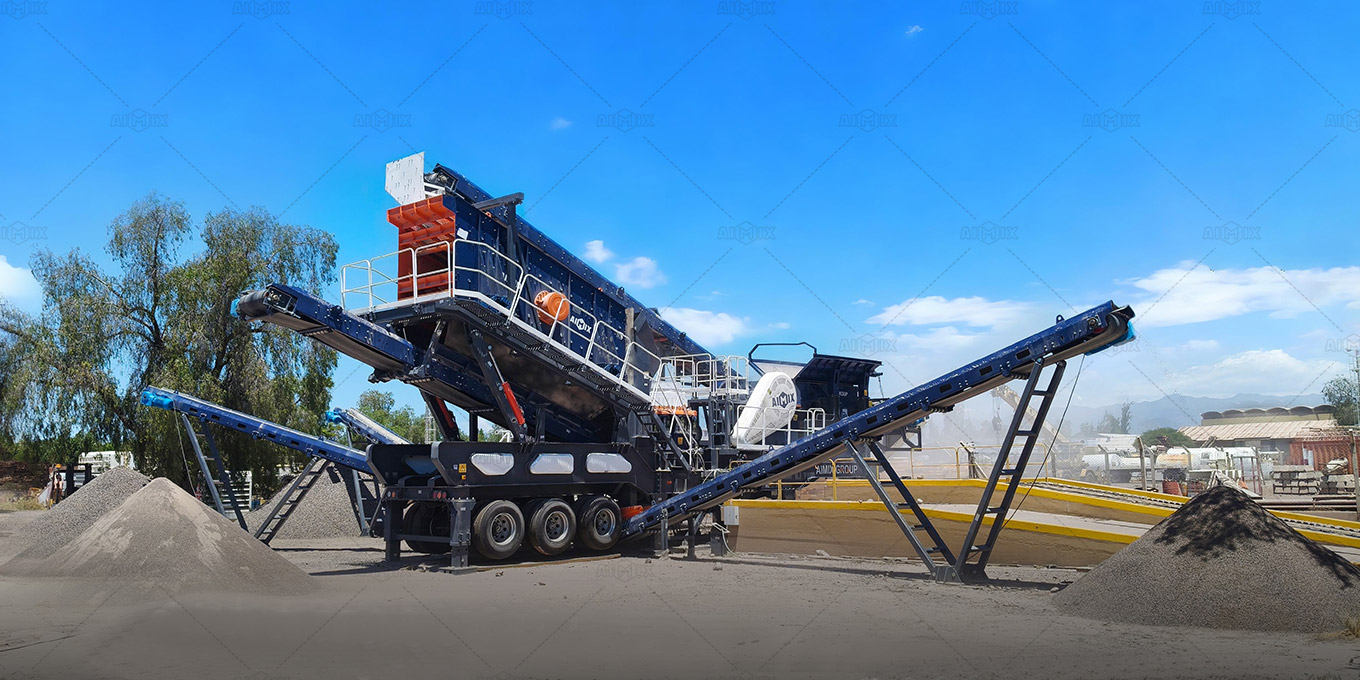

How to Put a Mobile Jaw Crusher into Use?
After the mobile crushing plants are trasported to the construction sites, it is necessary to install, test, and use it. Here is a step-by-step guide on how to put a mobile jaw crusher into use:
Choose A Loacation
Transport and Set up
Prepare the Foundation
- Dig a pit under the fixed legs, with the size of the pit depending on the local soil quality (larger for looser soil).
- Fix the movable legs with coupling bolts to the fixed legs.
- Pour concrete into the pit under the movable legs to create a foundation.
- Adjust the concrete surface to make the support for the crushing plant more stable.
Finalize the Setup
- After the concrete has solidified, adjust the concrete surface to make the crushing plant support smoother.
- Retract the lifting legs.
- Optionally, add auxiliary support tools, such as sleepers, under the vehicle body to achieve full smoothness.
Conduct a Test Run and Ensure Proper Operation
- Before the small portable jaw crusher for sale starts to operate, it is still necessary to test run to make sure that the components are running normally, and it can’t start the production work directly.
- Therefore, it is necessary to hold the official operator of the mobile jaw crusher operating certificate, on the one hand, to ensure the correct operation of the aggregate crushing equipment and the safety of the equipment, on the other hand, it is also the safety of the operator himself.
Especially the mobile jaw crushing equipment is originally worth a lot of money, both of us must put 200% energy to treat the operation of the mobile crusher machine, therefore, the following provides you with the operating instructions, and we hope that it can help you to use the portable jaw crusher correctly.
Operating Instructions Of Mobile Jaw Crusher And Precautions
To ensure safe and efficient operation, it’s important to follow proper operating instructions and take necessary precautions. Here’s a guide to operating a small mobile jaw crusher effectively:
- 1. Read the User Manual: Before operating the mobile jaw crusher, thoroughly read and understand the user manual provided by the mobile jaw crusher manufacturers. This manual contains essential information about the crusher’s features, operation, maintenance, and safety precautions.
- 2. Pre-Start Checks: Before starting the crusher, perform a pre-start check to ensure that all components are in good condition. Check for any loose bolts, damaged parts, or leaks. Ensure that the crusher is properly lubricated and all safety guards are in place.
- 3. Start-Up Procedure: Start the crusher following the portable jaw crusher manufacturers’ recommended start-up procedure. Generally, this involves turning on the power supply, engaging the engine, and gradually starting the crusher’s hydraulic system.
- 4. Material Feeding: Only feed materials that are within the crusher’s capacity and specifications. Avoid overloading the crusher, as this can lead to reduced efficiency and potential damage to the machine.
- 5. Adjustments: Set the crusher’s parameters according to the desired output size. Adjust the rock crusher‘s gap to control the final product size. Proper adjustments ensure optimal performance and product quality.
- 6. Crusher Operation: Start the crusher’s engine and engage the crushing mechanism. Feed the material gradually into the mini mobile jaw crusher’s inlet. Monitor the crusher’s operation and adjust the feeding rate as needed for consistent and efficient crushing.
- 7. Conveyor Belts: If equipping the mobile jaw crusher with conveyor belts, ensure that you properly align and maintain their functioning. Regularly check for any signs of wear or damage and promptly address any issues.
- 8. Clearing Blockages: In case of blockages in the crusher’s inlet or crushing chamber, shut down the crusher immediately. Follow the manufacturer’s instructions for clearing blockages safely.
- 9. Maintenance: Regular maintenance is crucial for optimal performance and prolonging the lifespan of the crusher. Follow the maintenance schedule provided in the user manual. This includes checking and changing oil, inspecting and replacing wear parts, and addressing any issues promptly.
- 10. Safety Precautions:
1) Always wear appropriate personal protective equipment (PPE) when operating the crusher, including safety glasses, hearing protection, and protective clothing.
2) Keep bystanders away from the crusher during operation to prevent accidents.
3) Follow proper lockout/tagout procedures when performing maintenance or repairs.
4) Do not attempt any adjustments or repairs while the crusher is in operation.
5) Never reach into the crusher’s inlet or crushing chamber while it’s operating.
If any unusual sounds, vibrations, or issues are noticed during operation, shut down the crusher and investigate the cause before resuming operation.
In conclusion, proper operating instructions and precautions are essential for the safe and efficient operation of the jaw gravel crushing equipment. By following these guidelines, you can ensure the longevity of the machine, reduce the risk of accidents, and achieve optimal crushing performance for your applications. Always refer to the manufacturer’s manual and consult with professionals if needed for specific situations.
After reading this article, I wonder if you have a deeper understanding of mobile jaw crusher?
- If you already know how to choose the model, quickly tell us the model you need, our project consultant will customize the best plan for you!
- If you are a novice in this field, don’t worry, we will escort your project with our professionalism, and you are welcome to take a minute to tell us your needs, we will make more than 2 sets of programs for you. And provide you with reasonable mobile jaw crusher price. And we have professional service team, please be assured.
