In the aggregates industry, people often say, “Ordinary projects care about output, but highway projects live or die by quality.” If you’ve run a crushing plant, you already know: aggregates for general civil work come with tight margins. But once you supply a highway or high-speed rail project, both unit price and profit jump significantly.
However, these projects come with much higher entry barriers. Many crushing plants fail at the sample stage, their crushed material can’t meet specs for crushing value or flakiness ratio. So what makes highway specifications so tough? And why do even upgraded plants struggle to produce consistent, passable material? Let’s break it down into three key areas: standard requirements, process control, and applications.
Why Do Highway Projects Set Such “Over-The-Top” Standards for Aggregates?
Newcomers often wonder: isn’t it just crushed stone under the pavement? Why take specs to such a fine level, almost like industrial-grade materials?

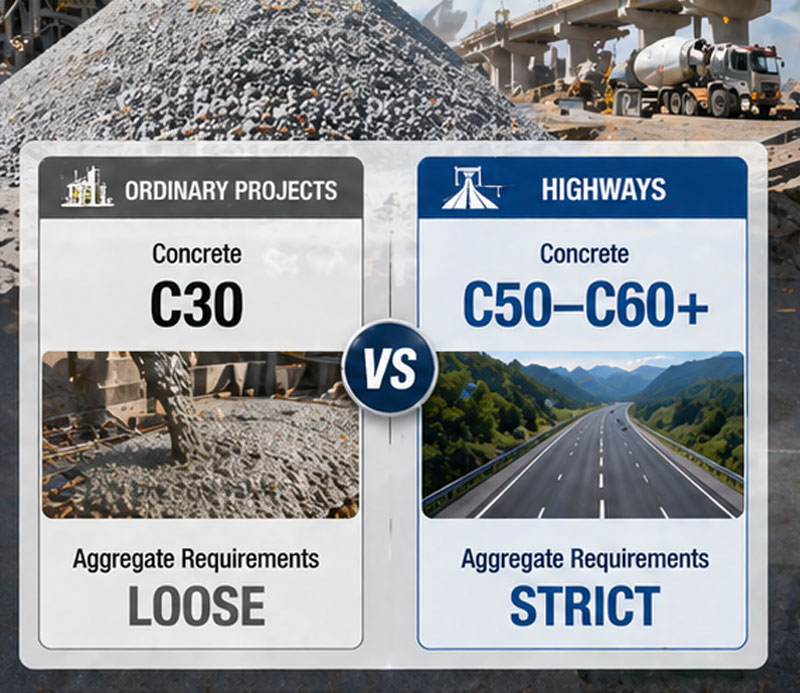

Ordinary projects vs. Highways
Most civilian buildings use concrete around C30. That means the aggregate specs stay fairly loose. But highways, especially surface layers, often require C50, C60, or even stronger concrete.
Usage Environment Sets The Bar

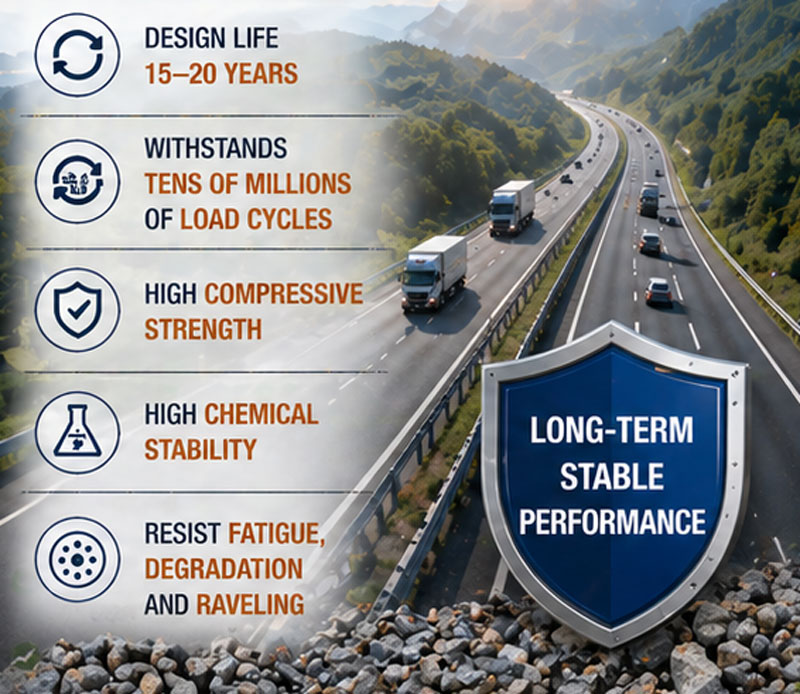

Highway design life typically runs 15 to 20 years. That means aggregates need high chemical stability and physical strength. They must survive tens of millions of load cycles without breaking down.

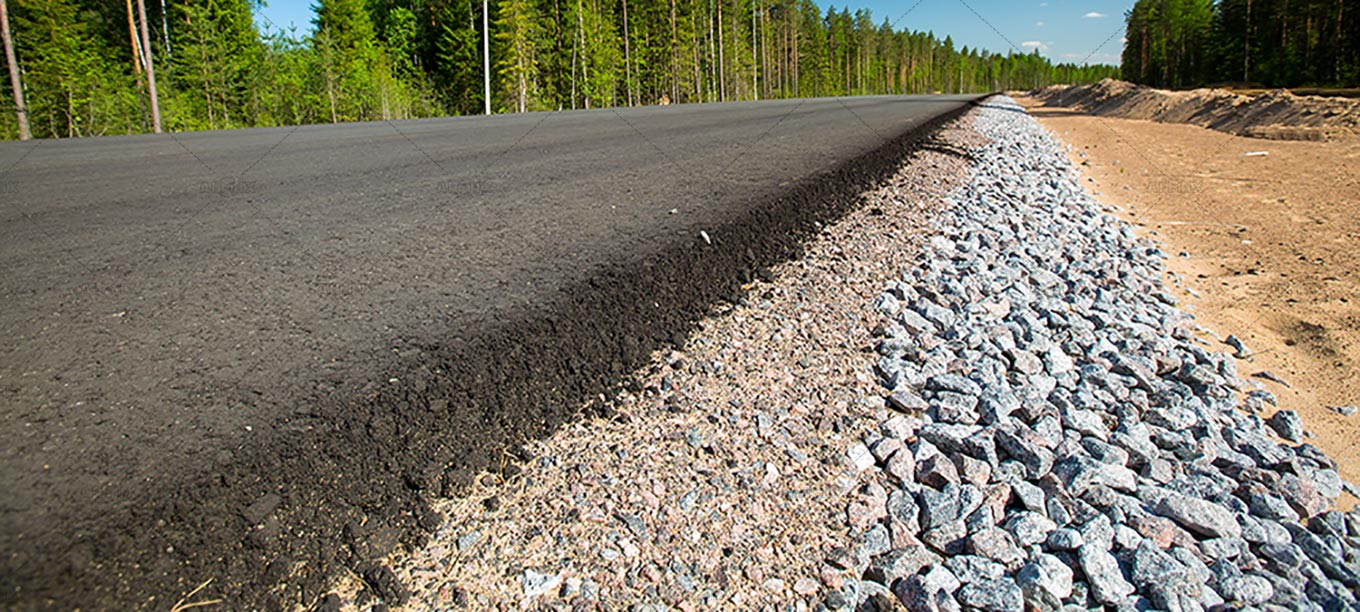

Tougher Working Conditions

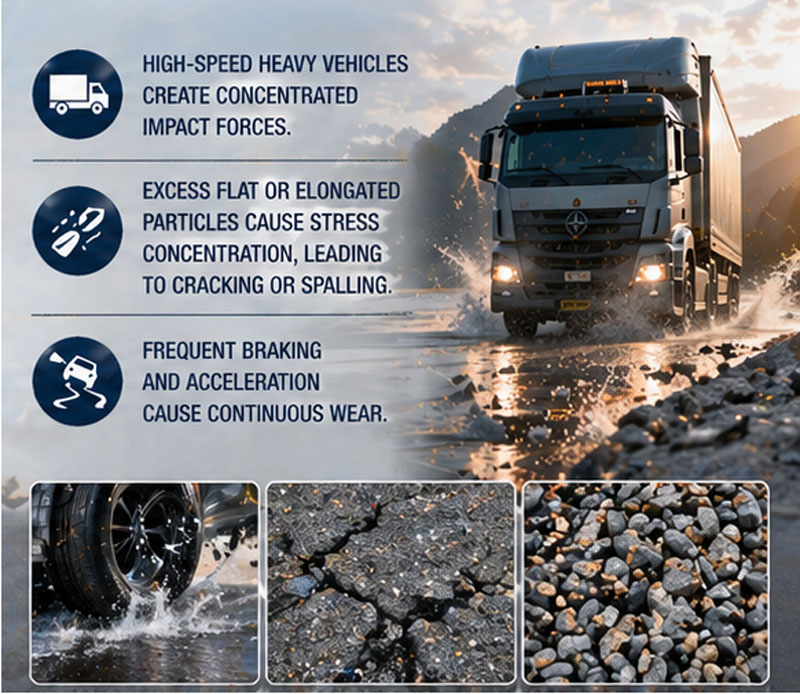

High-speed heavy vehicles create concentrated impact forces. Too many flat or elongated particles in the aggregate cause stress concentration, leading to cracking or spalling. Frequent braking and acceleration constantly wear the pavement, demanding high abrasion resistance, which directly affects skid resistance and durability.
Here’s the thing, many crushing plants fail highway specs not because of capacity or equipment size. The real issue comes down to consistency. Highway projects don’t just care about one good sample batch. They need stable, repeatable quality across long runs, large volumes, and continuous production.

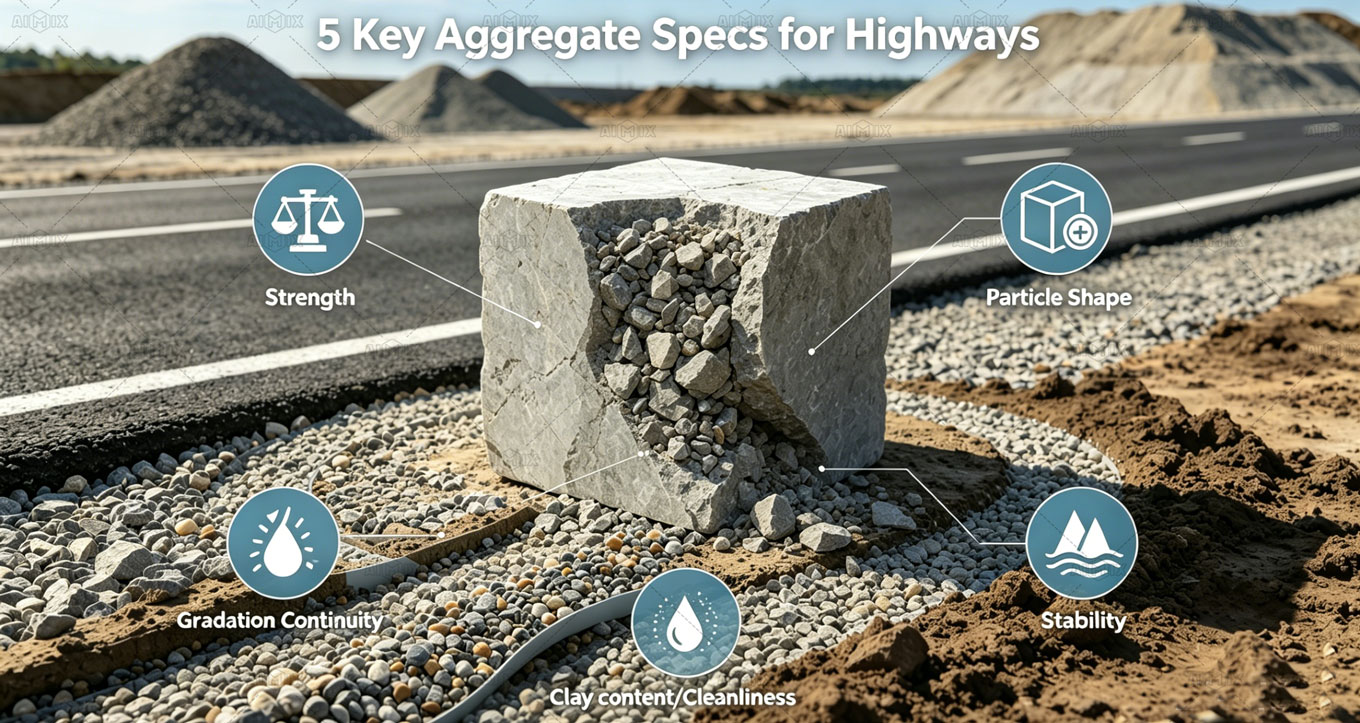

5 Key Aggregate Specs That Actually Matter for Highways
To meet the standard, it is necessary to to know what the standard actually is. Based on the Technical Guidelines for Highway Pavement Base Construction and related codes, these five indicators matter most.
Strength – Crushing and Wear Resistance
- Crushing value: typically ≤26%, with stricter limits for high-grade roads
- Wear value: usually ≤28%
These indicators tell you whether the aggregate will break down or pulverize under long-term vehicle loads.
Particle Shape – Cubical Content
- Flaky and elongated particles: generally ≤15%
- High-grade roads may require ≤10%
The closer the shape gets to a cube, the more stable the interlocking structure between aggregates. That means better resistance to deformation under load.
Gradation Continuity – The Core of Structural Stability
- Particle size range usually covers 4.75mm–26.5mm
- Requires continuous gradation with no obvious gaps
Poor gradation leads to too much or too little void content. That directly harms the pavement’s density and load-bearing capacity.
Clay content and cleanliness
Highway projects demand very clean aggregates.
- For asphalt surface layers: clay content typically ≤1%
- For base layers: controlled under 5–7%
Too much clay or fine dust weakens the bond between aggregate and asphalt. The result? Pavement stripping and raveling.
Stability – Soundness and Chemical Durability
This covers freeze-thaw resistance (soundness) and alkali-aggregate reaction. You need to make sure the stone won’t “degrade” under acid rain or harsh freezing conditions.
Why Hitting Specs Is So Tough – Four Real Bottlenecks
In practice, many stone crushing plants struggle to enter highway supply chains. The core problem usually isn’t “lack of advanced equipment.” Instead, it’s a set of systemic issues.
Raw Material Variation
Hard rocks like basalt and diabase meet strength specs easily. But they tend to produce flaky and elongated particles. Plus, they wear down your equipment fast.
On the other hand, medium-hard rocks like limestone give you better shape control. But their strength sits at the borderline – crushing value often exceeds the limit.
Poor Process Design
Many stone production lines still stick to a two-stage crushing setup – jaw crusher plus impact crusher. It looks complete, but it lacks proper shaping stages or multi-stage crushing control.
The result? Coarse material gets stuck, fines overproduce, and particle shape stays uneven. Your gradation curve keeps fluctuating, making it nearly impossible to meet highway spec requirements for continuous gradation.
Wrong Equipment Choices
To save upfront investment, some stone crushing plants use impact crushers for hard, highly abrasive stone. That wears out blow bars fast. Soon enough, output size coarsens, and gradation goes unstable.
Also, if your screening system runs too small or uses the wrong mesh configuration, you lose classification clarity. That leads to more fines carryover and material mixing issues.
Lack of Process Control and Management
The problem for many sand and gravel crushing plants lies in “whether they can maintain stable production.”
Common trouble spots include: No online particle size monitoring – just relying on operator experience; too few tests, so you detect clay content or flakiness issues too late; no timely maintenance as equipment wears, so quality slowly drifts down without anyone catching it, etc.
Meeting highway aggregate specs isn’t hard because of one single failure. It’s hard because you lack a closed-loop control system that ties together raw materials, process design, and operations management.
Match Equipment to Specs: Five Needs, Five Solutions
| Spec Target | Core Equipment | Logic |
|---|---|---|
| Strength | Cone Crusher | Uses interparticle crushing. Ideal for hard rock like basalt and granite. Ensures structural integrity. |
| Particle Shape (Flakiness) | Vertical Shaft Impact Crusher (VSI / Sand Making Machine) | Adopts “rock-on-rock” action – high-frequency impacts knock off sharp edges and produce cubical aggregates. |
| Gradation / Particle Size | Vibrating Screen (Multi-deck) | Use multi-deck, high-frequency screens. Tightly control recirculating load. Keeps the gradation curve smooth. |
| Clay Content / Cleanliness | Sand Washer / Dust Collector | For wet process: add a sand washer. For dry process: add an air classifier or dust collector. |
| Stability | Feeder + Buffer Hopper | Keeps the crusher cavity choke-fed at all times. Prevents shape fluctuations caused by uneven feed. |
Standard Production Line Setup for Highway-Grade Aggregates – Three-Stage Crushing + Shaping
A standard highway aggregate production system typically follows this process flow:
Primary Crushing → Secondary Crushing → Tertiary Crushing → Shaping → Screening & Classification → Washing & Cleaning
Stage 1 – Primary Crushing: Jaw Crusher
The jaw crusher for sale breaks down large boulders to under 250mm, prepping material for downstream stages. Think of it as the “throat” of your entire line. Its stability and output size directly affect the load on all following equipment.
Stage 2 – Secondary Crushing: Single-Cylinder or Multi-Cylinder Hydraulic Cone Crusher
The cone crusher machine reduces material from primary crushing to under 60mm. This stage plays a key role in controlling intermediate particle size. It bridges primary and tertiary crushing – reduces the load on tertiary crushers and optimizes overall efficiency.
Stage 3 – Tertiary Crushing: Multi-Cylinder Hydraulic Cone Crusher (or another cone crusher)
The cone crusher in this stage can produce semi-finished aggregate at ≤31.5mm. This stage directly determines the main particle size of your final product.
Stage 4 – Shaping Stage: VSI Crusher (Sand Making Machine)
Think of it as “cosmetic shaping” for your aggregate. It dramatically reduces flaky and elongated particles and rounds off sharp edges. This piece separates ordinary material from premium highway-grade aggregate.
Stage 5 – Screening & Classification: Multi-Layer Circular Vibrating Screen (3–4 decks recommended)
The screens will precisely separates crushed and shaped material into different specs – 0–5mm (sand), 5–10mm, 10–20mm, 20–31.5mm, and more. This is the “master gate” for gradation control. Off-spec material goes back for re-crushing – that’s your closed-loop circuit.
Stage 6 – Cleaning Stage: Wheel Sand Washer + Fine Sand Recovery System
The washer can remove stone dust and clay attached to aggregate surfaces to ensure you meet clay content limits. Cleanliness isn’t optional – it’s a rigid spec requirement. Plus, environmental regulations keep getting tighter.

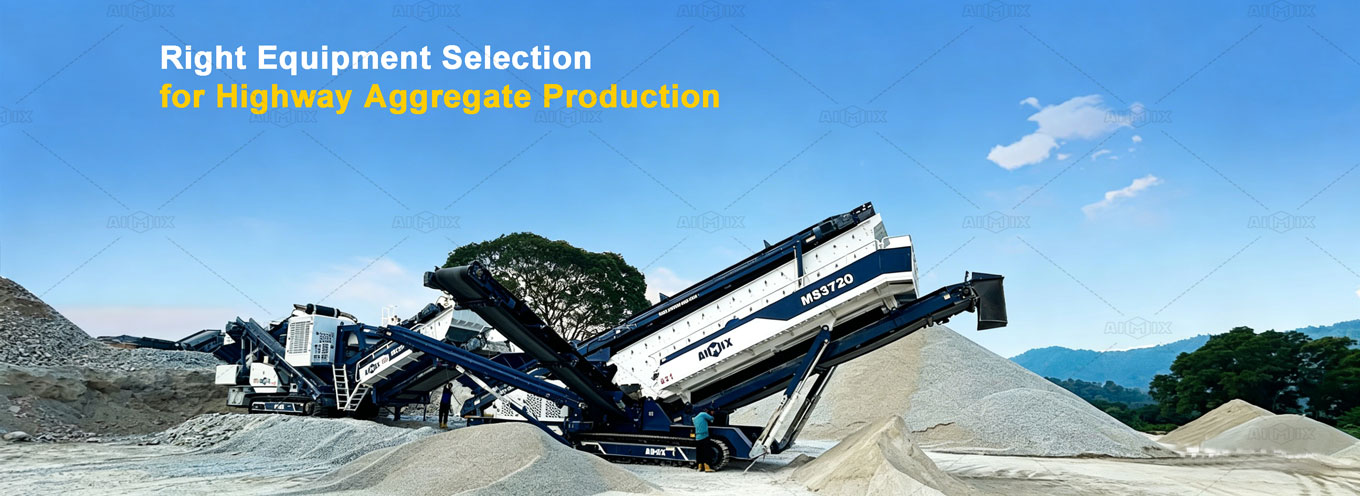

Deep Dive into Key Equipment Selection – Where Professional Edge Sets You Apart
Cone Crusher vs. Impact Crusher: Why Do Highway Projects Avoid Impact Crushers?
- Cone crushers use laminated crushing method. They deliver decent shape, though flaky and elongated particles may run slightly higher than with impact crushers. But their real strength lies in wear resistance. When you process hard rock, wear costs stay low. Plus, output size remains stable, making gradation easier to control.
- Impact crushers use impact crushing and give you better particle shape. However, blow bars and impact plates wear down fast. With hard rock, you’ll find yourself changing wear parts constantly – that drives up production costs. Even worse, as parts wear, output size coarsens, and gradation fluctuates easily.
For hard rock, highway projects prioritize long-term stable production. Wear resistance and stability matter more than initial particle shape. So you’d better use cone crushers as the secondary and tertiary crushers. Save shape improvements for a downstream sand making machine dedicated to shaping. Impact crushers work only for medium-hard rock or applications where wear resistance isn’t critical.
What’s the Right Shaping Ratio for an VSI Crusher?
-
You don’t need to send 100% of your material through the shaping stage – that would burn too much energy. Use a partial recirculation shaping process instead. Take a portion of your material after tertiary crushing but before screening – roughly 30–50% – and feed it into the VSI crusher. Once shaped, mix it back with the main feed, then run the blend through screening.
Adjust this ratio based on your raw material characteristics – specifically the initial flaky and elongated particle content. Your goal: find the sweet spot between quality and cost.
How Do Screen Choices “Invisibly” Affect Gradation?
- Screen opening shape: Square openings and round openings pass material differently. Flat or elongated particles get through square openings more easily. For highway-grade material, go with round openings, they give you tighter control over flaky particles.
- Number of decks and screen angle: More decks let you produce more size fractions. Screen angle affects material dwell time and screening efficiency. You’ll need professional calculations to get this right.
Equipment Matching: How to Avoid the “Weakest Link” Problem
- Calculate and match the processing capacity, discharge setting range, and power of each crushing stage..
- Pay special attention to screening capacity, it must exceed the total incoming feed rate from upstream. Otherwise, screening becomes your bottleneck, leading to poor recirculation flow, blockages, or material overflow..
- Don’t forget belt conveyors: size them with spare capacity, a good rule of thumb is 1.2 times the peak flow rate.
Common Spec Failures and How Equipment Solves Them
| Problem | Main Reason | Equipment & Process Solution |
|---|---|---|
| Crushing value exceeds spec | 1. Raw material too weak; | Switch to a qualified material source; |
| 2. Wrong crusher choice (using impact crusher for hard rock) | Replace secondary/tertiary crushers with hydraulic cone crushers | |
| Replace secondary/tertiary crushers with hydraulic cone crushers | 1. Crusher type itself produces them (jaws and cones do generate flat/elongated particles); | Add a VSI crusher machine after tertiary crushing but before screening |
| 2. No shaping stage in the line | ||
| Discontinuous gradation – gaps in the curve | 1.Too few crushing stages – not enough size reduction steps; | Ensure you have three crushing stages; |
| 2. Poor screen setup – inaccurate separation; | Optimize screen opening combinations; | |
| 3. Fines loss during washing | Must pair your sand washer with a fines recovery system | |
| High clay or stone dust content | No washing step – or washing not thorough enough | Add a wheel sand washer just before final product discharge. For dust control, adjust dust collector airflow or add an air classifier |
| Quality fluctuates – good sometimes, bad others | 1. Uneven feed; | Check and fix your vibrating feeder; |
| 2. No adjustments after wear parts wear down; | Set up regular inspections and discharge setting adjustments; | |
| 3. No buffer hoppers in the line | Install buffer hoppers between key stages |

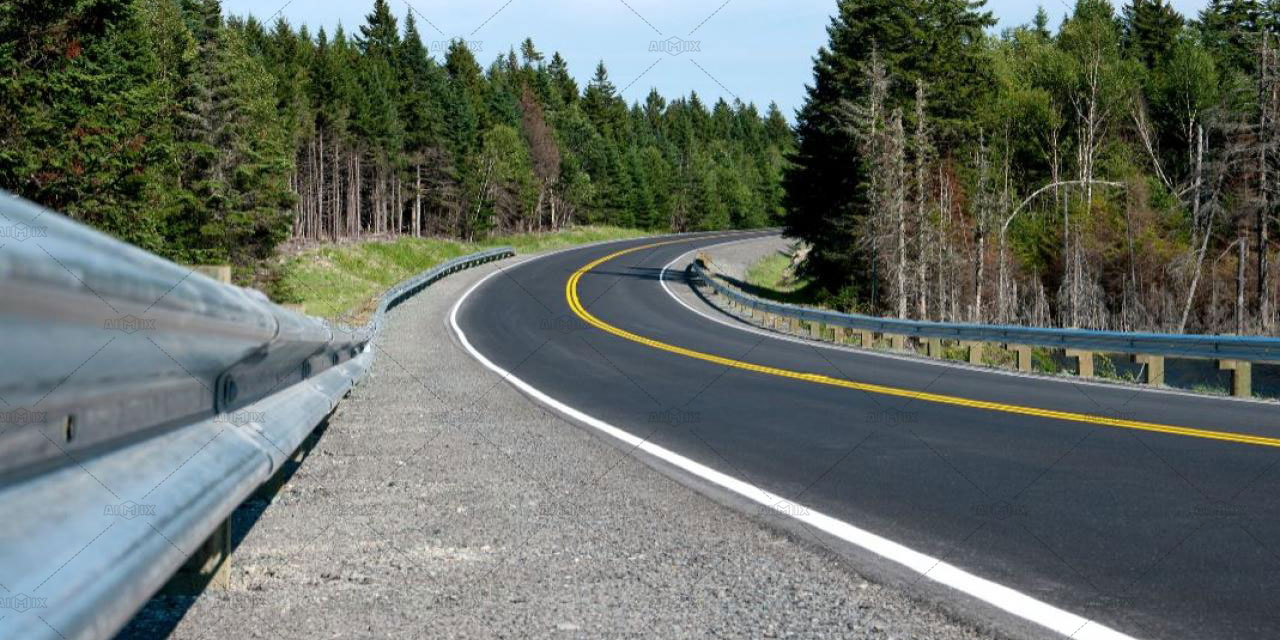

Cost vs. Benefit Analysis – Is a Spec-Compliant Setup Worth the Investment?
A high-standard setup naturally demands higher upfront investment. A fully equipped highway aggregate line may cost 30–50% more than an ordinary production line. Where does that extra budget go? Mainly into hydraulic cone crushers, VSI shaping machines, high-efficiency screens, and sand washing & fines recovery systems. Now let’s look at the benefits:
Market Access
Gaining entry into high-end projects such as highways, high-speed rail, and large hydropower developments significantly increases product value, with unit prices typically rising by 20–50%.
Brand Premium
Becoming recognized as a high-quality aggregate source strengthens market positioning, providing a competitive edge even in standard commercial projects.
Operating Cost
Higher-priced equipment like cone crushers offers excellent wear resistance. Over the long run, your cost per ton may actually turn out lower and more stable. Impact crushers, on the other hand, hide a “money pit” – frequent wear part replacements.
Payback Period
With higher selling prices and more stable demand, the additional investment is typically recovered within 1–2 years, after which the operation benefits from sustained margin advantages.
This isn’t a cost equation – it’s a value equation and a future-proofing equation. As the aggregates industry moves toward consolidation and quality-driven growth, the ability to meet specs has become your core ticket to survival and growth.
Conclusion
The real challenge of producing highway-grade aggregates isn’t crushing. It’s how to produce spec-compliant material – consistently, steadily, and economically. That takes systematic thinking and full-lifecycle quality control.
If you’re planning or upgrading a production line with your sights set on high-standard infrastructure markets, make sure you do thorough, professional planning from the very start. Feel free to reach out to us anytime. AIMIX Group will provide custom production line designs and equipment configurations based on your specific material characteristics. Let’s work together to build the kind of “hardcore” aggregates that stand the test of time.
