3.5 Cubic meter SelfLoading Concrete Mixer Was Ready To Pakistan
| Main Parameter（3.5m3） | ZY 3500 |
| Drum capacity | 5.4cbm |
| Real concrete yield per batch | 3.5cbm |
| Weight system | Made in China |
| Productivity | Up to four batches per hour |
| Transmission | Hydraulic |
| 4 wheel driver,2 wheel steering | |
| Tyre size | 16/70-20 |
| Engine | Yuchai |
| Model | YCD4J22T-115 |
| Diesel Water-cooled | |
| 85 kw | |
| Speed Range | F1:1-8 KM/H |
| F2:8-25 KM/H | |
| R1:1-8 KM/H | |
| R2:8-15 KM/H | |
| Discharge | 270°,discharging concrete |
| JOYMIX | One joystick control main functions |
| Weight | 7200kg |
3.5 cubic meter self loading concrete mixer is a hot type concrete mixer, because of its easy operation, convenient movement and flexible concrete discharge. This mobile self loading concrete mixer is very suitable for small construction site, it can move freely on sites. In addition 3.5 cubic meter self loading mixer, there are also 1.2 cubic meter, 2.5 cubic meter and 4cubic meter for your selection.
Main Parameter(1.2m³): ZY 1200
Drum capacity: 2.3CBM
Real concrete yield per batch: 1.2 CBM
Drum rotation speed: 0-10 rpm
Transmission: Hydraulic; 4 wheel driver,2 wheel steering;
Engine: YN
JOYMIX: One joystick control main functions
Main Parameter(2.5m3): ZY 2500
Drum capacity: 4.5cbm
Real concrete yield per batch: 2.5cbm
Transmission: Hydraulic
4 wheel driver,2 wheel steering
Engine: Weifang Huadong
Discharge: 270°discharging concrete
Operation: One joystick control main functions

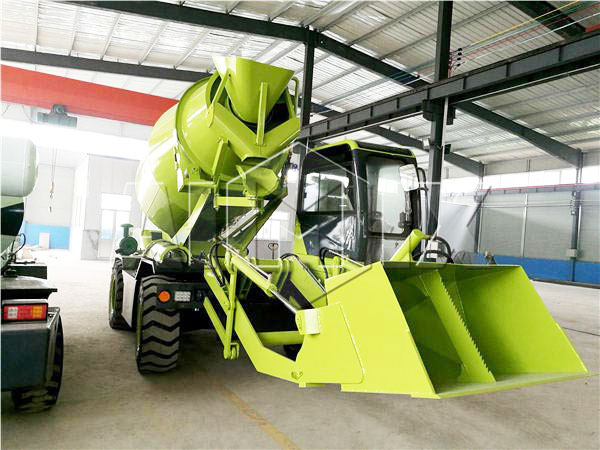

Main Parameter(4m3): ZY 4000
Drum capacity: 6.1cbm
Real concrete yield per batch: 4cbm
Transmission: Hydraulic
4 wheel driver,2 wheel steering
Engine: Yuchai
Discharge: 270°,discharging concrete
JOYMIX: One joystick control main functions
Learn More Operating Guidance And Related Products

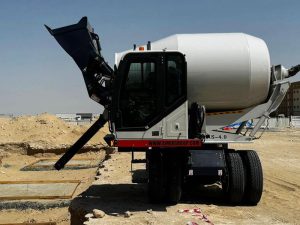

Concrete Mixer Truck
Concrete Transit Mixer For Sale

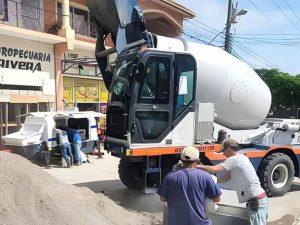

How To Operate Self Loading Concrete Mixer
If you don’t want to produce concrete on your own, you can buy concrete from concrete batching plant user, you can invest a concrete mixer truck with large capacity, its smallest capacity is 3 cubic meter, while the biggest capacity of self loading concrete mixer truck is 4 cubic meter, therefore, you can also choose such a concrete truck for your project.
