The growing infrastructure boom in Bangladesh, exemplified by major projects like the Dhaka Airport Elevated Expressway which utilized advanced concrete pump technology, is significantly driving the demand for reliable and efficient concrete pump solutions. This surge in development creates a critical need for equipment that can meet diverse project requirements. Understanding the different types of pumps available is the first step toward making an informed decision that aligns with your project’s specific goals.
Types Concrete Pumps for Bangladesh
Selecting the correct concrete pump is crucial for navigating the unique challenges of construction in Bangladesh, from the dense urban sites of Dhaka to remote rural areas. Our range is engineered to provide efficient, reliable solutions for every scenario.

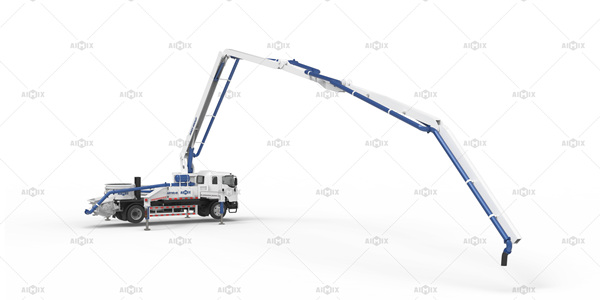

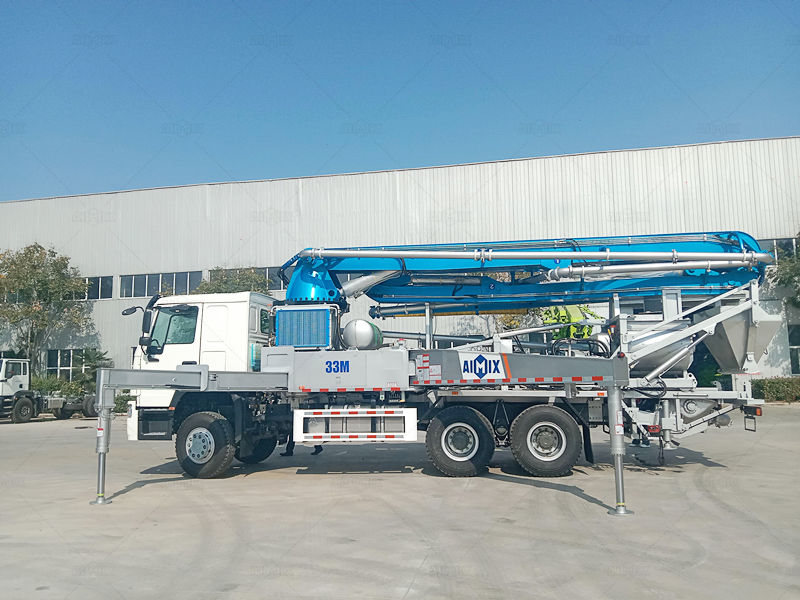

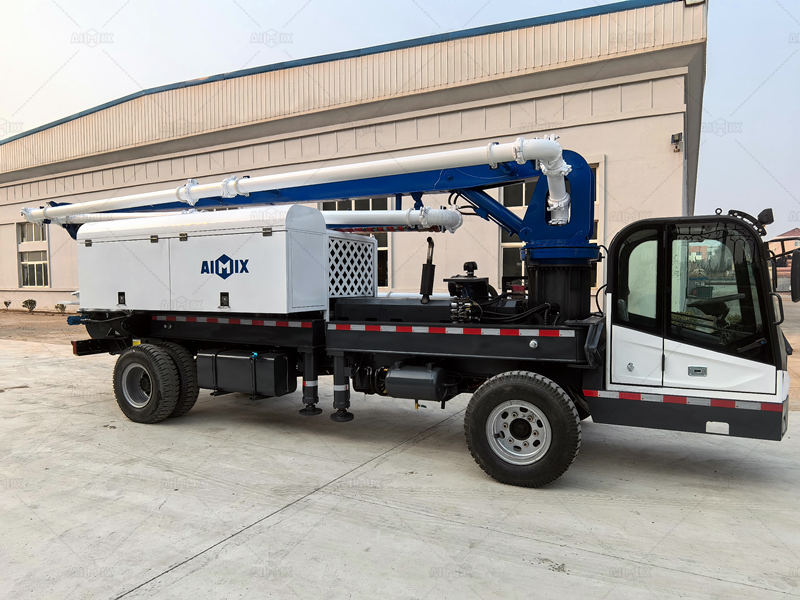

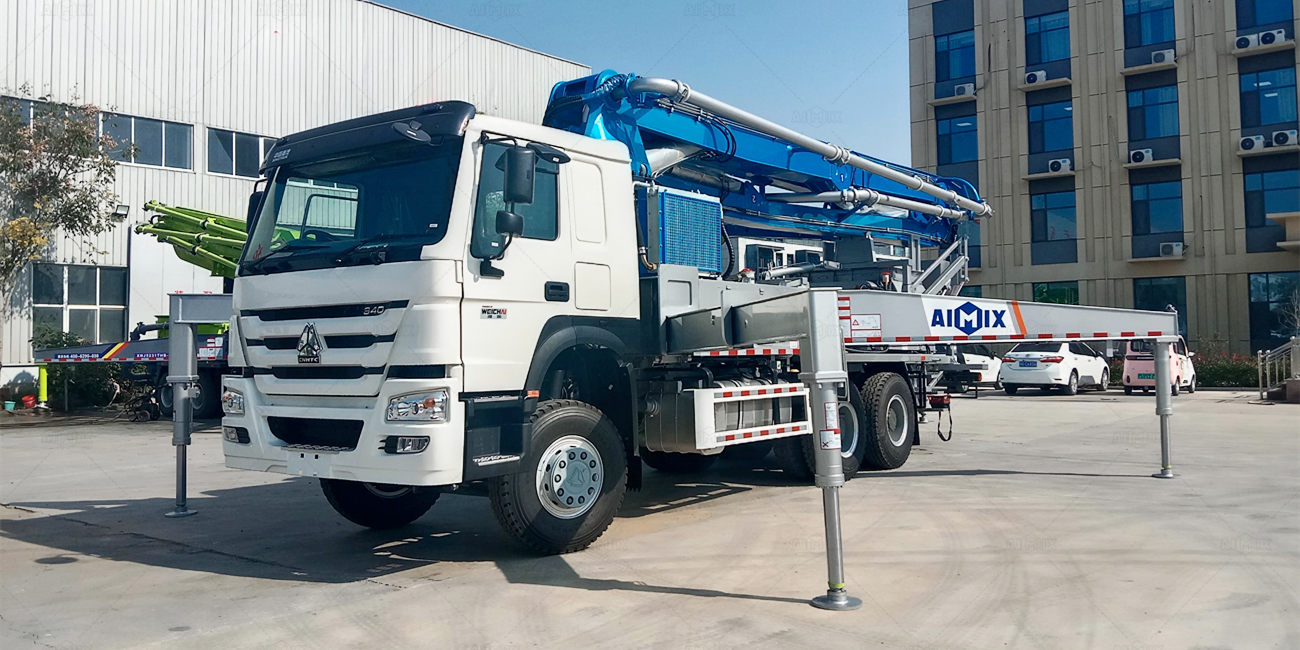

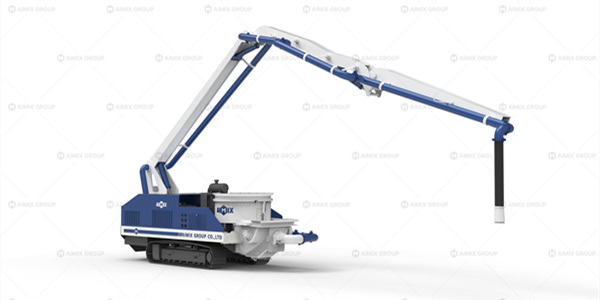

Boom Pumps: Mastering Reach & Efficiency
The concrete boom pumps are ideal for large-scale commercial high-rises and infrastructure projects where reach, speed, and minimal manual handling are critical.

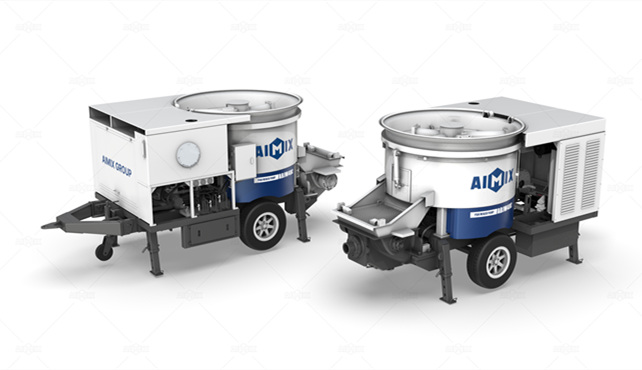

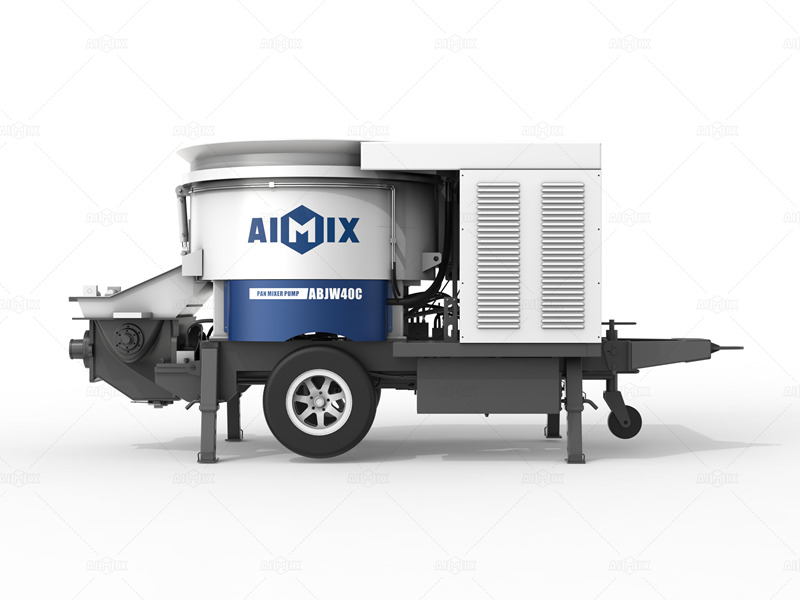

Mixer Pumps: The Compact, All-in-One Solution
Perfect for smaller sites, rural housing projects, and locations where space and equipment logistics are a constraint. The concrete mixer pumps integrate mixing and pumping, eliminating the need for a separate mixer.

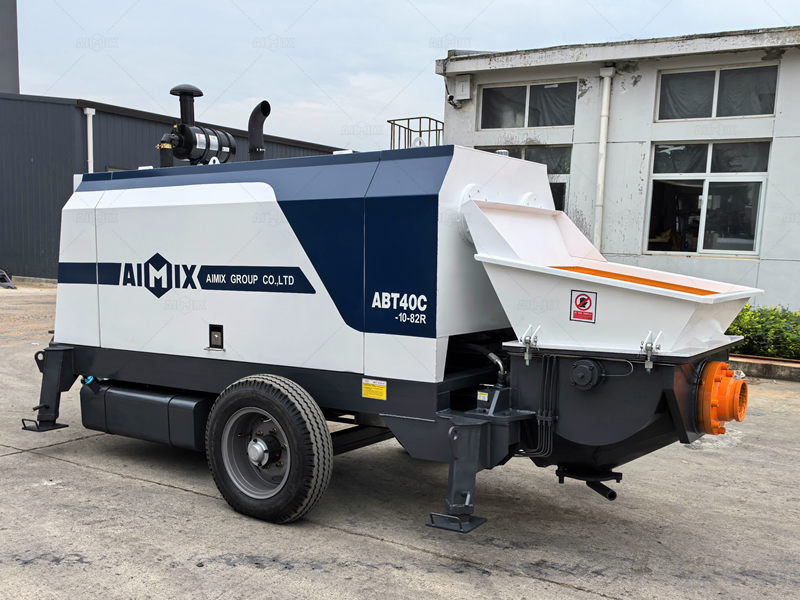

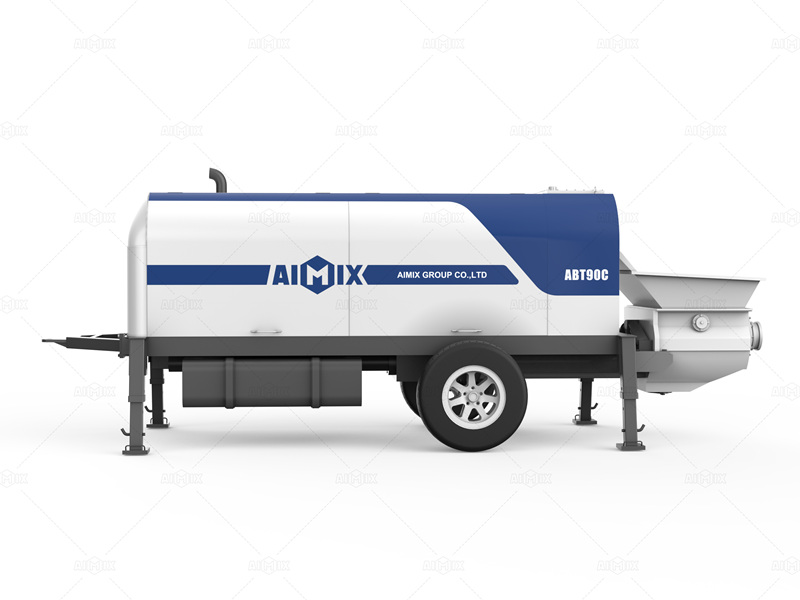

Trailer Pumps: Flexible, Cost-Effective Power
The trailer concrete pumps are the most economical choice for a wide range of applications, from rural farm road construction to high-pressure pumping for foundations and long-distance placements.
Concrete Pump Specifications

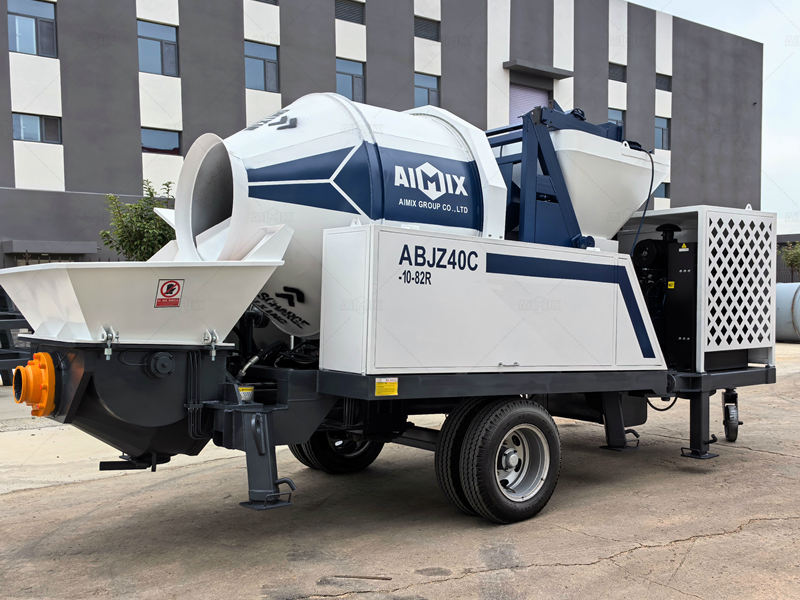

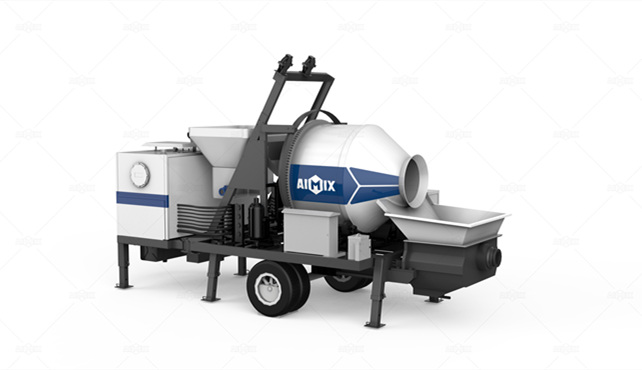

| Items | Key Parameters | Units | ABJZ30C | ABJZ30D | ABJZ40C | ABJZ40D |
|---|---|---|---|---|---|---|
| whole performance of machine | Max. theo. concrete output(L./H) | M3/h | 30 | 30 | 40 | 40 |
| Mixer rated feed capacity | m3 | 0.56 | 0.56 | 0.56 | 0.56 | |
| Mixer rated discharge capacity | m3 | 0.35 | 0.35 | 0.45 | 0.45 | |
| Max.concrete pumping pressure(H./L.) | MPa | 10 | 10 | 10 | 10 | |
| Distribution valve type | S Valve | S Valve | S Valve | S Valve | ||
| Hopper capacity | L | 400 | 400 | 400 | 400 | |
| Power system | Diesel engine model | Weichai | ||||
| Electrical engineering power | KW | 37 | 37 | 82 | 45 | |
| Rotate speed | r/min | 1480 | 1480 | 2200 | 1480 | |
| Hydraulic system | Circuit type | Open circuit | Open circuit | Open circuit | Open circuit | |
| Pumping system pressure | MPa | 26 | 26 | 32 | 26 | |
| Capacity of oil tank | L | 260 | 260 | 350 | 370 |
| Items | Key Parameters | Units | ABT40C | ABT60C | ABT80C |
|---|---|---|---|---|---|
| Whole performance of machine | Max. theo. concrete output(L./H) | M3/h | 40/26 | 67/45 | 84/45 |
| Max.concrete pumping pressure(H./L.) | MPa | 10/8 | 13/7 | 16/7 | |
| Distribution valve type | S Valve | S Valve | S Valve | ||
| Concrete cylinder diameter×stroke | mm | Φ180×1200 | Φ200×1650 | Φ200×1800 | |
| Hopper capacity x feeding height | L/mm | 400/1100 | 800/1400 | 800/1400 | |
| Outlet diameter | mm | Φ150 | Φ180 | Φ180 | |
| Power system | Diesel engine model | Weichai | Wechai | Wechai | |
| Diesel engineering power | KW | 82 | 129 | 176 | |
| Rotate speed | r/min | 2200 | 2200 | 2200 | |
| Hydraulic system | Circuit type | Open circuit | Open circuit | Open circuit | |
| Pumping system pressure | MPa | 32 | 32 | 32 | |
| Mixing system pressure | MPa | 10 | 10 | 10 | |
| Capacity of oil tank | L | 370 | 560 | 560 | |
| Other parameters | Max. Theoretical Vertical/Horizontal Conveying Distance | m | 120/500 | 180/1000 | 260/1200 |
| Max. aggregate diameter | mm | Slick/scree:40 | Slick/scree:40 | Slick/scree:40 | |
| Inside diameter of delivering pipe | mm | Φ125 | Φ125 | Φ125 | |
| Dimensions：length×width×height | mm | 5000x1850x1700 | 5800x2000x1750 | 6300x2100x2350 | |
| Total weight | kg | 4500 | 6500 | 6900 |
| Items | Key Parameters | Units | ABT40D | ABT60D | ABT80D |
|---|---|---|---|---|---|
| Whole performance of machine | Max. theo. concrete output(L./H) | M3/h | 40/26 | 60/36 | 84/46 |
| Max.concrete pumping pressure(H./L.) | MPa | 10/8 | 13/7 | 16/9 | |
| Distribution valve type | S Valve | S Valve | S Valve | ||
| Concrete cylinder diameter×stroke | mm | Φ180×1300 | Φ200×1650 | Φ200×1800 | |
| Hopper capacity x feeding height | L/mm | 400/1250 | 800/1400 | 800/1400 | |
| Outlet diameter | mm | Φ150 | Φ180 | Φ180 | |
| Electrical engineering power | KW | 45 | 90 | 110 | |
| Rotate speed | r/min | 1480 | 1480 | 1480 | |
| Hydraulic system | Circuit type | Open circuit | Open circuit | Open circuit | |
| Pumping system pressure | MPa | 28 | 28 | 32 | |
| Mixing system pressure | MPa | 10 | 10 | 10 | |
| Capacity of oil tank | L | 370 | 560 | 560 | |
| Other parameters | Max. Theoretical Vertical/Horizontal Conveying Distance | m | 120/500 | 160/800 | 200/1000 |
| Max. aggregate diameter | mm | Slick/scree:40 | Slick/scree:40 | Slick/scree:40 | |
| Inside diameter of delivering pipe | mm | Φ125 | Φ125 | Φ125 | |
| Dimensions：length×width×height | mm | 4500x1750x1600 | 5500x2000x1750 | 5800x2100x2350 | |
| Total weight | kg | 3200 | 6000 | 6300 |
Understanding the different types of concrete pumps in Bangladesh is the first step; the next is aligning that knowledge with the specific demands of your project site in Bangladesh.
Matching the Right Concrete Pump to Your Project in Bangladesh
The country’s diverse construction landscape—from densely packed urban centers to remote rural areas and large-scale industrial sites—requires a strategic approach to equipment selection. The right pump not only ensures efficiency but also navigates local challenges such as limited site space, difficult terrain, and tight deadlines.
Major Infrastructure & High-Rise Buildings

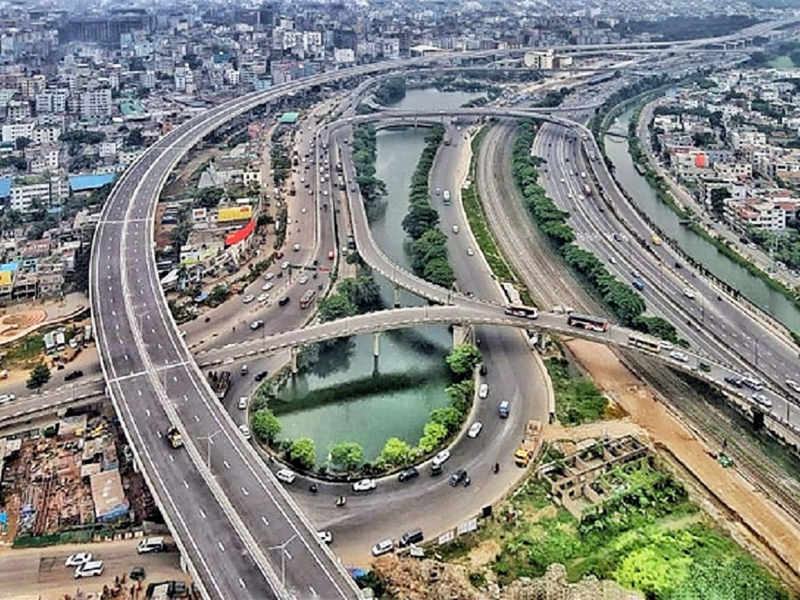

In dynamic urban centers like Dhaka, iconic projects such as the Dhaka Airport Elevated Expressway and numerous high-rise developments demand equipment that combines extensive reach, high output, and excellent mobility. For these large-scale, complex pours where time is critical and precision is non-negotiable, Boom Pumps, particularly truck-mounted concrete pump models, are the undisputed champion. Their long booms (reaching up to 58 meters) allow for precise concrete placement over a wide area, drastically reducing labor and time, while their mobility allows them to move efficiently between the city’s congested project sites.

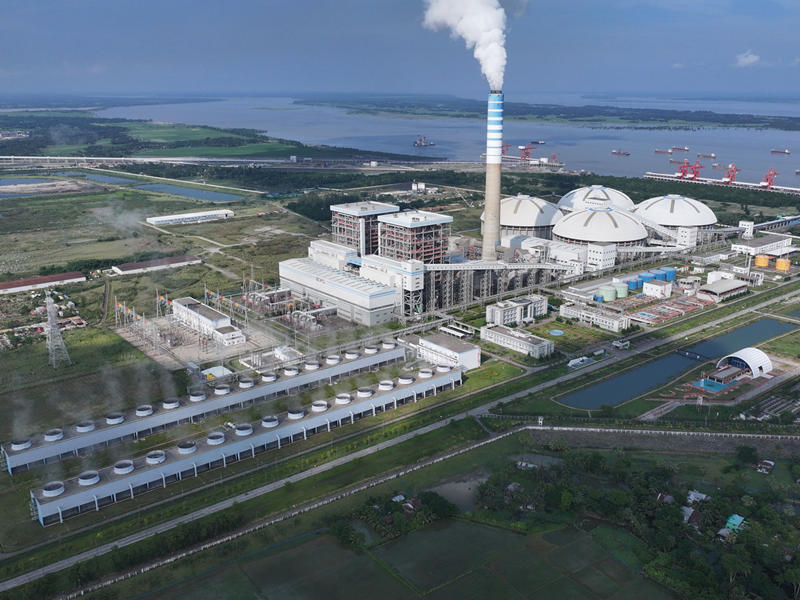

Mining & Power Plant Construction

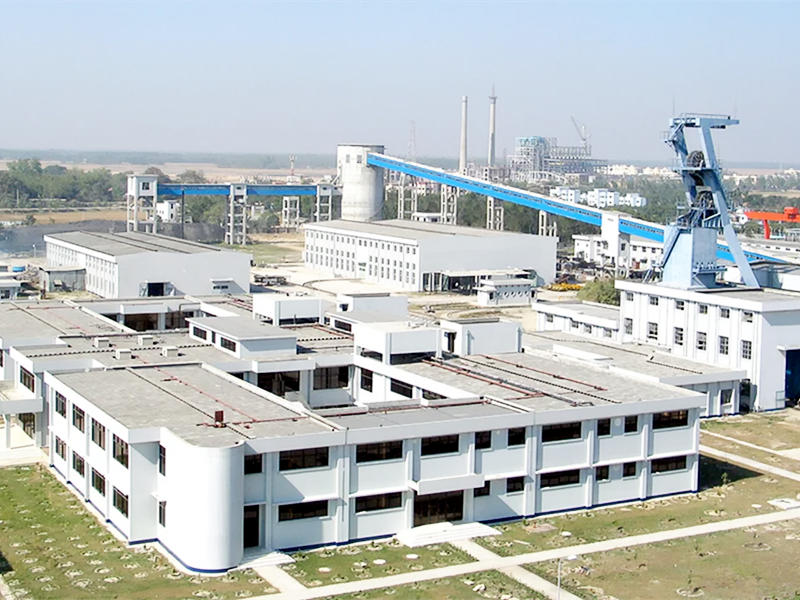

Industrial projects like the Barapukuria Coal Mine expansion and the Barsha Thermal Power Plant often involve large-volume concrete placements in remote or semi-industrial locations. These sites require robust and reliable equipment capable of continuous operation. Here, the high-volume pumping capacity of Trailer Pumps shines. Their ability to deliver outputs of 30 to 90 m³/h over long distances (up to 1200m horizontally) makes them ideal for foundational work, large slabs, and supplying concrete to multiple points across a vast site, all while offering a lower initial investment.
Urban Residential & Commercial Buildings
The construction of multi-story apartments, commercial plazas, and hospitals in built-up urban neighborhoods presents a common challenge: limited space for equipment. This is where the space-saving and logistical advantages of a Mixer Pump become critical. By integrating mixing and pumping into a single unit, it eliminates the need for a separate concrete mixer truck, making it perfect for tight urban plots. Its ability to pump both vertically (150m) and horizontally (600m) efficiently meets the requirements for most mid-rise structures, streamlining the entire process from batching to placement.
Rural & Agricultural Development

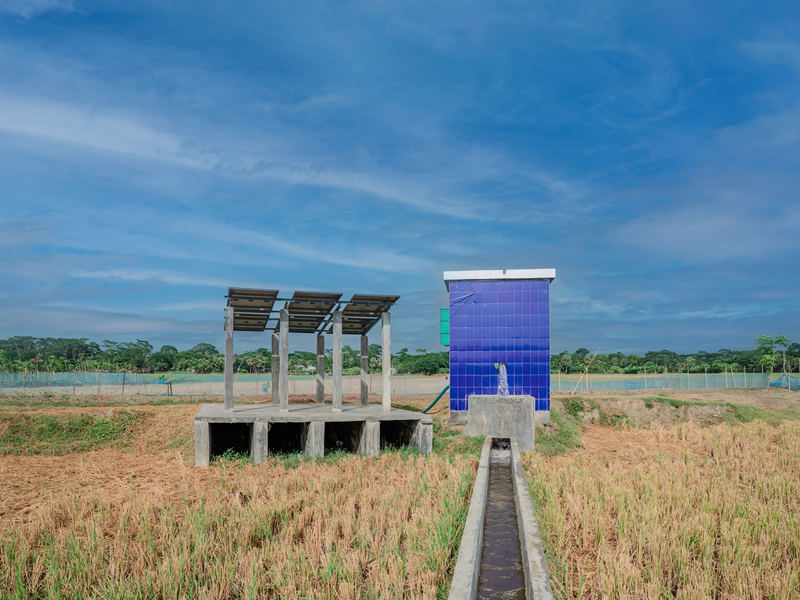

For projects located in Bangladesh’s more remote regions, such as rural farm road development, local irrigation projects, or off-grid housing, access to a reliable power supply and large equipment can be limited. The Diesel-Powered Trailer Pump is the go-to solution for these conditions. Its independence from the electrical grid and capability to pump over long distances make it uniquely suited for deploying quality concrete in areas with underdeveloped infrastructure, ensuring progress doesn’t stall due to location constraints.
By considering the specific demands of your project’s scale, location, and concrete requirements, you can select a pump that maximizes efficiency and cost-effectiveness. Next, we will break down the key factors that influence concrete pump prices in Bangladesh to help you budget accurately.
Understanding Concrete Pump Prices in Bangladesh
Navigating the market for a concrete pump in Bangladesh requires a clear understanding of the various factors that influence the final concrete pump price in Bangladesh. The cost is not a single figure but a spectrum, shaped by the machine’s capabilities, build quality, and local market dynamics. Whether you are evaluating a concrete pump machine price in Bangladesh or comparing a concrete mixer with pump price in Bangladesh, being aware of these key elements will empower you to make a cost-effective investment that aligns with your project’s specific needs and budget. Here is a detailed breakdown of the primary factors affecting your investment:
Machine Type and Output Capacity
The type of pump is the most significant determinant of price. Each type is engineered for different project scales, which is reflected in its cost.
- Trailer Concrete Pumps: These are generally the most cost-effective option for a wide range of projects. Prices increase with output capacity. For example, a model with a 40 m³/h output will be more affordable than one with a 90 m³/h output. They are a versatile and popular choice for many construction sites across Bangladesh.
- Mixer Concrete Pumps: The concrete mixer with pump price in Bangladesh is typically higher than a standalone trailer pump due to the integrated mixing function, which saves on additional equipment. This all-in-one solution is ideal for projects with limited space, offering excellent value by streamlining the process from batching to placement.
- Boom Concrete Pumps: Truck-mounted boom pumps represent a premium investment. Their complex engineering, powerful chassis, and long-reaching booms make them the most expensive option, but they deliver unparalleled efficiency and reach for large-scale industrial and high-rise projects.
Technical Specifications and Performance
Within the same pump type, the specific technical parameters cause price variations. Higher performance commands a higher concrete pump Bangladesh price.
- Output Volume (m³/h): A pump’s hourly output is a direct driver of cost. A machine that pumps 60 m³/h will be priced lower than one that pumps 90 m³/h.
- Maximum Pressure and Reach: The pressure generated by the pump determines how far it can push concrete, both vertically and horizontally. Pumps designed for high-rise buildings that require a vertical reach of 260 meters or a horizontal reach exceeding 1000 meters will be priced at a premium compared to those for low-rise structures.
- Engine Type and Power: The choice between diesel and electric power affects both the initial price and long-term operating costs. Diesel engines are more common for their power and independence from the electrical grid, which is vital in areas with unstable power supply. Electric models might have a different initial cost and are suited for sites with stable electricity, offering lower fuel expenses.
Brand, Quality, and After-Sales Service
The source and build quality of the pump are critical to its longevity and total cost of ownership.
Brand and Components: Reputable concrete pump manufacturers invest in superior materials and precision engineering. Pumps equipped with high-quality, internationally recognized components (e.g., Kawasaki hydraulic systems) are built to withstand rigorous use and are priced accordingly. This results in a more reliable machine with less downtime.
After-Sales Support: For a concrete pump in Bangladesh, robust after-sales service is not a luxury but a necessity. A supplier with a local service center, readily available spare parts, and trained technicians in the region might have a slightly higher purchase price. However, this is a worthwhile investment that minimizes costly project delays due to maintenance or breakdowns . The absence of reliable local support can lead to much higher long-term costs, regardless of the initial savings.
Market Dynamics and Logistics in Bangladesh
Finally, local economic and logistical factors directly impact the final price you pay.
Import Duties and Taxes: As a significant amount of construction machinery is imported into Bangladesh, government tariffs, taxes, and customs clearance fees are a major component of the final concrete pump price in Bangladesh.
Local Demand and Supply: Market forces play a role. High demand for specific pump types during a construction boom can influence pricing, while competitive markets may offer more favorable deals.
Transportation and Commissioning: The cost of shipping the pump from the port to your site and any initial setup or operator training provided by the supplier can also be part of the overall investment.
By understanding these factors, you can move beyond just comparing the initial concrete pump machine price in Bangladesh. You will be equipped to evaluate the true value of the equipment, considering not only the purchase price but also its productivity, durability, and the total cost of operation over its lifetime. Understanding the factors that influence the concrete pump price in Bangladesh is crucial, but the true cost of your investment is also defined by the partner you choose.
Your Trusted Partner in Bangladesh: Beyond the Machine
The right supplier ensures your equipment delivers maximum uptime, productivity, and return on investment long after the initial purchase. At AIMIX, we build our partnership on a foundation of unwavering support and comprehensive services designed specifically for the realities of the Bangladeshi market.
Why Partner with AIMIX in Bangladesh?
We believe a successful project is built on more than just machinery—it’s built on a partnership. Here’s how our end-to-end support system works for you:
Expert Consultation & Customized Solutions
Before you even make a purchase, Aimix senior project consultants engage in a one-on-one dialogue to deeply understand your project’s scale, site conditions, and budget. We don’t just sell you a machine; we provide 2-3 tailored solution sets complete with equipment parameters, configurations, and even 3D drawings to ensure the pump you choose is the perfect fit for your specific needs in Bangladesh.
Transparent Production & Assured Quality
Once you place an order, we maintain timely communication on every update. More importantly, our dedicated supervision department oversees the entire production process at the factory. This ensures every component is manufactured to the highest standards, giving you peace of mind that your investment is protected.
Comprehensive After-Sales: Your Peace of Mind is Our Priority
We know that your project cannot afford prolonged downtime. Our commitment to after-sales is designed to keep your operations running smoothly:
- Local Warehouse & Quick Delivery: We maintain strategic local warehouse, stocking popular models like trailer pumps and mixer pumps. This allows for quicker viewing and delivery, significantly reducing your waiting time.
- Seamless Logistics & Customs Support: From providing economical transportation options and secure loading to assisting with customs clearance through our partnered agents, we handle the complex logistics. Our “Turnkey Service” means you can simply wait for the machine to arrive at your site, with everything else taken care of.
- Professional Installation & On-Site Training: Our overseas teams include both resident Chinese engineers and locally trained professionals. They will not only install and commission your equipment but also provide comprehensive training for your operators, ensuring you can use the machine safely and efficiently from day one.
Ready to Take the Next Step?
Navigating the concrete pump market in Bangladesh is a complex task, but you don’t have to do it alone. From helping you select the right machine based on your project specifics, to ensuring it operates flawlessly on your site with our local support, AIMIX is here as your dedicated partner.
Contact us today for a free, no-obligation consultation. Let’s discuss your project requirements and get you a tailored solution and a transparent quote.
