Concrete pump Bangladesh has wide applications in high building, high expressway, tunnel, and bridge construction. AIMIX is one of the most reliable concrete pump trucks suppliers for Bangladesh, while our parent company is in China, but we have set up a branch in Dhaka, Bangladesh in 2019 to serve customers better. But for some reasons, we canceled the branch in Bangladesh, but we are also very familiar to the local industrial development. We can supply users with three types of concrete pumps in Bangladesh: concrete pump trucks, diesel, and electric concrete mixers and pumps, and concrete trailer pumps. This page will help you when you choose a pump machine in Bangladesh.
Customers’ reviews about concrete pumps from AIMIX
Thanks AIMIX help us choose 40m3/h diesel engine pump, it is very suitable for our project.
AIMIX salesman is very professional and patient. She gave me many advice. And help me save a lot of cash. Thanks very much!
C'est un grand plaisir de traiter avec vous. Vous avez fait preuve de professionnalisme, de rigueur et de sympathique. Merci beaucoup encore une fois.
Les pompes à béton diesel ABT40C sont très efficaces et faciles à utiliser.
We heard that many people chose ABJZ40C diesel concrete mixer pump from Lahore, Pakistan.
So we went to the factory and learned about more details, ABJZ40C is efficient, suits our project! AIMIX salesman is also effective and professional.
Export news about concrete mixer pumps
ABJZ40D was exported to Bangladesh
Types of bangladesh concrete pump
Concrete mixer pump in Bangladesh
We mainly have three types of concrete mixers with pumps. According to the power supply, there are diesel type and electric concrete mixer and pump Bangladesh. According to the mixer type, we have another efficient and compulsory type. The former two types are equipped with JZC series concrete mixer, while the latter is equipped with JS series twin shaft concrete mixer. Generally are JS500 and JS750 type twin shaft mixers.
Diesel Type

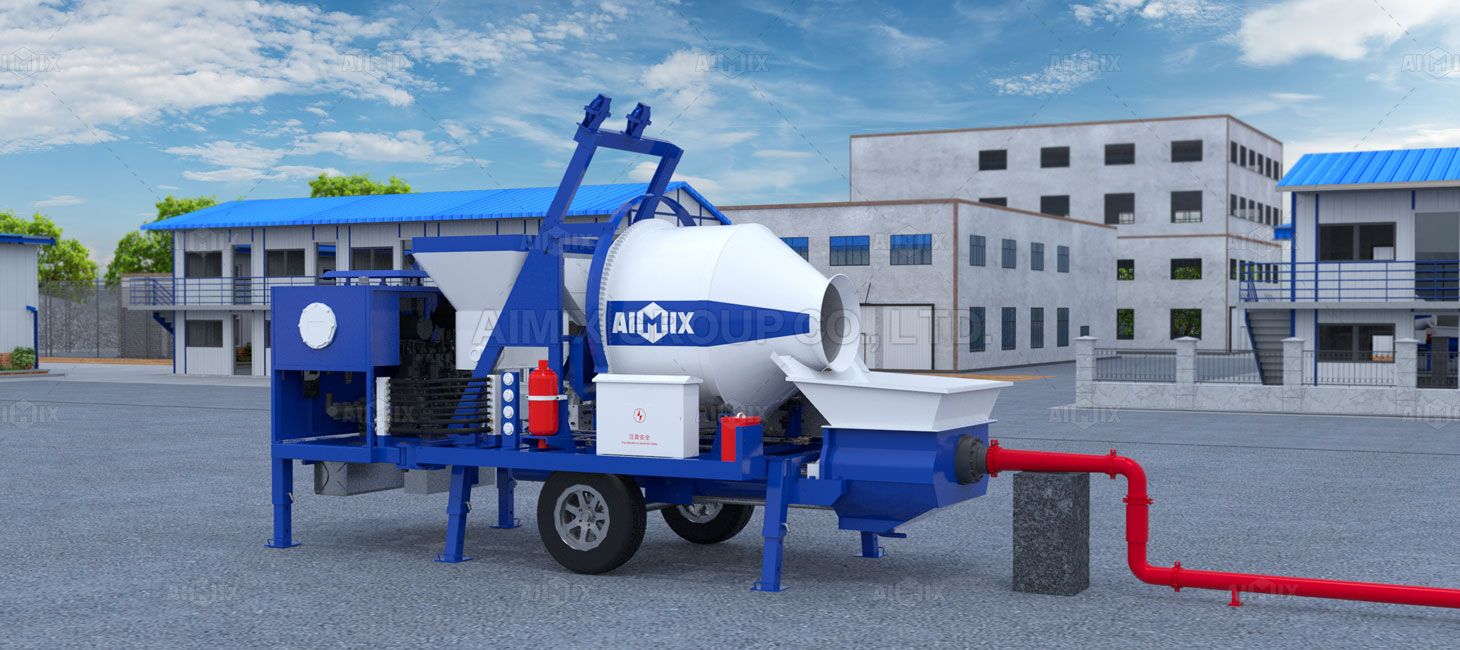

ABJZ40CCapacity: 40(m3/h)
- Max. theo. concrete output: 40m3/h
- Max. Theoretical Vertical Conveying Distance: 150m
- Max. Theoretical Horizontal Conveying Distance: 600m
- Max. aggregate diameter:Slick/scree: 40mm

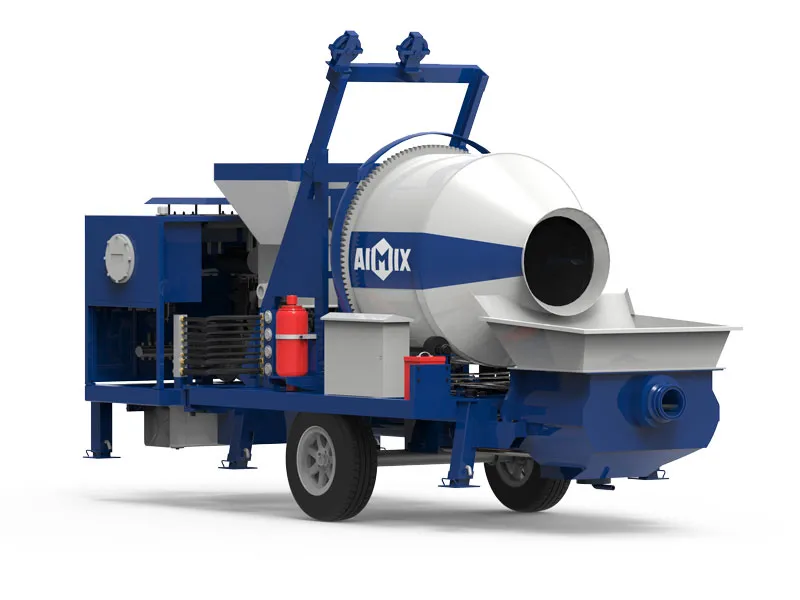

ABJZ30CCapacity: 30(m3/h)
- Max. theo. concrete output: 30m3/h
- Max. Theoretical Vertical Conveying Distance: 120m
- Max. Theoretical Horizontal Conveying Distance: 400m
- Max. aggregate diameter:Slick/scree: 20mm
Electric Type

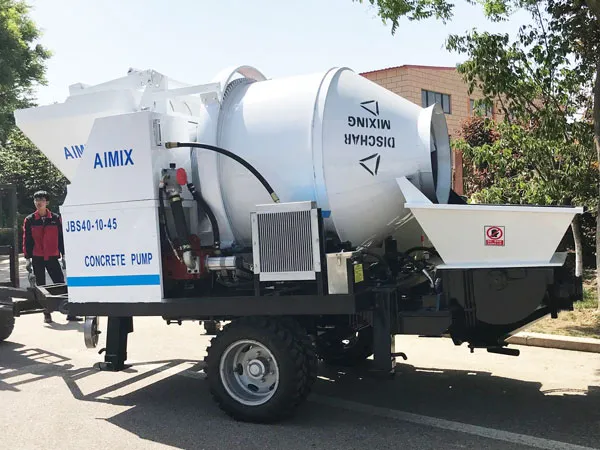

ABJZ40DCapacity: 40(m3/h)
- Max. theo. concrete output: 40m3/h
- Max. Theoretical Vertical Conveying Distance: 150m
- Max. Theoretical Horizontal Conveying Distance: 600m
- Max. aggregate diameter:Slick/scree: 40mm
- Total weight: 6000 kg

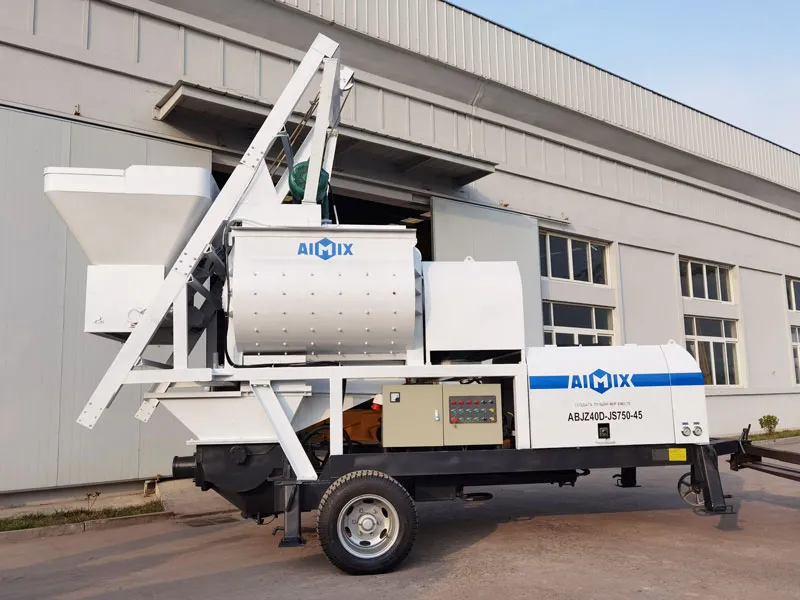

ABJS40DCapacity: 40(m3/h)
- Max. theo. concrete output: 40m3/h
- Concrete mixer model: JS750
- Mixer rated feed capacity(m3): 0.56
- Mixer rated discharge capacity(m3): 0.75
- Max.concrete pumping pressure(H./L.) 8Mpa
Trailer type concrete pump
It also can be named a stationary concrete pump, because it has legs and wheels, if you only have one construction site, you can lay down the concrete pump machine, if you want to change the site, you can push it to another site, which is very convenient. There is a traction pin on its back. There are two types for your selection: diesel type and electric type ranges from 30t to 80t.
Diesel Type
- Items: ABT40C
- Max. theo. concrete output(L./H): 40m3/h

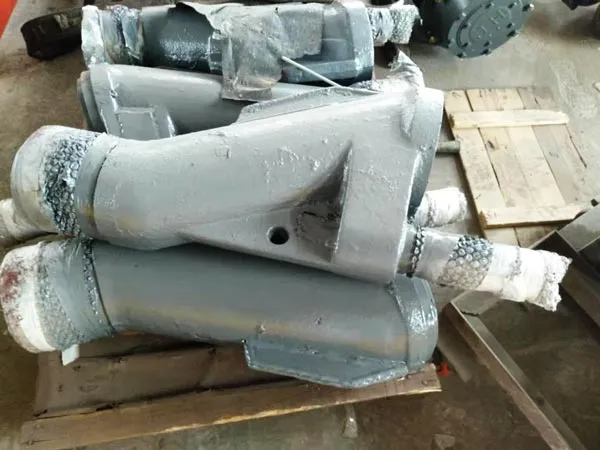

- Distribution valve type: S Valve
- Max. Theoretical Horizontal Conveying Distance: 500m
- Max. Theoretical Vertical Conveying Distance: 120m
Diesel Type
- Items: ABT60C
- Max. theo. concrete output(L./H): 60m3/h
- Distribution valve type: S Valve
- Max. Theoretical Horizontal Conveying Distance: 800m
- Max. Theoretical Vertical Conveying Distance: 180m

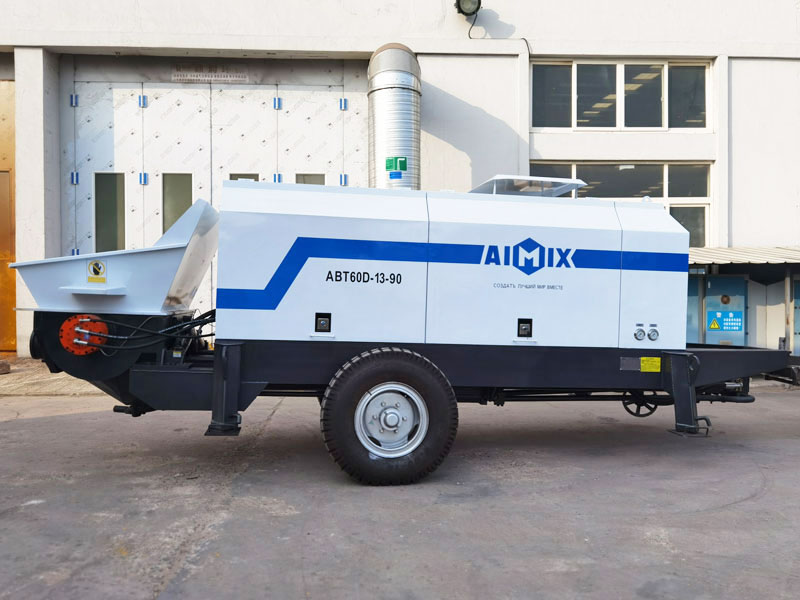

Electric Type
- Items: ABT60D
- Max. theo. concrete output(L./H): 60m3/h
- Distribution valve type: S Valve
- Max. Theoretical Horizontal Conveying Distance: 800m
- Max. Theoretical Vertical Conveying Distance: 160m
Bangladesh concrete pump trucks
A concrete pump truck is a concrete delivery machine by utilizes pressure. It consists of a pump body and delivering pipelines. The pump body is installed on a truck chassis, equipped with an extension-type or flexural concrete placing boom. There is a power drive, pumping and mixing device, concrete placing device, and other auxiliary equipment. This type concrete boom pump has strict demand for terrain, if you don’t know whether your project is fit, you can contact us: market@aimixgroup.com. We sell 30m, 37m, 40m, 44m, 47m, 50m, and 58m.

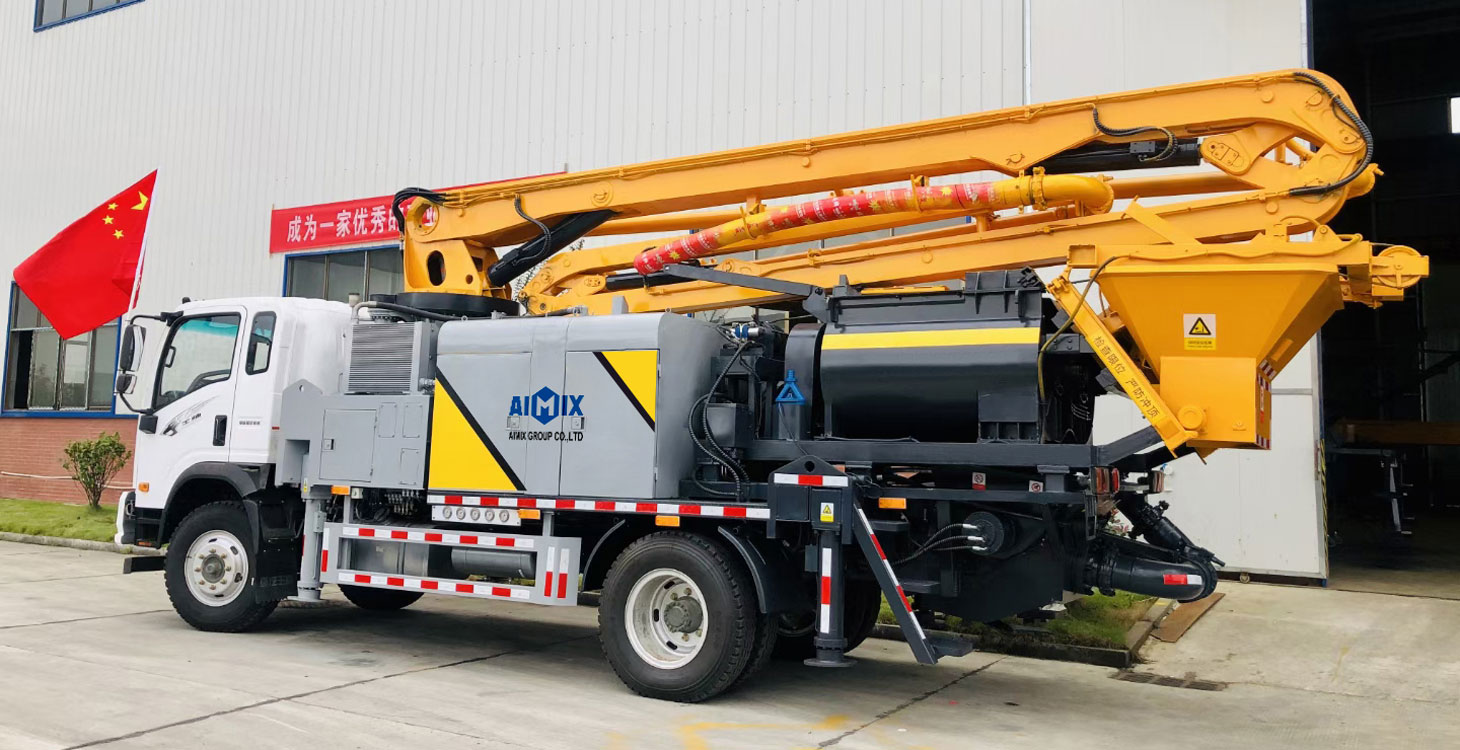

Specifications of 21m concrete boom pump
| Name | unit | AJBP-21 | |
| Pump | Output In Theory | m3/h | 50 |
| Maximum Theoretical Outlet Pressure | Mpa. | 8 | |
| Theoretic Pumping Pressure | Mpa | 31 | |
| Bucket Volume | L | 400L | |
| Height Of Top Surface Of Bucket | mm | 1500 | |
| Model Of Distribution Valve | S valve | ||
| Concrete Cylinder Diameter×Stroke | mm | 200*1000 | |
| Slump | mm | 120-230 | |
| Max Aggregate Size | mm | 40 | |
| Hydraulic Tank Capacity | L | 600 | |
| Clean Model | Water | ||
| Boom Model | RZ | ||
| Max. Operation Height | m | 21 | |
| First Boom Length/Angle | mm/。 | 6510/90° | |
| Second Boom Length/Angle | mm/。 | 5733/180° | |
| Third Boom Length/Angle | mm/。 | 4613/180° | |
| Turntable Rotation Angle | 。 | ±360 | |
| Landing Let Model | X | ||
| The maximum pumping height | m | 20.1 | |
| The maximum pumping radius | m | 16.8 | |
| X leg distance | mm | 5010 | |
| Back leg | mm | 4350 | |
| Cooling System | Air cooling (24v) | ||
| Control System | Control box +screen | ||
| Main Pump | kw | 112 | |
| Diesel engine | kw | 92 | |
| Negative Sensitive Multi-Way Valve | KEMAI | ||
| Main Valve Control Form | Hydraulic control reversal | ||
| Mixer | JS500 | ||
| Chassis | Brand /Model | CDW5160THBA1R5 | |
| Axle(Mm) | 4200 | ||
| Weight | kg | 15580 | |
| Engine Model | 118 | ||
| Power | kw | YC4S160-50 | |
| Emission Standards | Uro-V | ||
| Dimensions | 9 | 9450*3800*2400 | |
Specifications of 34m concrete pump truck
| name | unit | AJBP-34 | ||
| Pump | output in theory | m3/h | 60 | |
| Maximum theoretical outlet pressure | Mpa. | 11 | ||
| theoretic pumping pressure | Mpa | 31.5 | ||
| bucket volume | L | 650L | ||
| height of top surface of bucket | mm | 1500 | ||
| model of distribution valve | S valve | |||
| Concrete cylinder diameter×stroke | mm | 230*1400 | ||
| Slump | mm | 120-230 | ||
| Max aggregate size | mm | 40 | ||
| max. operation radius | m | 29.72 | ||
| Main oil cylinder diameter×stroke | mm | 140*90/1400 | ||
| Hydraulic tank capacity | L | 800 | ||
| clean model | Water | |||
| Boom model | RZ | |||
| max. operation height | m | 34 | ||
| First boom length/angle | mm/。 | 7120/90 | ||
| Second boom length/angle | mm/。 | 5960/180 | ||
| Third boom length/angle | mm/。 | 5795/180 | ||
| Forth boom length/angle | mm/。 | 5751/235 | ||
| Fifth boom length/angle | ||||
| Turntable rotation angle | 。 | 360 | ||
| Landing let model | X | |||
| distance between front & rear landing legs | mm | 5340 | ||
| diameter of delivery pipe | mm | 125 | ||
| length of hose pipe | m | 4 | ||
| quantity of boom | 5 | |||
| rotary angle of each boom | ° | 90/180/180/235/215 | ||
| remote control distance | m | 100m | ||
| Electronic component | Schneider | |||
| Cooling system | Air cooling (24v) | |||
| Control system | Control box +screen | |||
| Main pump | 190 | |||
| Transfer case | ZHuzhou Grea | |||
| Negative Sensitive Multi-way Valve | KEMAI | |||
| Main valve control form | Hydraulic control reversal | |||
| Main Value | Rexroth | |||
| Mixer | JS500 | |||
| Chassis | Brand /model | CDW5230THBA1N5 | YZZ5230THBSZ5D | EHY5340THBSZ |
| Axle(mm) | 5300 | 5200 | 4750+1300 | |
| Weight (kg) | 22600 | 25000 | 33000 | |
| Engine Model | YC6JA220-50 | YC6JA240-50 | YC6JA270-50 | |
| Power (kw) | 162 | 177 | 199 | |
| Emission Standards | Euro-V | |||
Where to buy pump machine
If you want to get quality concrete pump trucks from Bangladesh suppliers quickly, one way is to search online and another way is buying in your local area. If you purchase a machine in your city, you will have less choice to make a comparison. While if you search on the internet, there are many concrete pump manufacturers Bangladesh in global, you can select three to four, and make a comparison, such as pay a visit to their factory, see their real Bangladesh concrete pump, you will get the most suitable one!
Advantages of concrete trailer pump form AIMIX
- 1. Famous variable displacement piston pump, with high rated pressure. EATON valve box has reliable quality.
- 2. Adopt an electronically controlled hydraulic system, the system is clear and simple, which is easy to maintain.
- 3. Hydraulic system adopts electric control, mature and simple, has characteristics of low rate of the fault and convenient maintenance. The oil pump and valve parts of famous brands at home and abroad are adopted, the quality is stable and reliable.
- 4. A dual cooling system makes the sure normal working of the concrete pump.
- 5. Unique commutator buffer design will prolong the service life of the mechanical part and hydraulic parts.
- 6. Centralized lubrication systems adopt multipoint direct oil supply.

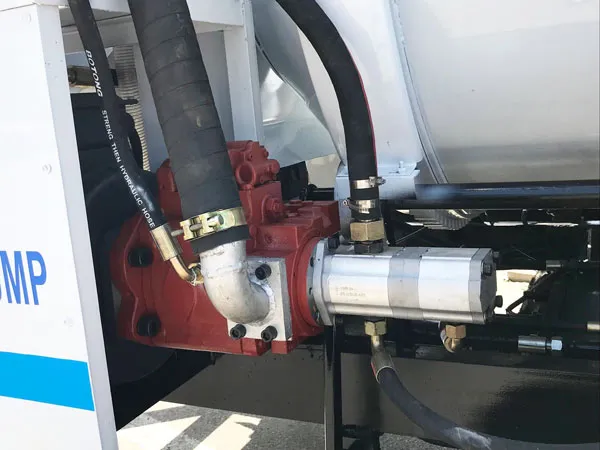

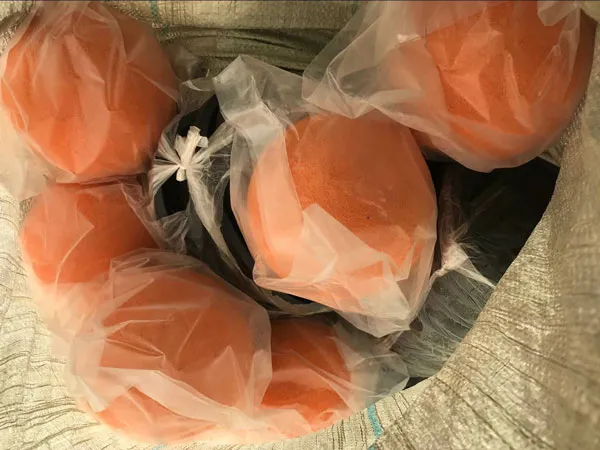

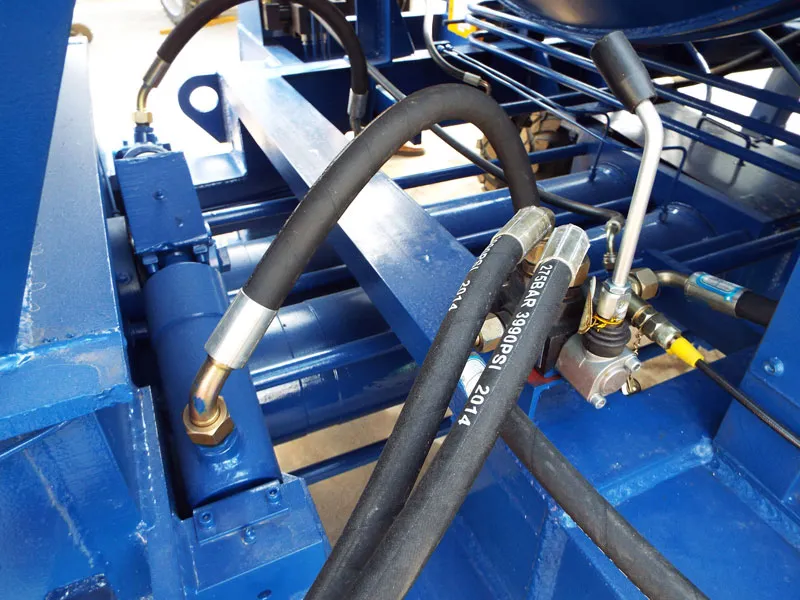

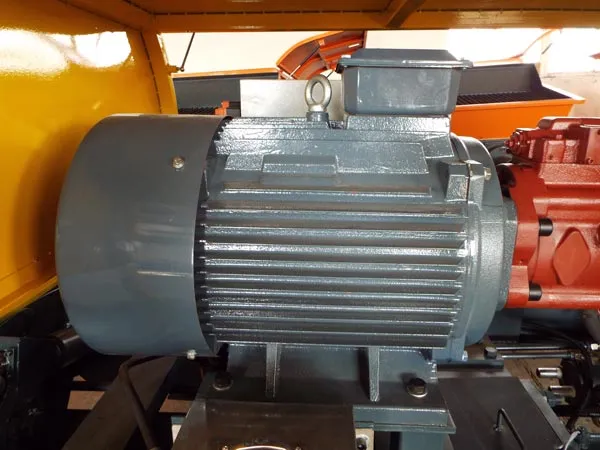

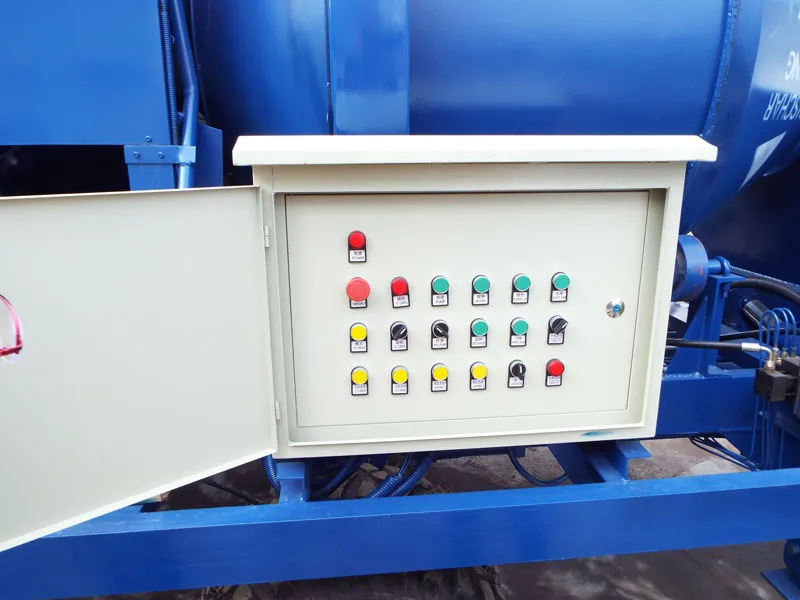

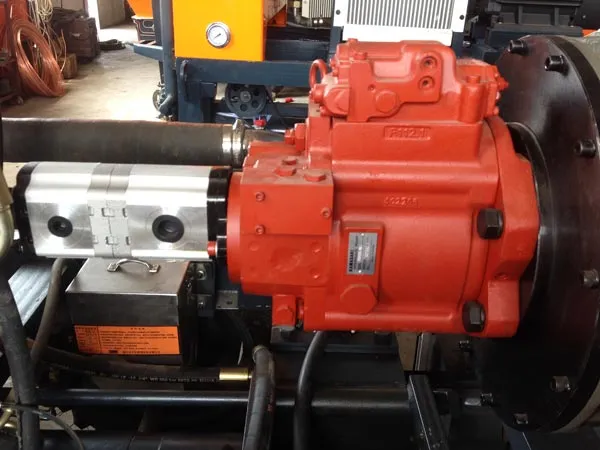

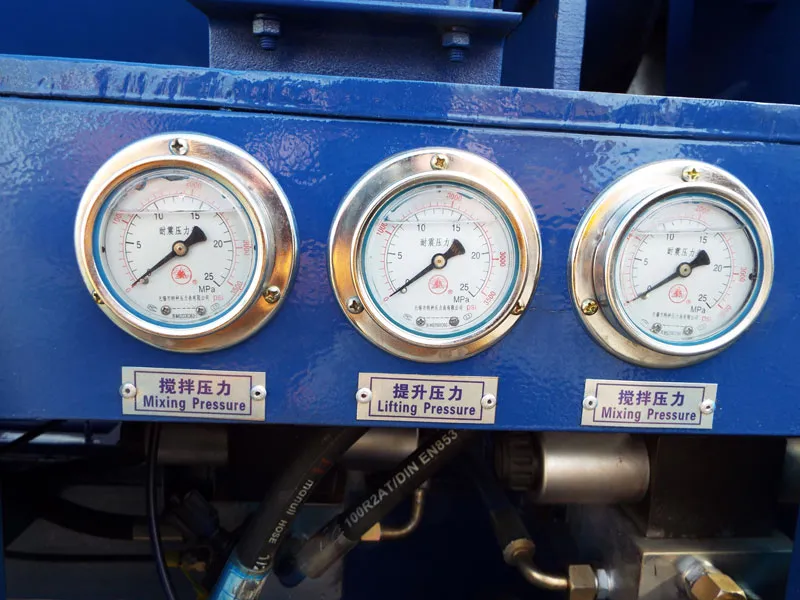

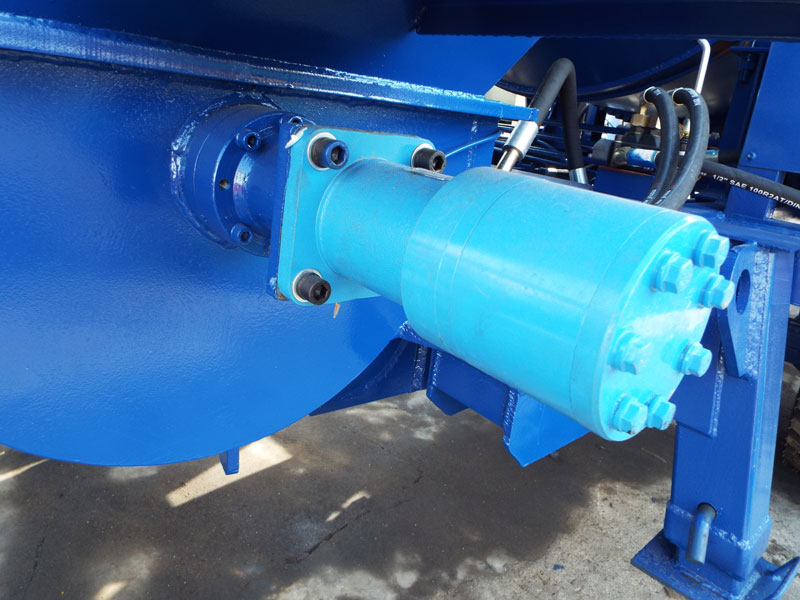

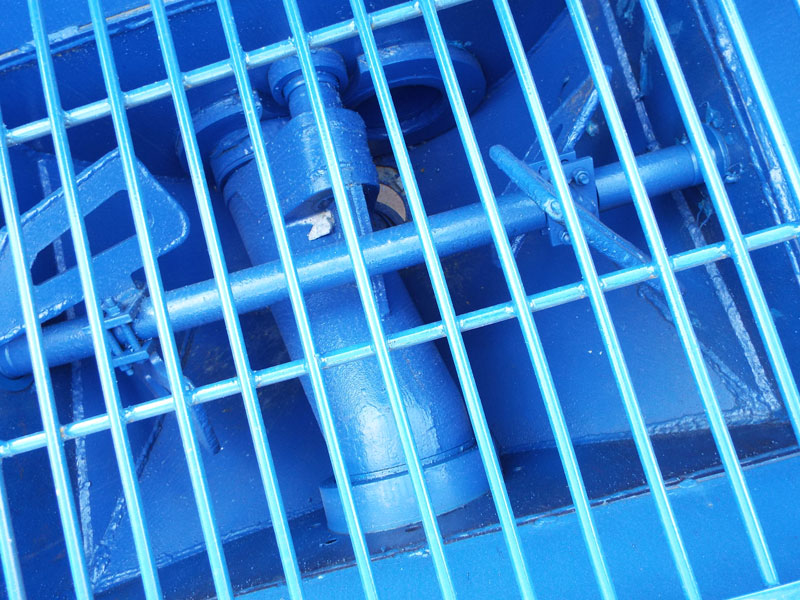

Components of concrete pumping machine
Benefits of using concrete mixer pump bangladesh
The concrete mixer pump integrates concrete mixing and concrete pumping into one unit, which is very flexible and convenient. Can pump large aggregate concrete and fine aggregate or mortar. It is especially suitable for the small amount of work, and the need for frequent transfer occasions. In the remote areas with insufficient power, this series of products can be used with a generator set, or directly use concrete mixer pump with diesel power. AIMIX can give you the ideal concrete pump Bangladesh price, meanwhile, timely after-sales service.
- 1. Mature technology and process can realize stable and reliable performance.
- 2. Electrical cabinet adopts special double layers design, has good sealing performance, which is dust collector and waterproof.
- 3. Famous PLC control is with features of a high degree of integration and easy operation.
- 4. Concrete mixer is made of wear-resistant alloy material, has a long lifespan.
If you want to know bangladesh price concrete pump quickly, contact us, we can help you draw a perfect plan and let you get high returns.
