Aimix provides concrete pump for sale South Africa to support the public infrastructure and many other construction project. South Africa’s construction industry is experiencing a resurgence. Invest in our high quality concrete pump now to enhance efficiency, reduces labor costs, and ensures precise placement.
Types of Concrete Pumps South Africa
There are three main types of concrete pumps for sale in South Africa. They are boom concrete pump, trailer mounted concrete pump and concrete mixer pump. Here shows not only their specification and some recommended projects each of these concrete pumps for sale South Africa can be used in. This can help you to choose the suitable one for your project.

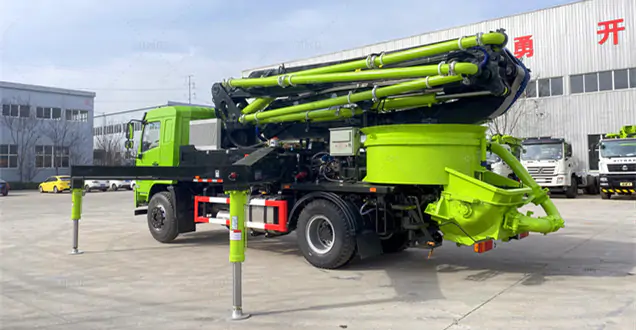

Concrete Pump Truck
Boom Length: 26m, 30m, 33m, 38m
Max Concrete Output: 120m³/h
Hot Model: AMY33
Recommended Projects:
Sandton City Skyscrapers (Johannesburg) – The 38m boom efficiently covers high-rise construction (20-30 floors), while the 120m³/h output ensures rapid concrete placement for core walls and slabs.
N3 Highway Expansion (Durban-Gauteng) – This concrete pump truck for sale South Africa is ideal for bridge piers and roadworks due to quick setup and high pumping capacity.
Why choose this type? High reach and mobility make the truck chassis boom concrete pump perfect for urban development and large-scale infrastructure.

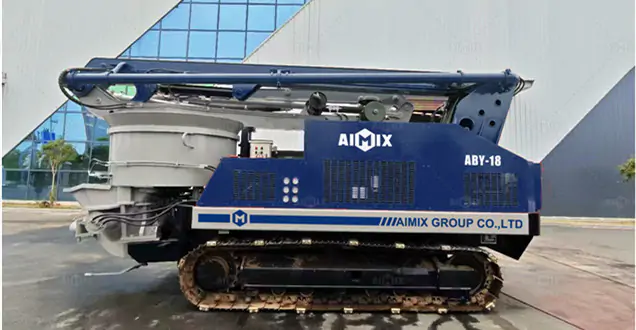

Mobile Crawler Chassis Concrete Pump
Boom Length: 8m, 15m, 18m, 20m, 25m
Max Concrete Output: 50m³/h
Hot Model: AMY18
Recommended Projects:
Lesotho Highlands Water Project Phase II – The 25m boom and remote control enable safe concrete pouring in mountainous terrain.
Limpopo Platinum Mine Tailings Dam – Crawler tracks handle muddy conditions, while 50m³/h output suits intermittent dam construction.
Eastern Cape Wind Farms – Modular design allows transport to remote sites, and corrosion-resistant hydraulics withstand coastal weather.
Why choose this type? Rugged mobility and precision control suit mining, dams, and renewable energy projects.
Mobile Wheel Chassis Concrete Pump
Boom Length: 20m, 26m, 30m, 33m
Max Concrete Output: 89m³/h
Hot Model: AMY20, AMY26
Recommended Projects:
Soweto Low-Cost Housing – The 33m boom fits tight urban spaces, and 89m³/h output accelerates mass housing construction.
KwaZulu-Natal Rural Drainage Systems – Wheeled mobility allows quick deployment for emergency repairs during rainy seasons.
Cape Town School Upgrades – Electric models (AMY20) of wheel chassis mobile concrete pump comply with city noise regulations, minimizing disruption.
Why choose this type? Cost-effective and maneuverable, ideal for community and government-funded projects.

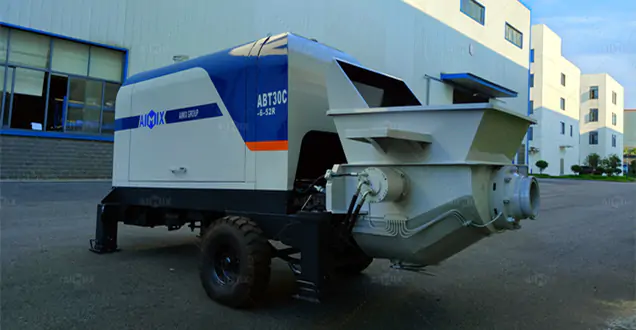

Trailer Mounted Concrete Pump
Function:The static concrete pump for sale South Africa transports concrete through pipelines to a specified location.
Model: ABT30, ABT40, ABT60, ABT80, ABT90
Production Range: 30-90 m³/h
Engine Type: Electric/diesel
Recommended Projects:
Mpumalanga Coal Power Plant Expansion – The ABT90’s 90m³/h output supports continuous concrete pouring for cooling towers.
Western Cape Winery Flooring – Medium-pressure pumping (ABT40) ensures smooth, bubble-free industrial floors.
Free State Solar Farm Foundations – Easy pipeline setup enables distributed concrete placement across large sites.
Why choose this type? High-volume pumping and fuel flexibility suit energy and industrial construction.

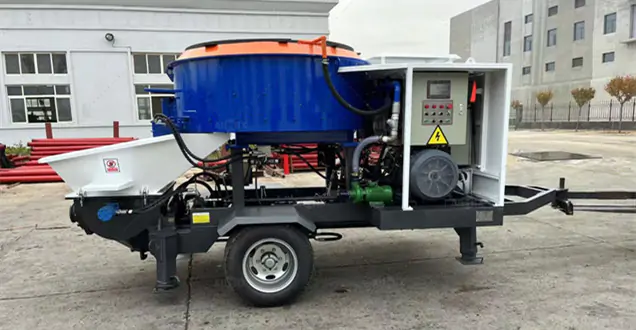

Pan Mixer Concrete Pump
Max Concrete Output: 40m³/h
Hot Model: ABJW40C
Advantages: The vertical shaft concrete mixing pump has dual hydraulic drive. It mixes concrete with two mixing shafts which increase the mixing speed by 2.3 times
Recommended Projects:
N1/N2 Highway Repairs – Dual shaft mixing (ABJW40C) ensures uniform concrete for durable road surfaces.
Durban Port Expansion – Pan mixer durability handles abrasive marine aggregates in port flooring.
Drum Mixer Concrete Pump
Model: ABJZ30, ABJZ40
Production Range: 30-40 m³/h
Engine Type: Electric/diesel
Recommended Projects:
Pretoria Heritage Restoration – The ABJZ30’s small-batch mixing is ideal for custom mortar blends in historical buildings.
These recommendations are based on SANRAL reports, South African Construction Industry Report (2024). If you still can not choose the type for your project, contact us and our project manager will ensure to select optimal equipment for your South Africa’s diverse construction needs.
Specification of Concrete Pump South Africa
If you want to buy small concrete pump for sale South Africa, learning about their specification is important. This can help you to choose the suitable type. Here shows you the specification. If you want to know more about our product, you can contact us and our project manager and engineer will answer your question.
| Items | Key Parameters | Units | ABJZ30C | ABJZ30D | ABJZ40C | ABJZ40D |
|---|---|---|---|---|---|---|
| whole performance of machine | Max. theo. concrete output(L./H) | M3/h | 30 | 30 | 40 | 40 |
| Mixer rated feed capacity | m3 | 0.56 | 0.56 | 0.56 | 0.56 | |
| Mixer rated discharge capacity | m3 | 0.35 | 0.35 | 0.45 | 0.45 | |
| Max.concrete pumping pressure(H./L.) | MPa | 10 | 10 | 10 | 10 | |
| Distribution valve type | S Valve | S Valve | S Valve | S Valve | ||
| Hopper capacity | L | 400 | 400 | 400 | 400 | |
| Power system | Diesel engine model | Weichai | ||||
| Electrical engineering power | KW | 37 | 37 | 82 | 45 | |
| Rotate speed | r/min | 1480 | 1480 | 2200 | 1480 | |
| Hydraulic system | Circuit type | Open circuit | Open circuit | Open circuit | Open circuit | |
| Pumping system pressure | MPa | 26 | 26 | 32 | 26 | |
| Capacity of oil tank | L | 260 | 260 | 350 | 370 |
| Items | Key Parameters | Units | ABT40C | ABT60C | ABT80C |
|---|---|---|---|---|---|
| Whole performance of machine | Max. theo. concrete output(L./H) | M3/h | 40/26 | 67/45 | 84/45 |
| Max.concrete pumping pressure(H./L.) | MPa | 10/8 | 13/7 | 16/7 | |
| Distribution valve type | S Valve | S Valve | S Valve | ||
| Concrete cylinder diameter×stroke | mm | Φ180×1200 | Φ200×1650 | Φ200×1800 | |
| Hopper capacity x feeding height | L/mm | 400/1100 | 800/1400 | 800/1400 | |
| Outlet diameter | mm | Φ150 | Φ180 | Φ180 | |
| Power system | Diesel engine model | Weichai | Wechai | Wechai | |
| Diesel engineering power | KW | 82 | 129 | 176 | |
| Rotate speed | r/min | 2200 | 2200 | 2200 | |
| Hydraulic system | Circuit type | Open circuit | Open circuit | Open circuit | |
| Pumping system pressure | MPa | 32 | 32 | 32 | |
| Mixing system pressure | MPa | 10 | 10 | 10 | |
| Capacity of oil tank | L | 370 | 560 | 560 | |
| Other parameters | Max. Theoretical Vertical/Horizontal Conveying Distance | m | 120/500 | 180/1000 | 260/1200 |
| Max. aggregate diameter | mm | Slick/scree:40 | Slick/scree:40 | Slick/scree:40 | |
| Inside diameter of delivering pipe | mm | Φ125 | Φ125 | Φ125 | |
| Dimensions：length×width×height | mm | 5000x1850x1700 | 5800x2000x1750 | 6300x2100x2350 | |
| Total weight | kg | 4500 | 6500 | 6900 |
| Items | Key Parameters | Units | ABT40D | ABT60D | ABT80D |
|---|---|---|---|---|---|
| Whole performance of machine | Max. theo. concrete output(L./H) | M3/h | 40/26 | 60/36 | 84/46 |
| Max.concrete pumping pressure(H./L.) | MPa | 10/8 | 13/7 | 16/9 | |
| Distribution valve type | S Valve | S Valve | S Valve | ||
| Concrete cylinder diameter×stroke | mm | Φ180×1300 | Φ200×1650 | Φ200×1800 | |
| Hopper capacity x feeding height | L/mm | 400/1250 | 800/1400 | 800/1400 | |
| Outlet diameter | mm | Φ150 | Φ180 | Φ180 | |
| Electrical engineering power | KW | 45 | 90 | 110 | |
| Rotate speed | r/min | 1480 | 1480 | 1480 | |
| Hydraulic system | Circuit type | Open circuit | Open circuit | Open circuit | |
| Pumping system pressure | MPa | 28 | 28 | 32 | |
| Mixing system pressure | MPa | 10 | 10 | 10 | |
| Capacity of oil tank | L | 370 | 560 | 560 | |
| Other parameters | Max. Theoretical Vertical/Horizontal Conveying Distance | m | 120/500 | 160/800 | 200/1000 |
| Max. aggregate diameter | mm | Slick/scree:40 | Slick/scree:40 | Slick/scree:40 | |
| Inside diameter of delivering pipe | mm | Φ125 | Φ125 | Φ125 | |
| Dimensions：length×width×height | mm | 4500x1750x1600 | 5500x2000x1750 | 5800x2100x2350 | |
| Total weight | kg | 3200 | 6000 | 6300 |
Concrete Pump Price in South Africa
If you want to purchase concrete pump truck for sale in South Africa, here shows you the concrete pump truck price in South Africa and other types of concrete pump price:
| Boom Concrete Pump Price South Africa: | Truck Chassis: at least 80,000 USD Crawler Chassis: 62,000-73,000 USD Wheel Chassis: 81,000-92,000 USD |
| Mixer Concrete Pump South Africa Price: | Pan Mixer Type: 32,000-35,000 USD Drum Mixer Type: 18,000-28,000 USD |
| Trailer Mounted Concrete Pump Price South Africa: | 12,000-43,000 USD |
African Concrete Pump Market Prospects
The African concrete pump market presents significant growth opportunities driven by rapid urbanization, infrastructure development, and increasing foreign investments. This analysis integrates market trends, regional projects, and competitive dynamics to highlight opportunities for stakeholders in the concrete pump South Africa sector and beyond.
Market Overview & Growth Drivers
The global concrete pump market is projected to reach $4.85 billion by 2027, with a CAGR of 4%.
Africa, part of the LAMEA region, is witnessing accelerated growth due to:
Infrastructure investments: Governments are prioritizing transport, energy, and urban development. For example, South Africa’s Development Bank of Southern Africa (DBSA) has committed $2.3 billion to infrastructure projects in 2025.
Mining sector demand: Countries like Ghana and Zambia require advanced pumping solutions for mineral extraction and processing.
Urbanization: Africa’s urban population is growing at 3.5% annually, driving demand for high-rise buildings and residential complexes.
B. Key Demand Segments
1. Truck-mounted pumps: Dominant due to mobility and high output.
2. Stationary pumps: Growing in mining and large-scale industrial projects.
3. Specialized pumps: Increasing adoption for tunnel construction.
Regional Hotspots & Projects
Megaprojects: The Musina-Makhado Special Economic Zone (SEZ) requires concrete pumps for its $10 billion metallurgical complex.
Mining: Anglo American’s Mogalakwena platinum mine uses concrete pumps for slurry transport.
Mozambique: The $20 billion LNG project in Cabo Delgado relies on concrete pumps for port construction.
B. East Africa
Kenya: The Nairobi-Nakuru-Mau Summit Highway (120 km) utilizes concrete pumps for bridge piers.
Ethiopia: Grand Ethiopian Renaissance Dam (GERD) construction has driven demand for high-pressure pumps.
C. West Africa
Nigeria: The $1.5 billion Lagos-Ibadan Railway employs concrete pumps for station foundations.
Ghana: Affordable housing initiatives under the “Ghana Beyond Aid” agenda require modular pumping systems.
Future Outlook
Digital Transformation: IoT-enabled pumps for real-time performance monitoring will become industry standard.
Sustainability: Electric concrete pumps will gain share as carbon regulations tighten.
Africa’s concrete pump market offers lucrative prospects for suppliers who adapt to regional needs. By leveraging localized production, advanced technologies, and strategic partnerships, companies can capitalize on infrastructure megaprojects and sustainable urbanization trends.
Aimix Services for You
Aimix provides comprehensive service for our customer in every corner of the world. We not only sell the product, our three phrases service can ensure you have a satisfied concrete pumping solution.
Pre-sales Service
Understanding your needs with expertise
Our senior project consultants will provide personalized one-on-one service. Once we receive your inquiry, a consultant will reach out to you within two hours to discuss your project requirements in detail.
Customized Solutions
Our technical managers will offer 2-3 tailored solutions for your project, supported by detailed pictures, videos, brochures, parameters, configurations, and 3D drawings. We work closely with you to ensure the solution matches your specific needs, ensuring optimal results for your South African construction projects.
In-sales Service
Seamless communication and production monitoring
Real-time Communication
Throughout the process, we ensure continuous communication. If any changes are needed, our team is available to promptly address any concerns or adjustments regarding your equipment.
Production Supervision
Once your order is confirmed, we’ll oversee production to guarantee all equipment meets strict standards. Our supervision ensures high-quality and timely delivery to South Africa.
After-sales Service
Comprehensive support with local expertise
Aimix offers robust after-sales support across the globe, including dedicated service personnel in regions like South Africa. We cover all aspects of after-sales, including transportation, customs clearance, installation, and training. Rest assured, we are here to solve any issues and ensure your satisfaction, ensuring smooth operations in your projects.
With Aimix, you receive not just quality products like concrete pumps durban but complete support every step of the way, tailored to meet the demands of the South African market.
