In modern road and highway construction, the service radius of an asphalt mixing plant is not just about transport distance, but a system decision involving capacity matching, hauling time, mix temperature loss, and construction efficiency. In most cases, hot mix asphalt should be paved within 60–120 minutes after leaving the plant, giving a typical economic radius of 30–80 km, and over 100 km with good roads and insulated transport. For multi-section highway projects, 120–320 TPH asphalt plants can support 50–200 km continuous supply. The key is not the maximum distance, but balancing transport cost, temperature loss, and construction rhythm to define the true economic service radius. This is especially important for EPC contractors, project owners, and decision-makers, as it directly affects asphalt plant selection, site layout, and supply planning. To understand how to calculate it in real projects, continue reading below.
What Is the “Effective Project Coverage” of an Asphalt Plant?
Project coverage refers to the actual construction area a plant can reliably supply while meeting continuous paving requirements and asphalt quality standards.
It is defined by three core indicators:
- Economic transport distance: 30–120 km.
- Controlled transport time: 60–120 min.
- Stable supply capacity: 3,000–15,000 tons/day.
👉 In essence: the area a plant can support without quality loss, cost spikes, or construction interruption.
Why Coverage Ability Matters More Than TPH Capacity
In real projects, relying only on TPH selection can lead to a situation where capacity looks sufficient, but the project cannot run smoothly.
Typical risks include:
- Too long transport distance → temperature drops and poor compaction quality.
- Poor logistics planning → intermittent supply at paving site.
- Overextended coverage → transport cost increases by 20%–60%.
- Mismatched construction rhythm → paving idle time increases by 10%–25%.
Why Is Determining the Right Service Radius of an Asphalt Plant Important?
An asphalt plant can typically serve a construction area within an economic radius of 30–80 km, while optimized transport systems may extend coverage beyond 100 km. The actual service coverage depends on transport time, production capacity, mix temperature, and construction organization. For highway, municipal road, and EPC projects, defining the right coverage range is essential because it directly affects asphalt plant location, capacity selection, and whether a single-plant or multi-plant supply system is needed.
Key Engineering Parameters That Define Asphalt Plant Coverage
| Key Factor | Typical Range | Impact on Project Coverage |
|---|---|---|
| Transport time | 60–120 min | Defines maximum economic boundary |
| Economic transport distance | 30–80 km (standard) | Core control indicator |
| Maximum extended distance | 100–120 km | Depends on insulation & logistics |
| Plant capacity (TPH) | 40–320+ TPH | Determines supply strength & coverage |
| Daily output per plant | 3,000–15,000 tons | Limits project scale |
| Mix temperature loss | 1–3°C / 10 km | Affects quality & distance limit |
| Paving continuity demand | 200–800 t/h | Determines need for multi-plant supply |
Asphalt Plant Capacity vs Project Coverage and Applications
| Plant Size | Capacity (TPH) | Economic Radius | Coverage Range | Typical Projects |
|---|---|---|---|---|
| Small asphalt plant | 40–80 TPH | 20–50 km | 30–80 km | Municipal roads, maintenance |
| Medium asphalt plant | 80–160 TPH | 30–80 km | 50–150 km | National roads, urban expressways |
| Medium-large asphalt plant | 160–240 TPH | 50–100 km | 80–200 km | Highway mainline projects |
| Large asphalt plant | 240–320+ TPH | 60–120 km | 100–300 km | EPC / multi-section highways |
👉 Core logic: Capacity defines supply speed, but coverage determines whether the project can run smoothly.
Which Projects Must Define Coverage Early?
In the following project types, failure to plan coverage in advance often leads to cost overruns or construction interruptions:
Long-distance highway projects (50–300 km linear works) → require multi-plant coordination.
EPC turnkey infrastructure projects → need unified supply network planning.
Airport runway and port projects → require strict continuous supply and temperature control (≥160°C).
Large urban road networks → dispersed sites and complex logistics routes.
Mountainous or complex terrain projects → transport time fluctuation can reach ±20–30%.
Relationship Between Transport Time and Asphalt Quality (Thermal Control Model)
| Transport Time | Mix Temperature Status | Risk Level |
|---|---|---|
| <60 min | Optimal compaction (150–165°C) | Lowest risk |
| 60–90 min | Controlled range (140–160°C) | Low risk |
| 90–120 min | Critical range (130–150°C) | Medium risk |
| >120 min | Significant cooling (<130°C) | High risk |
Overall, asphalt plant coverage is determined by three constraints:
- Quality constraint: whether temperature meets construction standards.
- Cost constraint: whether transport remains economically viable.
- Efficiency constraint: whether construction stays continuous.
Therefore, the key question is not: “How far can an asphalt plant transport materials?”. But rather: “Under optimal quality, cost, and efficiency conditions, how large an area can this plant reliably support?”
What Factors Determine the Project Coverage Capacity of an Asphalt Plant?
In real highway, municipal road, and EPC projects, the coverage capacity of an asphalt plant is not determined by equipment output alone. It results from a system interaction of supply capacity, consumption rate, transport conditions, environmental constraints, and construction organization. Any imbalance in one factor can reduce the effective service radius or significantly increase unit construction cost. Industry experience shows that a stable asphalt supply system must maintain a dynamic balance among a 60–120 minute transport window, a 30–80 km economic radius, and a continuous paving demand of 200–800 t/h.
System Structure of Asphalt Plant Coverage Capacity
| Module | Key Parameter | Typical Range | Impact on Coverage |
|---|---|---|---|
| Production side | Capacity (TPH) | 40–320+ TPH | Determines supply ceiling |
| Demand side | Paving rate | 200–800 t/h | Determines consumption speed |
| Transport side | Transport time | 60–120 min | Defines service radius |
| Quality side | Temperature loss | 1–3°C / 10 km | Limits reachable distance |
| Environment side | Climate conditions | -10°C to 45°C | Affects stability |
| Organization side | Construction mode | Single / multi-section | Determines system complexity |
How Does Asphalt Plant Capacity (TPH) Define Supply Limits?
Asphalt plant capacity (TPH) sets the fundamental upper limit of coverage and determines how much mix an asphalt mix plant can produce per hour.
Typical industry ranges:
- 40–80 TPH: small municipal and maintenance projects.
- 80–160 TPH: urban roads and national highways.
- 160–240 TPH: highway mainline construction.
- 240–320+ TPH: multi-section centralized supply systems.
However, the key logic is: Higher capacity does not automatically mean a larger coverage area. It means stronger supply support for longer transport distances and higher construction intensity.
How Does Construction Demand Determine Plant Size in Reverse?
Coverage capacity must match construction consumption. Otherwise, supply imbalance occurs.
Typical paving demand:
- Single asphalt paver capacity: 200–500 t/h
- Double road paver highway operation: 400–800 t/h
- Daily demand: 3,000–12,000 tons/km (varies by layer type)
When demand exceeds asphalt plant output:
- Risk of material shortage increases.
- Effective coverage range decreases.
- Or additional plants become necessary.
👉 Core relationship: Coverage capacity = Supply capacity ÷ Construction consumption intensity.
How Does Transport Time Define the Economic Service Radius?
Transport time is the key hard constraint of coverage.
Industry standards:
- Recommended transport time: 60–90 minutes.
- Maximum acceptable time: up to 120 minutes.
- Economic transport radius: 30–80 km.
- Optimized conditions (highway + insulated trucks): up to 100–120 km.
Beyond 120 minutes:
- Temperature drops significantly.
- Compaction quality decreases.
- Pavement performance becomes unstable.
👉 Key conclusion: Service radius is fundamentally a time boundary, not a distance boundary.
How Does Temperature Loss Limit Maximum Transport Distance?
Temperature loss defines the quality boundary of coverage.
Typical industry data:
- Average cooling rate: 1–3°C / 10 km
- Standard transport vehicles: 10–25°C drop within 90 minutes
- Non-optimized systems: over 30°C drop after 120 minutes
When temperature falls below 130°C:
Compaction becomes difficult.
Voids increase.
Pavement lifespan decreases.
👉 Therefore: Temperature control capability defines the upper limit of usable coverage.
How Do Road Conditions Redefine the Theoretical Coverage Radius?
Even if a system supports 80 km theoretically, real road conditions can change performance significantly.
Typical transport speeds:
- Highways: 60–90 km/h (most efficient)
- Urban roads: 30–50 km/h (traffic delays)
- Mountain roads: 20–40 km/h (terrain constraints)
For the same 80 km distance:
- Highway: ~60–80 minutes
- Urban: 90–150 minutes
- Mountain: over 120 minutes
👉 Key insight: Distance stays the same, but time can double.
How Does Construction Organization Affect Maximum Coverage?
Construction organization acts as a system stability multiplier.
Common modes:
Single-section centralized construction.
Multi-section parallel construction.
Phased rolling construction.
Impact mechanism:
Single section → maximum coverage efficiency.
Multi-section → requires more plants or optimized dispatching.
Phased construction → higher transport pressure.
Practical effects: Poor scheduling reduces coverage by 20%–40%; Increased truck waiting time lowers plant utilization.
How Do Climate and Environmental Conditions Affect Coverage Boundaries?
Climate directly changes cooling speed and construction window.
Typical impacts:
- Hot regions (Southeast Asia, Middle East): slower cooling → slightly larger coverage.
- Cold regions (North America, Northern Europe): faster cooling → 10%–25% smaller coverage.
- Rainy/high humidity areas: shorter working window.
- Strong wind regions: faster surface cooling.
👉 Overall impact: Climate conditions can cause ±15%–30% variation in real coverage range.
Engineering Decision Model
Asphalt plant coverage is not driven by a single factor. It is a coupled system defined by:
- Capacity sets supply ceiling.
- Demand sets consumption speed.
- Transport time defines service boundary.
- Temperature loss defines quality boundary.
- Road conditions define real efficiency.
- Construction organization defines system stability.
- Climate defines fluctuation range.
✔ Final Engineering Logic: Asphalt plant coverage capacity = the maximum project area that can be reliably supported under conditions of controlled quality, reasonable cost, and continuous construction performance.
How to Calculate the Optimal Economic Service Radius of an Asphalt Plant?
In highway, municipal road, and EPC project planning, the service radius is not fixed but an economic optimization range shaped by transport time, asphalt cooling rate, construction rhythm, and unit transport cost. The key is not how far the plant can supply, but how to balance transport flow and paving speed while maintaining compaction quality and construction continuity. Therefore, industry planning uses transport time (minutes) as the main constraint and converts it based on road conditions and logistics efficiency. In essence, service radius calculation is a cost optimization problem under time constraints, not a simple distance extension.
Key Elements for Service Radius Calculation
| Factor Type | Key Variable | Typical Range | Impact |
|---|---|---|---|
| Time factor | Transport time | 60–120 min | Defines upper limit |
| Distance factor | Transport distance | 30–120 km | Defines spatial range |
| Cost factor | Unit transport cost | +0.8%–1.5% / 10 km | Defines economic viability |
| Quality factor | Temperature loss | 1–3°C / 10 km | Defines usability |
| Capacity factor | Plant capacity match | 80–320 TPH | Balances supply and demand |
How to Estimate a Reasonable Transport Time
Transport time is the core variable for service radius calculation. It depends on distance, road conditions, and logistics efficiency.
Basic formula
Transport time = Distance ÷ Average speed + loading/unloading time.
Transport speed varies significantly by road conditions, which directly affects service radius planning:
- Highway conditions: Average speed is 60–90 km/h, so 60 km can be completed in about 40–60 minutes.
- Urban roads: Average speed drops to 30–50 km/h, and 60 km may take around 70–120 minutes due to congestion.
- Mountain roads: Average speed is 20–40 km/h, and 60 km transport can extend to 90–180 minutes due to terrain limits.
Engineering Control Zones
- ≤ 60 min: optimal supply zone.
- 60–90 min: stable supply zone.
- 90–120 min: critical zone.
- 120 min: high-risk zone.
Cost Impact Trend of Different Service Radius Ranges
| Service Radius | Transport Cost Change | Economic Level |
|---|---|---|
| 30–50 km | Baseline | Optimal zone |
| 50–80 km | +10%–25% | Acceptable |
| 80–100 km | +25%–50% | Marginal increase |
| >100 km | +50%–80% | Non-economic |
✔ Decision logic: Short distance reduces transport cost but may require more asphalt plants. Long distance reduces asphalt plant numbers but increases logistics cost.
👉 The optimal point appears where: Cost of adding one more plant = Cost increase from long-distance transport.
Recommended Economic Service Radius by Project Type
Different project types require different service ranges.
Recommended Service Radius by Project Type
| Project Type | Recommended Radius | Characteristics | Plant Strategy |
|---|---|---|---|
| Urban roads | 20–50 km | Dense and frequent works | Small/medium asphalt plants |
| National roads | 30–80 km | Linear distribution | Medium asphalt plants |
| Highway projects | 50–100 km | Continuous paving | Medium-large asphalt plants |
| EPC projects | 60–120 km | Multi-section coordination | Large asphalt plants + network layout |
| Airport/port works | 30–70 km | High quality requirement | High-stability asphalt plants |
The optimal economic service radius is not a fixed number. It is a dynamic balance result defined by: a system equilibrium between rising transport cost and plant investment cost, while ensuring stable asphalt temperature and continuous construction performance.
How Large Should the Road Construction Coverage Be for Different Types of Projects?
Different project types require very different asphalt plant service radii. The main reason is that construction continuity, quality standards, transport conditions, and construction organization vary significantly. As a result, there is no universal standard for service radius. It changes dynamically based on project structure and construction rhythm. In real planning, this section is often used to decide whether one asphalt plant is enough or multiple asphalt mixer plants are needed.
Typical Coverage Range and Control Logic by Project Type
| Project Type | Recommended Economic Service Radius | Construction Features | Key Control Factors |
|---|---|---|---|
| Highway projects | 50–100 km | Long-distance continuous paving | Supply continuity + multi-section coordination |
| Urban road projects | 20–50 km | Distributed construction points | Transport efficiency + travel time |
| Municipal maintenance | 10–40 km | Small-scale frequent works | Rapid response capability |
| Airport runway construction | 30–70 km | High-standard continuous paving | Temperature control + quality stability |
| Industrial park roads | 20–60 km | Clustered construction areas | Cost control + dispatch efficiency |
Highway Projects: How to Define a 50–100 km Supply Coverage Zone?
Highways are typical linear projects. Their coverage depends on both section length and construction rhythm.
Typical characteristics:
- Single section length: 20–80 km.
- Multi-section projects: 50–300 km construction corridors.
- Paving demand: 400–800 t/h continuous operation.
- High continuity requirement (no long interruptions allowed).
👉 Coverage logic: Highway service radius is not a circular area. It works as a linear “corridor supply system” along the route. In practice:
- 160 TPH asphalt plant: about 50–120 km effective coverage.
- 240 TPH+ asphalt plant: supports multi-section coordinated supply.
- Over 120 km: usually requires two asphalt plants or mobile support.
Urban Road Projects: Why the Range Is Usually Within 20–50 km?
Urban road projects face traffic congestion and limited construction windows, which reduce transport efficiency.
Typical features:
- Average speed: 30–50 km/h.
- Frequent traffic lights and congestion.
- Short night construction windows.
- Small-scale, multi-point works.
👉 Practical impact: Longer distance increases transport variability and reduces supply stability.
Therefore:
Recommended service radius: 20–50 km.
Beyond 50 km: dispatch cost and waiting time increase significantly.
Municipal Maintenance Projects: Why the Coverage Is the Smallest (10–40 km)?
Maintenance projects focus on response speed rather than production capacity.
Typical scenarios:
- Pothole repair
- Local resurfacing
- Emergency maintenance
Key features:
- Small volume but high frequency.
- Requires fast deployment.
- Often short-notice operations.
👉 Result: Smaller coverage improves response speed and reduces total cost.
Airport Runway Projects: Why Stability Matters More Than 30–70 km Range?
Airport runway construction requires much stricter quality control than standard road projects.
Key constraints:
- Extremely high compaction requirements.
- No interruption allowed during paving.
- Strict temperature control (usually ≥150°C working range).
- High-quality acceptance standards.
Therefore:
Recommended service radius: 30–70 km.
Transport time: usually within 60–90 minutes.
👉 Core logic: Airport projects do not maximize coverage. They maximize stability.
Industrial Park Roads: Why 20–60 km Coverage Works Best?
Industrial park roads are clustered construction projects, different from linear highways.
Typical characteristics:
- Concentrated construction zones.
- High road network density.
- Phased development.
- Long but stable construction cycles.
👉 Impact:
Flexible service radius: 20–60 km.
Focus on transport cost optimization rather than distance expansion.
✔ Final Decision Logic: Service radius is not a fixed standard. It is a dynamic result determined by project structure, construction rhythm, and quality requirements.
How to Expand Project Coverage Through Proper Asphalt Plant Location Selection
In asphalt plant planning, site selection is not simply about finding land for construction. It is a key decision that directly determines service radius, transport cost structure, and the upper limit of construction continuity. In real highway and EPC projects, even with the same plant capacity, different site locations can lead to:
30%–80% variation in coverage range
20%–60% fluctuation in transport cost
15%–40% difference in equipment utilizationTherefore, site selection is essentially a cost-optimized coverage radius problem.
Key Impact Factors of Site Selection on Coverage Capacity
| Site Factor | Impact Dimension | Effect on Coverage |
|---|---|---|
| Distance to project | Transport time | Defines upper service radius |
| Road network conditions | Travel speed | Affects transport efficiency |
| Terrain conditions | Stability | Controls fluctuation range |
| Raw material supply | Cost structure | Impacts long-term economy |
| Multi-section layout | Dispatch complexity | Determines need for multiple asphalt plants |
Where Should an Asphalt Plant Be Located? (Core Site Selection Logic)
Proper site selection is not about placing the plant in the geometric center. It is about finding the location with the lowest transport cost and highest coverage efficiency. In engineering practice, three key principles apply:
Close to the main construction corridor (highest priority)
Prefer locations along highway routes.
Reduce loading and unloading time loss.
Minimize transport variability.
Located near the geometric center of multiple sections
50–150 km linear highway projects.
Multi-workfront construction projects.
👉 The goal is not a geometric center, but a balanced transport time point.
Avoid congested urban areas and inefficient routes
Urban outskirts are better than city centers.
Locations near highway entrances are better than inland sites.
Reduces unpredictable delays.
Centralized Site vs Distributed Sites: Key Decision Model
This is one of the most important decisions in EPC projects.
Comparison of Centralized vs Distributed Asphalt Plant Layout
| Model | Suitable Conditions | Advantages | Risks |
|---|---|---|---|
| Centralized site | <80 km coverage | Lower cost, simpler management | High transport cost at far ends |
| Distributed sites | >100 km projects | Balanced coverage, higher efficiency | Higher investment cost |
| Hybrid layout | EPC projects | Flexible dispatch | Higher management complexity |
✔ Decision logic:
Single linear project → centralized site.
Multi-section or long-distance project → distributed sites.
EPC projects → hybrid system (main + auxiliary plants).
How to Reduce Transport Cost (Direct Driver of Service Radius)
Transport cost is the key factor that defines the economic service radius. Key cost control strategies:
Optimize transport distance (most effective)
Keep within 30–80 km optimal range.
Every +10 km increases cost by 8%–15%.
Improve truck cycle efficiency
Reduce waiting time.
Use dedicated transport fleet.
Avoid empty return trips.
Use insulated transport systems
Reduce temperature loss.
Extend usable transport time.
Expand economic radius by 5–20 km.
Zone-based supply planning
Assign transport zones by section.
Avoid cross-zone inefficiency.
How to Reduce Waiting Time and Equipment Idle Rate
Idle time directly affects real plant utilization efficiency.
Main Causes of Waiting Time and Optimization Methods
| Issue | Problem | Optimization Method |
|---|---|---|
| Vehicle queueing | Loading congestion | Multi-lane loading system |
| Paving mismatch | Over-supply or imbalance | Capacity scheduling control |
| Transport delays | Risk of material shortage | GPS-based dispatch system |
| Section switching | Idle downtime | Zonal supply planning |
✔ Key optimization strategies:
Avoid overproduction
Avoid material shortage
Real-time vehicle tracking
Dynamic supply adjustment
Supply different sections in shifts
Improve overall plant utilization
Asphalt plant site selection is not a location problem. It is a three-variable optimization problem:
Transport distance (cost driver).
Road network efficiency (time driver).
Construction distribution (structural driver).
✔ Final Decision Logic: Optimal site selection = the location that minimizes transport cost, time loss, and dispatch complexity while ensuring continuous construction.
How to Determine the Number of Asphalt Plants Based on Project Scale?
In highway, EPC, and regional road network projects, the number of asphalt plants is not based on experience alone. It is determined by construction demand, transport coverage limits, and supply continuity requirements. In simple terms, the key question is not how many plants are enough, but whether a single plant can still ensure continuous supply, controlled transport distance, and stable mix quality. When one asphalt plant cannot meet capacity, distance, and dispatch requirements at the same time, the project must switch to a dual-plant or multi-plant supply system.
Relationship Between Project Scale and Asphalt Plant Configuration
| Project Scale | Daily Demand | Recommended Plant Setup | System Type | Key Constraint |
|---|---|---|---|---|
| Small projects | <3,000 t/day | Single asphalt plant | Independent supply system | Capacity |
| Medium projects | 3,000–8,000 t/day | Single or dual asphalt plant | Expanded supply system | Transport radius |
| Large highway projects | 8,000–15,000 t/day | Dual asphalt plants | Coordinated supply system | Construction rhythm |
| Mega EPC projects | >15,000 t/day | Multiple asphalt plants | Networked supply system | Dispatch & coordination |
✔ Core decision rule: Number of asphalt plants = max (demand vs single-plant capacity, transport constraint, continuity requirement).
Single Asphalt Plant Supply: When Is One Plant Enough?
A single asphalt mix plant works best for simple structures and stable construction rhythms.
Typical conditions:
Project length: ≤50 km.
Daily demand: ≤6,000 t/day.
Transport time: ≤90 min.
One or two asphalt pavers with low to moderate intensity.
✔ Advantages:
Simple system.
Low dispatch cost.
Stable quality control.
Lowest initial investment.
❗ Limitations:
Transport distance >80 km increases cost sharply.
Demand ≥80% capacity risks material shortage.
Multi-section projects increase dispatch pressure.
Dual Asphalt Plant Coordination: When Is a Two-Plant System Necessary?
In highway or multi-section projects, one plant often cannot balance capacity, distance, and continuity at the same time.
Typical triggers:
Project length: 50–150 km.
Daily demand: 6,000–12,000 t/day.
2–4 asphalt pavers operating in parallel.
Multiple construction sections (≥2 work fronts).
✔ Dual-plant model:
Main plant (70% capacity) + auxiliary plant (30% capacity).
Zonal supply based on regions.
Or time-based supply during peak construction.
✔ Key benefits:
Reduces transport pressure by 20%–40%.
Improves supply stability.
Expands coverage to 100–150 km.
Multi-Plant Network Supply: How Do EPC Projects Use 3–5 Asphalt Plants Together?
In large EPC or national infrastructure projects, asphalt plants operate as a regional supply network.
Typical features:
3–10 simultaneous construction sections.
Daily demand: ≥15,000 t/day.
Coverage range: 100–300 km.
Multiple contractors working in parallel.
✔ Network structure:
Central main plant (core capacity).
Regional sub-plants (load balancing).
Mobile plants (dynamic support).
Digital dispatch system (key control layer).
✔ Advantages:
Expands coverage by 2–3 times.
Reduces material shortage risk.
Supports cross-region construction.
❗ Key challenge: The main limitation is not capacity, but the exponential increase in dispatch complexity.

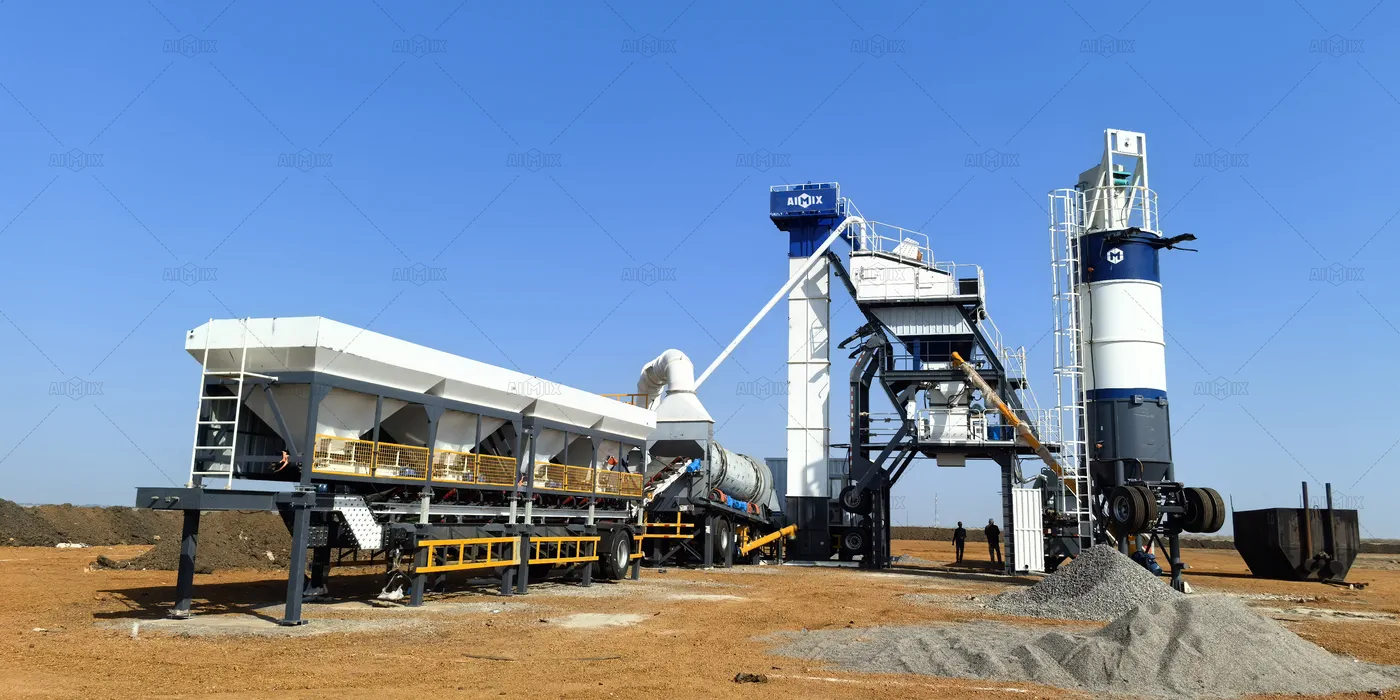

How to Combine Mobile and Fixed Asphalt Plants?
In complex terrain or long linear projects, the best solution is often a hybrid system rather than adding more fixed plants.
Fixed + mobile asphalt plant (most common)
Fixed asphalt plant provides main supply.
Mobile asphalt plant moves closer to the construction front.
Reduces transport distance by 20%–50%.
Dual mobile asphalt plant system
Used for long highway corridors.
Mobile asphalt plants shift along construction progress.
Multi-mobile + central asphalt plant network
Used in EPC-scale projects.
Dynamic adjustment of supply centers.
✔ Core value of portable asphalt plants: Shorter transport radius, Faster response, Lower temperature loss, and Higher flexibility.
The number of asphalt plants is not an experience-based decision. It is a system optimization problem:
✔ Final Decision Logic: Number of plants = the system solution that minimizes total cost while ensuring no supply interruption, no excessive transport distance, and no quality loss.
How Many Road Construction Sections Can One Asphalt Plant Supply?
In highway and EPC project planning, the number of sections one asphalt plant can supply is not a fixed value. It depends on a system result driven by plant capacity (TPH), transport radius, construction rhythm, and dispatch capability. In general, one plant can support one or multiple sections, but stable multi-section operation only works when supply capacity matches construction consumption in real time. In practice, this question directly affects whether a project needs additional asphalt plants, mobile asphalt plants for support, or a centralized supply system.
Relationship Between Asphalt Plant Capacity and Section Supply Capability
| Plant Size | Capacity (TPH) | Stable Number of Sections | Typical Project Mode | Key Limiting Factor |
|---|---|---|---|---|
| Small asphalt plant | 40–80 TPH | 1 section | Municipal / local roads | Capacity and transport limits |
| Medium asphalt plant | 80–160 TPH | 1–2 sections | National roads / urban expressways | Transport radius & dispatch |
| Medium-large asphalt plant | 160–240 TPH | 2–3 sections | Highway mainlines | Construction rhythm matching |
| Large asphalt plant | 240–320+ TPH | 3–5 sections | EPC centralized supply | Multi-section coordination |
👉 Core logic: Section capacity is not determined by equipment alone, but by system-level dispatch capability.
Single-Section Supply Model: Why Is It Stable but Not Always Efficient?
Single-section supply is the most basic operating model and works well for small and medium projects.
Typical features:
Single supply route.
Simple dispatch system.
Lowest risk of material interruption.
Stable utilization rate (70%–90%).
Suitable for:
Municipal roads.
Short to medium national roads.
Single highway section projects.
👉 Advantages:
Highest system stability.
Easier quality control.
👉 Limitation: Equipment utilization may not reach maximum; Not suitable for large-scale network projects.
Multi-Section Simultaneous Supply: How Can One Plant Support 2–3 Sections?
When projects scale up to highways or regional road networks, one plant often needs to serve multiple sections at the same time.
Typical conditions:
Distance between sections: 20–80 km.
Transport time: 60–120 minutes.
2–4 pavers operating in parallel.
Daily demand: 5,000–15,000 tons.
Key requirement: A stable system must combine sufficient capacity, precise dispatching, and transport redundancy.
✔ Main risk factors:
Truck traffic congestion and queuing.
Local material shortage at paving site.
Unbalanced paving rhythm between sections.
Amplified production fluctuations.
EPC Centralized Supply Model: How to Support 3–5 Sections?
In EPC or large infrastructure projects, the hot mix asphalt plant becomes a supply hub rather than just a production unit.
Typical features:
3–5 simultaneous construction sections.
Multiple contractors working in parallel.
Daily demand: 8,000–20,000 tons.
Network coverage radius: 50–150 km.
✔ EPC system structure:
Central asphalt plant (main supply source).
Auxiliary plant (capacity support).
Mobile asphalt plant (backup and expansion).
Digital dispatch system (vehicle + paving coordination).
👉 Core logic: EPC projects rely on network supply capability, not single-plant output.
How to Improve Multi-Section Supply Efficiency?
Multi-section performance depends more on system optimization than on increasing capacity alone.
Key Methods to Improve Supply Efficiency
| Optimization Area | Key Measures | Impact |
|---|---|---|
| Transport dispatch | GPS + real-time routing | Reduces waiting time by 10%–25% |
| Capacity planning | 20%–30% peak reserve | Prevents material shortage |
| Plant layout | Centralized + distributed model | Expands coverage flexibility |
| Fleet management | Dedicated truck fleet | Improves stability |
| Temperature control | Insulated transport + fast loading | Extends usable time window |
| Digital system | IoT production monitoring | Improves overall coordination |
✔ Engineering insight: The challenge is not whether one asphalt mix plant is enough. The real challenge is whether the system can match multi-section rhythm.
The number of sections one asphalt plant can supply depends on three core factors:
- Whether capacity can meet total demand.
- Whether the transport system can support multi-point coverage.
- Whether dispatching can maintain consistent construction rhythm.
✔ Final Decision Logic: Section capacity is not a fixed equipment parameter. It is the combined result of production capacity, transport efficiency, and system-level coordination.
How Can Intelligent Management Improve Asphalt Plant Service Radius Capacity?
In modern highway and EPC projects, asphalt plant coverage capacity is shifting from dependence on distance and production capacity to dependence on system dispatch efficiency. In other words, even if plant capacity stays the same, intelligent management can significantly expand the effective service radius while reducing transport cost and material shortage risk. Industry practice shows that after introducing digital and intelligent dispatch systems, overall supply efficiency typically increases by 10%–30%, transport waiting time decreases by 15%–40%, and the effective economic service radius expands by about 10%–25%.
Impact of Intelligent Management on Coverage Capacity
| Smart Module | Optimization Target | Typical Improvement | Impact on Coverage |
|---|---|---|---|
| Production scheduling | Capacity matching | +10%–20% efficiency | Improves supply stability |
| Transport dispatching | Vehicle routing | -15%–35% waiting time | Expands effective radius |
| Real-time monitoring | Production rhythm | -10%–25% fluctuation | Improves continuity |
| Multi-site coordination | Section scheduling | +20% supply balance | Supports multi-point coverage |
Intelligent Production Scheduling: How to Shift from Fixed Output to Demand-Based Production?
Typical optimization logic:
Automatically adjust TPH output based on paver demand.
Avoid overproduction and material waste.
Avoid underproduction and supply interruption.
✔ Practical results:
Production efficiency increases by 10%–20%.
Material shortage risk drops by 20%–35%.
Multi-section adaptability improves.
👉 Core idea: Production no longer follows the asphalt batch plant. It follows the construction rhythm.
Transport Dispatch Optimization: How Route Planning Expands Service Radius?
Intelligent dispatch improves efficiency through:
GPS-based real-time vehicle tracking.
Dynamic route optimization.
Automatic congestion avoidance.
Return trip and cycle time optimization.
✔ Typical industry results:
Transport time reduced by 15%–30%.
Empty truck rate reduced by 10%–25%.
Unit transport cost reduced by 8%–20%.
👉 Key impact: The same physical distance can deliver a 10%–25% larger effective service radius.
Real-Time Production Monitoring: How to Reduce Temperature Loss and Quality Fluctuation?
Production stability.
Temperature and quality fluctuations.
Key monitored parameters:
Discharge temperature (150–165°C).
Production rhythm (TPH stability).
Aggregate mix consistency.
Equipment operating status.
✔ Typical results:
Temperature fluctuation reduced by 10%–25%.
Improved mix consistency.
Lower rework rate.
👉 Core logic: Coverage limit is not defined by distance, but by quality stability.
Multi-Site Coordination: How to Support Simultaneous Multi-Section Construction?
Smart coordination systems include:
Unified demand scheduling across sites.
Dynamic vehicle allocation.
Time-based supply planning.
Synchronized construction progress tracking.
✔ Typical improvements:
Supply balance across sections improves by 15%–35%.
Material shortage risk significantly decreases.
Equipment utilization increases.
✔ Engineering value: The system evolves from single-point supply to a networked supply model.
Impact of Smart Systems on Coverage
Production becomes more precise.
Transport becomes more efficient.
Monitoring becomes more stable.
Dispatch becomes more coordinated.
✔ Final Decision Logic: The essence of intelligent optimization is maximizing effective supply time and system efficiency without increasing physical equipment investment.
What Are the Most Common Mistakes in Asphalt Plant Coverage Planning?
In asphalt plant selection and project planning, coverage evaluation errors rarely come from wrong calculations. Most mistakes come from focusing on a single factor, such as capacity or distance, while ignoring system constraints. In highway and EPC projects, this type of misjudgment often leads to material shortage, higher costs, lower efficiency, and sometimes even a full redesign of plant locations. Industry experience shows that poor coverage planning can increase transport costs by 20%–60% and reduce construction efficiency by 10%–30%. In severe cases, it can also delay the entire project schedule.
Common Coverage Planning Mistakes and Their Consequences
| Common Mistake | Root Problem | Typical Consequence |
|---|---|---|
| Focus only on capacity | Ignore transport system | Material shortage or overproduction |
| Ignore traffic conditions | No time variability analysis | Unstable supply |
| Ignore construction rhythm | Poor paving coordination | Idle equipment or congestion |
| Over-expanding coverage | Beyond economic radius | Sharp cost increase |
| No expansion planning | Lack of redundancy design | High retrofit cost later |
Focusing Only on Capacity and Ignoring Transport Ability
Whether transport time exceeds 90–120 minutes.
Whether trucks can complete fast circulation.
Whether the road network supports stable logistics.
✔ Typical result: The plant has enough capacity, but the site still faces frequent material shortages. Or trucks queue up, reducing efficiency.
👉 Core issue: Capacity only reflects production ability, not supply ability.
Underestimating Traffic Congestion Impact
Common ignored factors:
Peak-hour congestion.
Temporary road closures.
Unstable entry and exit timing.
✔ Real impact: Transport time can fluctuate by ±30%–50%. A route designed for 80 km may turn into a 120-minute delivery time.
👉 Result: Theoretical service radius becomes invalid, and real coverage shrinks.
Ignoring Construction Rhythm Changes and Supply Imbalance
Key influencing factors:
Multiple asphalt pavers working in parallel.
Section switching during construction.
Night-time work windows.
Weather interruptions.
✔ Common issues:
Overproduction → material stockpiling.
Underproduction → material shortage.
Poor coordination → high idle rate.
👉 Core problem: The system does not include construction rhythm in planning.
Overexpanding Service Radius Leads to Quality Loss
When transport time exceeds 120 minutes:
Mix temperature drops.
Compaction density decreases.
Pavement void ratio increases.
✔ Industry data:
Every +10 km increases temperature loss by 1–3°C.
Beyond 120 minutes, quality risk increases sharply.
Transport cost may rise by 20%–80%.
👉 Key conclusion: Coverage should not aim for maximum distance, but for a controllable quality range.
No Planning for Future Expansion
Typical problems:
New sections exceed original coverage capacity.
Asphalt plant capacity cannot be upgraded easily.
Plant locations cannot expand.
Additional plants are required, increasing duplicated investment.
✔ Real consequences:
Secondary investment increases by 30%–100%.
Dispatch system must be redesigned.
Original plant utilization drops.
👉 Core issue: The system is not designed for network-level expansion.
✔ Final Decision Logic: Successful coverage planning = building a stable balance between cost, time, and quality, rather than maximizing coverage distance.
How to Select the Right Asphalt Plant Solution Based on Project Coverage Requirements?
In real engineering planning, asphalt plant selection should not rely only on capacity or price. It must consider four key factors: coverage range, construction rhythm, transport conditions, and project structure. Different project scales need different solutions. Small projects focus on flexibility, highway projects focus on continuous supply, and EPC projects require coordinated multi-plant systems. Therefore, the right approach is not simply choosing a machine, but building a complete supply coverage system.
Matching Model Between Project Coverage and Asphalt Plant Solutions
| Project Scale | Coverage Radius | Recommended Solution | System Structure | Core Objective |
|---|---|---|---|---|
| Small projects | 10–50 km | Small / mobile asphalt plant | Single-plant system | Flexible supply |
| Medium road projects | 30–80 km | Medium stationary asphalt plant | Single plant + transport optimization | Cost efficiency |
| Large highway projects | 50–120 km | Medium-large asphalt plant | Dual-plant coordination | Continuous supply |
| Multi-section EPC projects | 80–150+ km | Multi-plant + mobile asphalt plant combination | Networked supply system | Global dispatch |
Small Project Solution: How to Achieve Stable Coverage at Low Cost?
Small projects usually have:
Small workload.
Short construction period.
Single construction section.
Short transport distance.
✔ Recommended setup:
40–80 TPH small asphalt plant.
Or ALYQ mobile asphalt plant.
Single-plant supply mode.
✔ Coverage characteristics:
Economic radius: 10–50 km.
Transport time: ≤60–90 min.
Daily demand: <3,000 t/day.
✔ Core goal: Achieve fast deployment, fast construction, and fast relocation with minimum investment.
Medium and Large Road Projects: How to Balance Cost and Efficiency?
Medium and large road projects (national highways and urban expressways) are the most common application scenarios.
✔ Project characteristics:
Medium construction duration.
Partially distributed work sections.
Medium to high daily demand.
✔ Recommended solution:
80–160 TPH or 160–240 TPH stationary asphalt plant.
Transport system optimization.
Optional mobile plant support.
✔ Coverage range:
Optimal radius: 30–80 km.
Expandable to 100 km with optimized logistics.
✔ Core goal: Achieve cost-efficient transport while ensuring stable supply.
Highway Projects: How to Achieve Continuous Supply?
In highway projects, the key is not coverage range, but continuity.
✔ Project characteristics:
Multi-section parallel construction.
Long linear projects (50–300 km).
High paving demand (400–800 t/h).
✔ Recommended solution:
160–240 TPH or 240–320+ TPH asphalt plant.
Dual-plant system (main + auxiliary).
Optional mobile plant support.
✔ Coverage structure:
Single asphalt plant: 50–100 km.
Dual asphalt plants: 100–150 km stable coverage.
Network system: 150 km+.
✔ Core goal: Ensure continuous supply with no interruption, no temperature loss, and no downtime.
Global EPC Project Solutions: How to Handle Complex Engineering Conditions?
In overseas EPC or cross-regional projects, standardized solutions are often not enough. Customized system design is required.
✔ Project characteristics:
Multi-region construction.
Complex terrain (mountains, cities, cross-border projects).
Dispersed work sections.
Different climate zones.
✔ Recommended solution:
Central asphalt plant + regional asphalt plants + mobile asphalt plants.
160–320+ TPH main asphalt plant.
Mandatory digital dispatch system.
✔ System structure:
Central supply hub (stable capacity).
Regional sub-plants (reduce transport distance).
Mobile asphalt plants (dynamic support).
✔ Coverage capability:
Standard network: 80–150 km.
Optimized system: 200 km+.
✔ Core goal: Upgrade from a single-plant model to a global supply network system.
✔ Final Decision Logic: Optimal solution = a system configuration that achieves the best balance among transport cost, supply stability, and construction efficiency within the required coverage range.
FAQs About the Service Radius of Asphalt Plants
What Is the Difference Between Service Radius and Transport Radius?
Transport Radius: This refers to the maximum theoretical distance a truck can reach, without considering cost or efficiency limits.
Service Radius: This refers to the actual working range where the plant can supply asphalt with stable quality, controlled cost, and continuous construction flow.
Typical difference:
Transport radius: up to 100–150 km (theoretical capacity)
Service radius: usually 30–80 km (economic optimum)
👉 Key distinction: Transport radius means “can reach,” while service radius means “worth it and stable.”
How to Balance Transport Cost and Asphalt Plant Investment Cost?
Cost structure:
- Plant cost (CAPEX): equipment, civil works, installation.
- Transport cost (OPEX): fuel, trucks, labor, time loss.
- Quality loss cost: rework risk, reduced pavement lifespan.
Plan the Right Service Radius for a More Efficient Asphalt Supply System
The service radius of an asphalt plant is not only a distance measurement but also a key factor affecting plant location, capacity selection, and supply system planning. By evaluating project scale, transport conditions, and construction requirements, contractors can determine the most suitable coverage range for stable and cost-effective asphalt supply. Contact us for a customized asphalt plant solution tailored to your project needs and optimize your overall construction efficiency.
