Concrete pump for sale Canada is to pour concrete by using high pressure. There are three types of concrete pumps on the market, this page will give you detailed introduction so that you will have a better understanding when you choose a pumping machine.
Types of concrete pump Canada

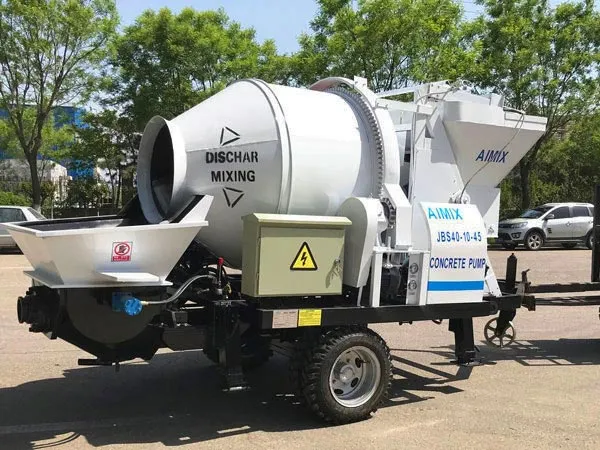

Concrete mixer pump
Mixing pump is a small concrete conveying pump, which adopts a fully automated construction operating system, integrates feeding, mixing and high-pressure pumping. So it is a common equipment in large-scale building construction, bridge construction and tunnel construction. We adopt South Korean and Japanese Kawasaki Heavy Industries, German hydraulic valves, Siemens control systems, and French Schneider Electric. Therefore, the product quality is reliable and the failure rate is extremely low. In addition, it improves the overall reliability of the machine and ensures the safe operation of the mixing pump under harsh conditions.

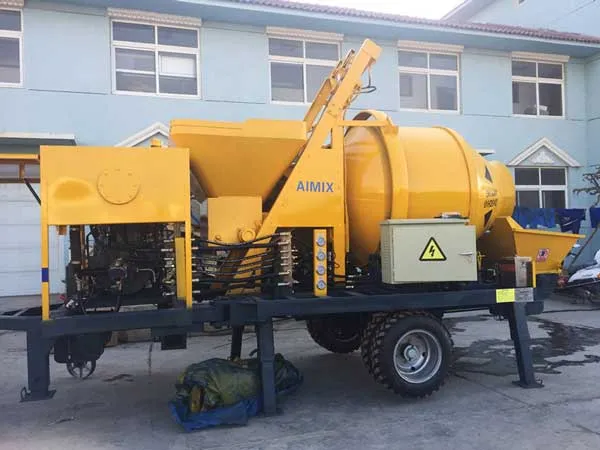

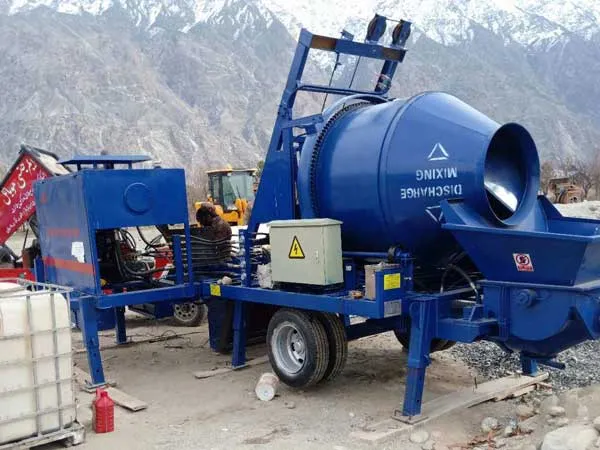

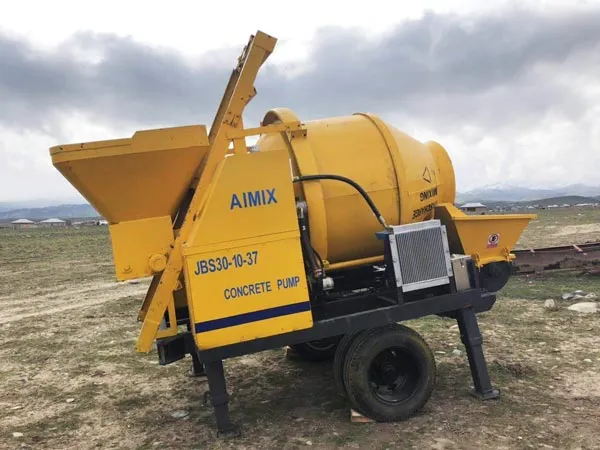

ABJZC series diesel type and ABJZD series electric type
Items: ABJZ30C
Max. theo. concrete output(L./H)(M3/h): 30
Mixer rated feed capacity(m3): 0.56
Mixer rated discharge capacity(m3): 0.35
Max.concrete pumping pressure(H./L.)(MPa): 10
Distribution valve type: S Valve
Winding motor power(KW): Hydraulic motor
Stir the motor power(KW): Hydraulic motor
Water pump motor power(KW): Hydraulic motor
Items: ABJZ40C
Max. theo. concrete output(L./H)(M3/h): 40
Mixer rated feed capacity(m3): 0.56
Mixer rated discharge capacity(m3): 0.45
Max.concrete pumping pressure(H./L.)(MPa): 10
Distribution valve type: S Valve
Winding motor power(KW): Hydraulic motor
Stir the motor power(KW): Hydraulic motor
Water pump motor power(KW): Hydraulic motor
Items: ABJZ30D
Max. theo. concrete output(L./H)(M3/h): 30
Mixer rated feed capacity(m3): 0.56
Mixer rated discharge capacity(m3): 0.35
Max.concrete pumping pressure(H./L.)(MPa): 10
Distribution valve type: S Valve
Winding motor power(KW): 5.5
Stir the motor power(KW): 4.5
Water pump motor power(KW): 0.55
Items: ABJZ40D
Max. theo. concrete output(L./H)(M3/h): 40
Mixer rated feed capacity(m3): 0.56
Mixer rated discharge capacity(m3): 0.45
Max.concrete pumping pressure(H./L.)(MPa): 10
Distribution valve type: S Valve
Winding motor power(KW): 5.5
Stir the motor power(KW): 4.5
Water pump motor power(KW): 0.55
Benefits of concrete mixer and pump
1. Save rack weight and transportation space;
2. With a concrete mixer, it is convenient to transport, can achieve high working efficiency;
3. Save labor cost and reduce labor intensity;
4. Smaller power, take the carrying capacity of the rural power grid into consideration;
5. Simple operation, easy operation, with remote control;
6. The dual-cylinder full hydraulic pumping system can transport conventional large aggregate or crushed stone concrete with stable performance, safety and reliability.

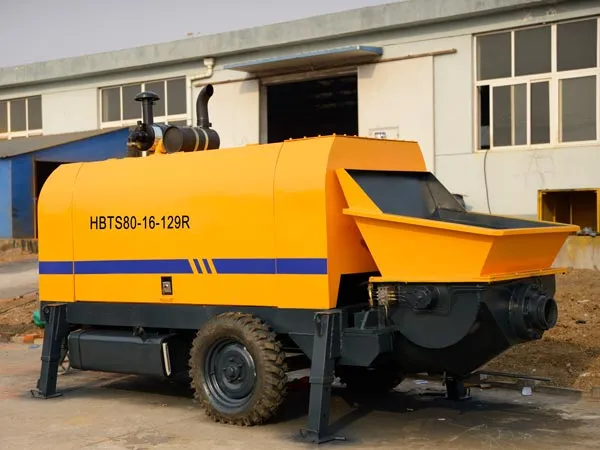

Concrete line pump for sale Canada
There are numerous concrete pump manufacturers in Canada, and AIMIX is located in China, but we have rich experience. AIMIX can supply users ABT series concrete pump machine, this pump can transport concrete with aggregate size above 4cm, with displacement ranging from 40m3/h to 90m3/h. So it is very suitable for conveying concrete or mortar in civil construction, transportation, railway, water conservancy, electric power and national defense projects. In AIMIX, there are two types of concrete pump in Canada for your choice: ABTC series and ABTD series. The former is driven by diesel engine, which is more suitable for remote electric power shortage areas. While the latter is for anywhere. You can make the right choice according to your needs.

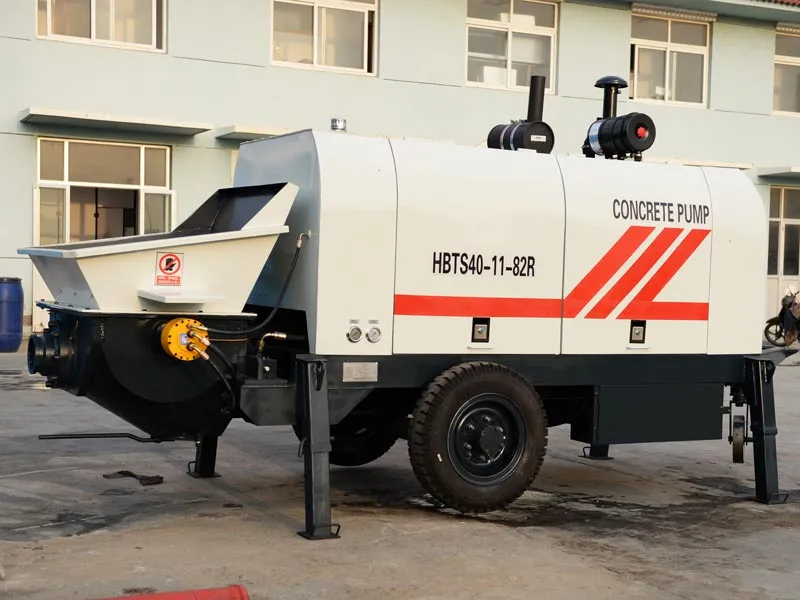

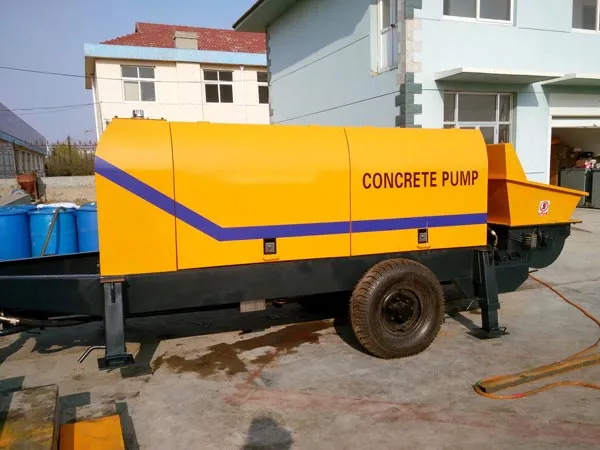

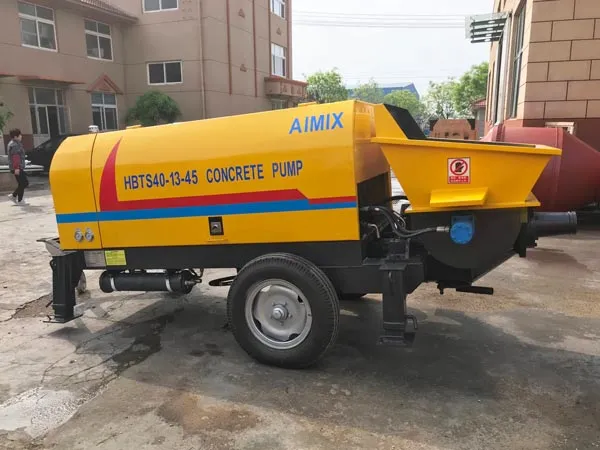

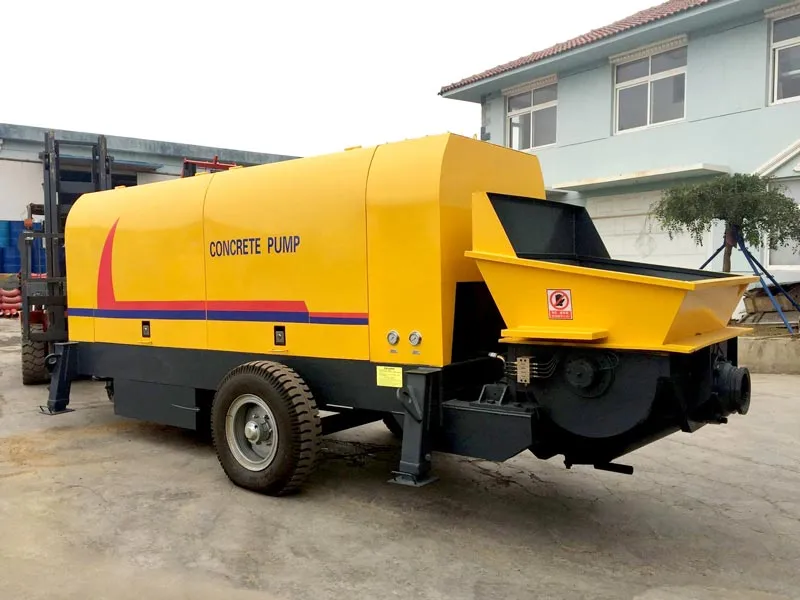

ABTC series diesel type and ABTD series electric type
Max. theo. concrete output(L./H): 40 M3/h
Distribution valve type: S Valve
Max. Theoretical Horizontal Conveying Distance: 500m
Max. Theoretical Vertical Conveying Distance: 120m
Total weight: 4500kg
Max. theo. concrete output(L./H): 60 M3/h
Distribution valve type: S Valve
Max. Theoretical Horizontal Conveying Distance: 800m
Max. Theoretical Vertical Conveying Distance: 180m
Total weight: 6500kg
Max. theo. concrete output(L./H): 80 M3/h
Distribution valve type: S Valve
Max. Theoretical Horizontal Conveying Distance: 800m
Max. Theoretical Vertical Conveying Distance: 200m
Total weight: 6900kg
Max. theo. concrete output(L./H): 40 M3/h
Distribution valve type: S Valve
Max. Theoretical Horizontal Conveying Distance: 500m
Max. Theoretical Vertical Conveying Distance: 120m
Total weight: 3200kg
Max. theo. concrete output(L./H): 60 M3/h
Distribution valve type: S Valve
Max. Theoretical Horizontal Conveying Distance: 800m
Max. Theoretical Vertical Conveying Distance: 160m
Total weight: 6500kg
Max. theo. concrete output(L./H): 80 M3/h
Distribution valve type: S Valve
Max. Theoretical Horizontal Conveying Distance: 800m
Max. Theoretical Vertical Conveying Distance: 200m
Total weight: 6300kg
Advantages of concrete line pump for sale in Canada
1. Main oil pump adopts well-known variable piston pump with high rated pressure; the valve group is American Eaton or Beijing Huade, with stable and reliable quality.
2. The whole series adopts electronically controlled hydraulic system, the system is simple and clear, and the maintenance is convenient.
3. Hydraulic system adopts electric control, the system is mature and concise, the failure rate is low. Stable and reliable oil pumps and valves from well-known brands at home and abroad are used.
4. Air-cooled and water-cooled dual cooling systems ensure that the equipment can work normally even in extremely hot weather (temperature above 40).
5. Diesel engine concrete pump in Canada for sale has remarkable characteristics such as reliable performance, smooth transportation, and strong pumping capacity.

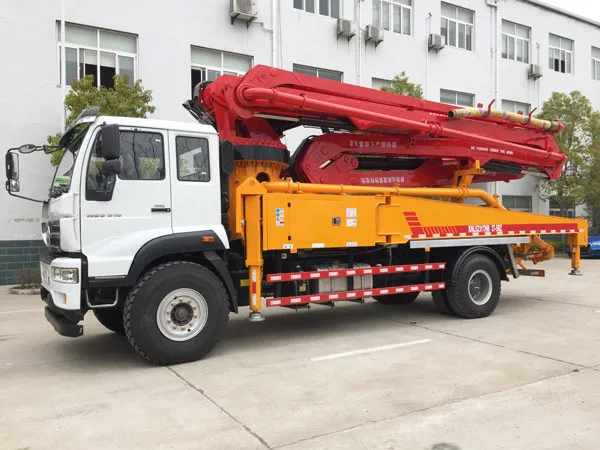

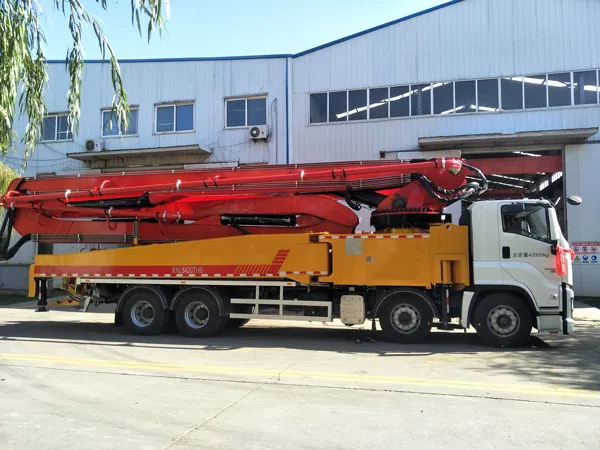

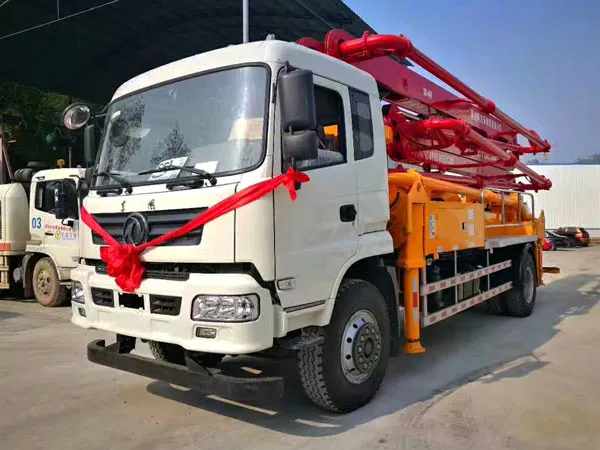

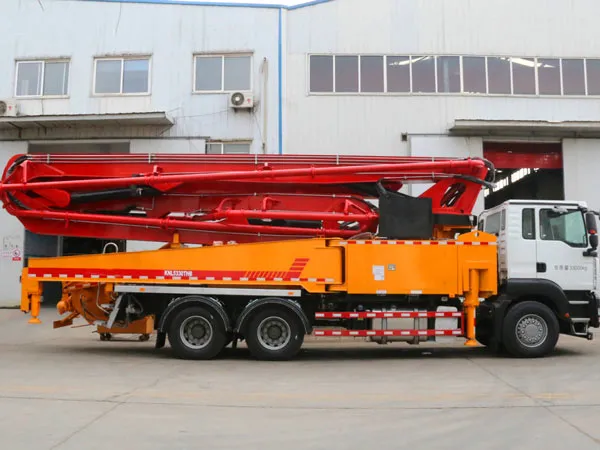

Concrete pump truck for sale in Canada
Boom truck for sale Canada is transformed on the chassis of the truck. It is equipped with movable and power transmission devices, pumping and mixing devices, distribution devices and other auxiliary devices on the chassis. The power of the concrete pump trucks for sale in Canada transmits the power of the engine to the hydraulic pump or the rear axle through the power transfer box. The hydraulic pump pushes the piston to drive the pump. Then use the concrete placing boom and delivery pipe on the pump truck to transport the concrete to a certain height and distance.
Max. aggregate dimension(mm):40
Recommended concrete slump(cm):12~23
Distribution valve: S valve
Slewing angle: ±270°
Engine power(KW):199
Max. aggregate dimension(mm):40
Recommended concrete slump(cm):12~23
Distribution valve: S valve
Slewing angle: ±270°
Engine power(KW):199
Max. aggregate dimension(mm):40
Recommended concrete slump(cm):12~23
Distribution valve: S valve
Slewing angle: 540°
Engine power(KW):297
Max. aggregate dimension(mm):40
Recommended concrete slump(cm):12~23
Distribution valve: S valve
Slewing angle: 540°
Engine power(KW):297
Advantages of concrete pump truck for sale Canada
1. High standard safety and reliability: the main structure is made of imported high-strength steel plate, the placing boom adopts vibration damping technology, protected unilateral operation support, anti-tipping control technology, patented “SN” flexible commutation technology, etc., can provide comprehensive, high-standard safety and reliability.
2. High pumping efficiency: AIMIX series of boom trucks for sale in Canada use ultra-large displacement pumping technology, which can greatly reduce the pumping frequency, improve suction efficiency, and reduce the loss of related components.
3. Easy operation and maintenance. AIMIX series pump trucks use 19 patented technologies such as automatic piston return, automatic stirring back stirring, intermediate ring and piston rod easy disassembly, easy operation, and greatly reduce maintenance costs.
Above all is the introduction about three hot types concrete pump for sale Canada, and they have their own advantages and disadvantages. You need to combine the practical condition and choose an ideal type. If you have any questions, contact us, we will give you professional reply.
