Mini asphalt plants for sale play a crucial role in modern road and bridge construction industry. Despite their compact size, these units boast powerful capabilities, catering to projects of various scales. Whether for urban road repairs or rural highway constructions, mini asphalt mixing plants efficiently meet the task at hand. Their typical production capacities range from 10 to 80 tons per hour. Mini asphalt mixing plant price ranges from $50,000 to 370,000. In the following sections, AIMIX will delve into every aspect of mini asphalt plant.
Types of Mini Asphalt Mixing Plant
Mini asphalt mixing plants are classified into stationary and mobile types based on their installation and usage scenarios. Each type can be further subdivided according to their mixing methods, primarily comprising stationary type mini asphalt batch plant, stationary type mini asphalt drum mix plant, mobile mini asphalt batch plant, and mobile mini asphalt drum mix plant. Let’s delve into them together!

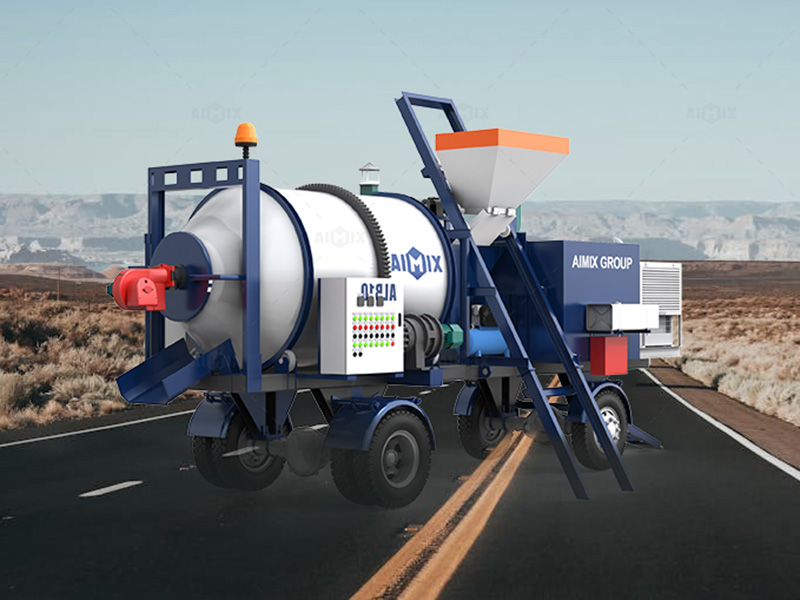

Convenient Mobile Mini Asphalt Batch Plants for Sale – Easy to Install, Move, and Disassemble
Choosing a convenient asphalt plant means flexibility. This type of asphalt plant comes with wheels, allowing free movement. The mini portable asphalt plant can be installed or disassembled within a day. If you have multiple construction sites, this mini mobile asphalt mixing plant is your ideal choice.
- Temporary road construction projects: Ideal for short-term projects due to its quick installation and disassembly.
- Multiple site projects: For projects with several locations, this plant can move quickly between sites, boosting efficiency.
- Emergency repair projects: In urgent repair situations, this plant can be quickly deployed to meet immediate needs.
Advantages of this mobile mini asphalt mixing plant include:
Quick installation and disassembly: No need for complex infrastructure, setup or takedown in one day.
High flexibility: Equipped with wheels for easy movement, adapting to various construction environments.
Cost savings: Reduces transportation and infrastructure costs due to its mobility.
Efficient production: Despite its compact size, it delivers high-quality asphalt mix, meeting diverse construction needs.
| Model | ALYJ10 | ALYJ15 | ALYJ20 | ALYJ30 | ALYJ40 | ALYJ60 | ALYJ80 | |
|---|---|---|---|---|---|---|---|---|
| Capacity | 10 t/h | 15 t/h | 20 t/h | 30 t/h | 40 t/h | 60 t/h | 80 t/h | |
| The ability to | Petrol | 48kw | 59kw | 68kw | 106kw | 132kw | 146kw | 186kw |
| Burning coal | 67kw | 78kw | 91kw | 129kw | 170kw | 192kw | 262kw | |
| Cold Aggregate Hoppers | 3m³×3 | 3m³×3 | 3m³×3 | 5m³×3 | 5m³×3 | 5m³×3 | 5m³×4 | |
| Finished Product Hopper | 2t | 5t | 5t | 9t | 9t | 9t | 20 t | |
| Asphalt Temperature | 120-180 ℃ | |||||||
| Fuel consumption | Petrol | 5-7.5kg/t | ||||||
| Burning coal | 13-15kg/t | |||||||
| Option | Water dust filter, Bag dust filter, Control room, Asphalt heat tank, Mineral flour tank | |||||||

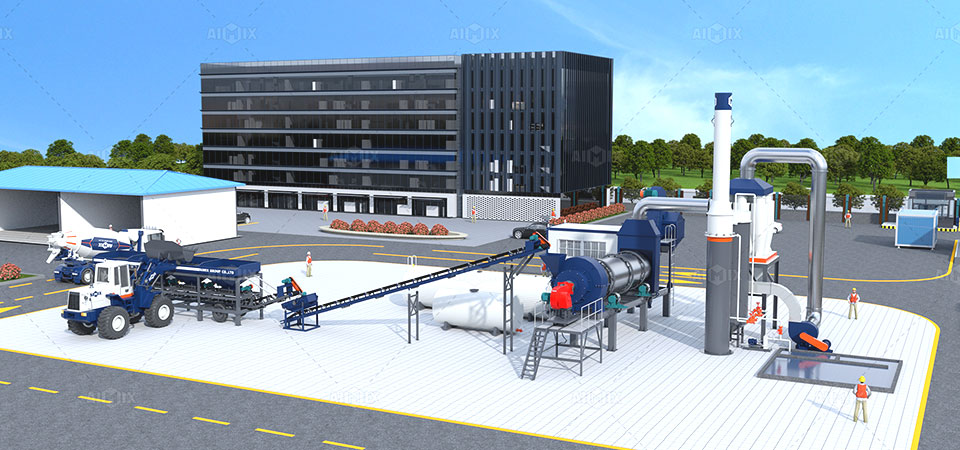

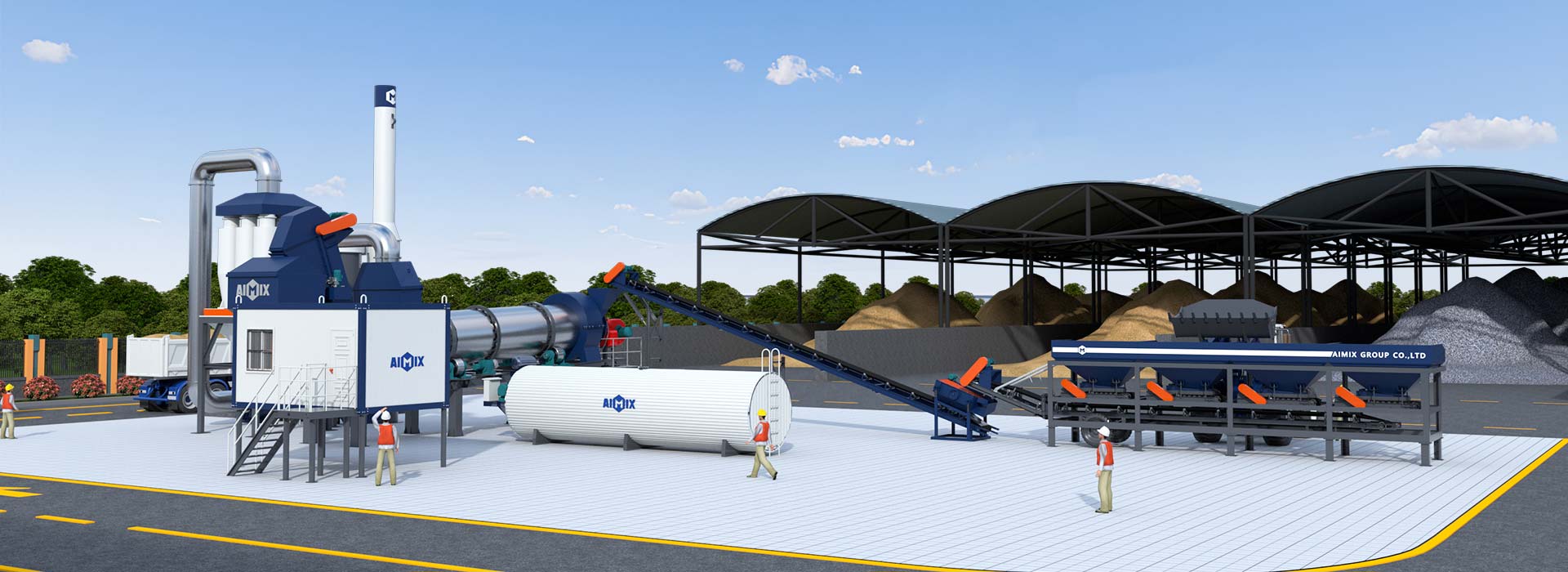

Stationary Mini Asphalt Drum Mixing Plant
- Strong stability: This asphalt plant’s design allows stable operation in different conditions, ensuring construction process continuity and reliability.
- Low maintenance costs: The gentle mixing process reduces equipment wear, thereby decreasing the frequency and cost of maintenance and repairs.
- Easy operation: The simple operation interface and intuitive control system enable operators to quickly get started, improving work efficiency.
- Environmental protection and energy saving: Drum mixing plants produce less noise and dust pollution than forced mixing equipment, making them more eco-friendly.
- Cost-effectiveness: Stationary mini drum mix plants offer cost-effectiveness with stability, low maintenance costs, and wide applicability.
| Courts Models | ALT20 | ALT40 | ALT60 | ALT80 |
|---|---|---|---|---|
| Capacity | 20 t/h | 45 t/h | 60 t/h | 80 t/h |
| The ability to | 40kw | 75kw | 120kw | 165kw |
| Cold Aggregate Hoppers | 3.5m³×1 | 4m³×4 | 4m³×4 | 6.5m³×4 |
| Finished Product Hopper | 3t | 3t | 7t | 7t |
| Asphalt Temperature | 120-180 ℃ | 120-180 ℃ | 120-180 ℃ | 120-180 ℃ |
| Fuel consumption | 13-15kg/t | 13-15kg/t | 13-15kg/t | 13-15kg/t |
| Asphalt Tank | 10 t | 20 t | 30 t | 30 t |
| Control room | 2.2m | 2.2m | 3m | 3m |
| Option | Bag dust filter | Bag dust filter | Bag dust filter | Bag dust filter |

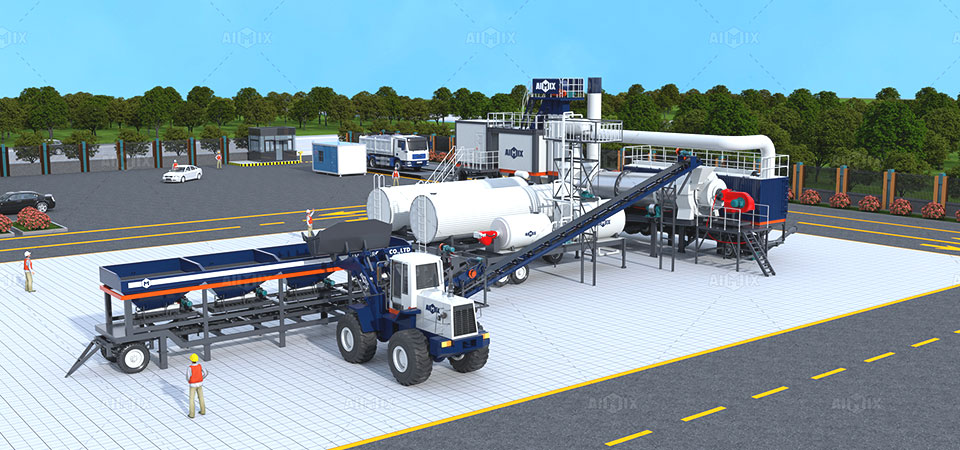

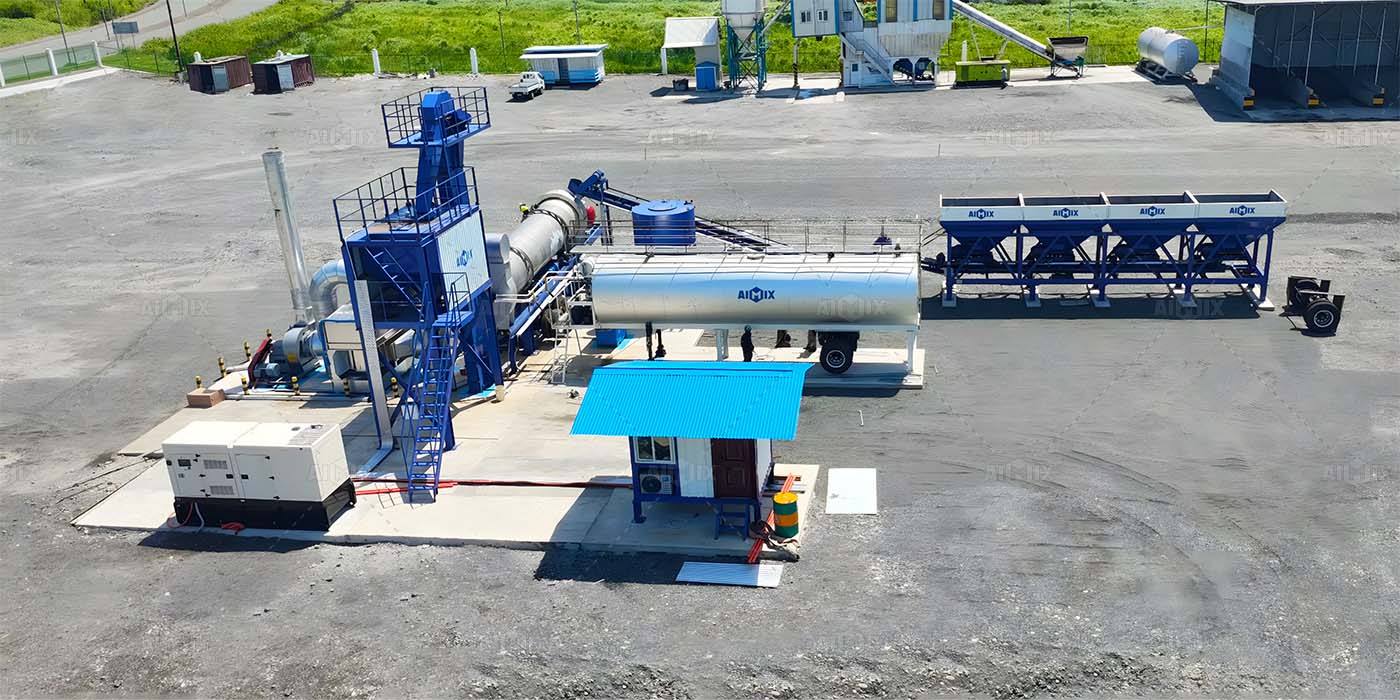

Mobile Mini Asphalt Drum Mix Plant
Mobile mini drum mix plants, a portable option among small asphalt mixing plants, offer several advantages and applications:
Lightweight and Flexible
These plants are lighter and more flexible compared to stationary plants, making them ideal for small projects and short-term construction needs.
Simple Operation and Quick Installation
Mobile drum mixing plants feature simple operation and quick installation. They can be swiftly deployed to construction sites, reducing preparation time effectively.
High Adaptability
These plants adapt quickly to various construction demands. They can easily adjust asphalt mix formulations to meet different project requirements.
Cost-Effective
Mobile asphalt drum mix plants excel in cost-effectiveness, making them suitable for small projects and short-term operations with limited budgets.
Wide Applications
Due to their convenient transport and installation, mobile asphalt drum mix plants are widely used temporary road repairs and small-scale projects.
| Model | ALYT20 | ALYT40 | ALYT60 | ALYT80 |
|---|---|---|---|---|
| Asphalt Tank | 10t | 20t | 30t | 30t |
| Asphalt Temperature | 120-180℃ | 120-180℃ | 120-180℃ | 120-180℃ |
| Cold Aggregate Feeding System | 3.5m³×1 | 4m³×4 | 4m³×4 | 6.5m³×4 |
| Finihsed Asphalt Storage Bin | 2m³ | 2.5m³ | 4.5m³ | 5m³ |
| Fuel Consumption(Burning Coal) | 13-15kg/t | 13-15kg/t | 13-15kg/t | 13-15kg/t |
| Fuel Consumption(Fuel Oil) | 5-7.5kg/t | 5-7.5kg/t | 5-7.5kg/t | 5-7.5kg/t |
| Option | bag dust collector / water dust collector | bag dust collector / water dust collector | bag dust collector / water dust collector | bag dust collector / water dust collector |
| Output | 20t/h | 45t/h | 60t/h | 80t/h |
| Power | 34kw | 65kw | 105kw | 135kw |
| Whole Plant Option | whole mobile / semi-mobile / fixed | whole mobile / semi-mobile / fixed | whole mobile / semi-mobile / fixed | whole mobile / semi-mobile / fixed |
Stationary Mini Batch Type Asphalt Plant
A stationary mini batch type asphalt plant is ideal for long-term projects requiring moderate amounts of asphalt mixtures. The mini batch type asphalt plant features efficient mixers and blending units, quickly and uniformly producing high-quality asphalt. Known for their stability and high production efficiency, stationary mini asphalt plants are perfect for projects with stringent asphalt quality requirements.
Key advantages
- Efficient Production: Quickly and uniformly produces asphalt mixtures.
- High Stability: The stationary design suits long-term construction, reducing time spent on moving and reinstalling equipment.
- High Quality: Strictly controls each production stage to ensure high-quality asphalt mixtures.
- Energy-Efficient and Eco-Friendly: Advanced environmental and energy-saving technologies minimize environmental impact.
User-Friendly Operation: Simple and easy-to-use systems improve work efficiency.
These plants are widely used in medium and small road projects, town street construction, community parking lots, and rural roads, making the stationary asphalt plant the ideal choice for these projects.
| Model | ALQ40 | ALQ60 | ALQ80 |
|---|---|---|---|
| Capacity | 40 t/h | 60 t/h | 80 t/h |
| Cold Aggregate Hoppers | 4×4.5m³ | 4×6.5m³ | 4×7.5m³ |
| Dryer Size | φ1.2m×5.2m | φ1.5m×6m | φ1.5m×6.7m |
| Fuel consumption | 70-300kg / h | 100-400kg / h | 120-600kg / h |
| Vibrating Screen (Layer) | 4 layers | 4 layers | 4 layers |
| Mixer Capacity | 500kg | 800kg | 1000kg |
| Cycle Time | 45s | 45s | 45s |
| Filter Area | 230m² | 300m² | 420m² |
| Asphalt Temperature | 140-180 ℃ | 140-180 ℃ | 140-180 ℃ |
| Total Power | 170kw | 200kw | 300kw |

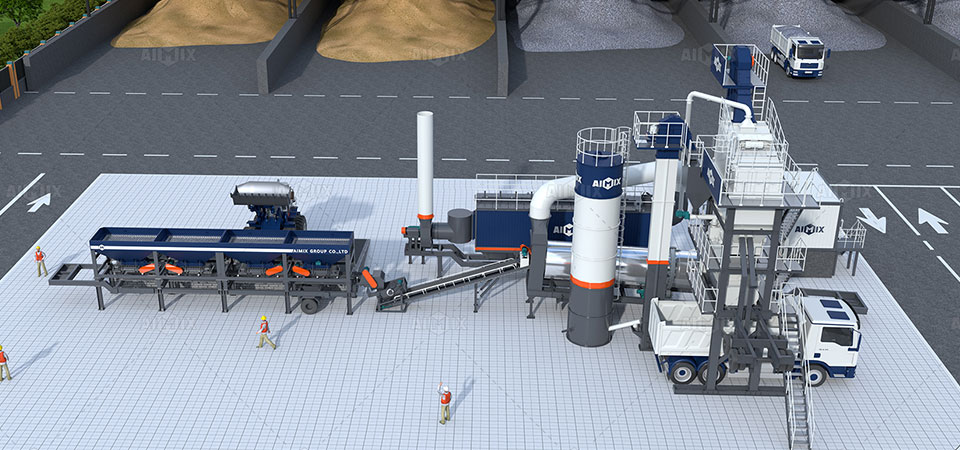

Mobile Asphalt Batch Plant
- Mobile type mini asphalt batching plant are highly mobile and flexible, ideal for frequent relocation and temporary construction projects.
- The mobile mini hot mix plant equipped with powerful mixing and blending equipment, enabling rapid startup and production of high-quality asphalt mixtures.
- Offering significant advantages in construction efficiency and flexibility, this mini mobile asphalt batch plant is preferred for temporary construction and rapid response projects.
| Model | ALYQ60 | ALYQ80 | |
|---|---|---|---|
| Capacity | t / h | 60 | 80 |
| Mixer capacity | kg | 800 | 1200 |
| Mixing cycle | s | 45 | 45 |
| Total power | Gasoline(kW) | 54 | 63.5 |
| Coal(kW) | 75 | 86.5 | |
| filter area | m2 | 370 | 420 |
In summary, stationary and mobile mini asphalt mixing plants offer distinct advantages, allowing construction firms to select the most suitable option based on specific project requirements and operational environments. If you have any other need about large asphalt mixing plant, click it to see more.
Mini Asphalt Plant Cases
Model: Stationary mini asphalt batch plant
Capacity: 80 t/h
Project Type: Road Infrastructure Construction
Project Scope: Maintenance of urban and rural roads
Model: Stationary mini asphalt batch plant
Capacity: 60 t/h
Project Type: Urban Road Construction
Project Scope: Road Construction and Maintenance

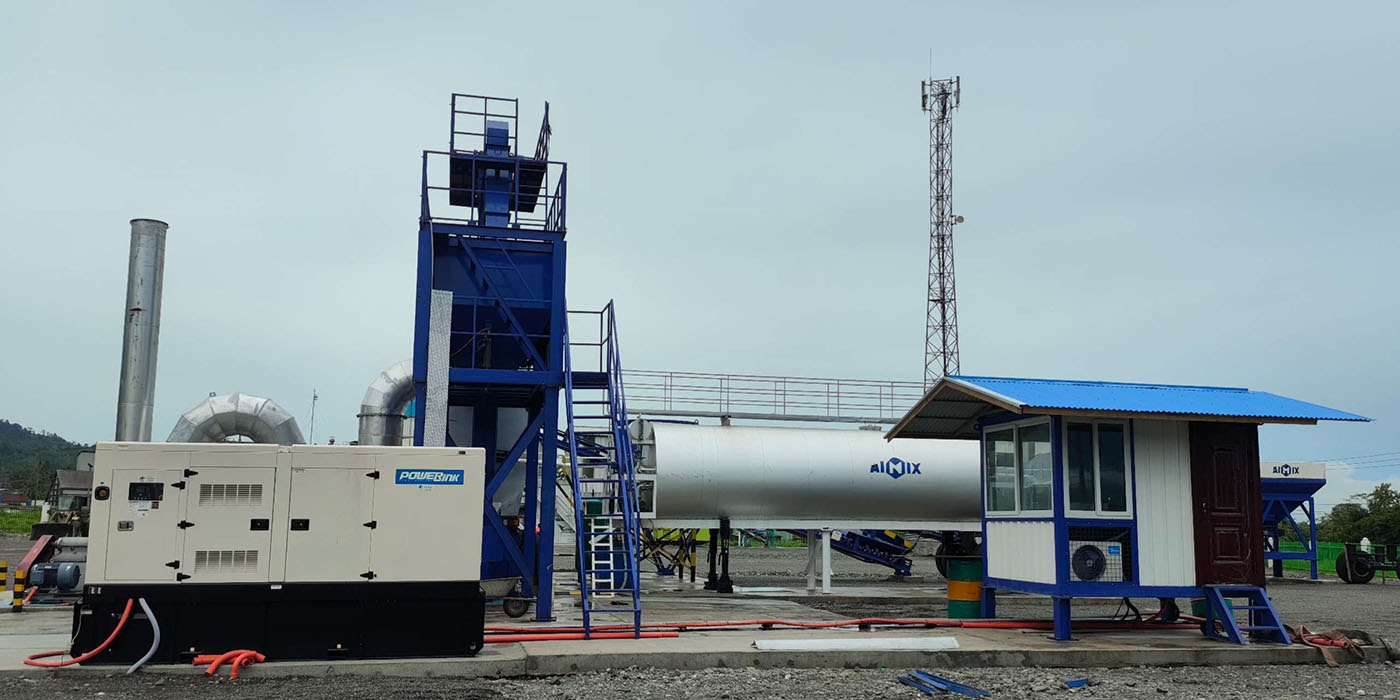

Model: Mobile Mini Drum Mix Plant
Capacity: 40 t/h
Project Type: Road Infrastructure Enhancement
Project Scope: improving and maintaining vital road networks
Model: Stationary mini asphalt batch plant
Capacity: 80 t/h
Project Type: Road Construction
Project Scope: Road Construction and Repairment
Model: Mobile Mini Drum Mix Plant
Capacity: 120 t/h
Project: Guatemala National Highway Project
Location: Guatemala City to Southern Ports
Mini Asphalt Plant Application
Local Road Construction
Mini asphalt plant for sale is perfect for small road construction projects in rural and suburban areas. They move quickly, saving time and mini asphalt plant costs.
Street and Road Maintenance
Use them to fill potholes, update asphalt layers, and apply sealants. Their compact design allows efficient work in narrow urban areas.
Parking Lots/Playing Fields
Ideal for paving parking lots and playing fields, they produce durable asphalt to meet high-usage demands.
Road Resurfacing
Mini asphalt plants are great for resurfacing existing roads. Their mobility reduces traffic disruption and speeds up project completion.
Urban/Tight Space Building
They can work flexibly in urban areas and tight spaces, minimizing impact on the environment and traffic.
Small Projects/Specific Needs
Suitable for private roads, farm roads, and industrial zones, mini hot mix plants offer economical and effective solutions.
How to Choose the Right Mini Asphalt Plants for Sale
Project Scale Assessment
Based on your construction project’s scale, leave a message on our website detailing your project size. We will recommend the most suitable stationary or mobile mini asphalt plants for sale.
Auxiliary Equipment Conditions
Consider the requirements for auxiliary equipment to ensure the mini asphalt plant’s specifications and design dimensions are adequate.
Asphalt Quantity and Quality Needs
Based on your asphalt quantity and quality requirements, the classifications provided above clearly outline the features of each type of mini asphalt mixing plant. This allows you to choose a plant that closely aligns with your needs.
Construction Flexibility Considerations
Depending on your construction needs, opt for a mini stationary asphalt mixing plant for longer production periods. Alternatively, choose a mini mobile asphalt plant if you require mobility between multiple project sites. The ability to install and dismantle the plant within a day offers convenient deployment flexibility.
By following this guide, you can systematically and effectively choose the right asphalt mixing plant mini that best suits your project needs, ensuring smooth operations and maximizing your return on investment.
Mini Asphalt Plant FAQs
How is the cost-effectiveness of the mini asphalt plants for sale?
AIMIX’s small asphalt mixing plants are carefully designed with precise technical parameters for efficient and stable production. Our prices are reasonably set, considering equipment quality, performance, and long-term maintenance costs, ensuring excellent value for customers.
Is the mini asphalt plant convenient for transportation? Is it suitable for mobile use?
AIMIX’s small asphalt mixing plants feature an advanced modular design for easy disassembly and assembly, simplifying transportation.
The equipment offers excellent mobility, making it ideal for frequently relocating engineering projects and adapting to various construction environments.
What aspects should be paid attention to in routine maintenance?
AIMIX provides detailed routine maintenance guidelines to ensure customers can easily maintain their equipment and prolong its lifespan.
Our professional team is always on standby to provide maintenance support and advice.
Do you provide operation and maintenance training?
AIMIX emphasizes customer training, offering comprehensive operation and maintenance courses to ensure customers can operate the asphalt batching plant skillfully and safely.
What is the quality of the mini asphalt mixing station?
As an industry-leading brand, AIMIX consistently adheres to high-quality standards, ensuring every piece of equipment leaving the factory meets excellent quality levels.
Do you provide after-sales service and technical support?
AIMIX offers comprehensive after-sales service and technical support. Our professional team responds to customer needs promptly, ensuring stable equipment operation.
How to deal with mini asphalt plant equipment failures?
In case of equipment malfunction, AIMIX’s after-sales service team quickly intervenes, providing professional troubleshooting and repair services to ensure uninterrupted customer production.
What are the specific requirements for the installation site?
AIMIX equipment is designed for flexibility, adapting to various installation site requirements. Our team provides professional site planning and recommendations.
Does the mini asphalt mixing station meet environmental requirements?
AIMIX understands the importance of environmental protection. Our small asphalt mixing plants strictly comply with environmental standards, utilizing advanced dust removal and noise reduction technologies to ensure a green and environmentally friendly production process.
By choosing AIMIX, you are not just selecting a high-performance asphalt plant but also a trustworthy partner. We are committed to providing our customers with excellent products and services, supporting the success of your projects.
Prepare Before Installation Of Mini Asphalt Plants For Sale
- One 20-ton truck crane, One complete set of locksmith’s regular tools
- One complete set of electrician’s regular tools, One theodolite
- One set of adjustable spanners, One set of spanners
- Two pipe wrenches, An 8-pound hammer, Four crowbars
- Two sets of wire ropes and saddles, A steel tape measure, Six safety belts
- Sixteen hard hats, Two electric welding machines
- One organizer to oversee the entire installation process, Two electricians for electrical work
- Two technicians, including one mechanical engineer and one electrical engineer, to handle technical issues
- Two lifting workers for heavy lifting tasks, Two electric welders for welding jobs
- One pipe fitter to handle piping and fittings, Ten installers to carry out the actual installation work
Machines and Tools Required
Personnel Needed
With careful planning, we can ensure the orderly installation of the mini asphalt plant. From tool preparation to staffing, every step has been meticulously planned. We believe this preparation will pave the way for a successful installation, ensuring efficient operations at the mini hot mix plant.
Installation Check and Acceptance of Mini Asphalt Mixing Plant
Foundation Inspection
Before commencing installation of the mini asphalt mixing plant, it is crucial to review the concrete foundation test report. Ensure the concrete has achieved the designed strength before organizing the plant installation. The horizontal error tolerance on the concrete foundation surface should not exceed 0.5 millimeters, and it should be elevated at least 150 millimeters above natural ground level with proper drainage measures in place.
Component Verification
Thoroughly inspect all components of the mini asphalt mixing plant for sale, including structural welding lines, bolts, pin shafts, guide wheels, steel wire ropes, hooks, lifting devices, hydraulic climbing systems, and electrical equipment. Promptly address any identified issues.
Electrical Equipment Check
Examine the switch boxes and power supply lines of the electrical equipment to ensure safe power supply during operation.
Safety Equipment Inspection
Verify the adequacy of safety protective equipment used during installation to meet operational requirements. Address any deficiencies immediately to guarantee equipment and operational safety.
Site Management
Maintain cleanliness and orderliness at the installation site throughout the mini asphalt plant installation process. Establish operational area warning lines and designate personnel to monitor and prevent unauthorized access, ensuring operational safety.
Weather Considerations
Plan the installation during clear weather conditions and avoid operations during rain, strong winds, or foggy weather. Cease operations promptly if weather conditions deteriorate unexpectedly.
By following these organized steps and leveraging AIMIX’s comprehensive service commitment, you can ensure a smooth installation process for your mini asphalt mixing plant for sale, maximizing operational safety and equipment performance stability.
Choose AIMIX, Get All in One Service
For customers purchasing the mini asphalt plant sale, AIMIX provides comprehensive and professional support services. As a professional asphalt plant supplier, we are waiting for you at any time. Here is a detailed summary of AIMIX’s support services:
Technical Support and Consulting
AIMIX offers comprehensive technical support to customers, including equipment installation, debugging, and technical consulting during operation.
Customers can consult AIMIX’s technical team at any time to ensure the smooth operation and efficient use of the equipment.
Customized Services
Based on specific customer needs, AIMIX provides customized mini asphalt plants to meet the actual usage requirements of different markets and customers.
Training and Guidance
AIMIX provides operation and maintenance training to customers, ensuring they can proficiently master equipment operation skills and improve equipment efficiency.
After-sales Service and Maintenance
AIMIX has a professional after-sales service team that provides equipment troubleshooting and maintenance services.
In case of equipment failure, customers can promptly contact AIMIX’s after-sales service team for a quick response and solution.
Spare Parts and Accessories Support
AIMIX supplies necessary spare parts and accessories for the equipment, ensuring timely replacements and reducing equipment downtime.
Customs Clearance Service
For customers with no import experience, AIMIX provides services in cooperation with local customs clearance companies to assist customers in smoothly completing customs clearance procedures, reducing difficulties and risks during the import process.
In summary, AIMIX offers a full range of specialized support services to customers purchasing the mini asphalt plant for sale. These services ensure customers can smoothly purchase, install, and operate the mini asphalt plants for sale while receiving continuous and stable technical and service support from AIMIX. Therefore, choose us and win-win cooperation.
Conclusion
In the road and bridge industry, where efficiency and cost-effectiveness are crucial, mini asphalt plants for sale stand out as an indispensable solution. These compact, yet powerful, units offer on-site asphalt production, significantly reducing transportation costs and ensuring timely project completion. Aimix Group, as one of a renowned mini asphalt plant manufacturers, has our own mini asphalt plant factory. Thererfore, we can provide top-tier aspal mixing plant mini backed by reliable support, making us the ideal choice for your asphalt production needs.
Contact us today to discover how our plants can elevate your projects and drive success. Unlock the full potential of your operations with Aimix Group – inquire about our mini asphalt plant prices and take the first step towards a smoother, more profitable future. Get the asphalt plant prices now!
