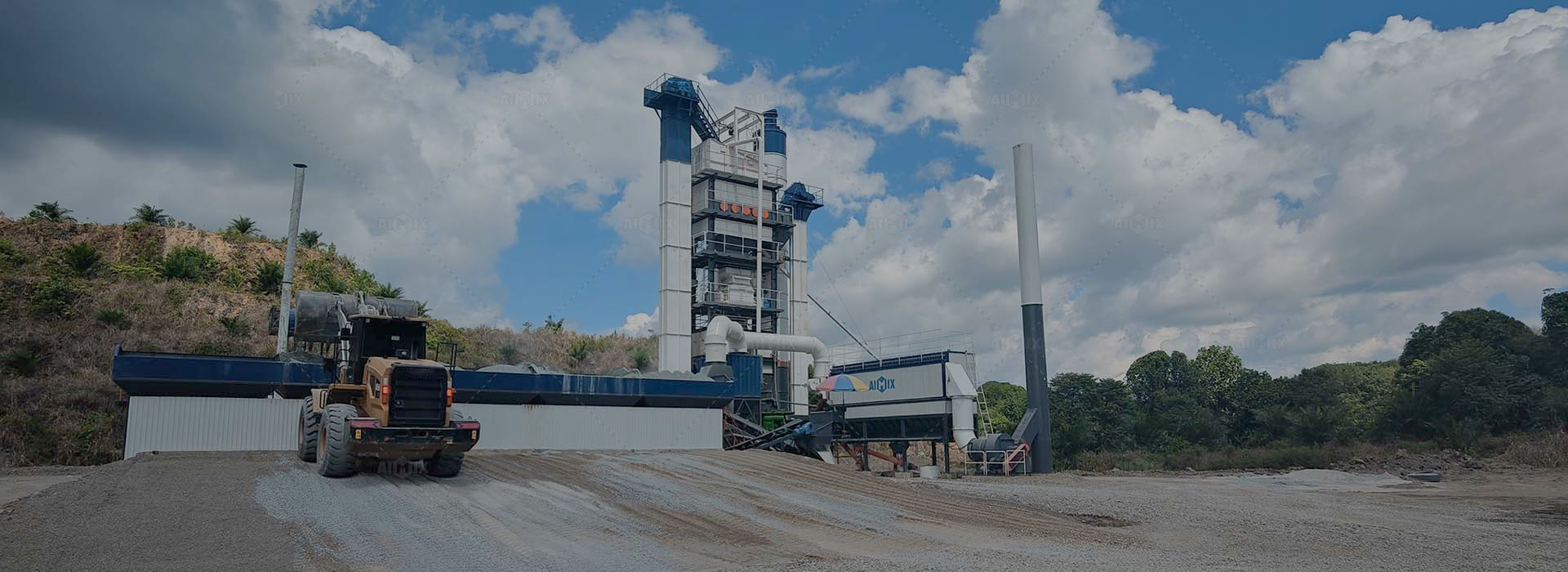

Asphalt Plant is essential for producing asphalt concrete in road projects in Malaysia. From Kuala Lumpur city roads to Penang street upgrades and rural roads in Sabah and Sarawak, the right asphalt plant boosts efficiency, quality, and cost control. AIMIX, with an office in Puchong, Selangor, provides asphalt plants tailored for Malaysian cities, ensuring every road project runs smoothly.
Capacity: 10-400TPH
Types: Batch/Drum/Mobile Options
Climate-adapted | Eco-friendlyHow Our Asphalt Plants Support Malaysian Road Projects
Leading companies in Malaysia rely on AIMIX for reliable, high-capacity asphalt production. From busy streets in Kuala Lumpur to rural roads in Sabah and Sarawak, our asphalt plants help teams deliver high-quality asphalt efficiently and on schedule. These projects show how our asphalt plant transformed a local road project, boosting productivity and ensuring consistent results.

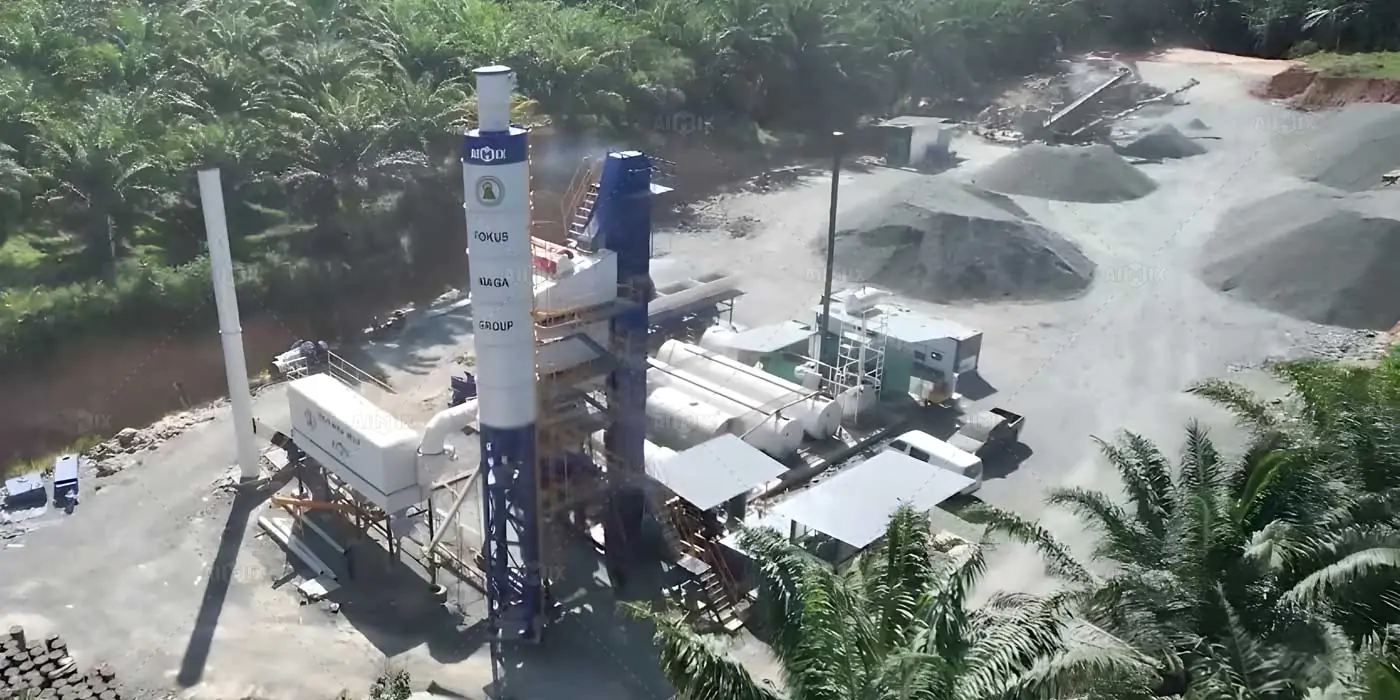

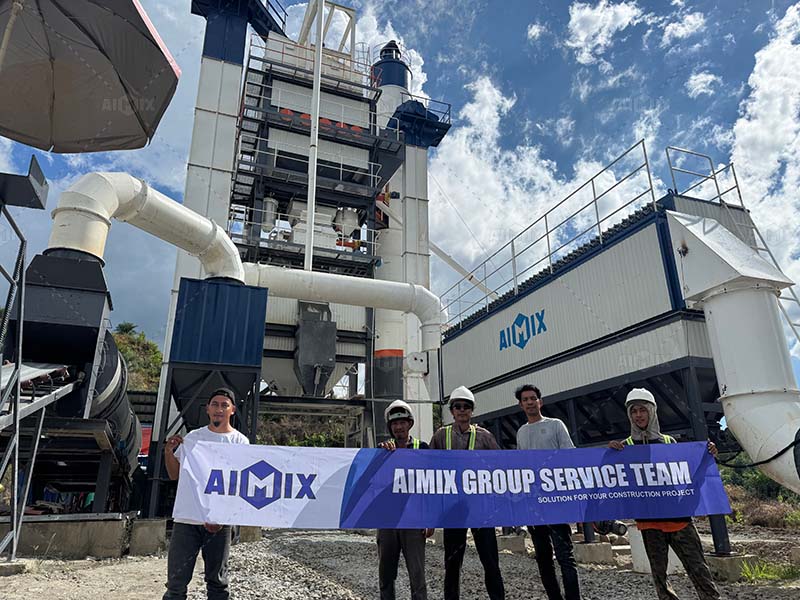

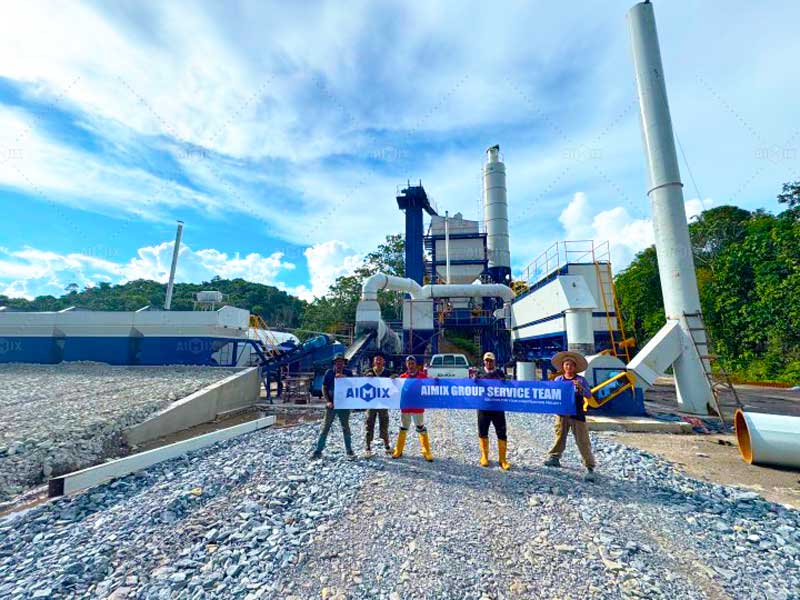

120TPH Asphalt Batch Plant in Kota Kinabalu
120TPH Batch Asphalt Plant in Baling
120TPH Asphalt Batch Plant in Kudat

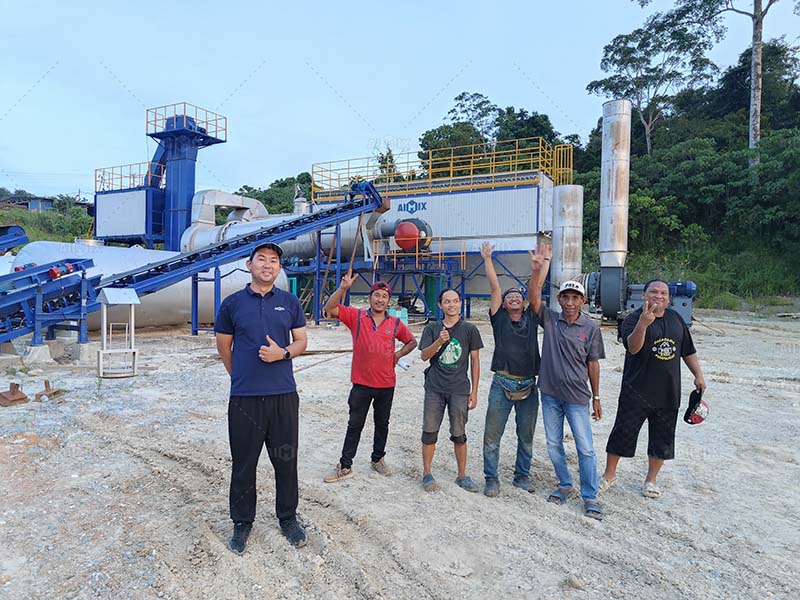

120TPH Asphalt Drum Mix Plant in Sandakan
With proven performance in real Malaysian projects, our asphalt mixing plant in Malaysia can deliver reliability, efficiency, and high-quality asphalt production. Now, let’s take a closer look at the various asphalt plant types available to suit different project scales and requirements.
What Types Of Asphalt Plants Are Suitable For Malaysia?
In Malaysia, construction projects vary from urban roads to highways and airport runways, so asphalt plant Malaysia for sale must meet different production needs. We offer types of asphalt plants such as batch, drum mix, stationary and mobile asphalt plant in Malaysia, each designed to provide reliable, high-quality asphalt efficiently, whether for small-scale city roads or large infrastructure projects.

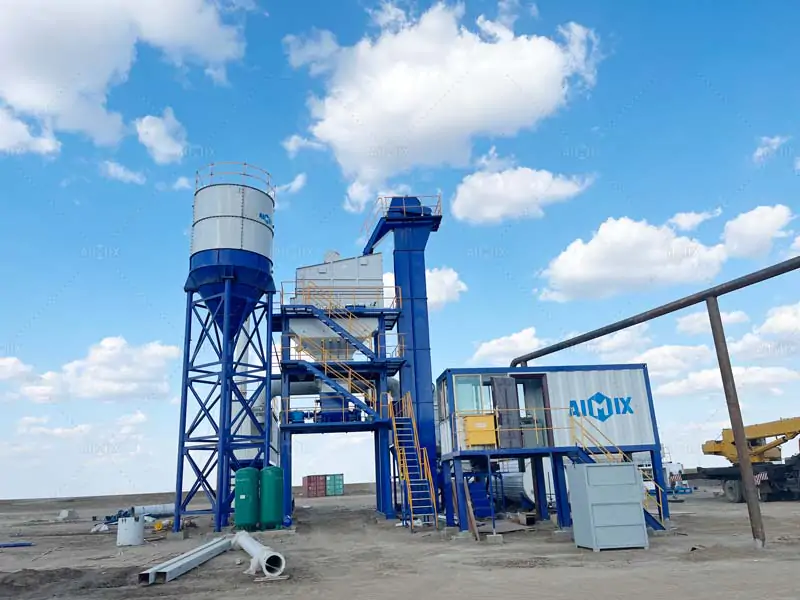

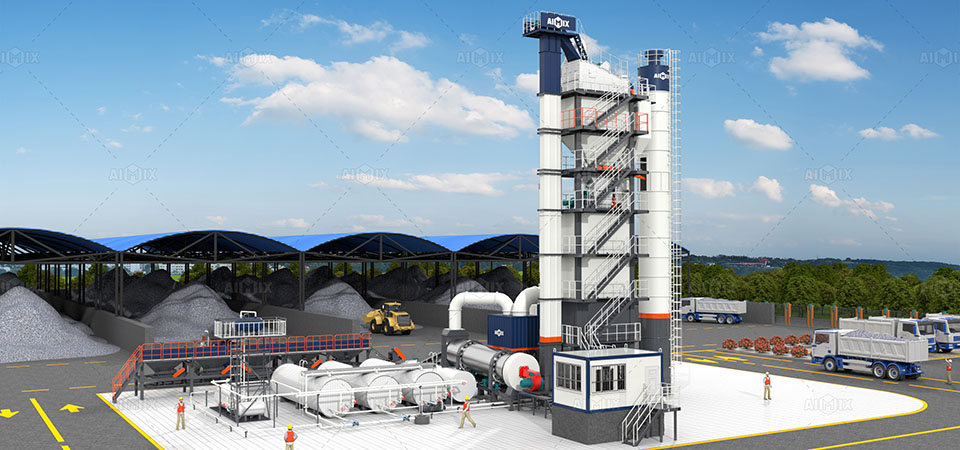

ALQ Series Stationary Batch Mix Asphalt Plant in Malaysia
- Models: ALQ40 ALQ60 ALQ80 ALQ100 ALQ120 ALQ160 ALQ320
- Capacity: 40-400 t/h
- Mixing Cycle: 45s
- Asphalt Temperature: 140-180 ℃

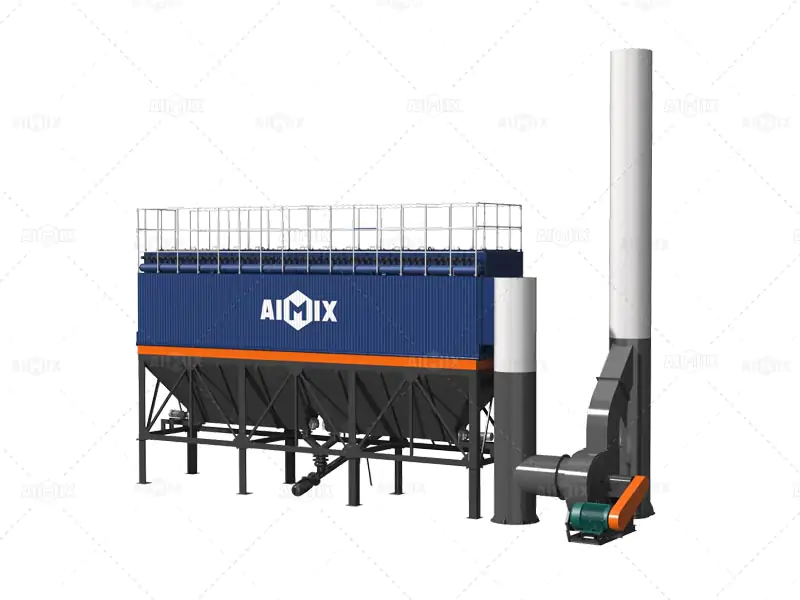

- Dust Filter: Gravity/Cyclone/Bag/Water dust filter
Stationary Asphalt Batch Plant Features
- High Precision: Weighing error: ±0.5% aggregate, ±0.25% asphalt.
- Stable Output: Capacity 40–400TPH, fit for highways & airports.
- Long Lifespan: Core parts last over 1M tons output.

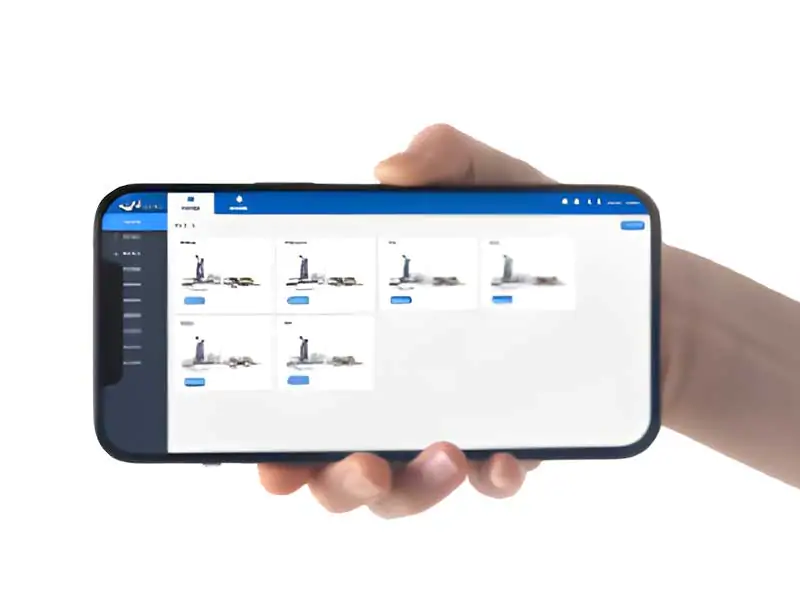

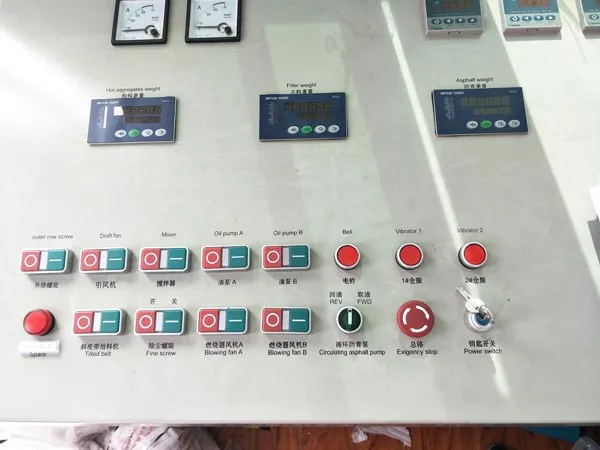

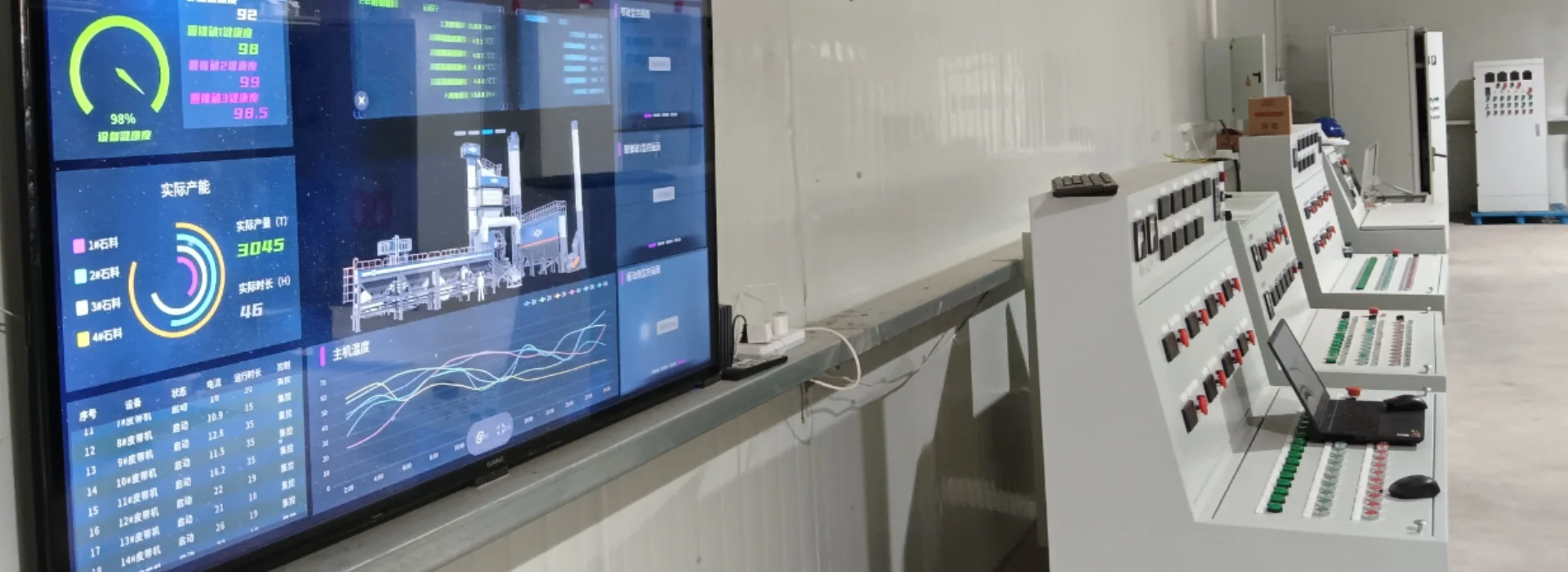

- Smart Control: One-click start/stop, saves 50 operations.
- Eco-Friendly: Multiple dust removal systems, meet standards.

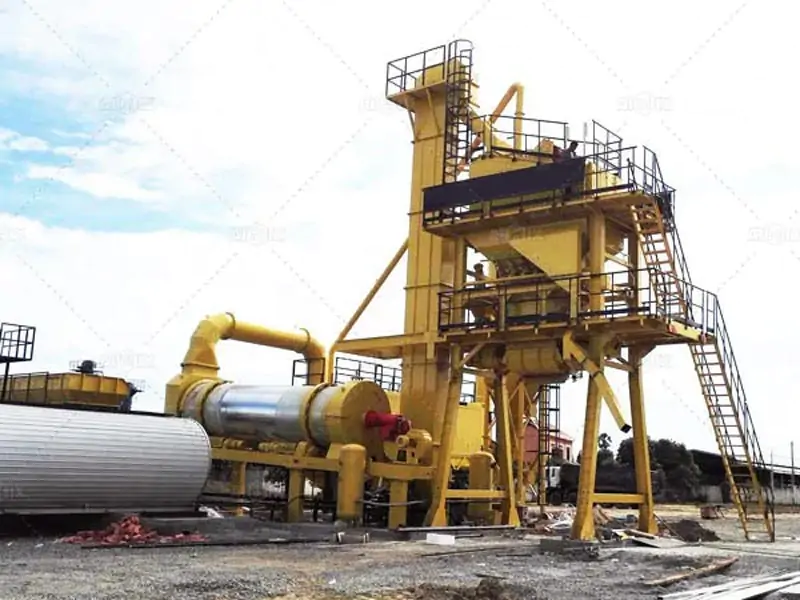

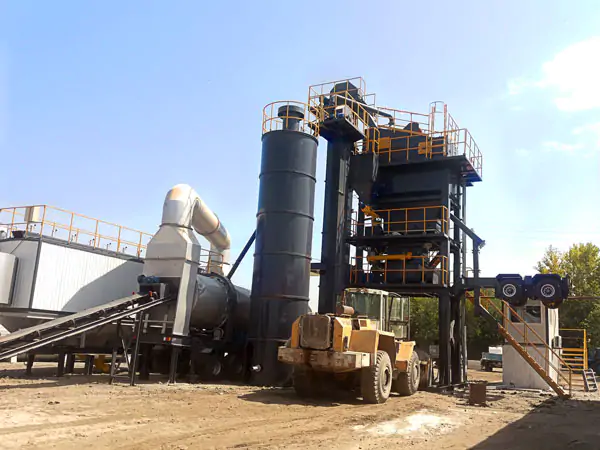

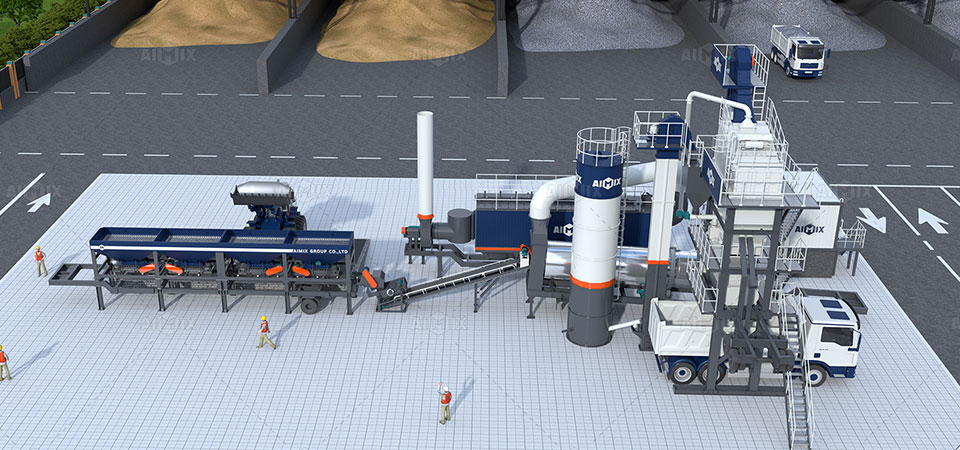

ALYQ Series Mobile Asphalt Batch Mix Plant in Malaysia
- Models: ALYQ40 ALYQ60 ALYQ80 ALYQ100 ALYQ120 ALYQ160
- Capacity: 40-160 t/h
- Mixing Cycle: 45s
- Asphalt Temperature: 120-180 ℃
- Dust Filter: Gravity/Cyclone/Bag/Water dust filter
Mobile Asphalt Batch Plant Features
- Fast Relocation: Providing quick installation; transfer cycle only 24-hour.
- Labor Saving: AI control reduces staff by 50% (4→2 people), easy operation.
- Higher Output: “Boiling” mixing boosts efficiency by +15%, +100 tons/day.
- Cost Saving: Accurate weighing reduces raw material waste, saving 80 tons/day.
- Flexible Use: Modular design, ideal for multiple sites, emergency projects.

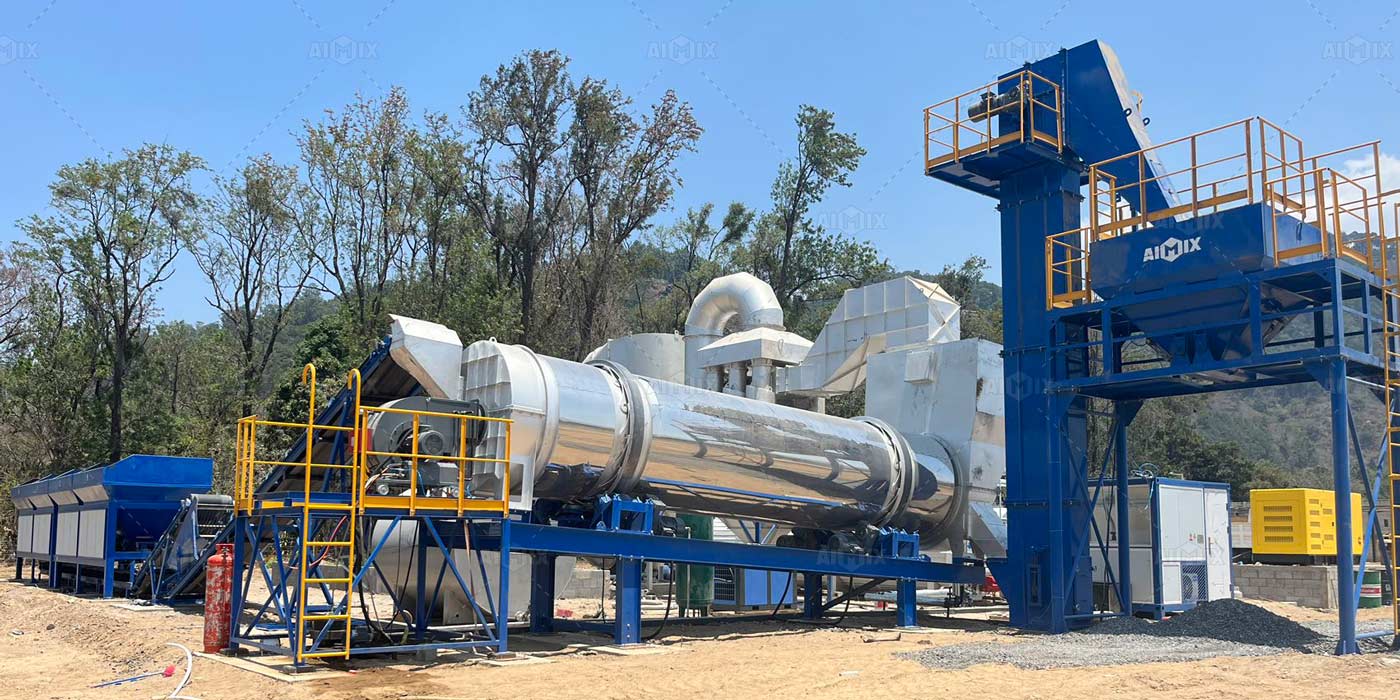

ALT Series Stationary Asphalt Drum Plant in Malaysia
- Models: ALT20 ALT40 ALT60 ALT80 ALT100
- Capacity: 20-120 t/h
- Asphalt Temperature: 120-180 ℃
- Dust Filter: Bag/Water dust filter
- Finished Asphalt Storage Bin: 3-9 tons
Stationary Asphalt Drum Mix Plant Features
- Large Output: Continuous production up to 120TPH, stable for long-term sites.

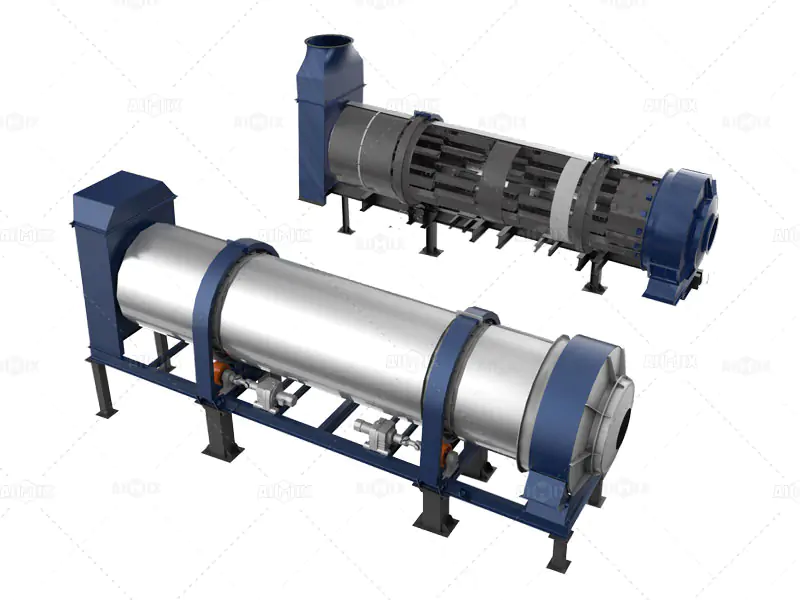

- Energy Efficient: Optimized drying drum improves heat utilization by 15%.
- Low Maintenance: Simple structure reduces annual maintenance cost by 30%.
- Cost-Effective: Lower initial investment, suitable for medium-budget projects.
- Best for Stability: Long-term installation, ideal for county & regional roads.

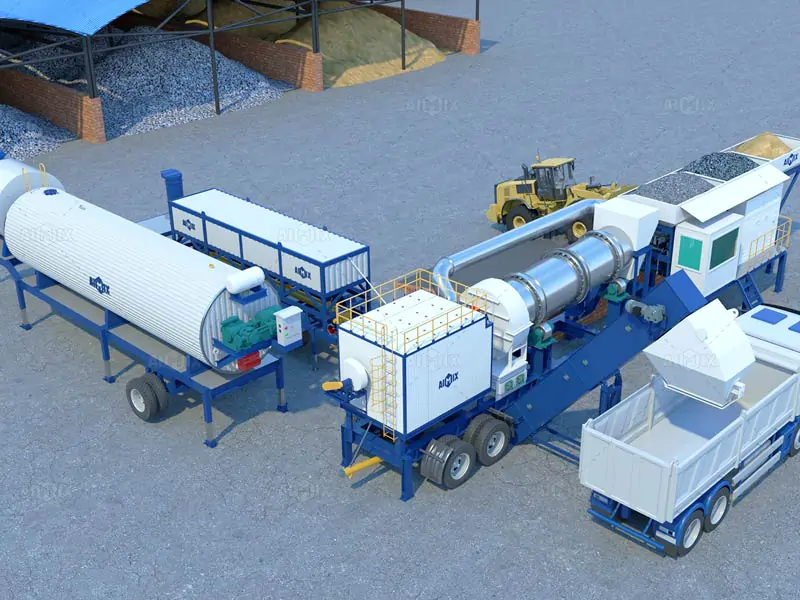

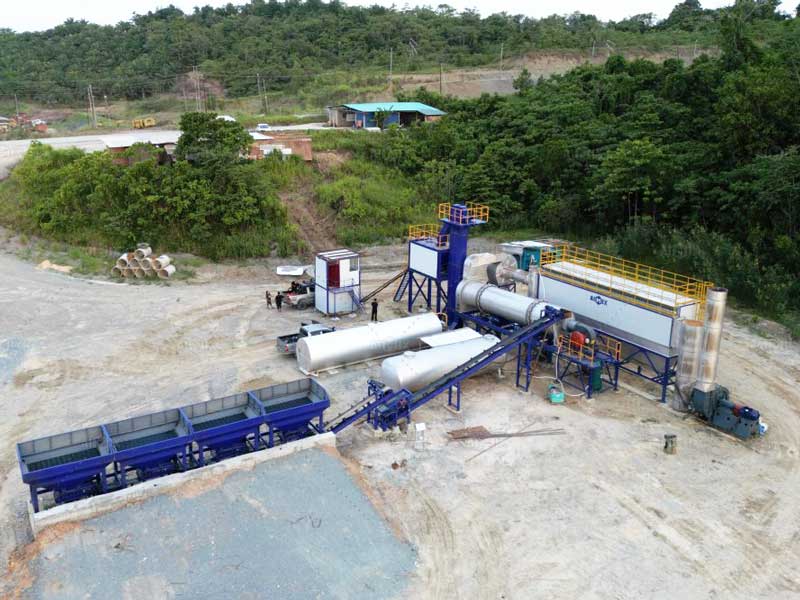

ALYT Series Mobile Asphalt Drum Mix Plant in Malaysia
- Models: ALYT20 ALYT40 ALYT60 ALYT80 ALYT100 ALYT120
- Capacity: 20-120 t/h
- Asphalt Temperature: 120-180 ℃
- Dust Filter: Bag/Water dust filter
- Cold Aggregate Feeding Capacity: 3.5m³ – 6.5m³
Drum Type Portable Asphalt Plant Features
- Quick Transfer: Modular design enables relocation within 3–5 days.
- Terrain Adaptability: Low-center structure works well in mountains & rural areas.
- Continuous Production: Drum mix ensures stable output up to 80–120TPH.
- Lower Cost: Initial investment lower than batch plants, quick ROI.
- Best for Small Projects: Rural roads, temporary projects, short-term repair.

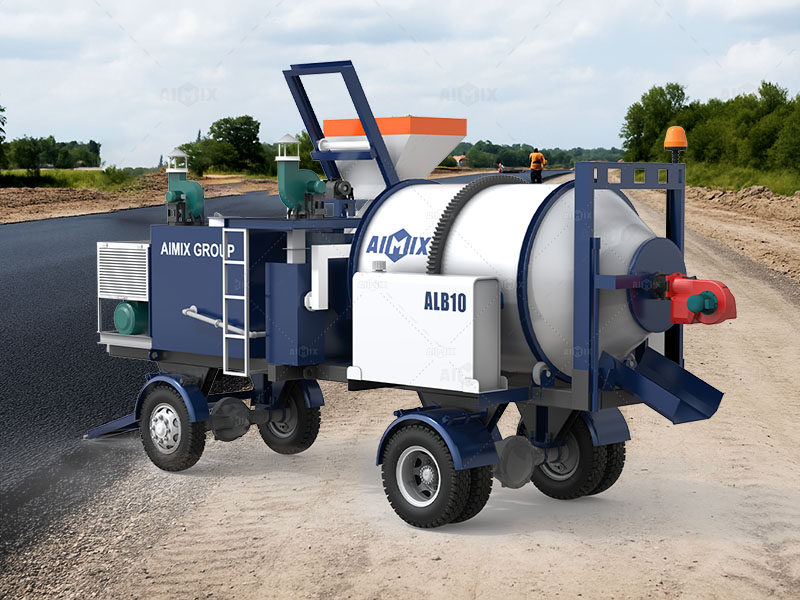

ALB Series Mobile Asphalt Mixer Machine
ALB-2ALB-5ALB-10ALB-15ALB-20
- Production Capacity: 2-20 t/h
- Price Range: $20,000-$35,000
- Production Time Per Batch: 10-15 min/batch
- Asphalt Temperature: 120-210 ℃
ALB Series Key Features
- Mobility: 3/4/6-wheel chassis, easy to move in narrow sites.
- Small-Scale: Perfect for patching, manholes, and driveways.
- Energy Saving: Low fuel use per batch, high cost-efficiency.
- Simple Operation: One-touch start/stop, heating & mixing.
- Quick Setup: Instant asphalt supply for municipal repairs.
With diverse asphalt plant options designed for different project scales and terrains, AIMIX ensures every client can find the right solution for efficiency, durability, and cost savings. The following technical parameters provide a clear comparison to guide your best choice.
Technical Specifications of Asphalt Mixing Plants in Malaysia
From capacity and weighing precision to installation speed and durability, technical specifications define how well an asphalt plant for sale in Malaysia supports highway, airport, or municipal projects. Below is a clear overview to help Malaysian contractors choose the most efficient solution.
ALQ Stationary Asphalt Batch Plant – High Capacity for Highways & Airports
| Model | ALQ40 | ALQ60 | ALQ80 | ALQ100 | ALQ120 | ALQ160 | ALQ200 | ALQ240 | ALQ320 |
|---|---|---|---|---|---|---|---|---|---|
| Capacity | 40 t/h | 60 t/h | 80 t/h | 100 t/h | 120 t/h | 160 t/h | 200 t/h | 240 t/h | 320 t/h |
| Cold Aggregate Hoppers | 4×4.5m³ | 4×6.5m³ | 4×7.5m³ | 4×7.5m³ | 5×7.5m³ | 5×12m³ | 5×12m³ | 5×12m³ | 6×15m³ |
| Dryer Size | φ1.2m×5.2m | φ1.5m×6m | φ1.5m×6.7m | φ1.65m×7m | φ1.8m×8m | φ2.2m×9m | φ2.6m×9m | φ2.6m×9.5m | φ2.8m×10.2m |
| Fuel consumption | 70-300kg / h | 100-400kg / h | 120-600kg / h | 150-1000kg / h | 150-1000kg / h | 150-1400kg / h | 180-1800kg / h | 180-1800kg / h | 260-2500kg / h |

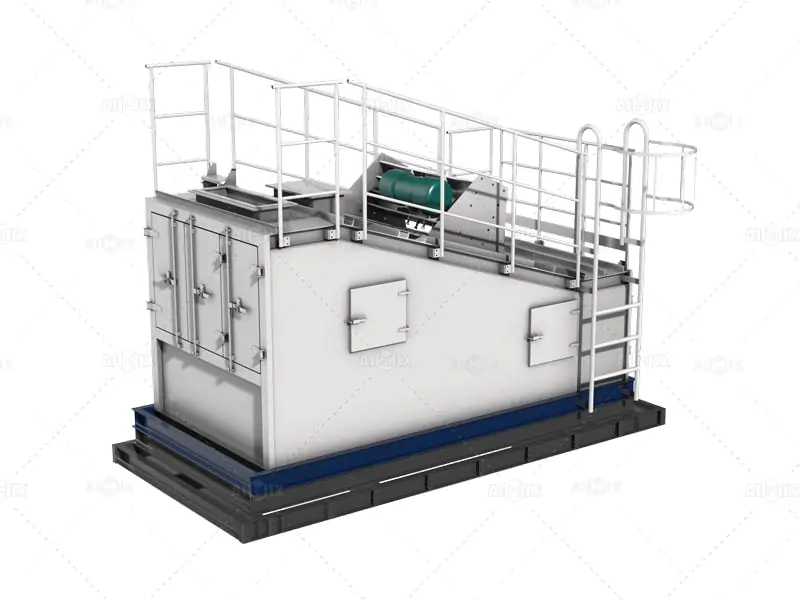

| Vibrating Screen (Layer) | 4 layers | 4 layers | 4 layers | 4 layers | 5 layers | 5 layers | 5 layers | 5 layers | 6 layers |
| Mixer Capacity | 500kg | 800kg | 1000kg | 1250kg | 1500kg | 2000kg | 2500kg | 3000kg | 4000kg |
| Cycle Time | 45s | 45s | 45s | 45s | 45s | 45s | 45s | 45s | 45s |
| Filter Area | 230m² | 300m² | 420m² | 480m² | 550m² | 650m² | 700m² | 1050m² | 1350m² |
| Asphalt Temperature | 140-180 ℃ | 140-180 ℃ | 140-180 ℃ | 140-180 ℃ | 140-180 ℃ | 140-180 ℃ | 140-180 ℃ | 140-180 ℃ | 140-180 ℃ |
| Total Power | 170kw | 200kw | 300kw | 350kw | 380kw | 490kw | 550kw | 670kw | 865kw |
ALYQ Mobile Asphalt Batch Plant – Fast Setup & Multi-Site Flexibility
| Model | ALYQ60 | ALYQ80 | ALYQ100 | ALYQ120 | ALYQ160 | |
|---|---|---|---|---|---|---|
| Capacity | t / h | 60 | 80 | 100 | 120 | 160 |
| Mixer capacity | kg | 800 | 1200 | 1300 | 1700 | 2200 |
| Mixing cycle | s | 45 | 45 | 45 | 45 | 45 |
| Total power | Gasoline(kW) | 54 | 63.5 | 104.5 | 125 | 157.5 |
| Coal(kW) | 75 | 86.5 | 127.5 | 169 | 205 | |
| filter area | m2 | 370 | 420 | 480 | 510 | 620 |

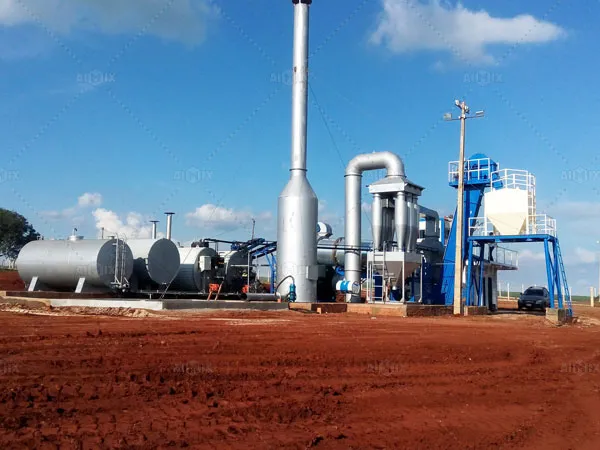

ALT Stationary Drum Mix Plant – Cost-Effective for Long-Term Projects
| Courts Models | ALT20 | ALT40 | ALT60 | ALT80 | ALT100 |
|---|---|---|---|---|---|
| Capacity | 20 t/h | 45 t/h | 60 t/h | 80 t/h | 100 t/h |
| The ability to | 40kw | 75kw | 120kw | 165kw | 200kw |
| Cold Aggregate Hoppers | 3.5m³×1 | 4m³×4 | 4m³×4 | 6.5m³×4 | 6.5m³×4 |
| Finished Product Hopper | 3t | 3t | 7t | 7t | 9t |
| Asphalt Temperature | 120-180 ℃ | ||||
| Fuel consumption | 13-15kg/t | ||||
| Asphalt Tank | 10 t | 20 t | 30 t | 30 t | 35 t |
| Control room | 2.2m | 2.2m | 3m | 3m | 3.5m |
| Option | Bag dust filter | ||||

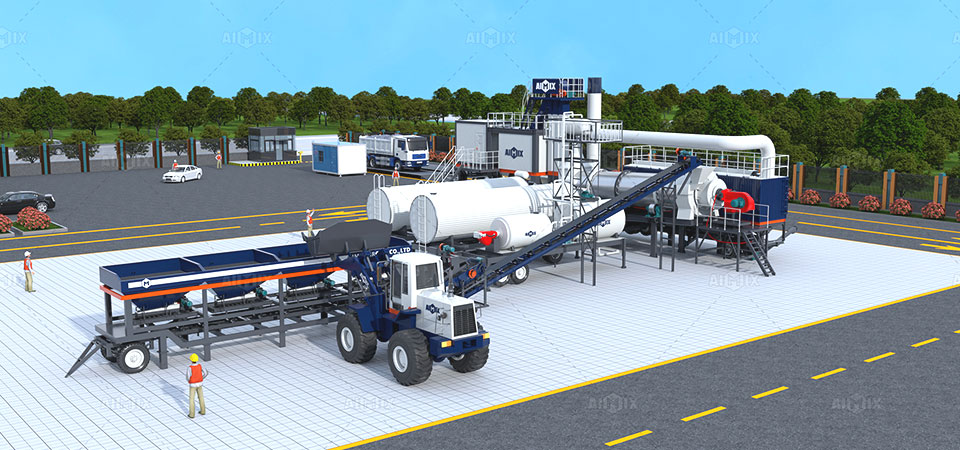

ALYT Mobile Asphalt Drum Plant – Easy Transport for Rural & Mountain Roads
| Model | ALYT20 | ALYT40 | ALYT60 | ALYT80 | ALYT100 | ALYT120 |
|---|---|---|---|---|---|---|
| Output | 20t/h | 45t/h | 60t/h | 80t/h | 100t/h | 120t/h |
| Power | 34kw | 65kw | 105kw | 135kw | 170kw | 200KW |
| Cold Aggregate Feeding System | 3.5m³×1 | 4m³×4 | 4m³×4 | 6.5m³×4 | 6.5m³×4 | 6.5m³×4 |
| Finihsed Asphalt Storage Bin | 2m³ | 2.5m³ | 4.5m³ | 5m³ | 7m³ | 7m³ |
| Asphalt Temperature | 120-180℃ | 120-180℃ | 120-180℃ | 120-180℃ | 120-180℃ | 120-180℃ |
| Fuel Consumption(Fuel Oil) | 5-7.5kg/t | 5-7.5kg/t | 5-7.5kg/t | 5-7.5kg/t | 5-7.5kg/t | 5-7.5kg/t |
| Fuel Consumption(Burning Coal) | 13-15kg/t | 13-15kg/t | 13-15kg/t | 13-15kg/t | 13-15kg/t | 13-15kg/t |
| Asphalt Tank | 10t | 20t | 30t | 30t | 35t | 35t |
| Option | bag dust collector / water dust collector | bag dust collector / water dust collector | bag dust collector / water dust collector | bag dust collector / water dust collector | bag dust collector / water dust collector | bag dust collector / water dust collector |
| Whole Plant Option | whole mobile / semi-mobile / fixed | whole mobile / semi-mobile / fixed | whole mobile / semi-mobile / fixed | whole mobile / semi-mobile / fixed | whole mobile / semi-mobile / fixed | whole mobile / semi-mobile / fixed |
ALB Portable Asphalt Mixer – Flexible & Efficient for Small-Scale Road Repairs
| Model | 0.38-0.4 m³ | 0.5 m³ | 0.7 m³ | 1 m³ | 1.5 m³ | 2 m³ | 3 m³ (Dual Tank) |
|---|---|---|---|---|---|---|---|
| Chassis Type | Mini Trailer Tricycle | Mini Trailer Tricycle | 4-Wheel | 6-Wheel | 6-Wheel | 6-Wheel | 6-Wheel |
| Diesel Generator | Changchai Diesel Engine | Changchai Diesel Engine | Weifang Diesel Engine | Weifang Diesel Engine | Weifang Diesel Engine | Weifang Diesel Engine | Weifang Diesel Engine |
| Power Output | 12 kW | 12 kW | 30 kW | 30 kW | 30 kW | 30 kW | 30 kW |

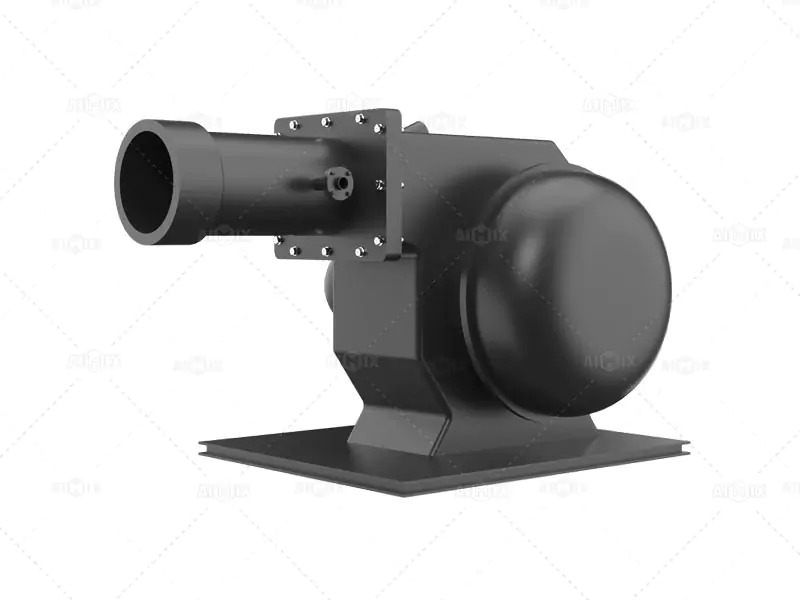

| Main Burner | 200,000 kcal | 200,000 kcal | 400,000 kcal | 440,000 kcal | 440,000 kcal | 440,000 kcal | 440,000 kcal (2 units) |
| Secondary Burner | 200,000 kcal | 200,000 kcal | 200,000 kcal | 200,000 kcal | 210,000 kcal | 220,000 kcal | 220,000 kcal |
| Mixing Tank Temperature | 120-165℃(Adjustable) | 160-210℃(Adjustable) | 160-210℃(Adjustable) | 160-210℃(Adjustable) | 160-210℃(Adjustable) | 160-210℃(Adjustable) | 160-210℃(Adjustable) |
| Fuel Type | Diesel | Diesel | Diesel | Diesel | Diesel | Diesel | Diesel |
| Fuel Consumption | 2.5-5L per batch | 4-5L per batch | 4-5L per batch | 5-6L per batch | 6-7L per batch | 6-7L per batch | 8-10L per batch |
| Mixing Motor | 2.2 kW | 5.5 kW | 5.5 kW | 5.5 kW | 5.5 kW | 5.5 kW | 5.5 kW |
| Dust Removal System | / | Water Dust Removal | Water Dust Removal | Water Dust Removal | Water Dust Removal | Water Dust Removal | Water Dust Removal |
| Tank Capacity (m³) | 1 m³ | 1.75 m³ | 2.35 m³ | 3.25 m³ | 4.25 m³ | 5 m³ | 4.25 m³ * 2 |
| Mixing Volume (tons/m³) | 0.25 m³ / 0.5 tons | 0.5 m³ / 1 ton | 0.7 m³ / 1.4 tons | 1 m³ / 2 tons | 1.5 m³ / 3 tons | 2 m³ / 3 tons | 1.5 m³ / 3 tons (Dual Tank) |
| Production Time Per Batch | 10-15 min/batch | 10-15 min/batch | 10-15 min/batch | 10-15 min/batch | 10-15 min/batch | 10-15 min/batch | 10-15 min/batch (Dual Tank) |
| Production Capacity (T/h) | 2-3 T/h | 4-6 T/h | 5.6-8.4 T/h | 8-12 T/h | 12-15 T/h | 15-18 T/h | 18-20 T/h |
| Applications | Small road repairs, manhole repairs | Road repairs, courtyard paving | Road repairs, courtyard paving | Road repairs, courtyard paving | Road repairs, courtyard paving | Road repairs, courtyard paving | Road repairs, courtyard paving |
| Inverter | 380V-24V | 380V-24V | 380V-24V | 380V-24V | 380V-24V | 380V-24V | 380V-24V |
| Hot Melt Kettle Capacity | 200L | 400L | 400L | 500L | 500L | 500L | 500L |
| Vibration System / Air Pump (Slag Removal Device) | / | 0.1/8 type air pump (0.1 m³ flow) | 0.1/8 type air pump (0.1 m³ flow) | 0.1/8 type air pump (0.1 m³ flow) | 0.1/8 type air pump (0.1 m³ flow) | 0.1/8 type air pump (0.1 m³ flow) | 0.1/8 type air pump (0.1 m³ flow) |
| Material Ratio | 3%-5% oil-stone ratio (new material) | 3%-5% oil-stone ratio (new material) | 3%-5% oil-stone ratio (new material) | 3%-5% oil-stone ratio (new material) | 3%-5% oil-stone ratio (new material) | 3%-5% oil-stone ratio (new material) | 3%-5% oil-stone ratio (new material) |
| Automatic Loading Hopper | / | Hoist Bottom Discharge | Hoist Bottom Discharge | Hoist Bottom Discharge | Hoist Bottom Discharge | Hoist Bottom Discharge | / |
| Weight (Tons) | 1.8 T | 3.8 T | 4.2 T | 4.8 T | 5.6 T | 5.6 T | 6.5 T |
| Starting Method | Electric Control | Electric Control / Electric Start | Electric Control / Electric Start | Electric Control / Electric Start | Electric Control / Electric Start | Electric Control / Electric Start | Electric Control / Electric Start |
| Dimensions (LWH, mm) | 5200*1600*2000 | 5200*1600*2000 | 6000*2000*2750 | 6200*2300*2950 | 6600*2300*2950 | 6900*2300*3250 | 6600*3300*2950 |
| Material | Double-layer manganese plate (single layer thickness 5.75mm), rock wool insulation layer 5cm*6 | Double-layer manganese plate (single layer thickness 5.75mm), rock wool insulation layer 5cm*6 | Double-layer manganese plate (single layer thickness 5.75mm), rock wool insulation layer 5cm*6 | Double-layer manganese plate (single layer thickness 5.75mm), rock wool insulation layer 5cm*6 | Double-layer manganese plate (single layer thickness 5.75mm), rock wool insulation layer 5cm*6 | Double-layer manganese plate (single layer thickness 5.75mm), rock wool insulation layer 5cm*6 | Double-layer manganese plate (single layer thickness 5.75mm), rock wool insulation layer 5cm*6 |
Understanding the technical specifications helps you compare asphalt plant models and see which one best fits your project needs, from capacity and efficiency to flexibility and durability. Next, let’s explore the pricing of asphalt plant series in Malaysia, so you can make an informed decision for your investment.
What is the Asphalt Plant Price in Malaysia?
Asphalt plant Malaysia price typically ranges from $50,000 to $1,000,000, depending on capacity, type, and optional features. We offer customized solutions to match your project needs, whether for urban streets, highways, or rural roads. Contact us for a personalized quote about asphalt plant price to help you choose the most efficient asphalt plant for your project.
Why an Asphalt Plant is a Smart Investment in Malaysia?
Malaysia’s road construction sector is booming, from urban streets in Kuala Lumpur and Penang to rural highways in Sabah and Sarawak. Growing infrastructure demand, government investment, and large-scale road projects make asphalt production a high-potential opportunity. Understanding this market shows why investing in an asphalt plant in Malaysia is a smart move.
Strong Market Demand
Malaysia’s road projects need over 5 million tons of asphalt annually, from urban streets to rural highways.
Government Support
Infrastructure investment 2024–2028 is projected at MYR 35–40 billion, creating stable growth for asphalt production.
High ROI Potential
A 120TPH asphalt plant produces up to 1,000 tons/day, enabling external sales and 15–25% fuel cost savings.
Wide Application

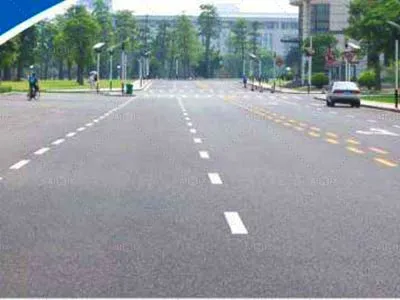

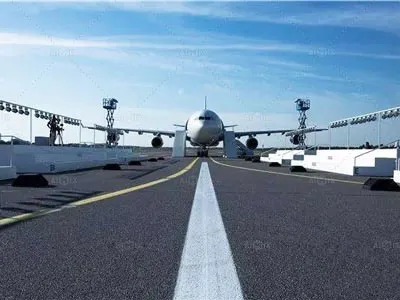

Supports urban roads, rural highways, bridges, and airport runways, meeting high-quality asphalt standards.
Future-Proof Technology
Smart control and IoT monitoring reduce labor by 50%, minimize downtime by 20%, and ensure reliable long-term profitability.
With Malaysia’s road construction market growing rapidly and high-quality asphalt in constant demand, investing in a modern hot mix asphalt plant offers clear benefits: strong returns, versatile applications, and future-proof technology. Understanding the types of asphalt used across Malaysian projects is the next step to ensure your plant meets local quality standards and project needs.
What Type of Asphalt is Used in Malaysia?
Asphalt mixing plants can produce various types of asphalt mixtures to meet different project needs and environmental conditions. Best asphalt plant Malaysia provided by AIMIX can produce hot mix asphalt, warm mix asphalt, cold mix asphalt, porous asphalt, stone mastic asphalt, and asphalt concrete overlay.
Hot Mix Asphalt (HMA)
- Production Temperature: 150-190°C
- Description: HMA is the most widely used asphalt mixture.
- Application: It is suitable for high traffic loads and extreme weather conditions.

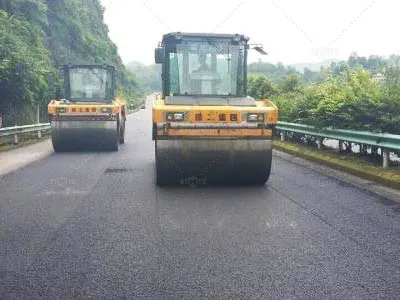

- Usage: Commonly used for highways, urban roads, and airport runways.
- Advantages: The high production temperature activates the asphalt binder, offering excellent strength and resistance to deformation.

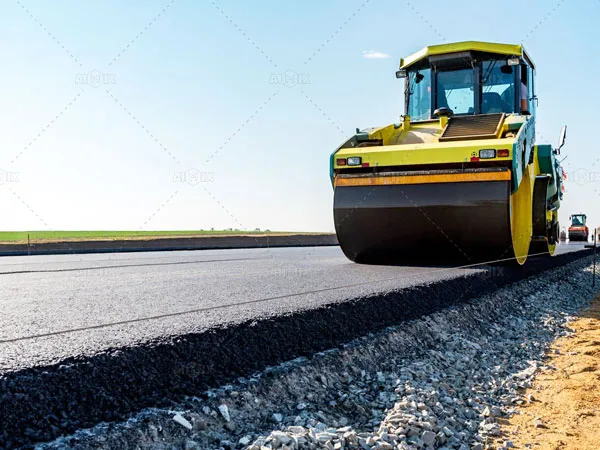

Warm Mix Asphalt (WMA)
- Production Temperature: 100-140°C
- Description: WMA is produced at lower temperatures than HMA.
- Benefits: Reduces energy consumption and emissions.
- Application: Especially suited for environmentally sensitive projects or cold climates.
- Advantages: Improves workability in lower temperatures and meets environmental protection standards.
Stone Mastic Asphalt (SMA)
- Production Temperature: 140-160°C
- Description: SMA is a high-performance asphalt mixture.
- Features: Known for its resistance to rutting and cracking.
- Application: Ideal for busy roads, roads with heavy vehicle traffic, and airports.
- Advantages: Contains a high proportion of aggregates and uses polymer modification to enhance durability, extend pavement lifespan, and reduce maintenance costs.
Porous Asphalt(PA)
- Production Temperature: 140-160°C
- Description: Porous asphalt is designed to allow water to drain through the surface.
- Benefits: Helps reduce water accumulation and prevent hydroplaning.
- Application: Commonly used in parking lots, urban roads, and areas requiring efficient drainage.
- Advantage: Particularly beneficial in regions with heavy rainfall.
- Batch type Asphalt Mixing Plant – for producing high quality asphalt mixes: HMA, WMA, SMA

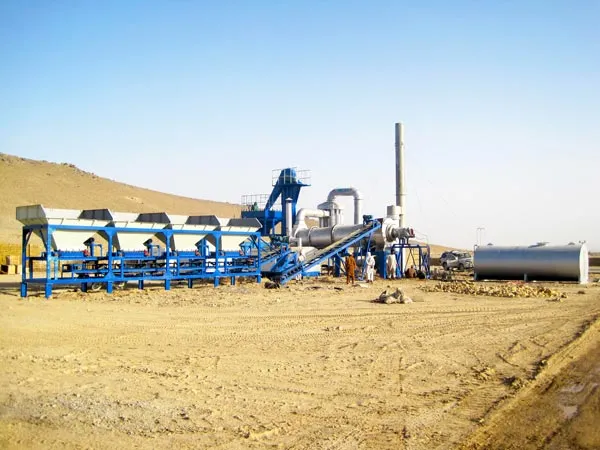

- Drum type Asphalt Plant – for continuously producing asphalt mixes: HMA, WMA, PA
Besides Malaysia, our asphalt mixing plants are also sold to many other countries, such as Philippines, South Africa, Russia, Myanmar, Indonesia, etc. Here are some photos of the asphalt plant installed in the field, you can take a closer look.

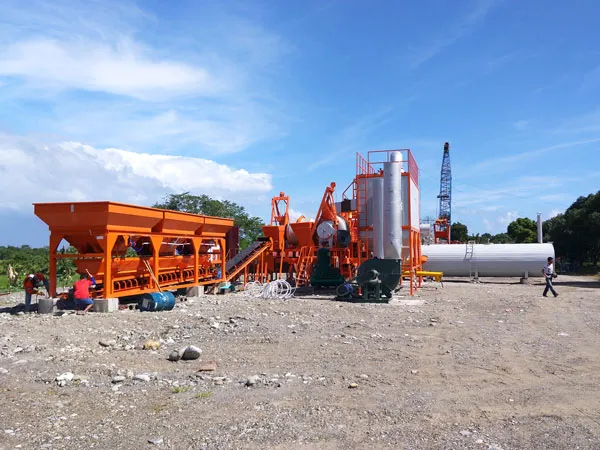

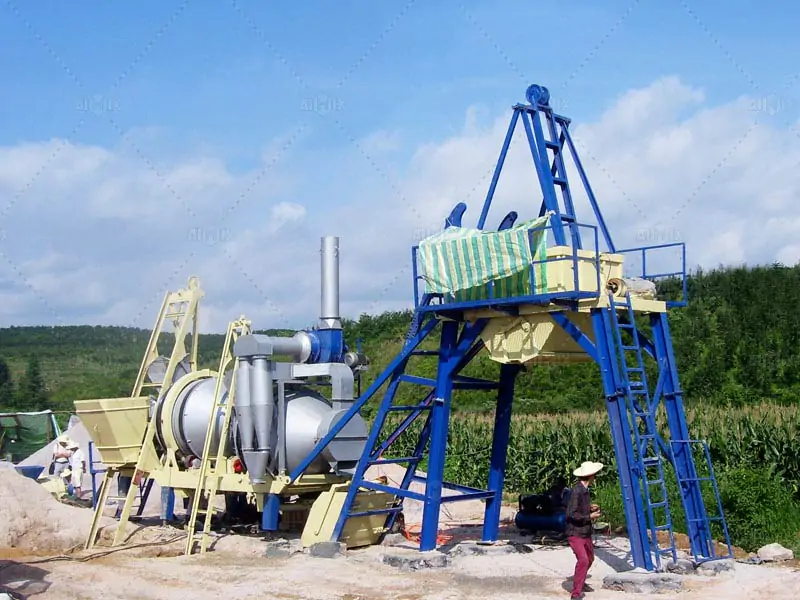

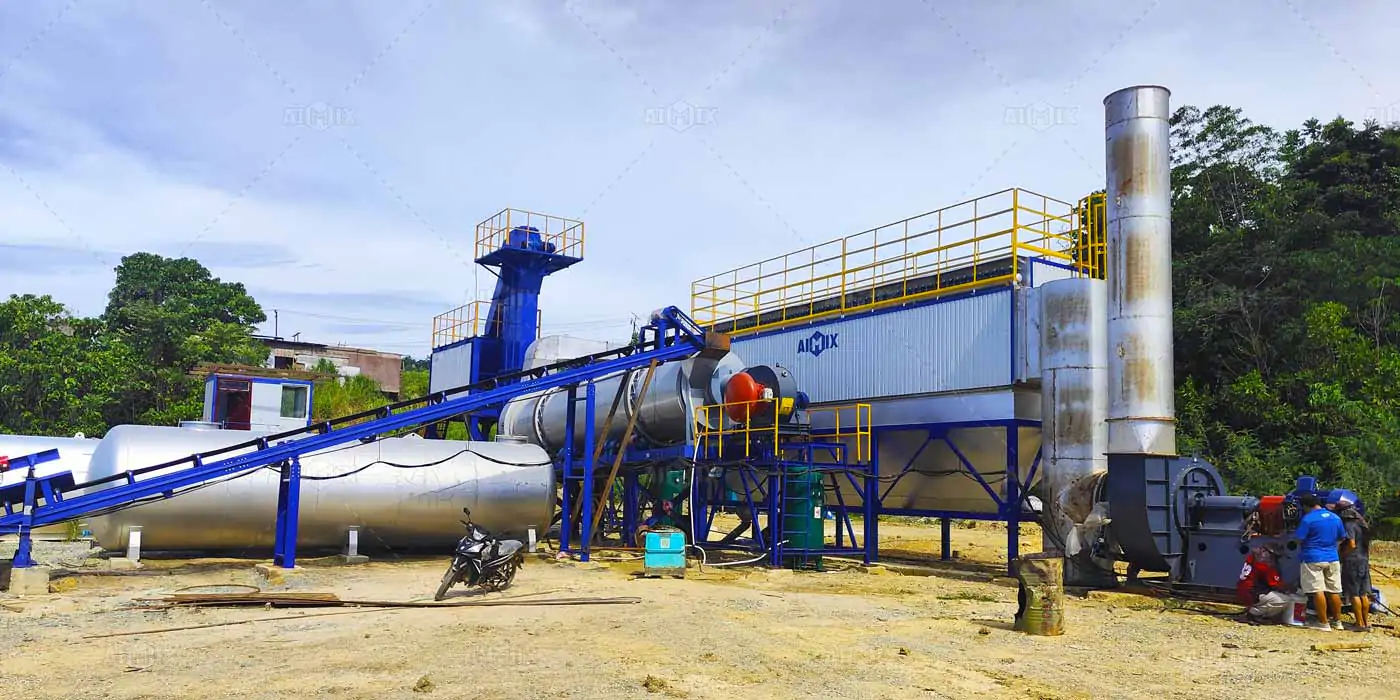

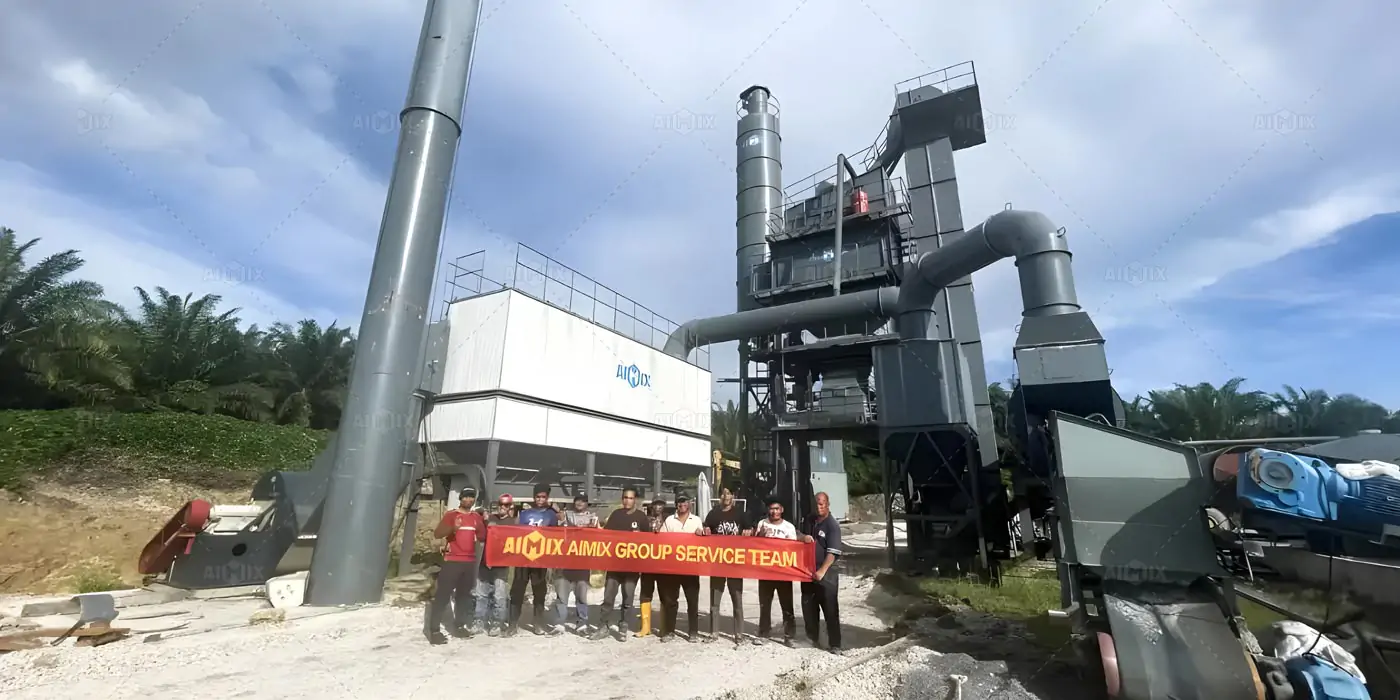

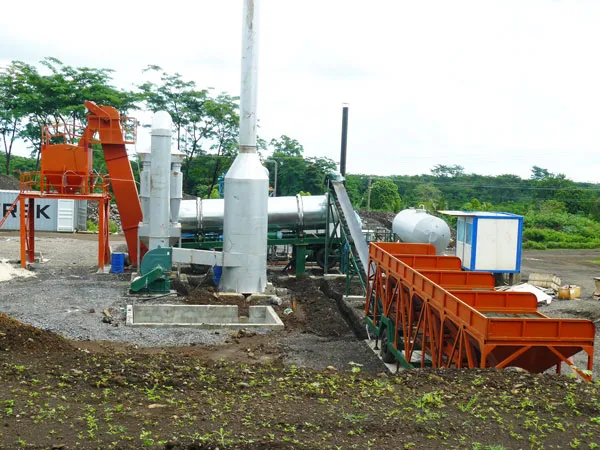

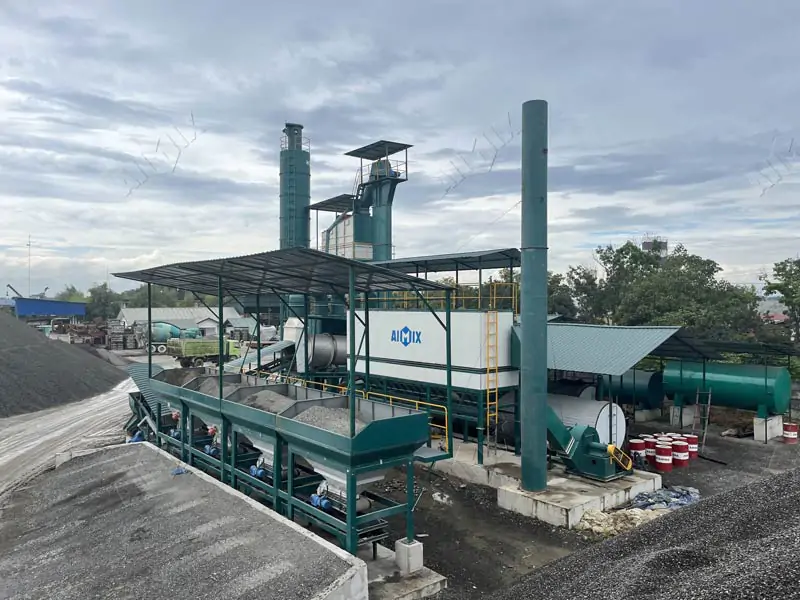

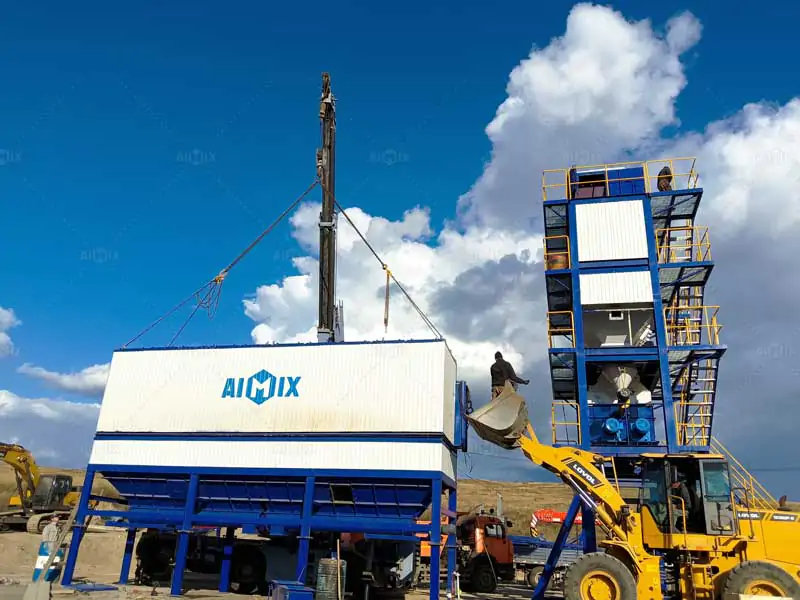

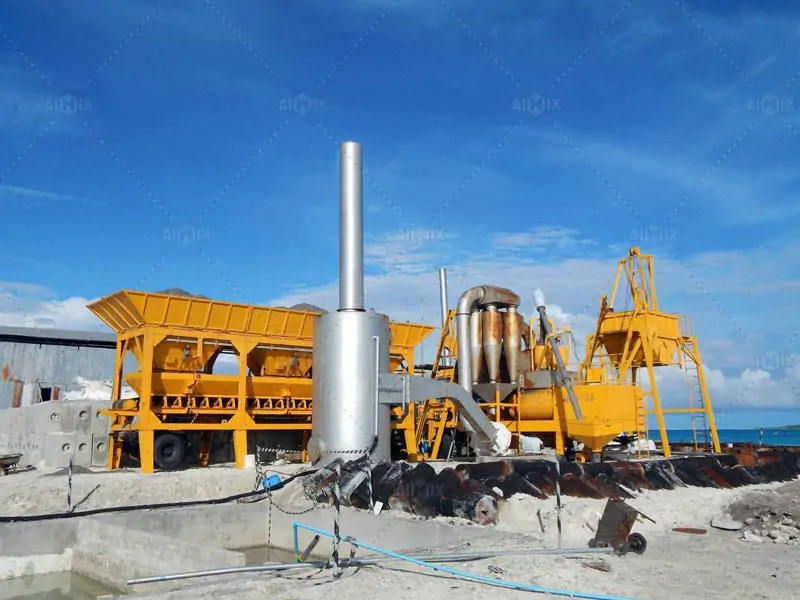

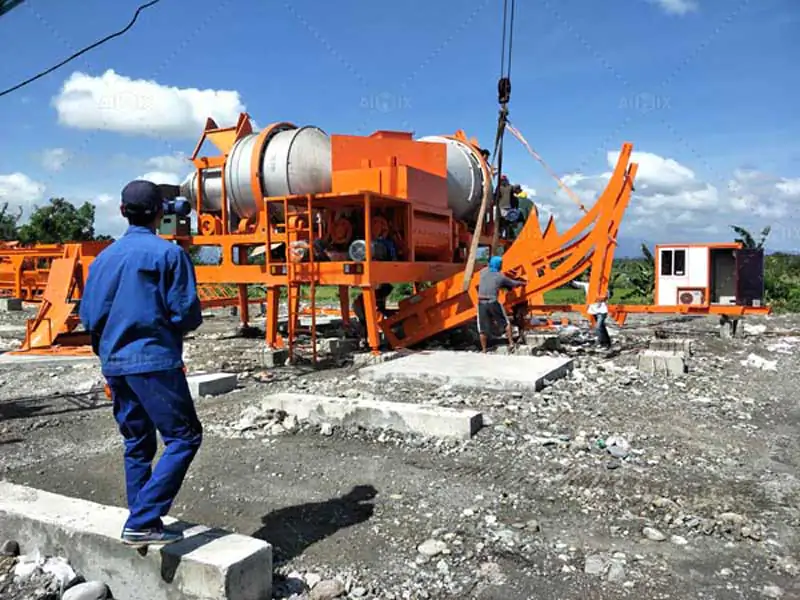

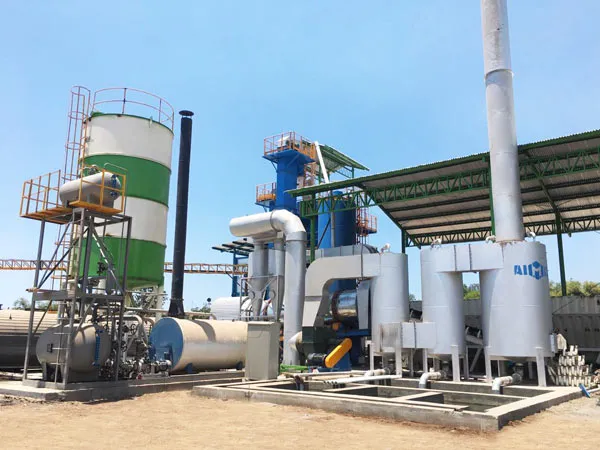

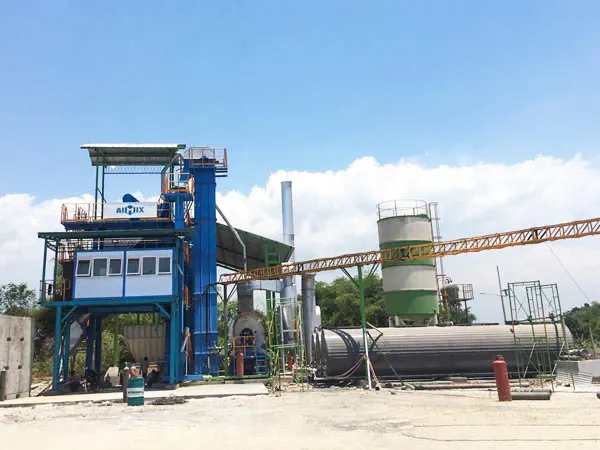

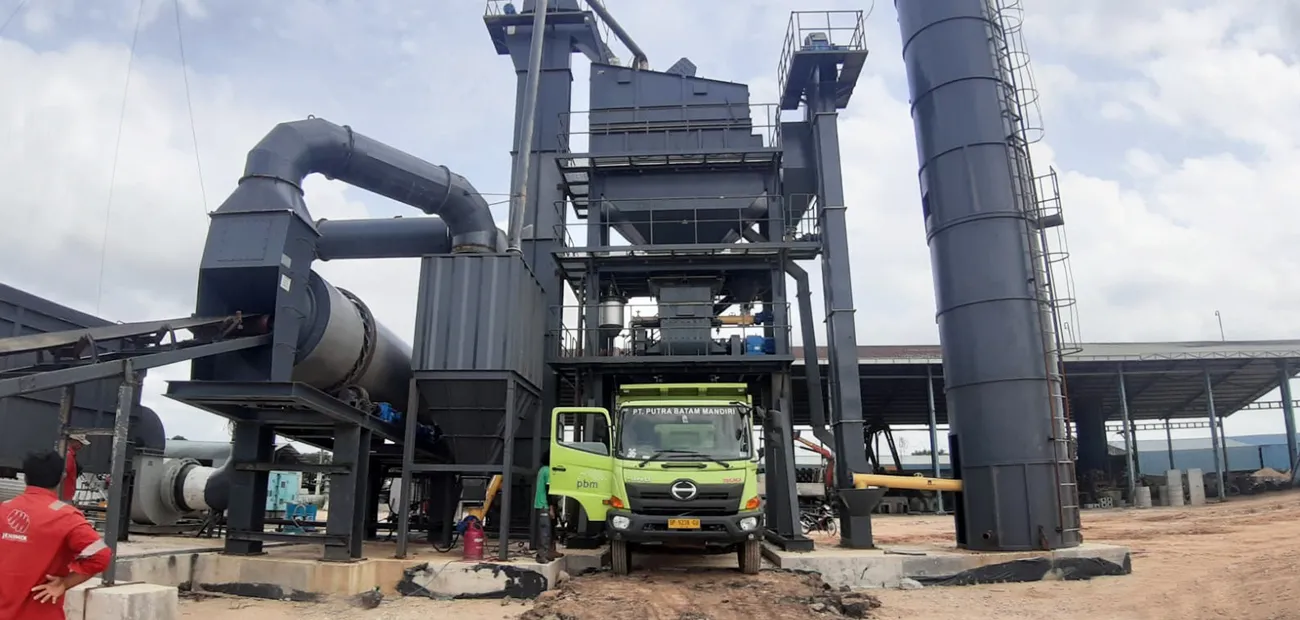

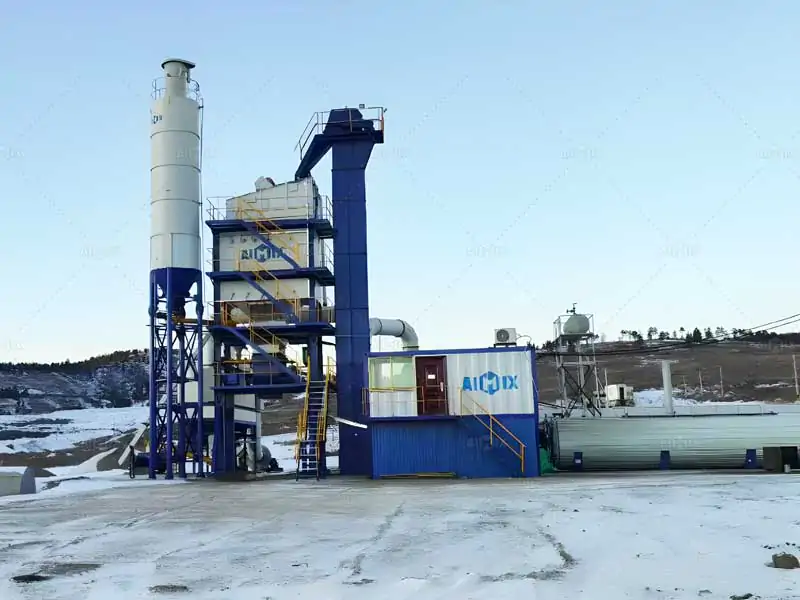

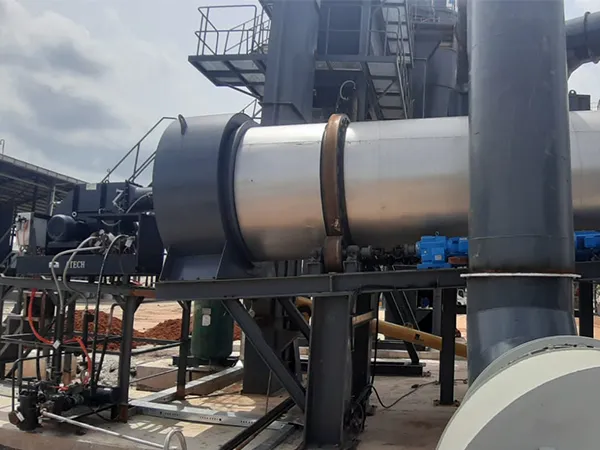

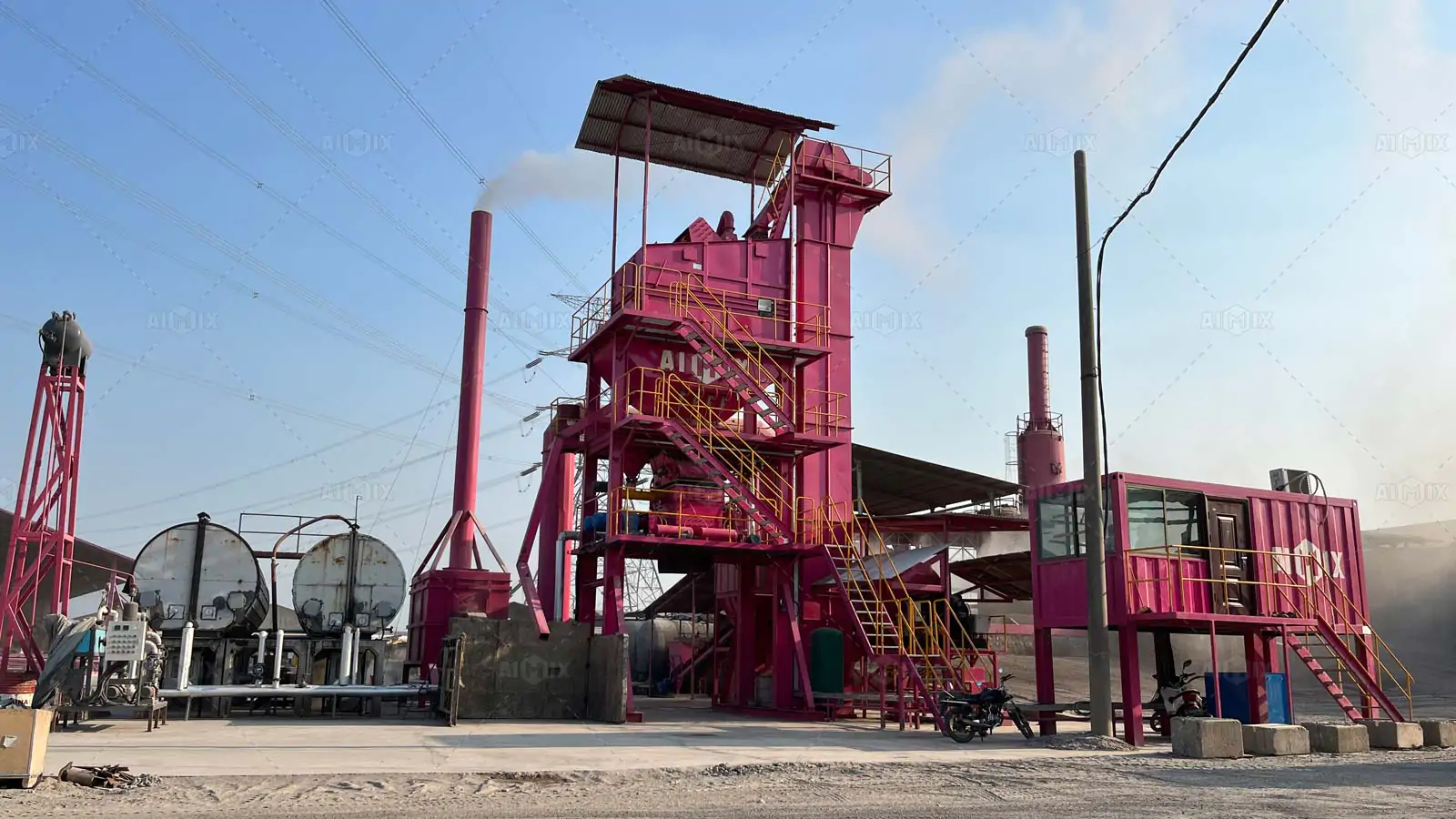

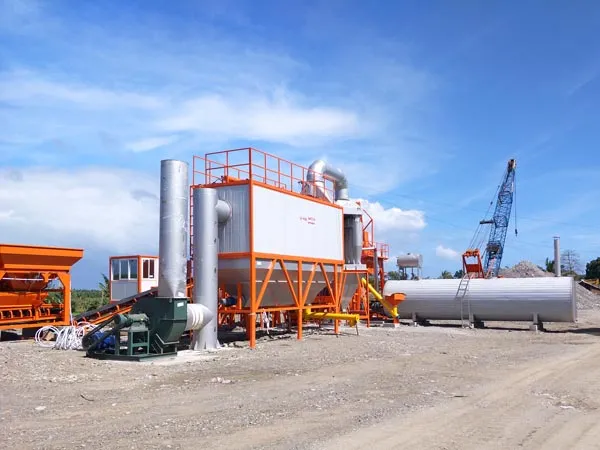

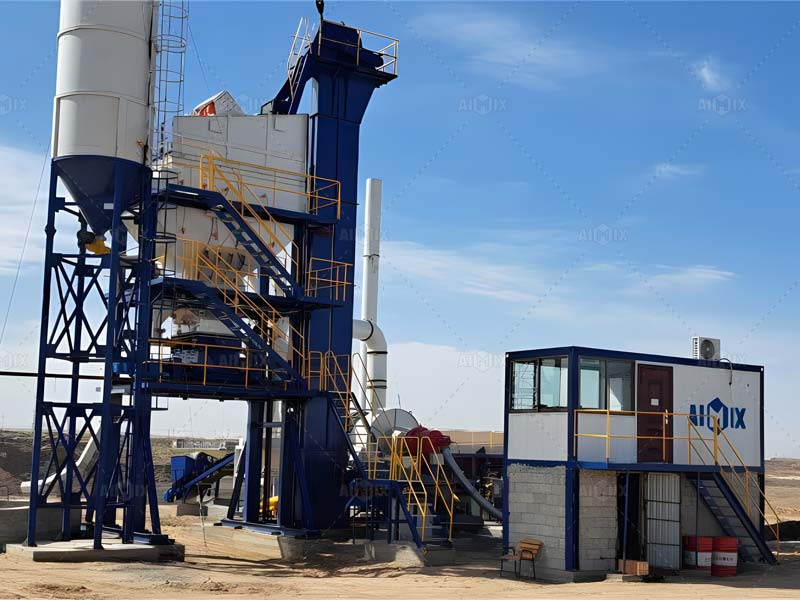

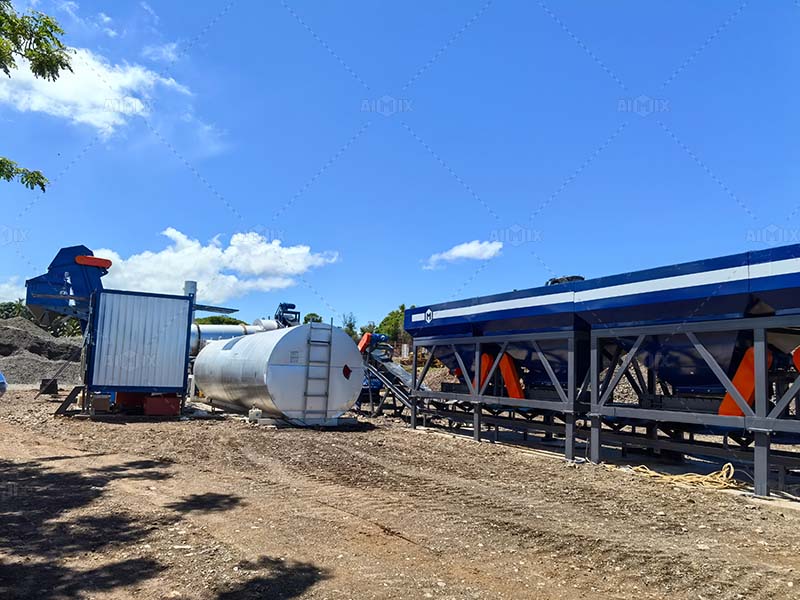

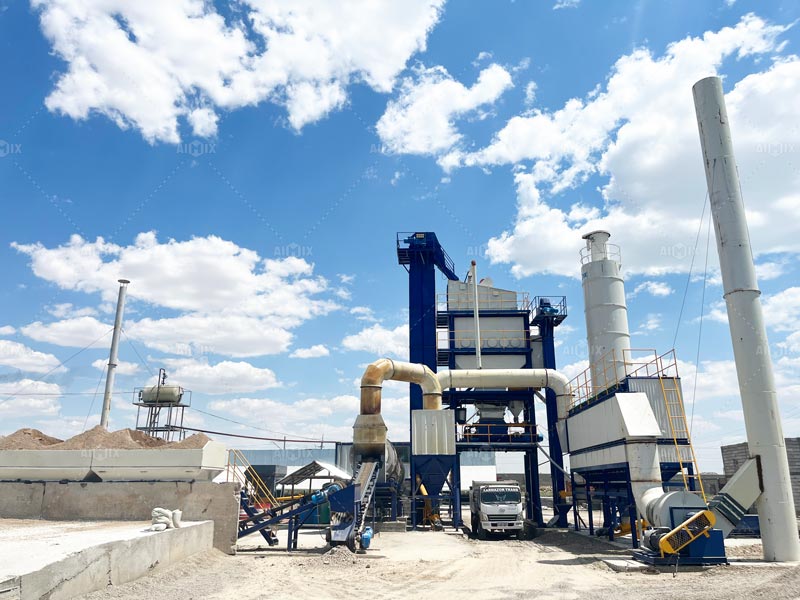

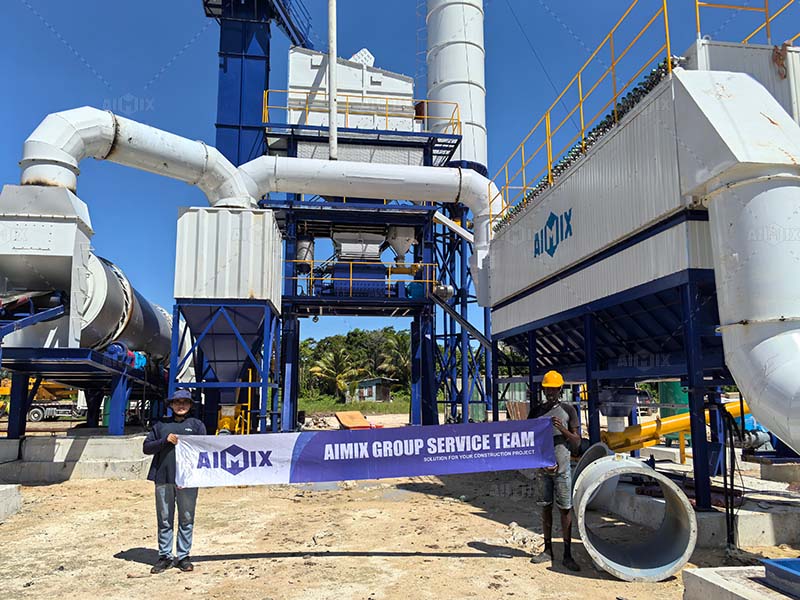

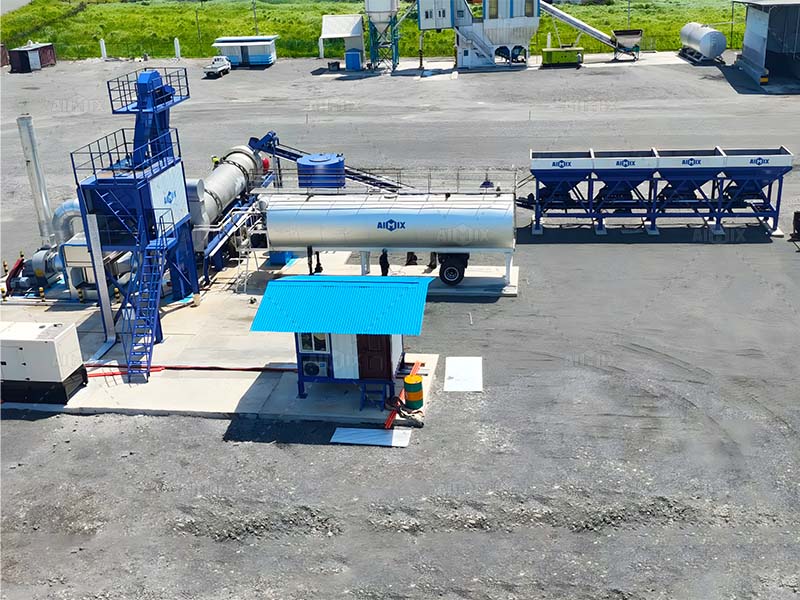

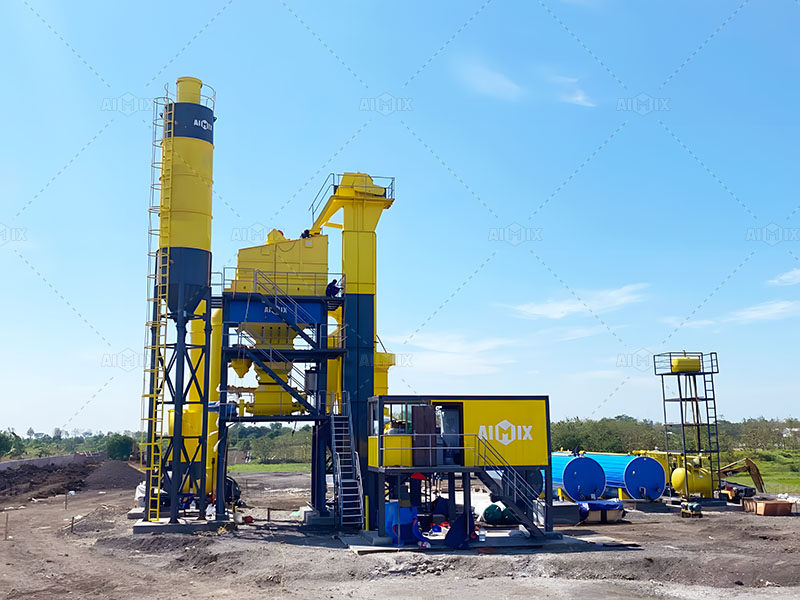

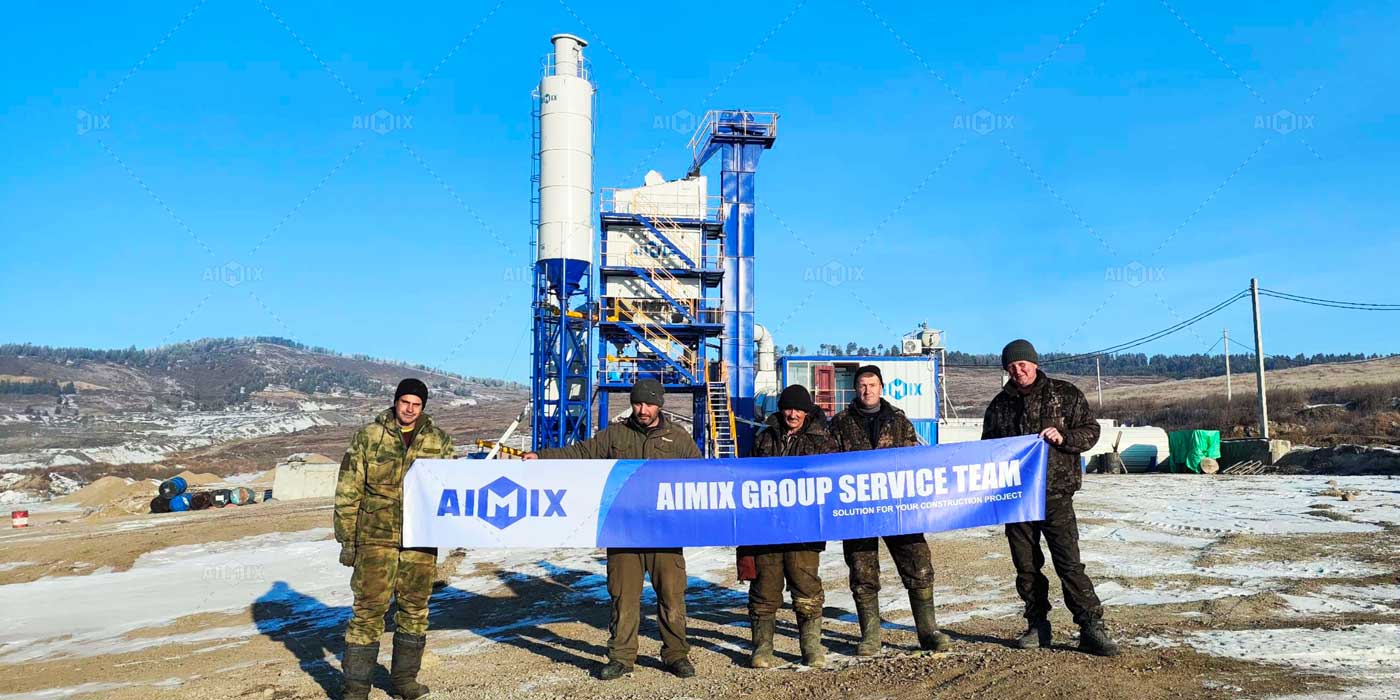

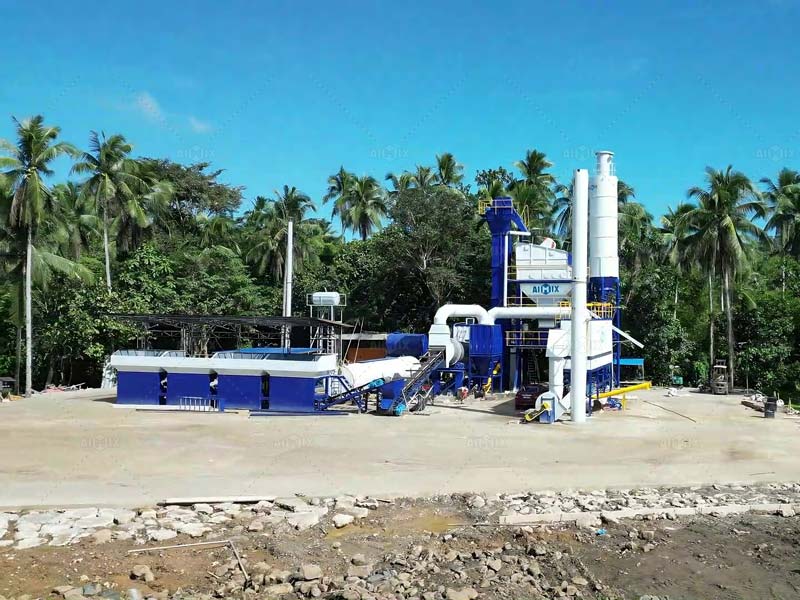

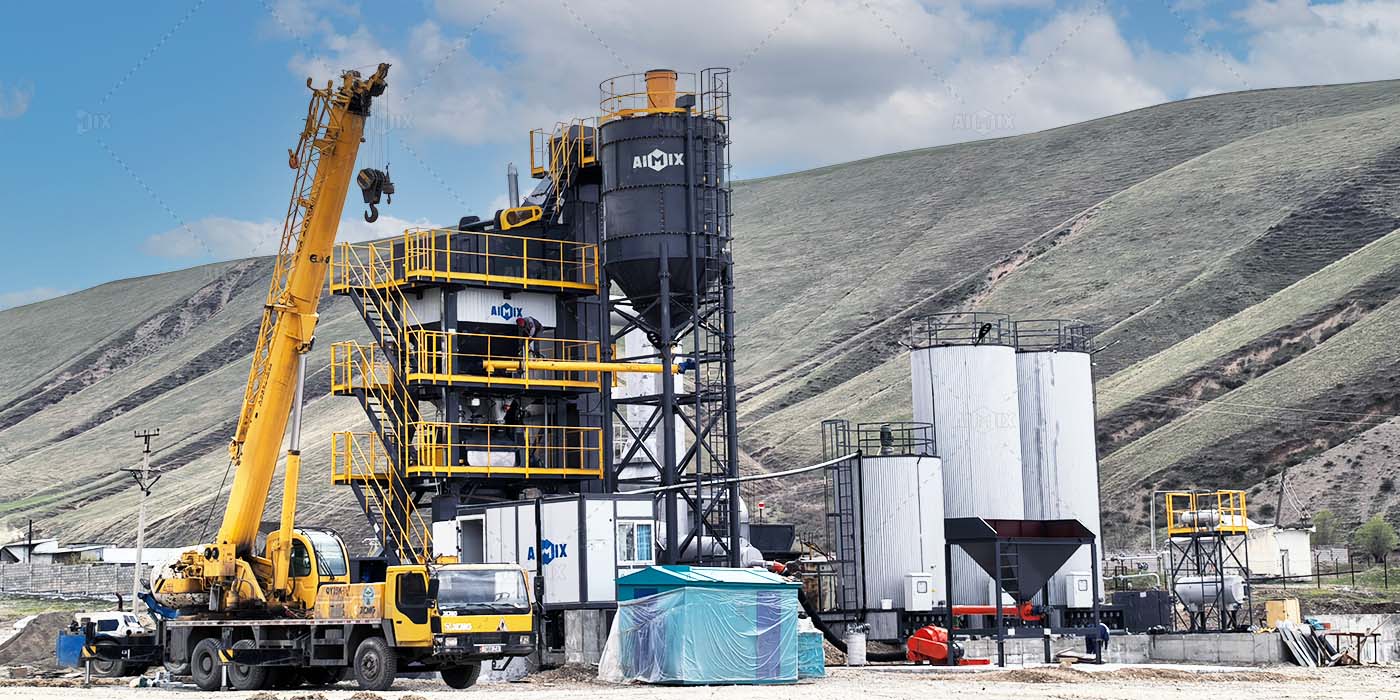

On-Site Views of Asphalt Plants Around the World
Take a closer look at our asphalt plants installed in real projects across different countries. From urban streets to highways and rural roads, these photos showcase how our asphalt mixing equipment performs efficiently, meets local quality standards, and adapts to diverse construction environments. See the results and imagine the potential for your own projects.
Watch Our Asphalt Plants in Malaysia on YouTube
Explore real project videos of our asphalt plants across Malaysia, from Kuala Lumpur city streets to Penang urban roads and Sabah highways. See efficient operations, smart control systems, and high-quality asphalt production in action. Click to watch how our asphalt plants Youtube handle real Malaysian road projects.
Reliable Asphalt Plant Manufacturer in Malaysia
As a reputable asphalt plant supplier in Malaysia, we have a strong presence in Malaysia with a dedicated LBS center located in Puchong, Selangor. Our local office allows us to provide fast and reliable service, ensuring you receive timely assistance, affordable quotes, and consistent after-sales support for all your large or small asphalt plant Malaysia needs. For more information, you can learn more about AIMIX asphalt plant supplier.
Professional Sales Team
Our experienced sales team is always ready to assist you, providing competitive quotes and expert advice tailored to your specific project.
Strong After-Sales Support
We stand by our customers with strong after-sales support, helping resolve any issues that arise and ensuring smooth operations.
Spare Parts Availability
Our spare parts supply warehouse in Malaysia ensures quick access to essential components, reducing downtime and keeping your asphalt plant running efficiently.
Regular Maintenance Services
We conduct maintenance checks four times a year to help keep your equipment in top condition, ensuring reliable performance throughout its lifespan.
Fast Local Response
With our local presence, we are able to respond quickly to any inquiries or technical issues, offering timely support and solutions.
Customized Solutions
We offer cost-effective, tailored solutions that meet your project’s needs while maintaining high-quality standards in both equipment and service. We also provide asphalt plant Malaysia pdf.
Ready to Boost Your Road Projects? Get Your Asphalt Plant Quote Today
Malaysia’s road construction demand is growing rapidly, and high-quality asphalt is essential for every project. Investing in the right mobile or stationary asphalt plant ensures efficiency, consistent quality, and strong ROI. Contact us today to get a personalized solution and a competitive quote for your next project.
