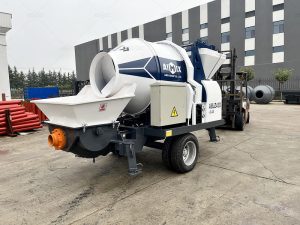

Congratulations! Aimix group ABJZ40D0 electric concrete mixer and pump was finished installation and test run, it is going to be exported to Bangladesh.
| Items | Units | ABJZ40D |
| Max.theo.concrete output(L./H) | M3/h | 40 |
| Mixer rated feed capacity | m3 | 0.56 |
| Mixer rated discharge capacity | m3 | 0.45 |
| Max.concrete pumping pressure(H./L.) | MPa | 10 |
| Distribution valve type | S Valve | |
| Winding motor power | KW | 5.5 |
| Stir the motor power | KW | 4.5 |
| Water pump motor power | KW | 0.55 |
How To Choose Concrete Mixer And Pump
We all know concrete mixer pump includes diesel concrete mixer with pump and electric concrete mixer and pump. As for how to choose a proper pump machine for your project, you need to take your electricity condition of your construction site. You can learn more on their own website below.

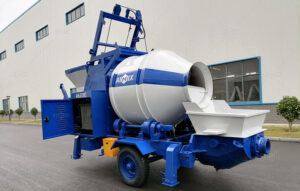

Diesel Concrete Pump
Over 90% of our customers choose diesel concrete pump for their construction project. The diesel concrete pumps has powerful and ...
Electric Concrete Pump
Electric concrete pump is a environmentally friendly concrete pumping equipment. In the current global market where sustainable and green building ...
Why Choose Electric Concrete Mixing Pump
If your construction site has sufficient electricity, you can choose an electric type concrete mixer and pump, it is driven by electric motor, can achieve constant operation. To some extent, it will shorten the whole construction periods. That’s to say, you will save some cost.
Electric Concrete Mixer And Pump Video
We also sell concrete mixer truck, if necessary, you can request for quotation, it is related to your concrete pump with mixer.
| Model： | CLCMT-9 |
| Agitating capacity： | 9m3 |
| Chassis: | HOWO; Dongfeng; Shaanxi Auto |
| North Pennines; Isuzu; Foton; Delong | |
| Mixer drum parameter: | adopt Q345 high-quality wear-resistance material |
| Drum overall dimension(with frame) | 6600*2500*2675mm |
| Drum body thickness: | 5mm |
| Water supply: | Baric water supply system |
| Charging rate | ≥3 m3/min |
| Top feed hopper dimension | ≥650 mm |
| Discharging rate | ≥2 m3/min |
| Residual rate | ≤0.5% |
