What is asphalt plant? An asphalt mixing plant is industrial production equipment used in road construction to manufacture hot mix asphalt by heating, drying, and blending aggregates with bitumen under controlled temperature and precise mix proportions. It functions as a centralized asphalt concrete production system, ensuring stable material quality and consistent pavement performance. The asphalt plant operates through batching or continuous mixing processes and integrates drying, heating, screening, and mixing units for standardized asphalt production.
With the basics of what an asphalt mixing plant is and its role in road construction in mind, the next step is to understand how it works in practice and how raw materials are turned into finished hot mix asphalt through a controlled production process.
How an Asphalt Plant Works
To better understand what is an asphalt plant, it is important to look at how it works in real production conditions. An asphalt plant is not only defined by its structure, but also by the controlled process it uses to convert raw aggregates and bitumen into finished hot mix asphalt (HMA). This working process is what gives meaning to its function in road construction. The following steps explain how an asphalt plant operates as a complete production system.
Material Feeding
The process begins when cold aggregates such as sand, gravel, and crushed stone are loaded into the cold feed bins. This stage reflects the “input function” of what an asphalt plant is—a system that starts with raw construction materials.

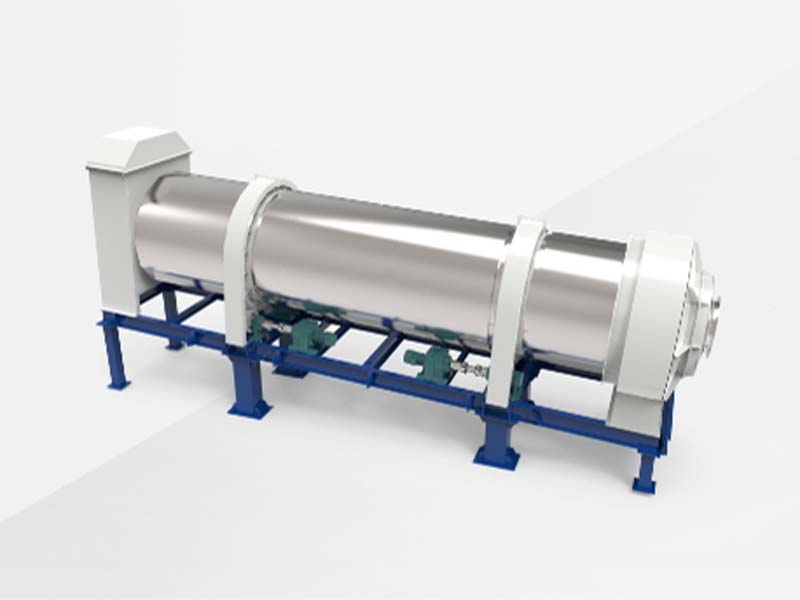

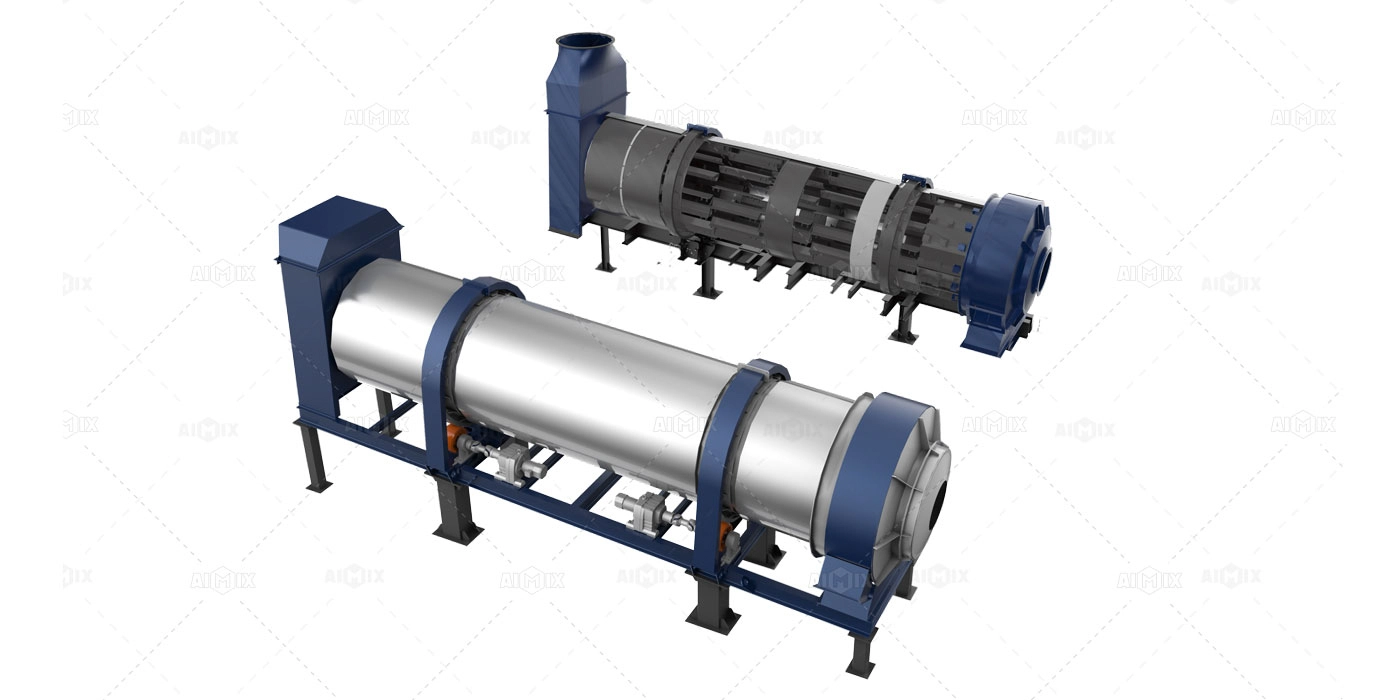

Drying and Heating
Aggregates are transferred into a rotating drying drum where moisture is removed and materials are heated by a burner system. This step is essential because it enables the plant to prepare materials for proper mixing, which is a core function described in the definition of an asphalt plant.
Dust Removal and Material Recycling
During heating, fine dust particles are collected by a dust collection system and partially recycled back into the process. This ensures environmental control and supports stable material quality, which is part of the plant’s integrated production design.
Screening and Hot Storage
Heated aggregates are separated into different sizes and stored in hot bins. This stage ensures that the system can control material grading, which directly affects asphalt quality.
Precise Weighing and Batching
Each material is weighed according to a designed mix ratio before entering the mixing stage. This step reflects one of the key characteristics of an asphalt plant: controlled proportioning for consistent output.

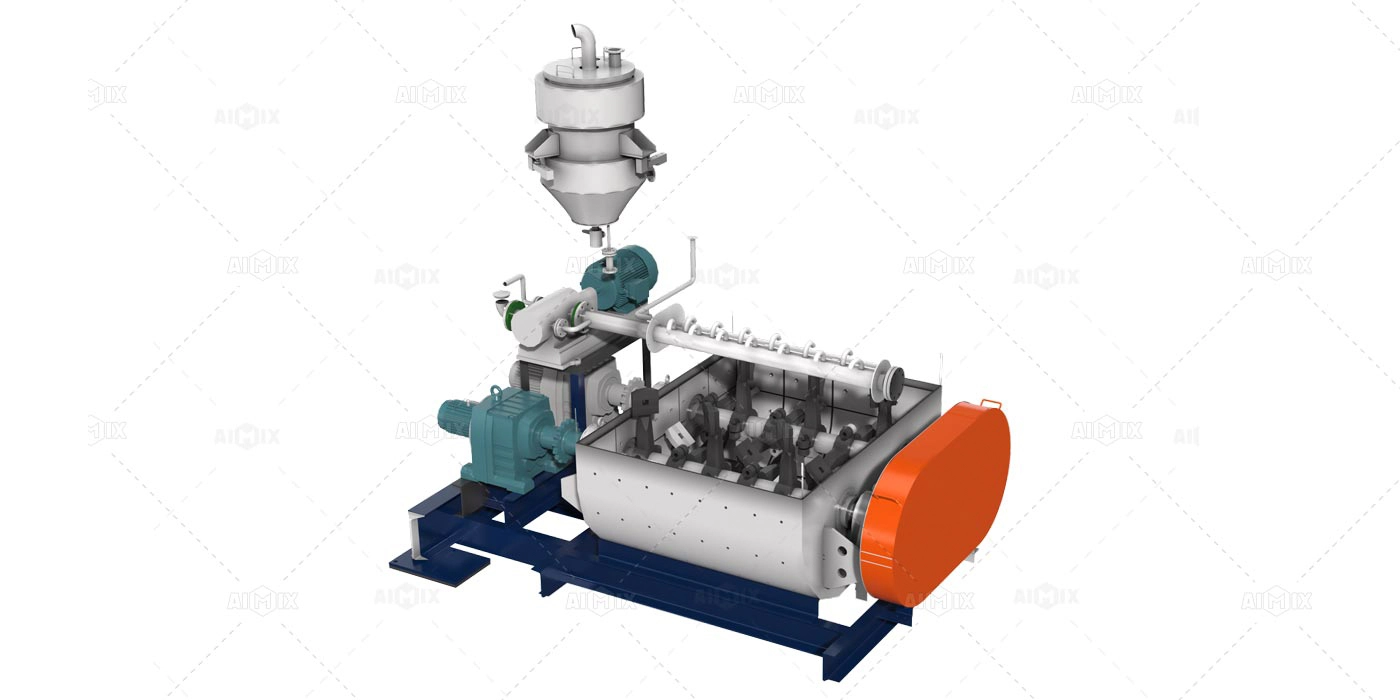

Mixing with Bitumen
Hot aggregates are mixed with bitumen at controlled temperature inside the mixing unit. This is the core transformation stage where raw materials become hot mix asphalt (HMA), the final product defined in the concept of an asphalt plant.

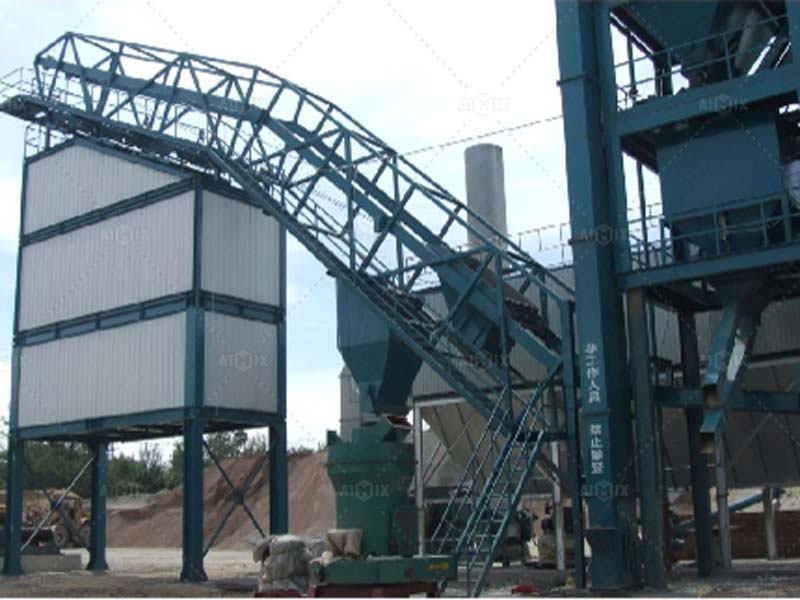

Storage or Direct Loading
The finished asphalt mixture is either stored in silos or directly loaded onto trucks for transportation to construction sites. This completes the production cycle of what an asphalt plant is designed to do: produce and supply ready-to-use asphalt for road construction.
Now that the working process of an asphalt mixing plant is clear, it becomes easier to understand what makes this system function as a whole. The next step is to look at its key components and how different plant types are structured to support different production needs.
Key Components of an Asphalt Mixing Plant (Batch vs Drum Types)
An asphalt mixing plant is a system used to produce hot mix asphalt by processing aggregates and bitumen under controlled conditions. While its asphalt plant definition explains its purpose, its internal structure reveals how this process is achieved in practice. Multiple integrated systems form its core structure to ensure stable heating, precise proportioning, and efficient asphalt production, with different configurations mainly including batch and drum types. The following section breaks down these key asphalt plant components in detail.

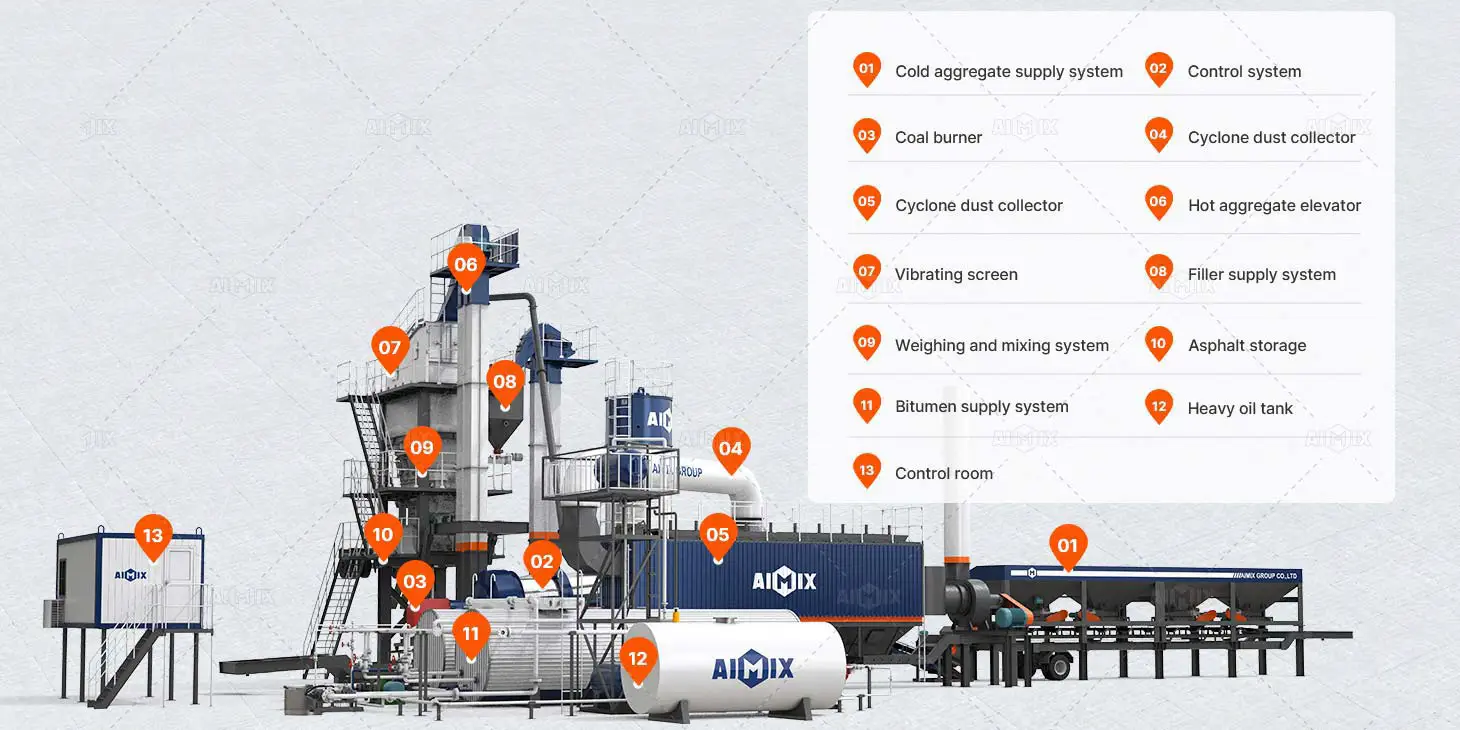

Main Components of a Batch Mix Asphalt Plant
A batch mix asphalt plant produces asphalt in measured batches with high precision. Its structure is designed to ensure accurate proportioning and flexible mix control.

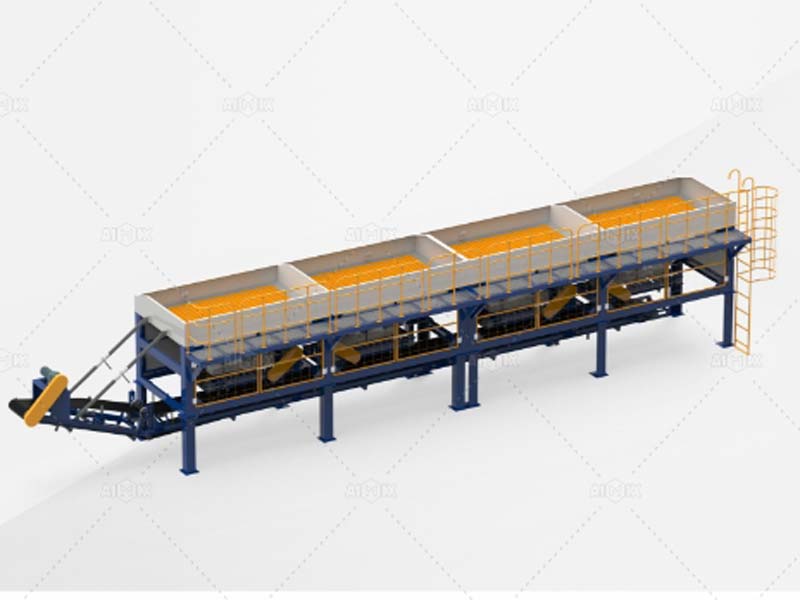

Cold Aggregate FeederFeeds different sizes of aggregates in controlled proportions to ensure correct mix design input.
Drying DrumRemoves moisture and heats aggregates to the required temperature before further processing.

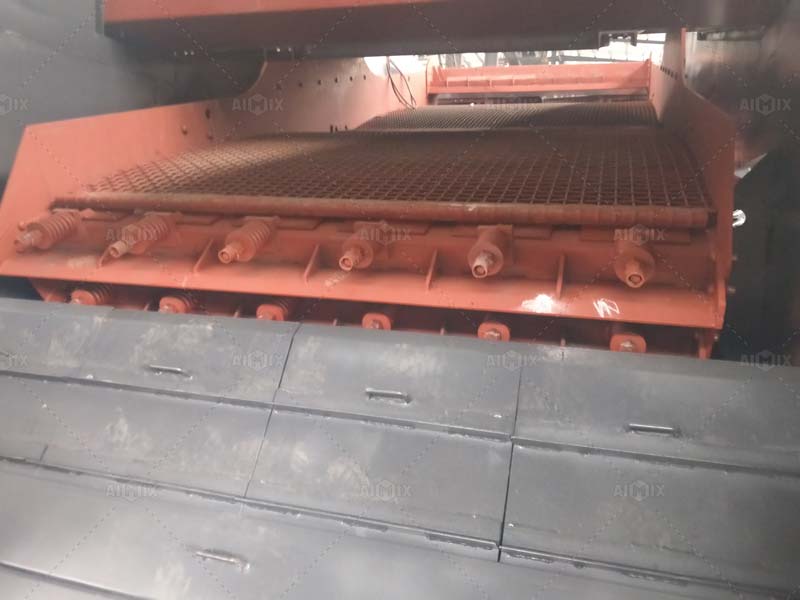

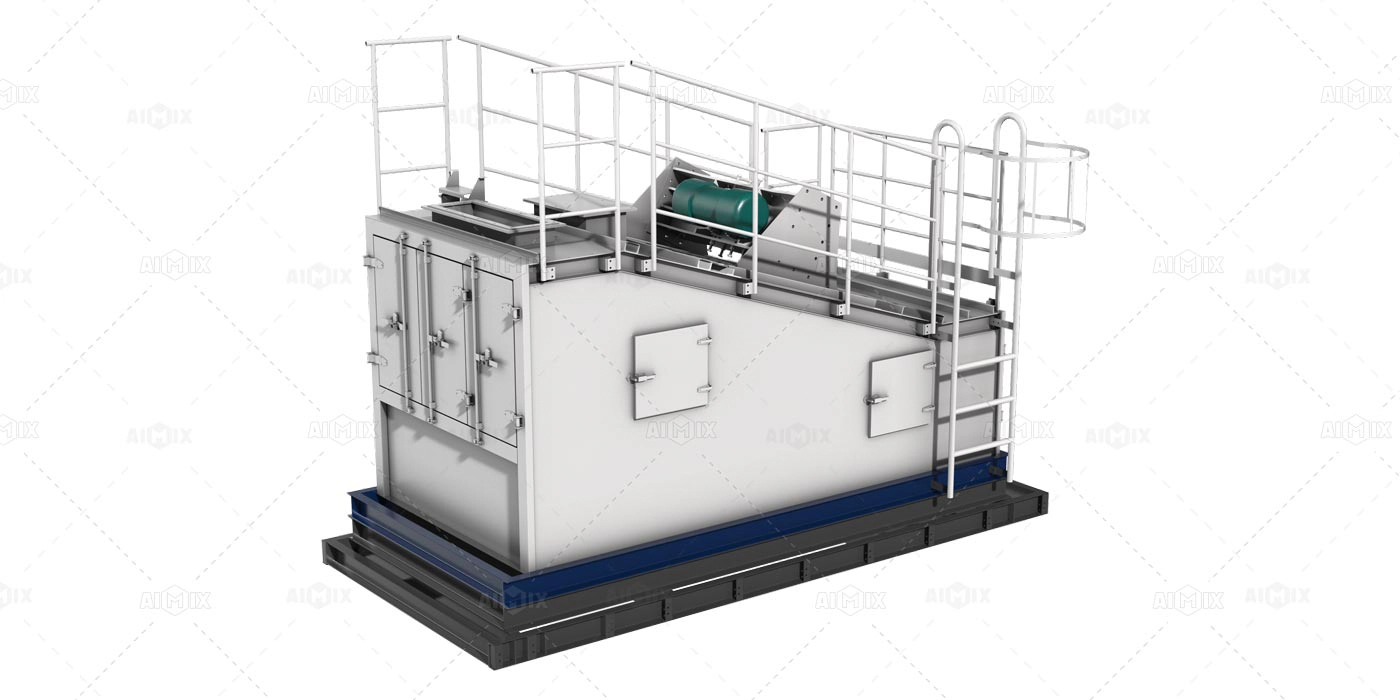

Vibrating Screening SystemSeparates heated aggregates into different size fractions to ensure grading accuracy.
Hot Aggregate BinsStores screened aggregates temporarily for precise batching operations.
Weighing SystemIndependently measures aggregates, filler, and bitumen for each batch to ensure mix accuracy.

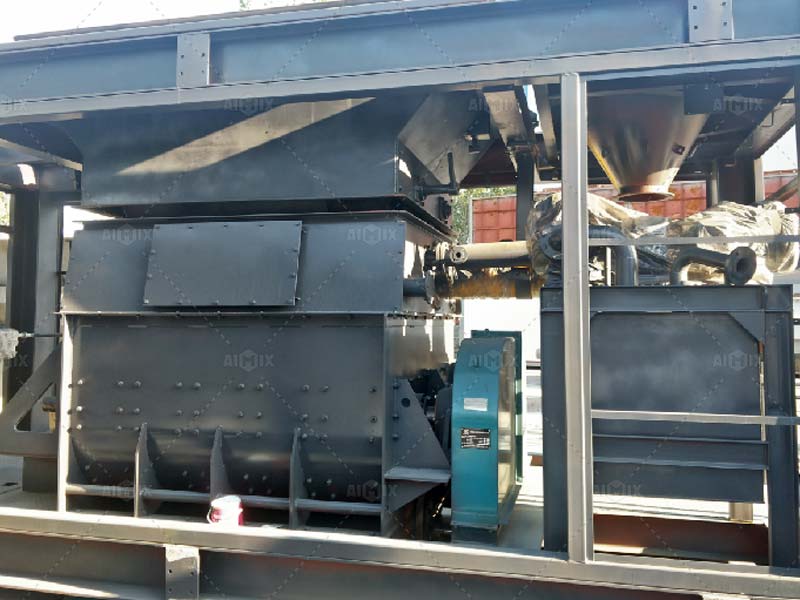

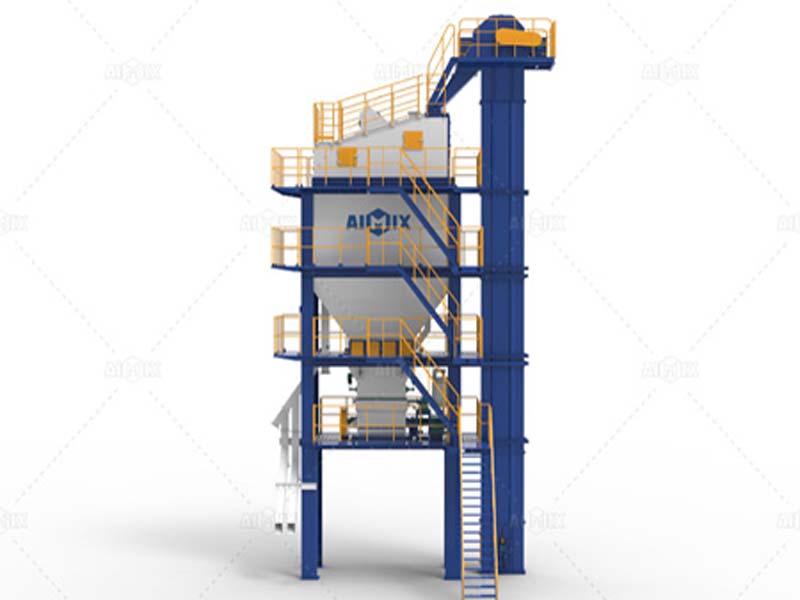

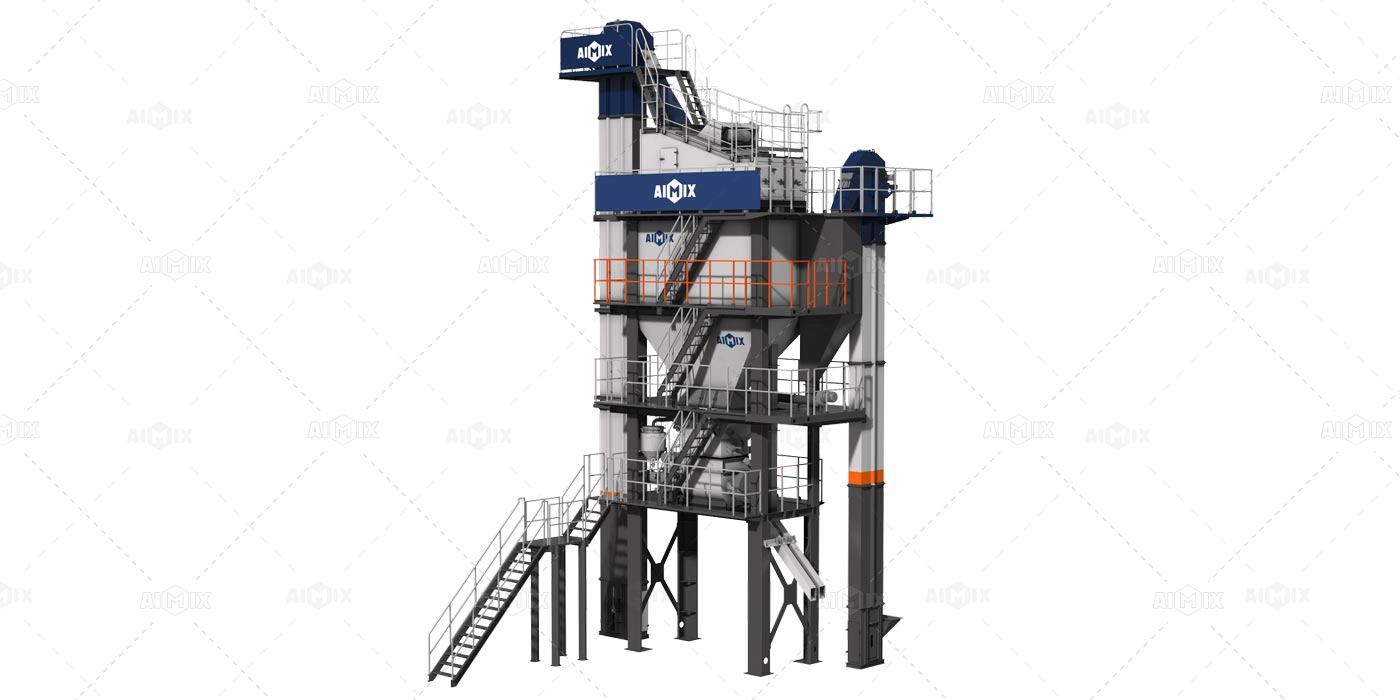

Mixing Tower (Pugmill Mixer)Blends all materials in a fixed mixing cycle to produce uniform asphalt mixture.
Bitumen Storage & Heating SystemStores bitumen and maintains it at stable working temperature for consistent mixing.

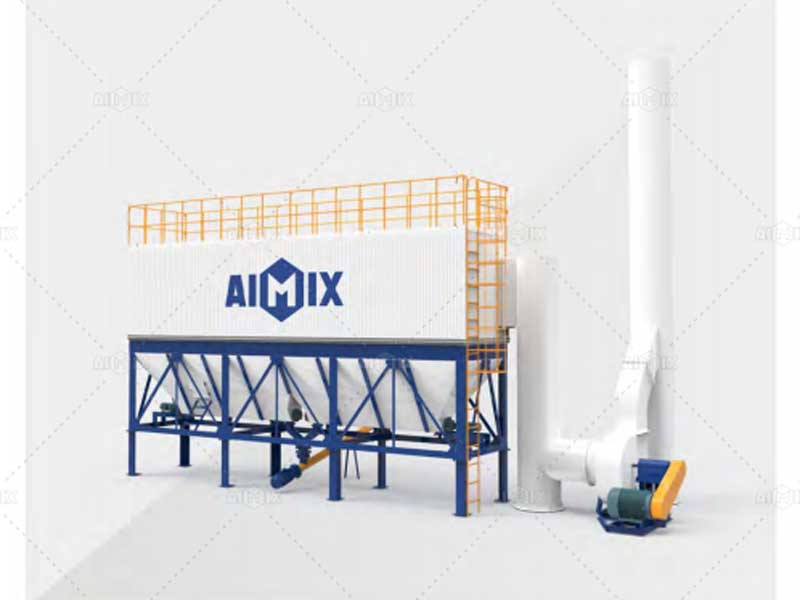

Dust Collection SystemCaptures dust generated during production and supports environmental compliance.

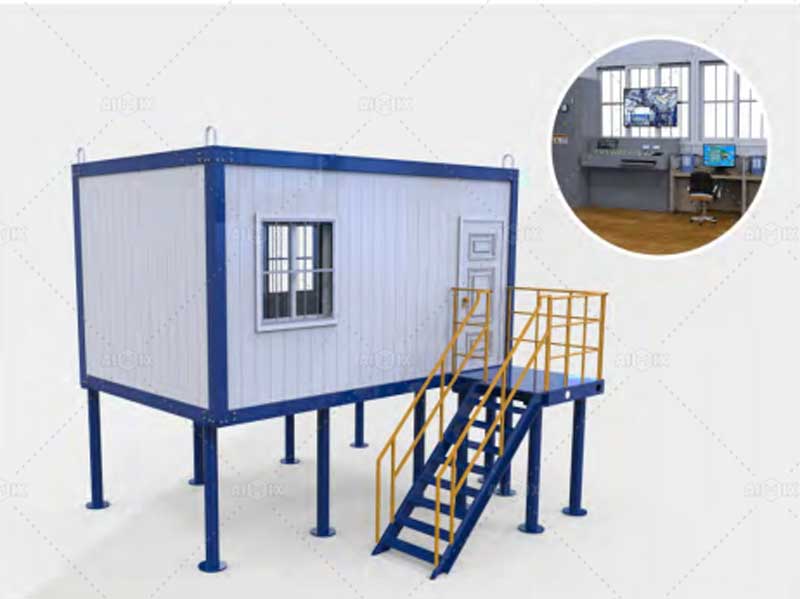

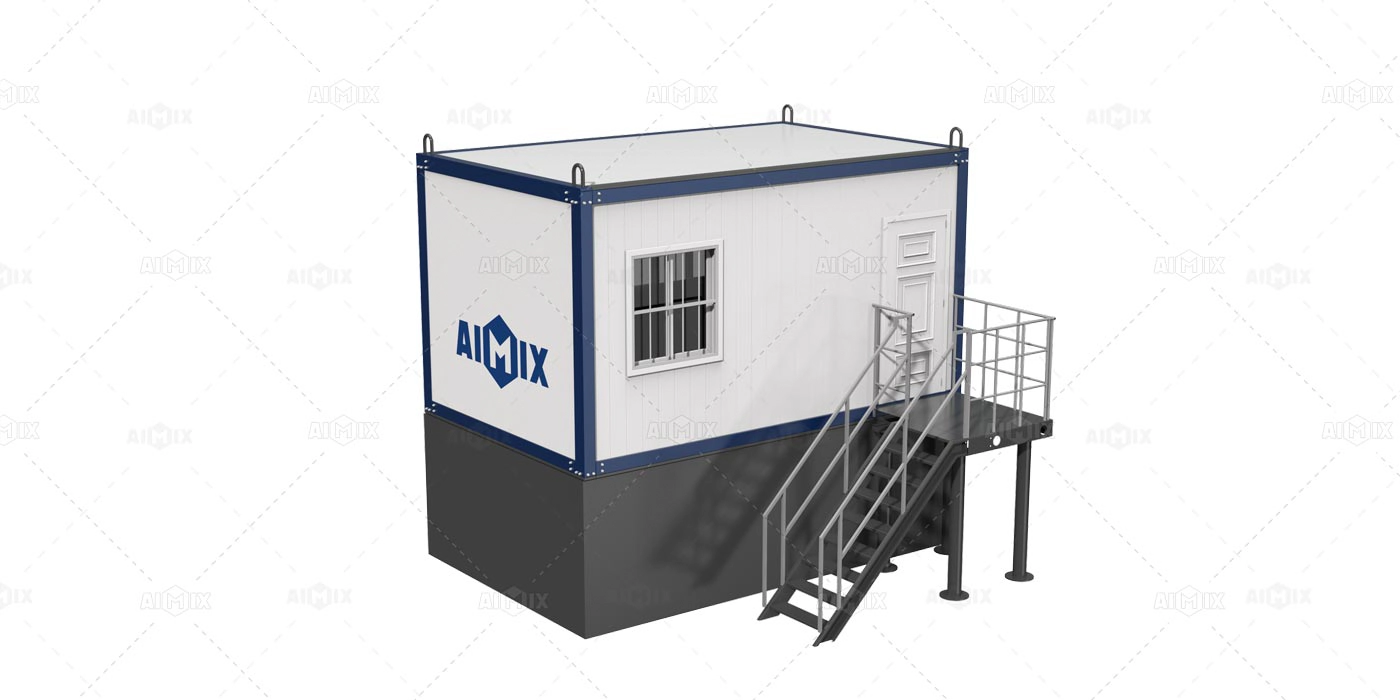

Control SystemAutomates production settings, temperature, and mix ratios to ensure stable operation.

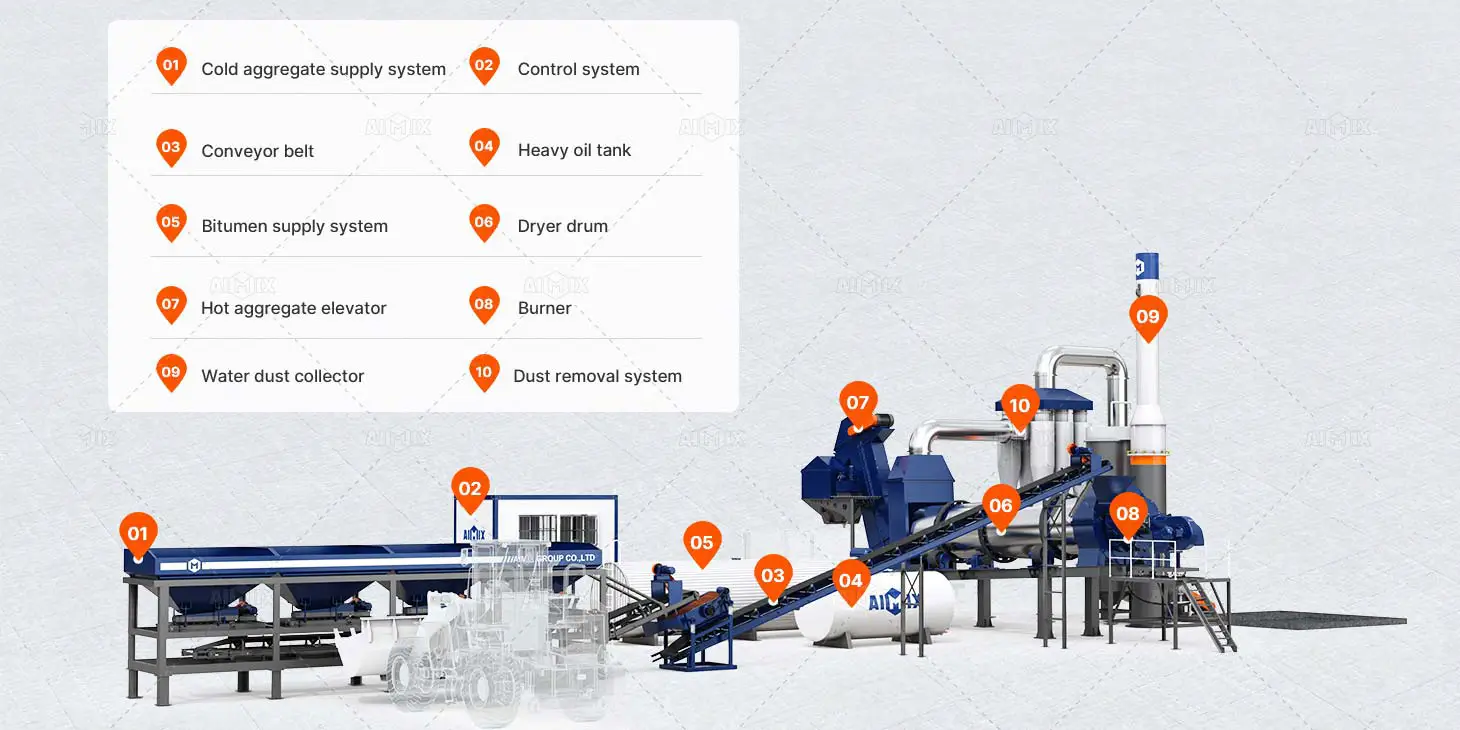

Main Components of a Drum Mix Asphalt Plant
A drum mix asphalt plant produces asphalt in a continuous process. Its structure is simpler and optimized for high-volume production.
Cold Feed SystemContinuously supplies aggregates into the production system with stable flow control.
Drying & Mixing Drum (Combined Unit)Performs drying, heating, and mixing in a single rotating drum under continuous operation.
Bitumen Injection SystemInjects bitumen directly into the drum to form asphalt mixture during the production process.
Filler Feeding SystemAdds mineral powder into the mixing stream to adjust asphalt composition.
Continuous Discharge SystemContinuously outputs finished asphalt without stopping the production cycle.
Dust Collection SystemControls emissions and captures fine particles generated during continuous operation.
With the key components and the difference between batch and drum systems in mind, it becomes clear that different configurations of asphalt plants meet varying production needs. The next step is to explore the main types of asphalt plants and their specifications in more detail.
What Are The Different Types Of Asphalt Plants and Specifications
To further understand what is asphalt mixing plant, it is helpful to see how it is classified based on production method and mobility. These types represent different configurations of the same system used to produce hot mix asphalt under varying construction conditions. The main types of asphalt plants include stationary batch, mobile batch, stationary drum, and mobile drum asphalt plants.

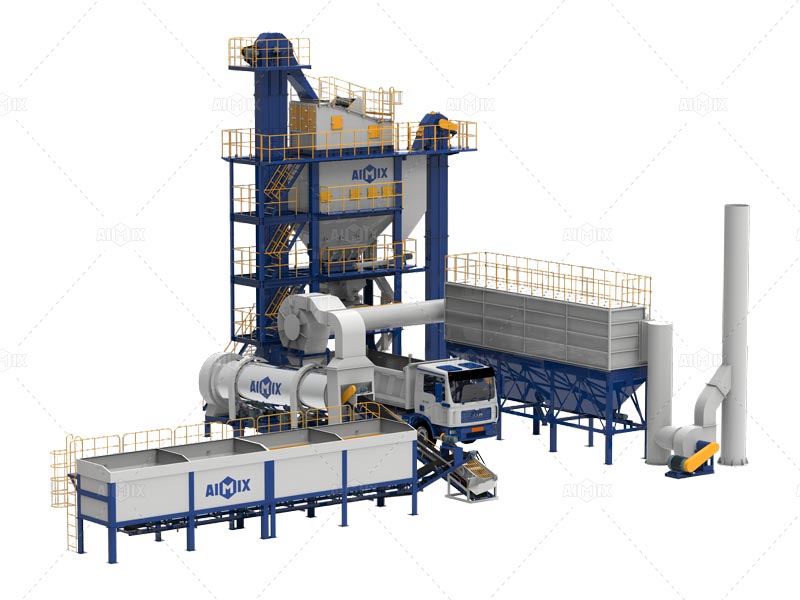

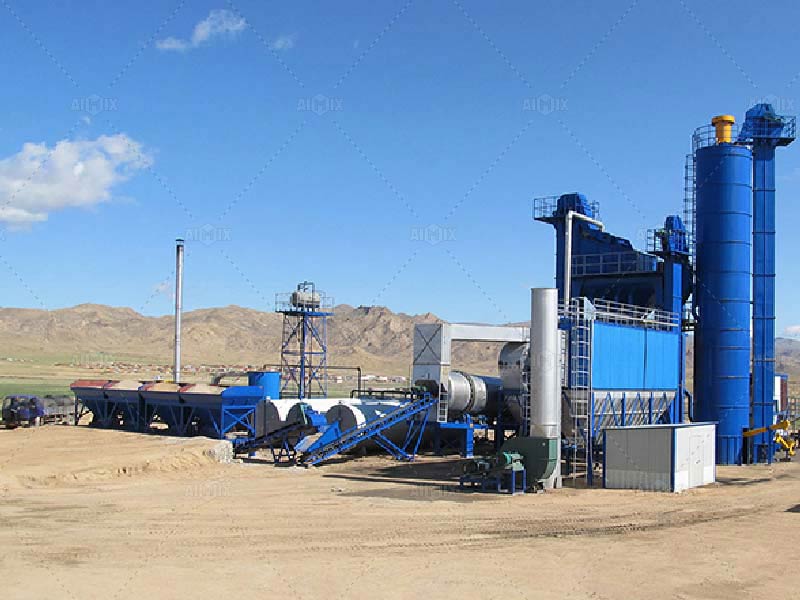

Stationary Batch Mix Asphalt Plant
A stationary batch mix asphalt plant is a fixed system for high-precision asphalt production. It features intelligent control with one-button operation, multiple control modes, and IoT remote monitoring for real-time management. The plant supports automated batching, mixing, and discharge to ensure stable production. It achieves high weighing accuracy (±0.5% for aggregates, ±0.25% for bitumen and filler). With wear-resistant components and predictive maintenance design, the batch mix asphalt plant is suitable for long-term large-scale road construction projects.
| Model | ALQ40 | ALQ60 | ALQ80 | ALQ100 | ALQ120 | ALQ160 | ALQ200 | ALQ240 | ALQ320 |
|---|---|---|---|---|---|---|---|---|---|
| Capacity | 40 t/h | 60 t/h | 80 t/h | 100 t/h | 120 t/h | 160 t/h | 200 t/h | 240 t/h | 320 t/h |
| Cold Aggregate Hoppers | 4×4.5m³ | 4×6.5m³ | 4×7.5m³ | 4×7.5m³ | 5×7.5m³ | 5×12m³ | 5×12m³ | 5×12m³ | 6×15m³ |
| Dryer Size | φ1.2m×5.2m | φ1.5m×6m | φ1.5m×6.7m | φ1.65m×7m | φ1.8m×8m | φ2.2m×9m | φ2.6m×9m | φ2.6m×9.5m | φ2.8m×10.2m |
| Fuel consumption | 70-300kg / h | 100-400kg / h | 120-600kg / h | 150-1000kg / h | 150-1000kg / h | 150-1400kg / h | 180-1800kg / h | 180-1800kg / h | 260-2500kg / h |
| Vibrating Screen (Layer) | 4 layers | 4 layers | 4 layers | 4 layers | 5 layers | 5 layers | 5 layers | 5 layers | 6 layers |
| Mixer Capacity | 500kg | 800kg | 1000kg | 1250kg | 1500kg | 2000kg | 2500kg | 3000kg | 4000kg |
| Cycle Time | 45s | 45s | 45s | 45s | 45s | 45s | 45s | 45s | 45s |
| Filter Area | 230m² | 300m² | 420m² | 480m² | 550m² | 650m² | 700m² | 1050m² | 1350m² |
| Asphalt Temperature | 140-180 ℃ | 140-180 ℃ | 140-180 ℃ | 140-180 ℃ | 140-180 ℃ | 140-180 ℃ | 140-180 ℃ | 140-180 ℃ | 140-180 ℃ |
| Total Power | 170kw | 200kw | 300kw | 350kw | 380kw | 490kw | 550kw | 670kw | 865kw |

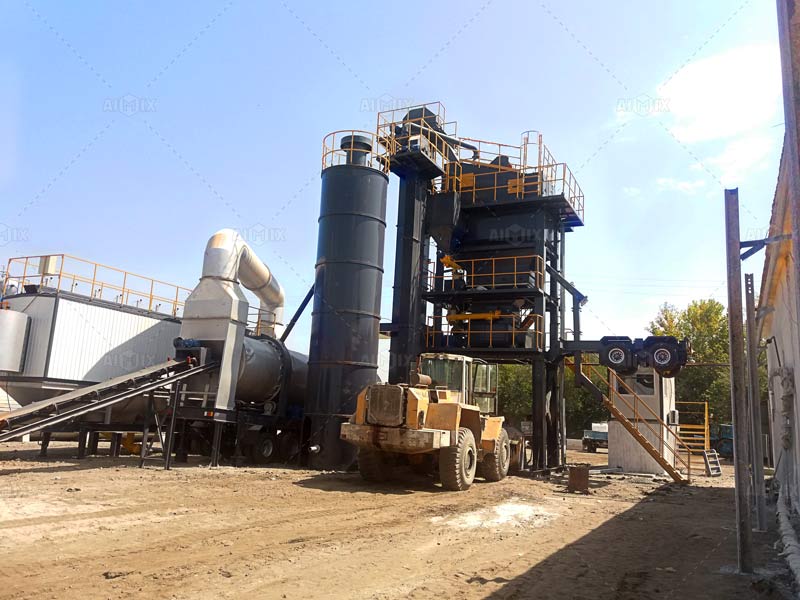

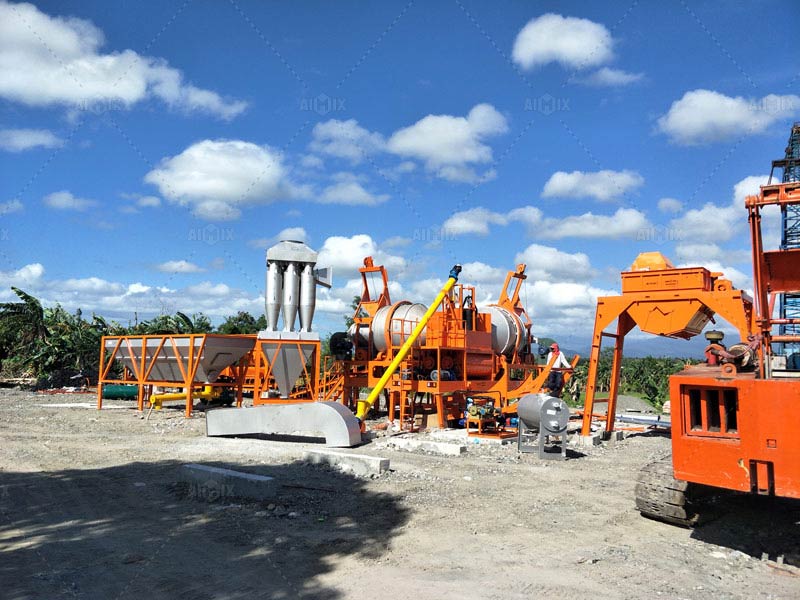

Mobile Batch Mix Asphalt Plant
A mobile batch mix asphalt plant is a modular, fast-deployment system for batch asphalt production. The asphalt plant mobile supports foundation-free installation and 24-hour relocation through a quick-connect structure. It integrates AI intelligent control, remote monitoring, and automated operation to improve efficiency and reduce labor. With a high-efficiency mixing system and wear-resistant design, it increases output while ensuring stable performance. AI precision weighing with automatic compensation ensures accurate batching, low waste, and consistent asphalt quality.
| Model | ALYQ60 | ALYQ80 | ALYQ100 | ALYQ120 | ALYQ160 | |
|---|---|---|---|---|---|---|
| Capacity | t / h | 60 | 80 | 100 | 120 | 160 |
| Mixer capacity | kg | 800 | 1200 | 1300 | 1700 | 2200 |
| Mixing cycle | s | 45 | 45 | 45 | 45 | 45 |
| Total power | Gasoline(kW) | 54 | 63.5 | 104.5 | 125 | 157.5 |
| Coal(kW) | 75 | 86.5 | 127.5 | 169 | 205 | |
| filter area | m2 | 370 | 420 | 480 | 510 | 620 |

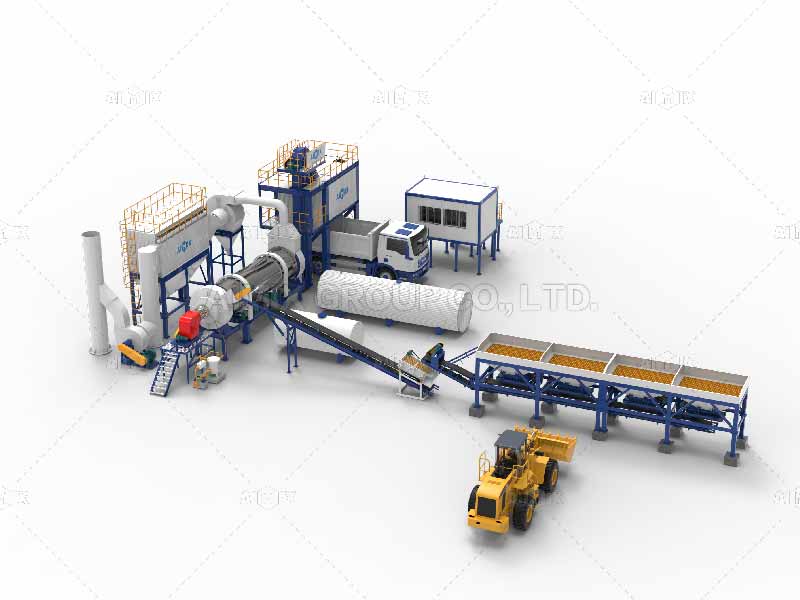

Stationary Drum Mix Asphalt Plant
A stationary drum mix asphalt plant is a fixed continuous production system where drying, heating, and mixing occur in one rotating drum. It features an integrated tower structure with optimized thermal efficiency to reduce heat loss and improve energy use. It is suitable for flat, centralized sites requiring long-term stable production. The drum mix plant requires a lower initial investment but takes longer to relocate due to foundation requirements, and it is commonly used for county highways, rural roads, and regional road construction projects.
| Courts Models | ALT20 | ALT40 | ALT60 | ALT80 | ALT100 |
|---|---|---|---|---|---|
| Capacity | 20 t/h | 45 t/h | 60 t/h | 80 t/h | 100 t/h |
| The ability to | 40kw | 75kw | 120kw | 165kw | 200kw |
| Cold Aggregate Hoppers | 3.5m³×1 | 4m³×4 | 4m³×4 | 6.5m³×4 | 6.5m³×4 |
| Finished Product Hopper | 3t | 3t | 7t | 7t | 9t |
| Asphalt Temperature | 120-180 ℃ | ||||
| Fuel consumption | 13-15kg/t | ||||
| Asphalt Tank | 10 t | 20 t | 30 t | 30 t | 35 t |
| Control room | 2.2m | 2.2m | 3m | 3m | 3.5m |
| Option | Bag dust filter | ||||

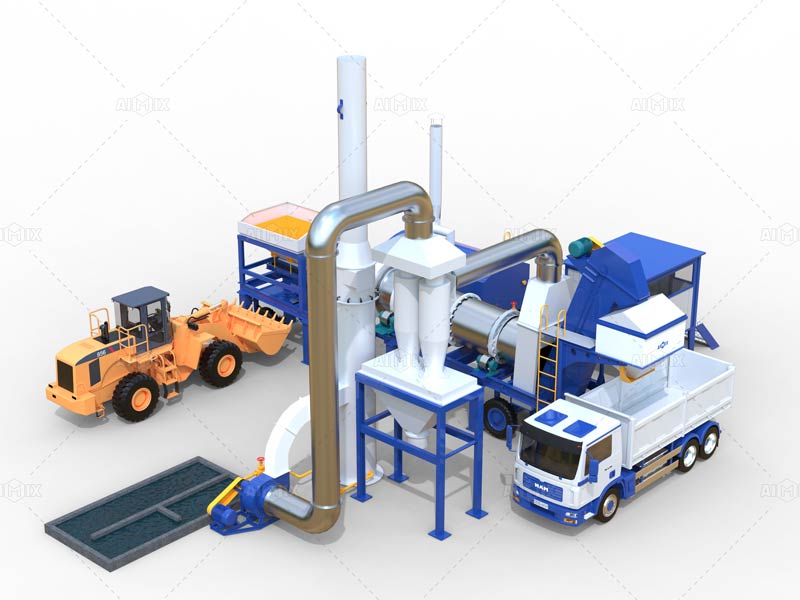

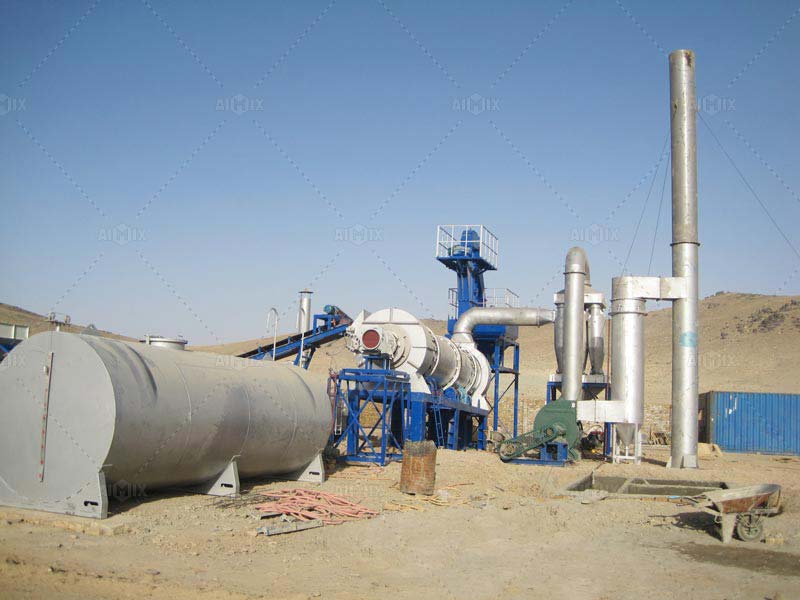

Mobile Drum Mix Asphalt Plant
A mobile drum mix plant is a continuous production system that combines high output efficiency with strong mobility. It adopts a modular, low-center-of-gravity design, enabling fast disassembly, transportation, and reinstallation within 3–5 days. The plant is suitable for complex terrains such as mountains and hilly areas, and can adapt to limited site conditions and low overhead constraints. This type requires a higher initial investment but reduces relocation costs, and contractors widely use it for road repair in mountainous regions and bridge connecting projects across rivers.
| Model | ALYT20 | ALYT40 | ALYT60 | ALYT80 | ALYT100 | ALYT120 |
|---|---|---|---|---|---|---|
| Output | 20t/h | 45t/h | 60t/h | 80t/h | 100t/h | 120t/h |
| Power | 34kw | 65kw | 105kw | 135kw | 170kw | 200KW |
| Cold Aggregate Feeding System | 3.5m³×1 | 4m³×4 | 4m³×4 | 6.5m³×4 | 6.5m³×4 | 6.5m³×4 |
| Finihsed Asphalt Storage Bin | 2m³ | 2.5m³ | 4.5m³ | 5m³ | 7m³ | 7m³ |
| Asphalt Temperature | 120-180℃ | 120-180℃ | 120-180℃ | 120-180℃ | 120-180℃ | 120-180℃ |
| Fuel Consumption(Fuel Oil) | 5-7.5kg/t | 5-7.5kg/t | 5-7.5kg/t | 5-7.5kg/t | 5-7.5kg/t | 5-7.5kg/t |
| Fuel Consumption(Burning Coal) | 13-15kg/t | 13-15kg/t | 13-15kg/t | 13-15kg/t | 13-15kg/t | 13-15kg/t |
| Asphalt Tank | 10t | 20t | 30t | 30t | 35t | 35t |
| Option | bag dust collector / water dust collector | bag dust collector / water dust collector | bag dust collector / water dust collector | bag dust collector / water dust collector | bag dust collector / water dust collector | bag dust collector / water dust collector |
| Whole Plant Option | whole mobile / semi-mobile / fixed | whole mobile / semi-mobile / fixed | whole mobile / semi-mobile / fixed | whole mobile / semi-mobile / fixed | whole mobile / semi-mobile / fixed | whole mobile / semi-mobile / fixed |
After understanding the different types of asphalt plants and their specifications, the picture becomes more complete when we see how they perform in real construction environments. This leads to the practical use of asphalt mixing plants across a wide range of infrastructure works.

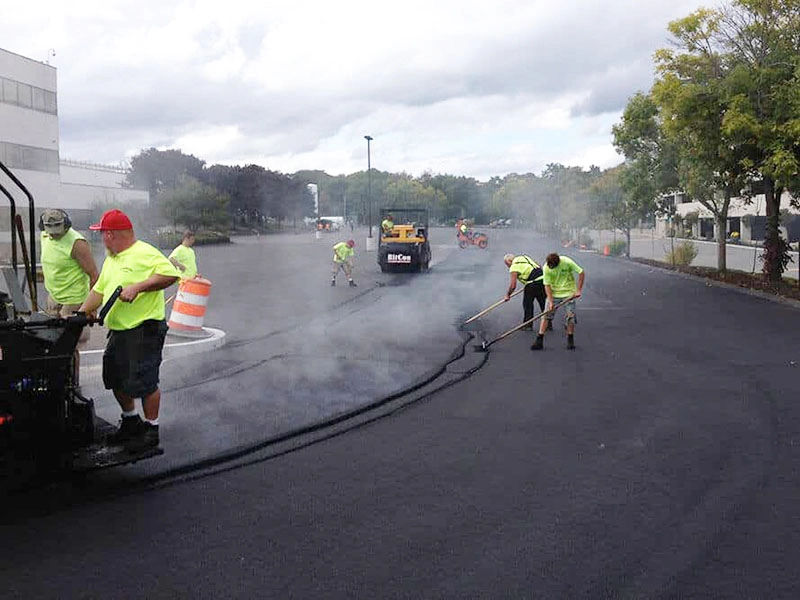

Applications of Asphalt Mixing Plants
Asphalt mixing plants exist because road construction cannot rely on pre-produced asphalt alone. In almost every road project, contractors produce asphalt close to the paving site and adjust it in real time according to temperature, traffic load, and material conditions. This is where the asphalt plant becomes a production hub rather than just a machine.
Highway Construction
Urban Road Works
Rural Road Projects
Rural construction is scattered. The same plant often serves multiple villages or road segments. It runs in repeated production cycles, moving or adjusting output depending on daily construction progress rather than a fixed plan.
Mountain & Remote Areas
In mountainous or remote regions, the challenge is not demand but access. Asphalt plants are placed closer to the site so that hot mix does not cool during long transport, which would affect paving quality.
Airports & Heavy-Duty Surfaces
Airports and industrial zones require asphalt that can withstand heavy loads and long-term stress. Here, the plant tightly controls material quality so that every batch meets strict engineering standards.
Maintenance & Repair Work
For maintenance, the demand is not scale but speed. Small batches of asphalt meet on-demand production needs and quickly repair damaged sections without disrupting overall traffic flow for long periods.
After exploring the wide range of applications of asphalt mixing plants, it becomes clear that their role goes beyond simple material production—they directly influence project efficiency, pavement quality, and long-term infrastructure performance. Understanding this deeper impact leads to why asphalt mixing plants are essential in the road and bridge industry.
Why Asphalt Mixing Plants Are Essential in the Road and Bridge Industry
The global road construction industry depends on asphalt mixing plants to supply high-quality asphalt for highways, bridges, airports, and urban infrastructure projects. As road networks continue expanding, asphalt production systems have become a core part of modern infrastructure construction.
90%+ Of Roads Use Asphalt Pavement
Massive Daily Asphalt Demand
Precise Controlled Mixing Temperature
Stable Asphalt Quality Directly Impacts Pavement Performance
Rapid Growth of Global Infrastructure Construction
Continuous Paving Requires Synchronized Material Supply
While asphalt mixing plants play a vital role in enabling efficient and durable road and bridge construction, their real performance ultimately depends on the quality and combination of materials used in production. To understand how stable asphalt actually forms, let’s take a closer look at the key materials involved in asphalt production.
What Materials Are Used in Asphalt Production?
Understanding the materials used in asphalt production is an important part of understanding how an asphalt mixing plant works. During production, the hot mix asphalt plant heats, dries, proportions, and mixes different raw materials together to produce hot mix asphalt (HMA) for road construction.

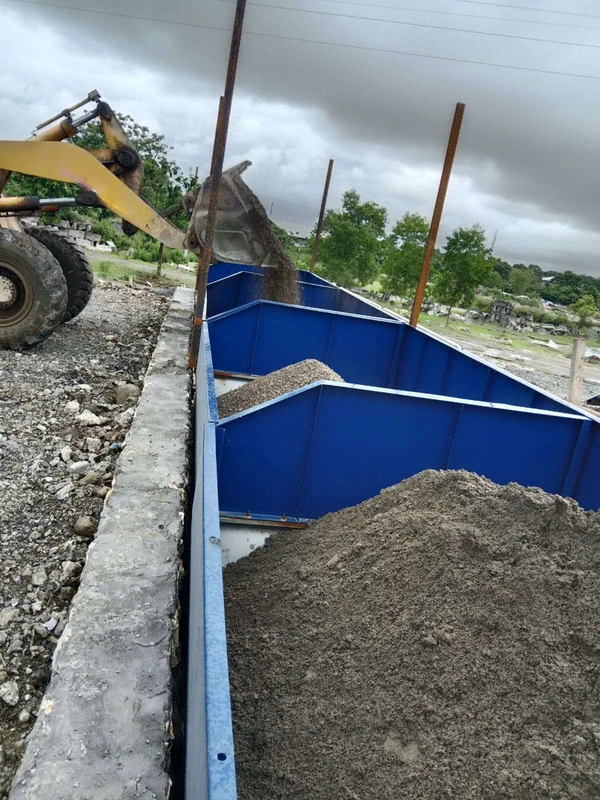

Aggregates (Coarse & Fine Materials)
Aggregates make up about 90–95% of the asphalt mixture and form the structural base of the pavement. Their size, moisture, and grading directly affect drying efficiency and final pavement strength.
- Key Requirements: Bulk density is typically around 1.6 t/m³.
- Moisture content is usually controlled below 5%.
- Large aggregates are generally limited to under 60 mm.
- Fine aggregates should contain minimal dust and impurities.
👉 Poor aggregate consistency can lead to uneven mixing and pavement durability.

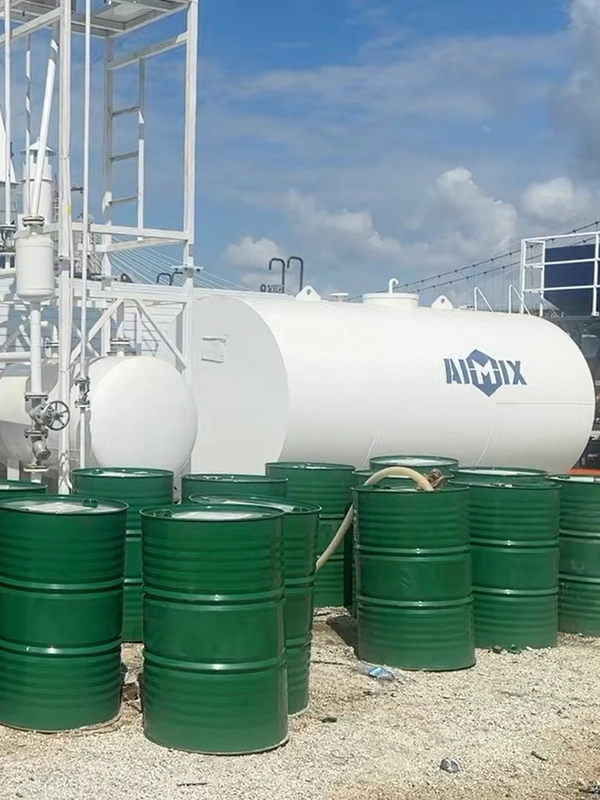

Bitumen (Asphalt Binder Material)
Bitumen acts as the adhesive material that binds aggregates together and provides pavement flexibility and waterproof performance.
Key Requirements:
- Binder content usually accounts for 4–6% of the asphalt mixture.
- Mixing temperature is commonly maintained between 140–180°C.
- Stable coating performance is required to ensure proper aggregate adhesion.
👉 Improper bitumen temperature can reduce coating quality and increase risks of cracking or rutting.
Mineral Filler (Fine Powder Material)
Mineral filler improves asphalt density and internal stability by filling voids between aggregates.
Key Requirements:
- Moisture content is usually controlled below 0.5%.
- Material should remain free from clumping and blockage.
- Stable feeding is required for accurate proportioning during production.
👉 Excess moisture in filler can affect weighing accuracy and interrupt continuous production.
Recycled Asphalt Pavement (RAP Material Use)
RAP refers to recycled material that comes from old asphalt pavement and reused in new asphalt production.
Key Benefits:
- Reduces consumption of virgin aggregates and bitumen.
- Lowers overall material cost.
- Supports more sustainable and resource-efficient road construction.
👉 Many modern projects use RAP to balance construction cost and environmental requirements.
Additives & Modifiers (Performance Enhancers)
Additives are used to improve asphalt performance under heavy traffic, high temperature, or wet environmental conditions.
Common Functions:
- Improve crack resistance.
- Enhance pavement durability.
- Increase resistance to water damage and deformation.
👉 Modified asphalt mixtures see wide use in highways, airports, and heavy-load pavement systems.

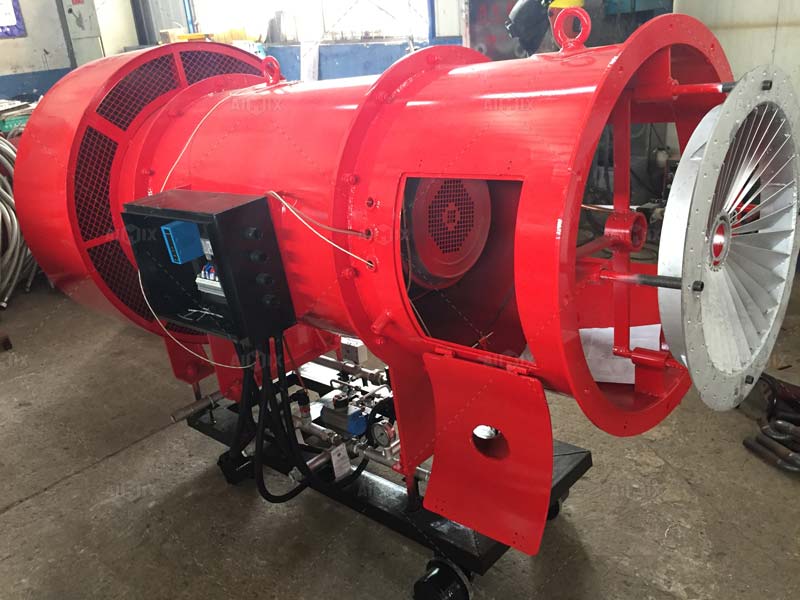

Fuel for Burner Systems (Heating Energy Source)
Fuel powers the burner system used to heat and dry aggregates inside the asphalt mixing plant.
Key Requirements:
- Stable atomization and combustion performance.
- Heavy oil and residual oil usually require heating and filtration.
- Poor-quality fuel can reduce heating efficiency and increase emissions.
👉 Burner stability directly affects aggregate heating consistency and overall production efficiency.
Understanding the key materials used in asphalt production is essential, but material selection alone is not enough to ensure consistent pavement performance. The real challenge lies in how the plant controls and maintains overall asphalt quality during the production process. Let’s look at how asphalt plants achieve stable and reliable quality control.
How Does an Asphalt Plant Maintain Asphalt Quality?
When understanding the asphalt plant meaning, it is also important to see how it maintains consistent asphalt quality in real production. This is because an asphalt plant does not only produce hot mix asphalt, but also ensures that the material remains stable and reliable for road construction use. It achieves this through an integrated system that controls proportioning, heating, mixing, and discharge in a continuous and controlled process.
Precision Weighing System Ensures Exact Mix Ratios
- High-accuracy load cells control aggregate, filler, and bitumen measurement.
- Weighing deviation is tightly controlled (±0.5% aggregates, ±0.25% binder materials).
- Automated batching ensures the same mix design is reproduced every cycle.
👉 This ensures the plant always produces identical material composition, which is the foundation of asphalt quality stability.
Controlled Drying and Heating System Stabilizes Material Condition
- Drying drum removes moisture and stabilizes aggregate condition before mixing.
- Moisture is controlled below 5% to ensure efficient heat transfer.
- Heating system maintains a stable working range of 140–180°C.
👉 This guarantees that materials enter the mixer in a stable physical state, allowing consistent coating and bonding performance.
High-efficiency Mixing System Ensures Uniform Blending
- Pugmill or drum mixing structure ensures full material contact.
- Controlled mixing time guarantees complete bitumen coating.
- Aggregate grading (≤60 mm) supports stable internal flow behavior.
👉 This ensures that the system coats every particle evenly, preventing segregation and uneven pavement performance.
Automated Control System Eliminates Operational Variation
- PLC / computer control system manages the entire production cycle.
- Real-time monitoring of temperature, weight, and cycle timing.
- Automatic adjustment reduces human operation errors.
👉 This keeps production behavior consistent regardless of operator differences or working conditions.
Equipment Structure Ensures Long-term Production Stability
- Wear-resistant mixing blades and liners maintain consistent performance over time.
- Stable feeding and storage systems prevent interruption during continuous operation.
- Cold aggregate bins designed for continuous supply stability.
👉 This ensures that long-term operation does not lead to quality drift caused by mechanical wear or unstable feeding.
Beyond maintaining stable asphalt quality through controlled production processes, modern asphalt plants are also evolving with advanced technologies that improve efficiency, automation, and overall performance. Let’s explore what these modern technologies are and how they enhance asphalt production.

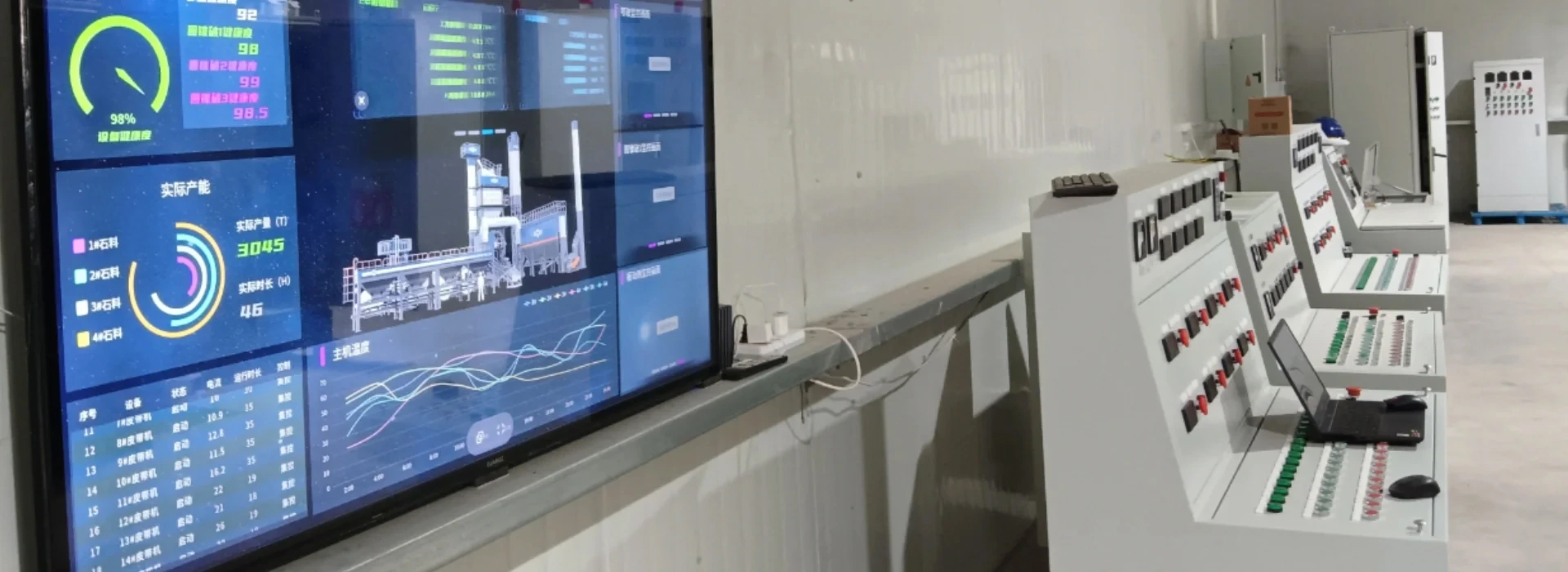

What Are the Modern Technologies Used in Asphalt Plants?
When understanding what is the asphalt plant, it is not enough to only look at its basic structure. We define modern asphalt plants not just by their ability to produce hot mix asphalt, but also by the advanced technologies that control how consistently, efficiently, and accurately the production process runs. These technologies explain how today’s asphalt plants have evolved from traditional mixing equipment into fully automated and digitally controlled production systems.
40–50% Labor Reduction Automation Control Systems
- PLC-based centralized control manages batching, mixing, and discharge in a continuous cycle.
- One-click operation simplifies up to 50 manual steps into a single command.
- Typical configurations reduce operator demand from around 4 workers to 2.
- Standardized digital control eliminates variation caused by human operation differences.
20–30% Downtime Reduction IoT Monitoring Systems
- Real-time monitoring of temperature, output, burner status, and mixing conditions.
- Automatic fault detection and maintenance alerts to prevent sudden shutdowns.
- Remote access through cloud platforms and mobile devices enables multi-site supervision.
- Continuous data recording supports long-term performance optimization.
More Durable Road Performance with ±0.25%–0.5% Mix Accuracy
- Aggregate weighing accuracy controlled within ±0.5%.
- Bitumen and filler controlled within ±0.25% deviation range.
- Automatic compensation systems adjust material flow in real time.
- Large-scale plants can reduce material waste by up to ~80 tons per day.
10–15% Fuel Saving Thermal Efficiency Systems
- Optimized drying drum design improves heat transfer efficiency between materials and hot air.
- Intelligent burner systems maintain stable working temperature between 140–180°C.
- Combustion control reduces unnecessary fuel usage during idle or low-load conditions.
- Optimized systems can reduce fuel consumption by approximately 10–15%.
Faster Project Start and Relocation within 3–5 Days
- Modular structural design allows fast assembly and disassembly.
- Quick-connect systems simplify installation of water, air, and electrical lines.
- Mobile configurations support relocation and restart within 3–5 days.
- Some advanced systems can resume production within 24 hours after relocation.
Reduced Breakdown Risk with Long-Term Operation Stability
- Predictive maintenance systems detect wear and potential failures in advance.
- Wear-resistant mixing blades and liners extend service life by several years.
- Enlarged cold aggregate storage systems improve continuous feeding stability by ~20%.
- Stable feeding and mixing systems reduce long-term quality drift.
Modern asphalt plant technologies continue to enhance production efficiency, quality control, and operational stability, making asphalt manufacturing more precise and reliable than ever. To further clarify common questions and practical concerns about asphalt plants, let’s move on to some frequently asked questions.
FAQs About Asphalt Plants
Why Is Temperature Control Critical in Asphalt Production?
How Much Recycled Asphalt Can an Asphalt Plant Use?
What Factors Most Affect Asphalt Mixing Quality?
Why Does Aggregate Gradation Matter in Asphalt Production?
What Factors Affect Asphalt Plant Production Efficiency?
How Long Does It Take for an Asphalt Mixing Plant to Reach Stable Production?
What Is the Typical Service Life of an Asphalt Mixing Plant?
How Does Aggregate Moisture Affect Asphalt Production Efficiency?
Why Is Dust Collection Important in Modern Asphalt Plants?
Ready to Learn More About Asphalt Mixing Solutions?
An asphalt mixing plant is a key system in modern road construction that enables the efficient and consistent production of hot mix asphalt for durable pavement projects. Understanding how it works and what it delivers is essential for choosing the right solution for different construction needs. If you are planning a road project or exploring asphalt production options, feel free to reach out for more practical guidance and suitable asphalt plant solutions.
